Partner MF-2352 Service Manual

Hide thumbs Also See for MF-2352:
Table of Contents

Advertisement

Quick Links

Download this manual
MF-2352
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF-2352 and is the answer not in the manual?

Questions and answers

Related Manuals for Partner MF-2352

Summary of Contents for Partner MF-2352

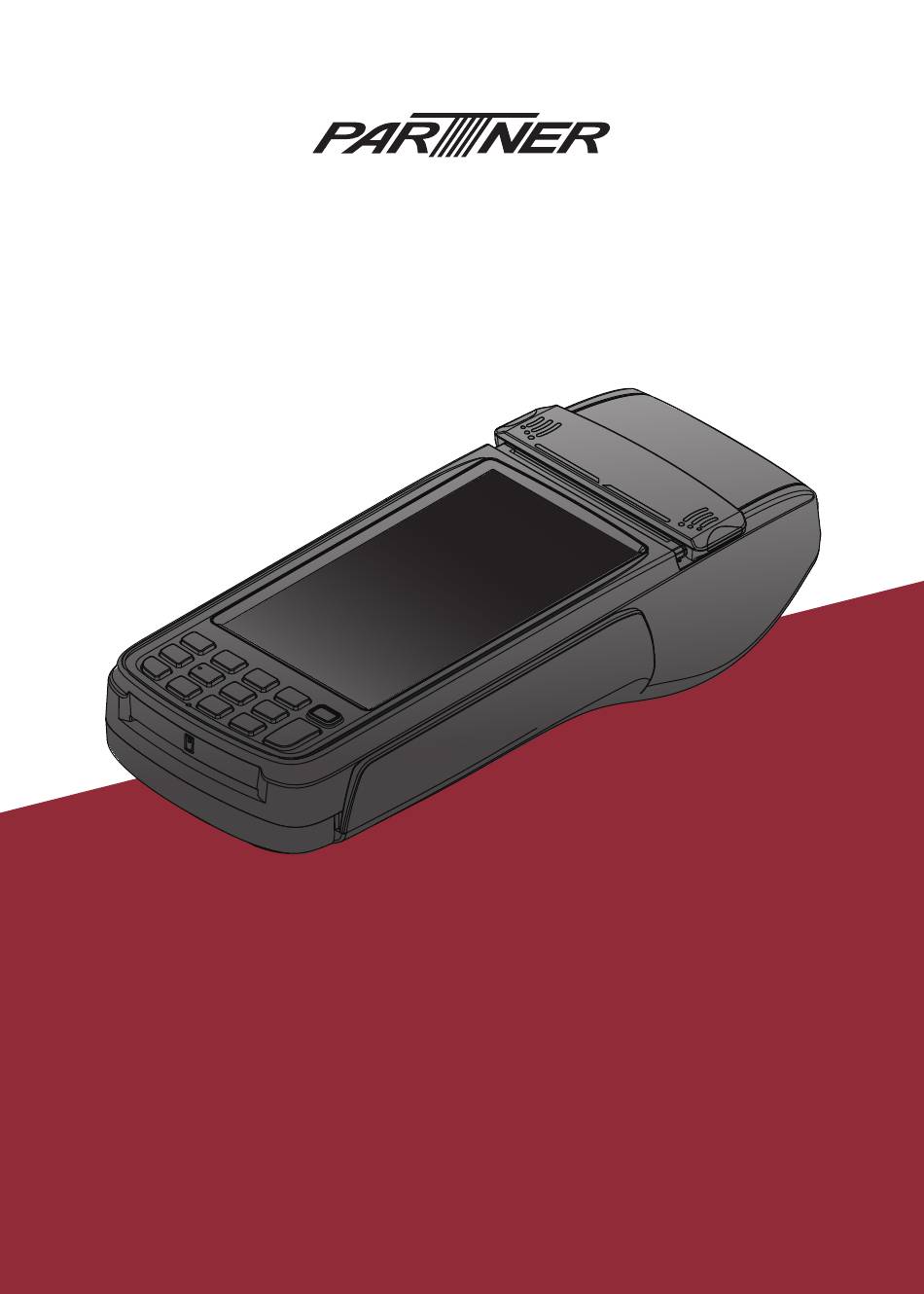

  • Page 1 MF-2352 Service Manual...

  • Page 2: Copyright And Trademark

    Copyright and Trademark Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Disclaimer The information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Contents Copyright and Trademark ....................2 About this manual ......................2 Removal and Replacement Procedures ................5 Tools Required ........................5 Service Considerations ....................... 5 Removing Battery......................6 Removing Lower Case ....................... 7 Removing Customer Display ....................9 Removing Interface Board ....................11 Removing Fingerprint Scanner ..................

  • Page 5: Removal And Replacement Procedures

    Removal and Replacement Procedures This section describes how to remove and install components from the device. Tools Required The following tools are required to perform maintenance on the device: • Phillips screwdriver • Tweezers • Plastic pry Service Considerations Do the following prior to performing any maintenance procedures: Unplug the AC adapter and remove all cables connections.

  • Page 6: Removing Battery

    Removing Battery Slide the release latch to unlock the battery cover. Lift the battery cover to remove it Lift the battery pack to remove it.

  • Page 7: Removing Lower Case

    Removing Lower Case Prerequisite: • Removing Battery on page Unfasten the 6 screws securing the lower and upper cases. Open the printer lid cover and remove the 2 screws. Carefully remove the lower case. CAUTION: Do not completely remove the lower case, cables are still connected underneath.
  • Page 8 Disconnect the cable from the interface board connector. This releases the lower case completely off the upper case.

  • Page 9: Removing Customer Display

    Removing Customer Display Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 Unfasten the 2 screws. Remove the customer display bracket. Disconnect the customer display cable from the interface board.
  • Page 10 Remove the customer display.

  • Page 11: Removing Interface Board

    Removing Interface Board Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 • Removing Customer Display on page 9 Unfasten the 4 screws securing the interface board to the lower case. Disconnect the speaker cable. Disconnect the Fingerprint scanner cable.
  • Page 12 Remove the interface board.

  • Page 13: Removing Fingerprint Scanner

    Removing Fingerprint Scanner Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 • Removing Customer Display on page 9 • Removing Camera, Speaker and Vibrator on page 14 Unfasten the 2 screws from the Fingerprint scanner bracket. Remove the Fingerprint scanner.

  • Page 14: Removing Camera, Speaker And Vibrator

    Removing Camera, Speaker and Vibrator Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 • Removing Customer Display on page 9 • Removing Camera, Speaker and Vibrator on page 14 Remove the camera module. Remove the speaker. Remove the vibrator.

  • Page 15: Removing Waterproof Rubber Gasket

    Removing Waterproof Rubber Gasket Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 Remove the waterproof rubber gasket from the lower case.

  • Page 16: Removing Mainboard

    Removing Mainboard Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 Disconnect the printer cable from the mainboard. Unfasten the 2 screws. Carefully disconnect the mainboard from the rear board and remove it.

  • Page 17: Removing Msr

    Removing MSR • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 Unfasten the 2 screws from the MSR. Press the MSR into the case. Remove the MSR.

  • Page 18: Removing Msr

    Removing MSR • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 Unfasten the 2 screws from the MSR. Disconnect the MSR cable. Press the MSR into the case. Remove the MSR.

  • Page 19: Removing Rear Board

    Removing Rear Board • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 • Removing MSR on page 18 Disconnect the printer cable. Disconnect the RFID cable. Disconnect the WIFI&BT antenna.
  • Page 20 Disconnect the 4G antenna. Disconnect the GPS antenna. Unfasten the 9 screws from the rear board.
  • Page 21 Carefully remove the rear board. CAUTION: Do not completely remove the rear board, cable is still connected underneath. Disconnect the LCD cable. Remove the rear board.

  • Page 22: Removing Printer Roller

    Removing Printer Roller Open the printer lid cover. Pull to remove the printer roller.

  • Page 23: Removing Barcode Scanner

    Removing Barcode Scanner Prerequisite: • Removing Battery on page • Removing Lower Case on page 7 Disconnect the barcode scanner cable. Unfasten the 2 screws from the bracket of the barcode scanner. Remove the bracket.
  • Page 24 Remove the barcode scanner.

  • Page 25: Removing 4G And Gps Antennas

    Removing 4G and GPS antennas • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 • Removing Barcode Scanner on page 23 Disconnect the RFID cable. Unfasten the 2 screws from the bracket of the barcode scanner.
  • Page 26 Disconnect the GPS antenna. Remove the GPS antenna.

  • Page 27: Removing Rfid Antenna

    Removing RFID antenna • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 Disconnect the 4G antenna. Unfasten the 2 screws and then remove the RFID antenna.

  • Page 28: Removing Keypad

    Removing Keypad • Removing Battery on page • Removing Backup Battery on page 8. • Removing Lower Case on page 7 Lift to remove the membrane for keypad from the upper case. Remove the key(s) that need to be replaced.

  • Page 29: Removing Lcd Module

    Removing LCD Module • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 • Removing MSR on page 18 • Removing Rear Board on page 19 Use the thumb gently push the LCD module upward. CAUTION: Do not apply excessive pressure on the LCD module to avoid...

  • Page 30: Removing Rubber Gasket

    Removing Rubber Gasket • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 • Removing MSR on page 18 • Removing Rear Board on page 19 • Removing LCD Module on page 32. Remove the rubber gasket from the upper case.

  • Page 31: Removing Tear Bar And Printer Module

    Removing Tear Bar and Printer Module • Removing Battery on page • Removing Lower Case on page 7 • Removing Mainboard on page 16 • Removing RFID antenna on page 27 Unfasten the 3 screws securing the tear bar to the upper case.
