- Page 1 Origo Instruction manual Valid from program version 1.14 0463 009 074 GB 20150306...
-
Page 2: Table Of Contents
1 INTRODUCTION ........... 1.1 Control panel A44 . -
Page 3: Introduction

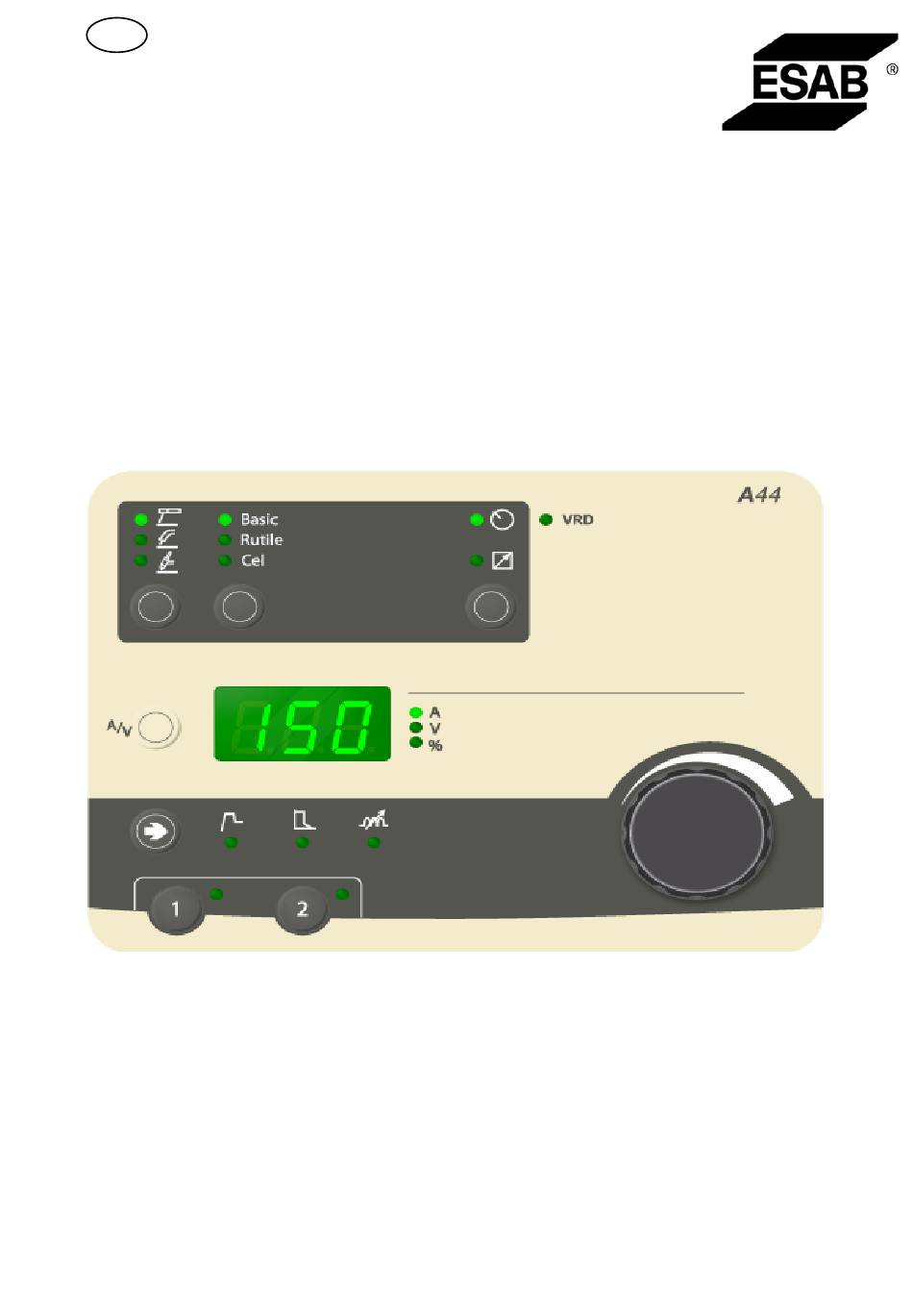

Indication of which parameter is shown in the display (current, voltage or percent) Display of measurement value for current (A) or voltage (V) during welding. Knob for setting data (current, voltage or percent) Buttons for weld data memory settings. See section 5. - 3 - © ESAB AB 2015 bi25e... -
Page 4: Mma Welding
MMA welding may also be referred to as welding with coated electrodes. Striking the arc melts the electrode, and its coating forms protective slag. Setting current A higher current produces a wider weld pool, with better penetration into the workpiece. - 4 - © ESAB AB 2015 bi25e... - Page 5 (16) appearing in the display and welding cannot be started whilst the error message is displayed. Contact an authorised ESAB service technician to activate the function. - 5 - © ESAB AB 2015...
-
Page 6: Hidden Functions Mma Welding
If the max current is 100 A and the min current is to be 50 A, set the hidden function min current to 50%. If the max current is 100 A and the min current is to be 90 A, set the min current to 90%. - 6 - © ESAB AB 2015 bi25e... -
Page 7: Mig/Mag / Fcaw-S Welding
Settings are made from the remote control unit. The remote control unit must be connected to the remote control unit socket on the machine before activation. When the remote control unit is activated the panel is inactive. - 7 - © ESAB AB 2015 bi25e... -
Page 8: Tig Welding
If the VRD function is activated and the open-circuit voltage exceeds the 35 V limit, this is indicated by an error message (16) appearing in the display and welding cannot be started whilst the error message is displayed. Contact an authorised ESAB service technician to activate the function. TIG WELDING Settings... -
Page 9: Hidden Function Tig Welding
If the VRD function is activated and the open-circuit voltage exceeds the 35 V limit, this is indicated by an error message (16) appearing in the display and welding cannot be started whilst the error message is displayed. Contact an authorised ESAB service technician to activate the function. Hidden function TIG welding Function... -
Page 10: Welding Data Memory
U 0 = welding data unit U 1 = cooling unit U 2 = power source U 3 = wire feed unit U 4 = remote control U 5 = multivoltage, Program version 1.25 - 10 - © ESAB AB 2015 bi25e... -
Page 11: Fault Code Descriptions
Action: Turn off the mains power supply to reset the unit. Send for a service technician if the fault persists. ORDERING SPARE PARTS Spare parts may be ordered through your nearest ESAB dealer, see the last page of this publication. - 11 - ©... - Page 12 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 12 - notes...
-
Page 13: Order Number
0463 009 090 Instruction manual LV 0463 009 091 Instruction manual SI 0463 009 092 Instruction manual LT 0459 839 051 Spare parts list The instruction manuals are available on the Internet at www.esab.com. - 13 - © ESAB AB 2015 bi25o... - Page 14 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 14 - notes...
- Page 15 NOTES ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................- 15 - notes...
- Page 16 ESAB Romania Trading SRL ESAB VAMBERK s.r.o. SOUTH AFRICA ESAB Mexico S.A. Bucharest Vamberk ESAB Africa Welding & Cutting Ltd Monterrey Tel: +40 316 900 600 Tel: +420 2 819 40 885 Durbanvill 7570 - Cape Town Tel: +52 8 350 5959...
