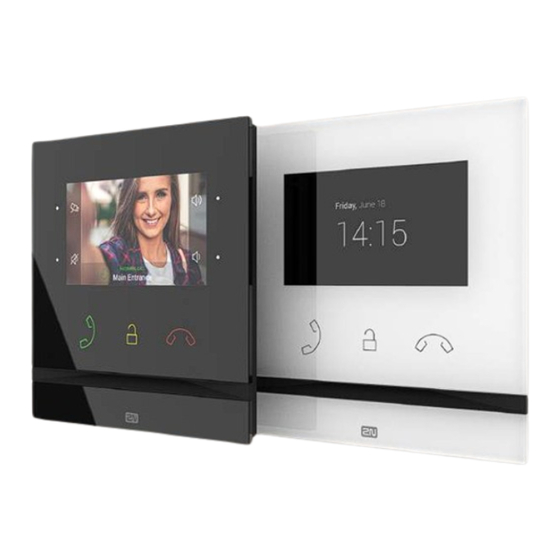

2N Telekomunikace 2N Indoor Compact User Manual

Compact-design indoor ip/sip unit providing audio and video communication
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
2N Indoor Compact
User guide
Version:
2.26
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2N Indoor Compact and is the answer not in the manual?

Questions and answers

Related Manuals for 2N Telekomunikace 2N Indoor Compact

Summary of Contents for 2N Telekomunikace 2N Indoor Compact

  • Page 1 ® 2N Indoor Compact User guide Version: 2.26 www.2n.cz...
  • Page 2 Declaration of Conformity see the CD-ROM (if enclosed) or our website at www.2n.cz. The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All development, production and distribution processes of the company are managed by this standard and guarantee a high quality, technical level and professional aspect of all our products.

  • Page 3: Table Of Contents

    4. Device Control via Display 4.1 Directory 4.2 Call List 4.3 Do Not Disturb Mode 4.4 Settings 5. Operational Statuses 6. Technical Parameters 7. Supplementary Information 7.1 Troubleshooting 7.2 Directives, Laws and Regulations - General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 3/131...

  • Page 4: Product Description

    The section also includes safety precautions. 1.1 Product Description 1.2 Differences between Models and Associated Products 1.3 Terms and Symbols Used 1.4 Safety Precautions 2N TELEKOMUNIKACE a.s., www.2n.cz 4/131...
  • Page 5 Indoor Compact is a top-quality, cost efficient and easy to install and configure answering unit. One installation can combine variable answering units manufactured by 2N Telekomunikace a.s. ® Indoor Compact is equipped with a specific user interface for an increased user comfort and safety.

  • Page 6: Differences Between Models And Associated Products

    1.2 Differences between Models and Associated Products ® Indoor Compact Part Number: ® Indoor Compact – black 91378501 Indoor answering audio/video unit with touchscreen designed for all 2N IP intercoms 2N TELEKOMUNIKACE a.s., www.2n.cz 6/131...
  • Page 7 Part Number: ® Indoor Compact – white 91378501WH Indoor answering audio/video unit with touchscreen designed for all 2N IP intercoms 2N TELEKOMUNIKACE a.s., www.2n.cz 7/131...
  • Page 8 Part Number: ® Indoor Touch – desk stand black 91378382 2N TELEKOMUNIKACE a.s., www.2n.cz 8/131...
  • Page 9 Part Number: ® Indoor Touch – desk stand white 91378382W Part Number: ® Indoor Talk – black 91378401 Indoor answering audio unit with touchscreen designed for all 2N IP intercoms 2N TELEKOMUNIKACE a.s., www.2n.cz 9/131...
  • Page 10 IP network. Touchscreen and keypad control. Part.No. 91378357 Grandstream GXV3275 VoIP video telephone GXV3275 is the successor to the popular GXV3175 model, which provides comfortable video calls in the IP network. Touchscreen control. 2N TELEKOMUNIKACE a.s., www.2n.cz 10/131...
  • Page 11 For Ethernet cable supply where PoE is unavailable. Part Numbers: Stabilized 12 V / 2 A power supply needs to be used where no PoE is available. 91378381E Part number according to the electric socket end piece (E/GB/US). 91378381GB 91378381US 2N TELEKOMUNIKACE a.s., www.2n.cz 11/131...
  • Page 12 Mounting Accessories Part No. 91378800 Flush mounting box is necessary for brick/plasterboard walls. ® Not included in the Indoor Compact package. 2N TELEKOMUNIKACE a.s., www.2n.cz 12/131...

  • Page 13: Terms And Symbols Used

    Warning Always abide by this information to prevent damage to the device. Caution Important information for system functionality. Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. 2N TELEKOMUNIKACE a.s., www.2n.cz 13/131...

  • Page 14: Safety Precautions

    2N TELEKOMUNIKACE a.s., www.2n.cz 14/131...

  • Page 15: Description And Installation

    Here is what you can find in this section: 2.1 Before You Start 2.2 Brief Installation Guide 2.3 Installation Conditions 2.4 2N® Indoor Compact LAN Location via 2N® Network Scanner 2.5 IP Address Lookup 2N TELEKOMUNIKACE a.s., www.2n.cz 15/131...

  • Page 16: Before You Start

    2.1 Before You Start Package Completeness Check Please check the product delivery before starting installation: Contents: ® Indoor Compact Certificate of ownership 2.5 mm hexagon key wrench Quick Start manual display cleaning cloth 2N TELEKOMUNIKACE a.s., www.2n.cz 16/131...
  • Page 17 Front Layout Display Microphone MENU buttons Lock button Call end button Speaker Anchoring holes Call answering button 2N TELEKOMUNIKACE a.s., www.2n.cz 17/131...
  • Page 18 12 V / 2 A DC power supply input Ethernet ® Indoor Compact is designed exclusively for flush mounting (brick and ® plasterboard walls). Use the Indoor Compact flush mounting box (Part No. 91378800),which is not part of the delivery. 2N TELEKOMUNIKACE a.s., www.2n.cz 18/131...
  • Page 19 2N TELEKOMUNIKACE a.s., www.2n.cz 19/131...
  • Page 20 Use a 2.5 mm hexagon key wrench (included in the Indoor Compact delivery) for ® fitting Indoor Compact into the flush mounting box. Note ® While flush mounting Indoor Compact respect the local standards concerning installation of electronic devices on flammable materials. 2N TELEKOMUNIKACE a.s., www.2n.cz 20/131...
  • Page 21 . A LED on the device backside goes on to indicate the reset. Press the Reset button for up to 10 s to reset the factory defaults. The backside LED goes on to indicate the reset. Reset Button 2N TELEKOMUNIKACE a.s., www.2n.cz 21/131...

  • Page 22: Brief Installation Guide

    2.2 Brief Installation Guide 2N TELEKOMUNIKACE a.s., www.2n.cz 22/131...
  • Page 23 If you use a power adapter other than the recommended one, do not exceed the 12 V rated supply voltage. Also check the supply voltage polarity. Higher voltage values or misconnections may result in an irreplaceable device damage. 2N TELEKOMUNIKACE a.s., www.2n.cz 23/131...

  • Page 24: Installation Conditions

    Use a 12 V / 2 A DC power adapter connected to the backside terminal board. Use an Ethernet cable connected to a PoE supply or PoE supporting Ethernet switch/router. PoE Supply Connection 2N TELEKOMUNIKACE a.s., www.2n.cz 24/131...
  • Page 25 Ethernet cable connector Ethernet socket Firmware Upload ® We recommend you to upgrade the Indoor Compact firmware during installation. Refer to www.2n.cz for the latest FW version. Refer to 3.2.5 System for the firmware upgrade procedure. 2N TELEKOMUNIKACE a.s., www.2n.cz 25/131...
  • Page 26 Microsoft .NET Framework 2.0 is installed for successful app installation. ® Run the Network Scanner Use the Setup Wizard for successful installation. ® IP Network Scanner Installer ® Having installed the IP Network Scanner , start the application using the Microsoft Windows Start menu. 2N TELEKOMUNIKACE a.s., www.2n.cz 26/131...
  • Page 27 In that case, click Refresh to find the device again and check whether multicast is enabled in your network. ® Double click the selected row in the IP Network Scanner list to access the device web interface easily. 2N TELEKOMUNIKACE a.s., www.2n.cz 27/131...
  • Page 28 ® IP Network Scanner IP Address Change 2N TELEKOMUNIKACE a.s., www.2n.cz 28/131...

  • Page 29: Ip Address Lookup

    Click the right-hand lower button at the icon on the home screen to display the Settings menu. Find the IP address information in the Settings / System / About device menu. 2N TELEKOMUNIKACE a.s., www.2n.cz 29/131...
  • Page 30 Static IP address – static IP address of the device. The address is used together with the parameters below unless Use DHCP server is enabled. Network mask – set the network mask. 2N TELEKOMUNIKACE a.s., www.2n.cz 30/131...
  • Page 31 Default gateway – address of the default gateway, which provides communication with off-LAN equipment. Primary DNS – primary DNS address for domain name-to-IP address translation. Secondary DNS – secondary DNS address where the primary DNS is unavailable. 2N TELEKOMUNIKACE a.s., www.2n.cz 31/131...

  • Page 32: Configuration

    3. Configuration 3.1 Factory Reset 3.2 Software Configuration 2N TELEKOMUNIKACE a.s., www.2n.cz 32/131...
  • Page 33 Indoor Compact administration web server has been switched off. To find ® the correct IP address, use the Network Scanner as described in 2.4 2N® Indoor ® Compact LAN Location via 2N Network Scanner 2N TELEKOMUNIKACE a.s., www.2n.cz 33/131...
  • Page 34 Language Selection Use the menu in the right-hand upper corner of the web interface to select language. Language Selection 2N TELEKOMUNIKACE a.s., www.2n.cz 34/131...

  • Page 35: Factory Reset

    Wait until the red LED goes off (approx. another 5 s). Wait until the green LED goes off and the red LED comes on again (approx. another 5 s). Wait until the red LED goes off (approx. another 5 s). Release the RESET button. 2N TELEKOMUNIKACE a.s., www.2n.cz 35/131...
  • Page 36 Caution All the user data will be deleted upon the factory reset. 2N TELEKOMUNIKACE a.s., www.2n.cz 36/131...

  • Page 37: Software Configuration

    The start screen also provides the first menu level and quick tile navigation to selected ® Indoor Compact configuration sections. Some tiles also display the state of selected services. 3.2.1 Status 3.2.2 Directory 3.2.3 Services 3.2.4 Hardware 3.2.5 System 2N TELEKOMUNIKACE a.s., www.2n.cz 37/131...
  • Page 38 3.2.1 Status Status menu provides clear status and other current information on the device. The menu consists of three tabs: Device Services and Events 3.2.1.1 Device 3.2.1.2 Services 3.2.1.3 Events 2N TELEKOMUNIKACE a.s., www.2n.cz 38/131...
  • Page 39 3.2.1.1 Device Device The tab displays information on the model, its features, firmware and bootloader versions, etc. 2N TELEKOMUNIKACE a.s., www.2n.cz 39/131...

  • Page 40: Services

    3.2.1.2 Services Services The Services tab displays the status of the network interface and selected services. 2N TELEKOMUNIKACE a.s., www.2n.cz 40/131...
  • Page 41 2N TELEKOMUNIKACE a.s., www.2n.cz 41/131...
  • Page 42 The tab displays the last 500 events captured by the device. Every event includes the capturing time and date, event type and detailed description. The events can be filtered by type in a dropdown menu above the event log. 2N TELEKOMUNIKACE a.s., www.2n.cz 42/131...
  • Page 43 You can arrange the list according to the name or property ( indicates that the device may be displayed and indicates that incoming calls are allowed to the device). One list page can include 15, 25 or 50 devices. 2N TELEKOMUNIKACE a.s., www.2n.cz 43/131...
  • Page 44 SIP account shall be used for outgoing calls (account 1 or 2). Enter /S or /N to force an encrypted or unencrypted call respectively. The account and encryption selections can be combined into the suffix /1S, for example. 2N TELEKOMUNIKACE a.s., www.2n.cz 44/131...
  • Page 45 Make sure that the code includes at least two door unlocking characters via the intercom keypad and at least one door unlocking DTMF character via a phone. Four characters at least are recommended. 2N TELEKOMUNIKACE a.s., www.2n.cz 45/131...
  • Page 46 3.2.3 Services 3.2.3.1 Phone 3.2.3.2 Unlocking 3.2.3.3 User Sounds 3.2.3.4 Web Server 2N TELEKOMUNIKACE a.s., www.2n.cz 46/131...

  • Page 47: Phone

    Video – video codec and SDP codec settings. 2N Indoor Units – general parameters and count of identified LAN devices. SIP 1 and SIP 2 ® Indoor Compact helps you configure one SIP account. 2N TELEKOMUNIKACE a.s., www.2n.cz 47/131...
  • Page 48 Proxy Address – set the SIP Proxy IP address or domain name. Proxy Port – set the SIP Proxy port (typically 5060). Backup Proxy Address – set the backup SIP Proxy IP address or domain name. 2N TELEKOMUNIKACE a.s., www.2n.cz 48/131...
  • Page 49 Registration State – display the current registration state (Unregistered, Registering..., Registered, Unregistering...). Failure Reason – display the reason for the last registration attempt failure: the registrar’s last error reply, e.g. 404 Not Found. 2N TELEKOMUNIKACE a.s., www.2n.cz 49/131...
  • Page 50 Do Not Play Incoming Early Media – disable playing of the incoming audio stream before the call sent by some PBXs or other devices is picked up (early media). A standard local ringtone is played instead. 2N TELEKOMUNIKACE a.s., www.2n.cz 50/131...
  • Page 51 Manual Pickup – the device rings to signal incoming calls and the user can press a keypad button to pick up. Automatic – the device picks up incoming calls automatically. You can set the call receiving mode for each SIP account separately. 2N TELEKOMUNIKACE a.s., www.2n.cz 51/131...
  • Page 52 GSM gateways, you are advised to set a value longer than 20 s. Minimum value: 1 s, maximum value: 600 s. Set 0 to disable the time parameter. Audio Enable/disable the use of audio codecs for call setups and set their priorities. 2N TELEKOMUNIKACE a.s., www.2n.cz 52/131...
  • Page 53 H.264 Payload Type (1), (2) – set the video codec H.264 payload type (packetization mode 1). Set a value from the range of 96 through 127, or 0 to disable this codec type. Local Calls 2N TELEKOMUNIKACE a.s., www.2n.cz 53/131...
  • Page 54 2N answering units fail to match, the answering units cannot communicate, i. e. the answering units cannot call each other. Multicast Address – set the network multicast address to which the anwering unit message shall be sent. 2N TELEKOMUNIKACE a.s., www.2n.cz 54/131...
  • Page 55 LAN Device count – display the number of local devices in the network. Show LAN devices list – display a detailed list of local devices in the network. 2N TELEKOMUNIKACE a.s., www.2n.cz 55/131...

  • Page 56: Unlocking

    /phone number that is not added to the unit phone book. Hang up After Door Unlocking – end the call when the door unlocking request has been sent successfully. Hang-up delay – end the call when the door unlocking request sending timeout has elapsed. 2N TELEKOMUNIKACE a.s., www.2n.cz 56/131...

  • Page 57: User Sounds

    Ringing before Call Pickup – set the ringtone to be played before an incoming call is picked up (device ringtone). Ringback Tone – set the sound to be played when the called user is ringing. 2N TELEKOMUNIKACE a.s., www.2n.cz 57/131...
  • Page 58 Select a file from your PC and click Upload . Press to remove a file. Click to play a successfully uploaded sound file (locally on your PC). Press to record a sound file via your PC microphone. 2N TELEKOMUNIKACE a.s., www.2n.cz 58/131...

  • Page 59: Web Server

    Password – set the device login password. Click to edit the password. Make sure that the password contains 8 characters at least, including one small alphabet letter, one capital alphabet letter and one digit. 2N TELEKOMUNIKACE a.s., www.2n.cz 59/131...
  • Page 60 Original Language – download an original file from the device including all user interface texts in English. The file format is XML; see below. Custom Language – upload, download and/or remove user files including translations of the user interface texts. 2N TELEKOMUNIKACE a.s., www.2n.cz 60/131...
  • Page 61 3.2.4 Hardware Audio menu clearly displays the current audio information and features. 3.2.4.1 Audio 3.2.4.2 Backlight 3.2.4.3 Display 2N TELEKOMUNIKACE a.s., www.2n.cz 61/131...
  • Page 62 Ringtone Volume – set the incoming call ringtone volume. Call-Progress Tone Volume – set the dialtone, ringtone and busy tone volume levels. In case the call progress tones are automatically generated by the PBX, this setting will not be applied. 2N TELEKOMUNIKACE a.s., www.2n.cz 62/131...
  • Page 63 User Sound Volume – set the volume of the user sounds. The volume values are relative against the set master volume. Use DND for the doorbell button too – if this function is activated, the device shall not ring when the doorbell button is pressed. 2N TELEKOMUNIKACE a.s., www.2n.cz 63/131...
  • Page 64 Backlight Intensity decrease – decrease the backlight brightness while the device is in the idle mode. Go to Idle Mode in – set the inactivity timeout after which the device switches to the idle mode. 2N TELEKOMUNIKACE a.s., www.2n.cz 64/131...
  • Page 65 The brightness level considerably affects the functionality, consumption and general appearance of the device. A high backlight value may dazzle the person standing in front of the device if the ambient light is low and also increases the overall device consumption. 2N TELEKOMUNIKACE a.s., www.2n.cz 65/131...
  • Page 66 Screen Lock PIN – set the screen lock activation/deactivation code. Display Setting Menu – display the Setting menu. Display Time in Idle Mode – switch off the device display and all backlight in the idle mode. 2N TELEKOMUNIKACE a.s., www.2n.cz 66/131...
  • Page 67 Modify the file using a text editor (replace the English texts with your own ones). Upload the modified localization file back to the intercom. Language Settings | Language Custom Check and correct if necessary the texts on the intercom display. 2N TELEKOMUNIKACE a.s., www.2n.cz 67/131...
  • Page 68 3.2.5 System Here is what you can find in this section: 3.2.5.1 Network 3.2.5.2 Date and Time 3.2.5.3 Certificates 3.2.5.4 Auto Provisioning 3.2.5.5 Syslog 3.2.5.6 Maintenance 2N TELEKOMUNIKACE a.s., www.2n.cz 68/131...
  • Page 69 Indoor Compact IP address, apply the Network Scanner , which can be downloaded freely from www.2n.cz , and ® use the mechanism described in 2.4 2N Indoor Compact LAN Location ® via 2N Network Scanner. 2N TELEKOMUNIKACE a.s., www.2n.cz 69/131...
  • Page 70 Secondary DNS – secondary DNS address where the primary DNS is unavailable. Hostname – set the device LAN identification. Vendor Class Identifier – set the manufacturer identifier as a character string for DHCP Option 60. 2N TELEKOMUNIKACE a.s., www.2n.cz 70/131...
  • Page 71 If a valid response is received, the response sending IP address and response waiting time in milliseconds are displayed. Press Ping again to send another query to the same address. 2N TELEKOMUNIKACE a.s., www.2n.cz 71/131...
  • Page 72 When the buffer storage capacity is full, the oldest packets are rewritten automatically. You are recommended to keep the video stream bit rate below 512 kbps while capturing packets. Press to start capturing, to stop capturing and to download the captured packet file. 2N TELEKOMUNIKACE a.s., www.2n.cz 72/131...
  • Page 73 (Syslog, Entered cards, Logs downloaded via HTTP API , etc.). ® In standard operational conditions, the Indoor Compact real time circuit accuracy is ±0.005 %, which may represent an error of up to ±2 minutes per month. 2N TELEKOMUNIKACE a.s., www.2n.cz 73/131...
  • Page 74 NTP Server Address – set the IP address/domain name of the NTP server used for the device internal time synchronization. NTP Time Status – display the state of the last local time synchronization attempt via NTP: Unsynchronized. Synchronized, Error. 2N TELEKOMUNIKACE a.s., www.2n.cz 74/131...
  • Page 75 Each certificate requiring service can be assigned one certificate set, refer to the Web Server E-mail Streaming subsections. The certificates can be shared by multiple services. ® Indoor Compact accepts the DER (ASN1) and PEM certificates. 2N TELEKOMUNIKACE a.s., www.2n.cz 75/131...
  • Page 76 Refer to the tables below for the current list of trusted and user certificates: Click to upload a certificate saved on your PC. Select the certificate (or private key) file in a dialogue window and click Upload . Press to remove a certificate from ® Indoor Compact 2N TELEKOMUNIKACE a.s., www.2n.cz 76/131...
  • Page 77 Note Note that a certificate with a private RSA key longer than 2048 bits may rejected following message will displayed: The private key file/password was not accepted by the device! 2N TELEKOMUNIKACE a.s., www.2n.cz 77/131...
  • Page 78 This function helps you connect the device to your ACS (Auto Configuration Server). In this case, the connection to My2N will be disabled in the device. My2N / TR069 Enabled – enable connection to My2N or another ACS server. 2N TELEKOMUNIKACE a.s., www.2n.cz 78/131...
  • Page 79 Active profile. The test result is displayed in the Connection status. My2N ID – unique identifier of the company created via the My2N portal. My2N Security Code – device code for adding to My2N. 2N TELEKOMUNIKACE a.s., www.2n.cz 79/131...
  • Page 80 Make sure that the server address is valid. Server Address – IP/MAC address of the server on which the syslog recording application is running. Severity Level – set the detail level of the messages to be sent. 2N TELEKOMUNIKACE a.s., www.2n.cz 80/131...
  • Page 81 As the configuration may include delicate information, such as user phone numbers and access passwords, handle the file cautiously. Reset Configuration – reset all the device parameters except for the LAN parameters. To reset the device completely, use the jumper or press Reset. 2N TELEKOMUNIKACE a.s., www.2n.cz 81/131...
  • Page 82 No such delicate information as passwords, access codes or phone numbers are included. This information helps 2N TELEKOMUNIKACE a.s. improve software quality, reliability performance. You can participate in this voluntarily and cancel your statistic data deliveries any time. 2N TELEKOMUNIKACE a.s., www.2n.cz 82/131...

  • Page 83: Device Control Via Display

    Refer to the following subsections for more configuration details. 4.1 Directory 4.2 Call List 4.3 Do Not Disturb Mode 4.4 Settings 2N TELEKOMUNIKACE a.s., www.2n.cz 83/131...
  • Page 84 MENU buttons Lock button Call end button Call receiving button Icons used on the display Icon Description Directory DND mode Device configuration Call list 2N TELEKOMUNIKACE a.s., www.2n.cz 84/131...
  • Page 85 Incoming call ringtone volume mute Value up Value down Microphone mute in call Locked, screen lock Unlocked, screen lock activated/deactivated Return to Home page Confirmation Device detail in Directory Call info Camera 1 Camera 2 Back 2N TELEKOMUNIKACE a.s., www.2n.cz 85/131...
  • Page 86 Icon Description Move up Move down 2N TELEKOMUNIKACE a.s., www.2n.cz 86/131...

  • Page 87: Directory

    Mute microphone in call using the left-hand lower MENU button at the icon. Volume up using the right-hand upper MENU button at the icon. Volume down using the right-hand lower MENU button at the icon. 2N TELEKOMUNIKACE a.s., www.2n.cz 87/131...
  • Page 88 Make sure to complete the proper parameter in the Display section to display the CLIP. This helps the user choose and call any device displayed; refer to 3.2.2 Directory for more details. 2N TELEKOMUNIKACE a.s., www.2n.cz 88/131...

  • Page 89: Call List

    Move up the list using the upper MENU button at the icon. Move down the list using the lower MENU button at the icon. Caution The device restart results in a deletion of the call list. 2N TELEKOMUNIKACE a.s., www.2n.cz 89/131...

  • Page 90: Do Not Disturb Mode

    DND mode. When DND is active, the device is at relax and the icon is red backlit. The device does not play the selected ringtone to signal an incoming call. The display shows the camera view if available, CLIP and Incoming call message. 2N TELEKOMUNIKACE a.s., www.2n.cz 90/131...

  • Page 91: Settings

    4.4 Settings Press the right-hand lower button at the icon to display the Device settings. Here set the DND mode, screen lock, device sounds and tones and display/system properties. Do Not Disturb Mode 2N TELEKOMUNIKACE a.s., www.2n.cz 91/131...
  • Page 92 The device does not play the selected ringtone to signal an incoming call. The display shows the camera view if available, CLIP and Incoming call message. Screen Lock 2N TELEKOMUNIKACE a.s., www.2n.cz 92/131...
  • Page 93 PIN code to enable the screen lock. Enter the same PIN code to disable the screen lock. Sounds and Tones Press the right-hand lower button at the icon to display the Sounds and Tones. Here set the ringing/call volume and select the ringtone and door bell ringtone. Ringing volume 2N TELEKOMUNIKACE a.s., www.2n.cz 93/131...
  • Page 94 Key Beep Volume Press the right-hand upper/lower button to increase/decrease the key beep volume. Press the left-hand lower button to confirm the key beep volume level selected. The change will not be saved unless confirmed. 2N TELEKOMUNIKACE a.s., www.2n.cz 94/131...
  • Page 95 The change will not be saved unless confirmed. Doorbell ringtone Press the right-hand upper/lower button to move up/down the doorbell ringtone list. Press the left-hand lower button to confirm the ringtone selected. The change will not be saved unless confirmed. 2N TELEKOMUNIKACE a.s., www.2n.cz 95/131...
  • Page 96 Display Press the right-hand lower button at the icon to display the Display section. Here set the display brightness, idle timeout and button backlight. 2N TELEKOMUNIKACE a.s., www.2n.cz 96/131...
  • Page 97 Set the maximum idle time (i.e. when the user does not control the device) after which the sleep mode is switched on automatically. Press the right-hand upper/lower button to move up/down the time value list. The change will not be saved unless confirmed. 2N TELEKOMUNIKACE a.s., www.2n.cz 97/131...
  • Page 98 Button backlight Press the right-hand upper/lower button to increase/decrease the button backlight. Press the left-hand lower button to confirm the backlight level selected. The change will not be saved unless confirmed. System 2N TELEKOMUNIKACE a.s., www.2n.cz 98/131...
  • Page 99 Automatic date and time – enable the use of the NTP server for automatic internal time synchronization. Date format – there are 3 date format options: 12.31.2019, 31.12.2019, 2019.12.31. Use 24-hour time format – enable/disable the 24hour time format. 2N TELEKOMUNIKACE a.s., www.2n.cz 99/131...
  • Page 100 Time Zone – set the time zone for your installation site to define time shifts and summer/winter time transitions. Caution The change will not be saved unless confirmed. My2N/SIP Proxy State The My2N/SIP Proxy section displays the current state of the My2N/SIP Proxy connections. 2N TELEKOMUNIKACE a.s., www.2n.cz 100/131...
  • Page 101 Press the right-hand upper/lower button to move up/down the language list. The change will not be saved unless confirmed. About Device This section provides basic information on the device (serial number, MAC address, FVW version, IP address). 2N TELEKOMUNIKACE a.s., www.2n.cz 101/131...

  • Page 102: Operational Statuses

    Status and Description User Actions Navigation Actions and Result Sleep Mode No button is backlit and time is displayed on the screen. End relax mode Press any button Home page/parental lock is displayed. 2N TELEKOMUNIKACE a.s., www.2n.cz 102/131...
  • Page 103 Home page is displayed. Enter invalid PIN PIN mistyping The PIN code reentering command is displayed. Quit PIN code Press the red The device gets in the entering earpiece to end sleep mode. the call 2N TELEKOMUNIKACE a.s., www.2n.cz 103/131...
  • Page 104 Press the right- DND is activated and mode hand upper the activation message is displayed. button at the icon Display Settings Press the right- The Settings section is hand lower displayed. button at the icon 2N TELEKOMUNIKACE a.s., www.2n.cz 104/131...
  • Page 105 Press lock button A call is set up or not depending on the connection type and the door is unlocked. If automatic call end after unlocking is enabled, the call is ended after door unlocking. 2N TELEKOMUNIKACE a.s., www.2n.cz 105/131...
  • Page 106 Return to Home Press the left- Home page is page hand upper displayed. button at the icon 2N TELEKOMUNIKACE a.s., www.2n.cz 106/131...
  • Page 107 Outgoing call Press the call The device gets in the receiving button In call state. 2N TELEKOMUNIKACE a.s., www.2n.cz 107/131...
  • Page 108 Press the lock A call is set up or not depending on the button connection type and the door is unlocked. If automatic call end after unlocking is enabled, the call is ended after door unlocking. 2N TELEKOMUNIKACE a.s., www.2n.cz 108/131...
  • Page 109 Outgoing call Press the call The device gets in the receiving button In call mode. 2N TELEKOMUNIKACE a.s., www.2n.cz 109/131...
  • Page 110 Press the lock A call is set up or not depending on the button connection type and the door is unlocked. If automatic call end after unlocking is enabled, the call is ended after door unlocking. 2N TELEKOMUNIKACE a.s., www.2n.cz 110/131...
  • Page 111 Press the lock A call is set up or not depending on the button connection type and the door is unlocked. If automatic call end after unlocking is enabled, the call is ended after door unlocking. 2N TELEKOMUNIKACE a.s., www.2n.cz 111/131...
  • Page 112 The ringtone volume down hand lower is decreased by 1 step by each press. When button at the the scale end is icon reached, the button goes off. The volume level is automatically written to the settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 112/131...
  • Page 113 2, called device and button Incoming call message. The call receiving, lock and call end buttons are backlit to the maximum. The camera 1 switching button is lit, camera switch is performed. 2N TELEKOMUNIKACE a.s., www.2n.cz 113/131...
  • Page 114 Call rejected, the call called device, not is terminated and Home page is ® the 2N Indoor returned to. Compact user. Mute call Press the Mute The call is muted. button at the icon 2N TELEKOMUNIKACE a.s., www.2n.cz 114/131...
  • Page 115 Press the lock A call is set up or not depending on the button connection type and the door is unlocked. If automatic call end after unlocking is enabled, the call is ended after door unlocking. 2N TELEKOMUNIKACE a.s., www.2n.cz 115/131...
  • Page 116 The ringtone volume down hand lower is decreased by 1 step by each press. When button at the the scale end is icon reached, the button goes off. The volume level is automatically written to the settings. 2N TELEKOMUNIKACE a.s., www.2n.cz 116/131...
  • Page 117 Cancel call muting Press the left- The device is in the In hand lower call mode and sound button with the is transmitted again to the calling device. The mute icon mute icon turns white. 2N TELEKOMUNIKACE a.s., www.2n.cz 117/131...
  • Page 118 Disable DND Press the right- DND is deactivated, mode hand upper the doorbell icon turns white. button at the icon Display Settings Press the right- The Settings section is hand lower displayed. button at the icon 2N TELEKOMUNIKACE a.s., www.2n.cz 118/131...
  • Page 119 The left- hand lower button at the Mute icon and the ringing volume up /down buttons to the right are backlit to the maximum. The camera 1 switching button is lit, camera switch is performed. 2N TELEKOMUNIKACE a.s., www.2n.cz 119/131...
  • Page 120 The icon ringtone volume is decreased by 1 step by each press. When the scale end is reached, the button goes off. This action does not affect the ringing level when DND is off. 2N TELEKOMUNIKACE a.s., www.2n.cz 120/131...
  • Page 121 The call view is displayed on the background, the call end button is backlit to the maximum, the incoming call with parental lock on state is recovered (parental lock deactivation command and dial pad disappear). 2N TELEKOMUNIKACE a.s., www.2n.cz 121/131...
  • Page 122 Confirm selection Press the left-   hand lower button at the icon Move up Press the right-   hand upper button at the icon Move down Press the right-   hand lower button at the icon 2N TELEKOMUNIKACE a.s., www.2n.cz 122/131...

  • Page 123: Technical Parameters

    Induction loop output: 600 mV RMS Audio stream Protocols: RTP / RTSP Codecs: G.711, G.729, G.722, L16/16 kHz Video stream Protocols: RTP / RTSP / HTTP, M-JPEG Codecs: H.264, M-JPEG Interface LAN: 10/100BaseT, RJ-45; Cat5e or higher Doorbell Input 2N TELEKOMUNIKACE a.s., www.2n.cz 123/131...
  • Page 124 Dimensions (w x h x d): 152 x 153 x 50 mm Weight: 387 g Operating temperature: 0 to 50 °C Relative humidity: 10 to 90 % non-condensing Storing temperature: -20 to 70 °C Recommended altitude: 0 – 2000 m 2N TELEKOMUNIKACE a.s., www.2n.cz 124/131...

  • Page 125: Supplementary Information

    7. Supplementary Information ® This section provides supplementary information on the Indoor Compact product. Here is what you can find in this section: 7.1 Troubleshooting 7.2 Directives, Laws and Regulations - General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 125/131...

  • Page 126: Troubleshooting

    7.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz 2N TELEKOMUNIKACE a.s., www.2n.cz 126/131...

  • Page 127: Directives, Laws And Regulations - General Instructions And Cautions

    Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 127/131...
  • Page 128 2N TELEKOMUNIKACE a. s. is not liable neither for any limitation of such a product’s functionality, nor for any damage, loss or injury relating to such a potential limitation of functionality.
  • Page 129 Electric Waste and Used Battery Pack Handling Do not place used electric devices and battery packs into municipal waste containers. An undue disposal thereof might impair the environment! 2N TELEKOMUNIKACE a.s., www.2n.cz 129/131...
  • Page 130 Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 130/131...
  • Page 131 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v2.26 2N TELEKOMUNIKACE a.s., www.2n.cz 131/131...
