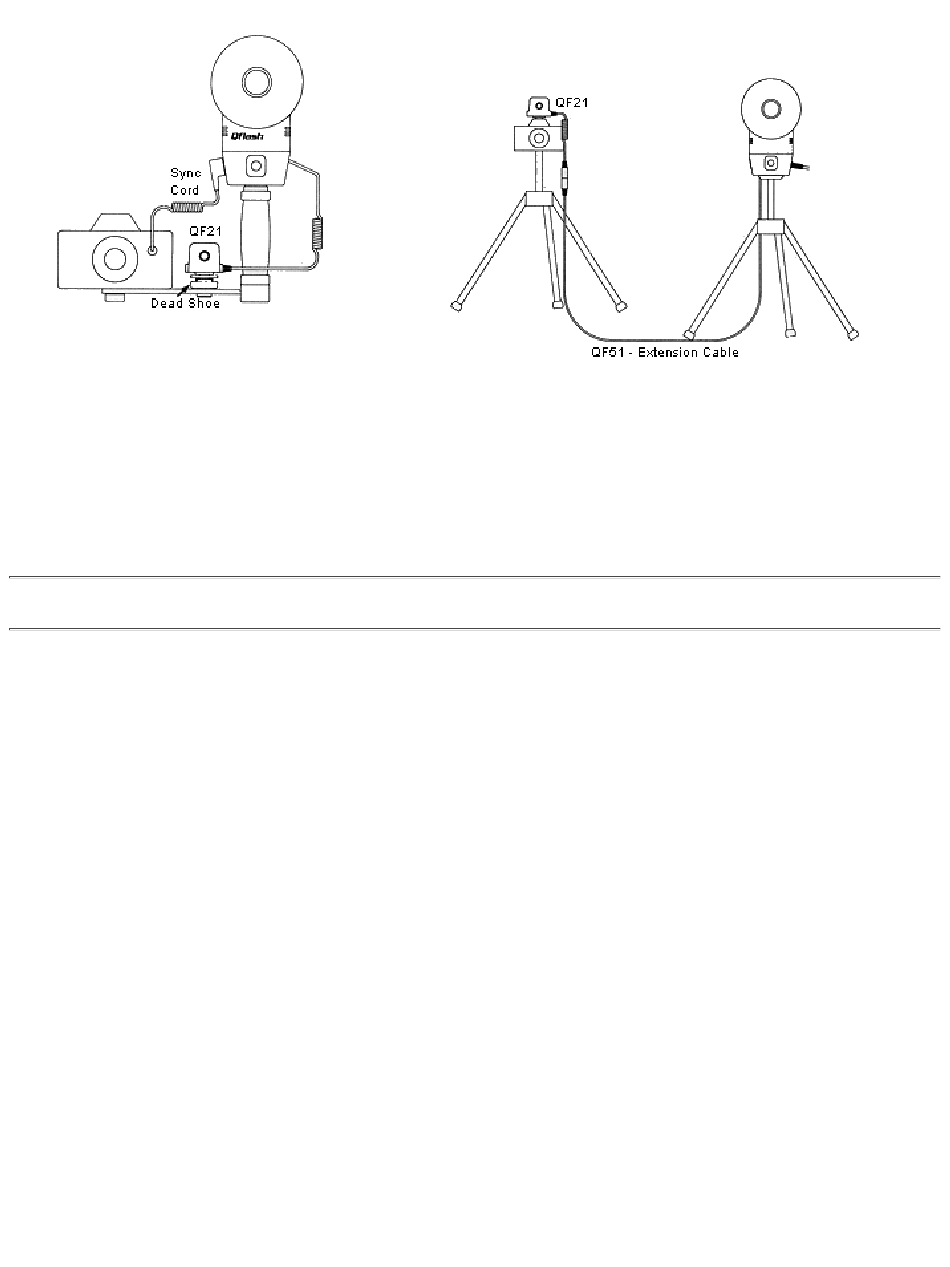

Diag. C
Camera without hot-shoe contacts:
QF21 mounted to dead-shoe/separate PC
Diag. D
sync cord required.
Typical mounting configuration.
The Quantum accessories shown in the above diagrams to illustrate product use are:
QF70 - Quick Release "L" bracket
QF51 - Extension Cable
536 or 537 Sync Cord
PLUG INSERTION INSTRUCTIONS
CAUTION:
DO NOT FORCE THE PLUG.
FOLLOW THE DIAGRAM AND THE INSTRUCTIONS BELOW.
CONNECTING TO THE QFLASH "ACCY" JACK:
Match the arrow on the plug to the "ACCY" jack arrow on the Qflash. It may be necessary to turn the plug
slightly to the right or left until you feel the plug seat before pushing the plug into place. Follow the same
procedure when connecting two cables together.
