ScentWave
™
SWD1004
User's Manual
Patent No. 7651077

Advertisement

Table of Contents
loading

Related Manuals for ScentAir ScentWave SWD1004

Summary of Contents for ScentAir ScentWave SWD1004

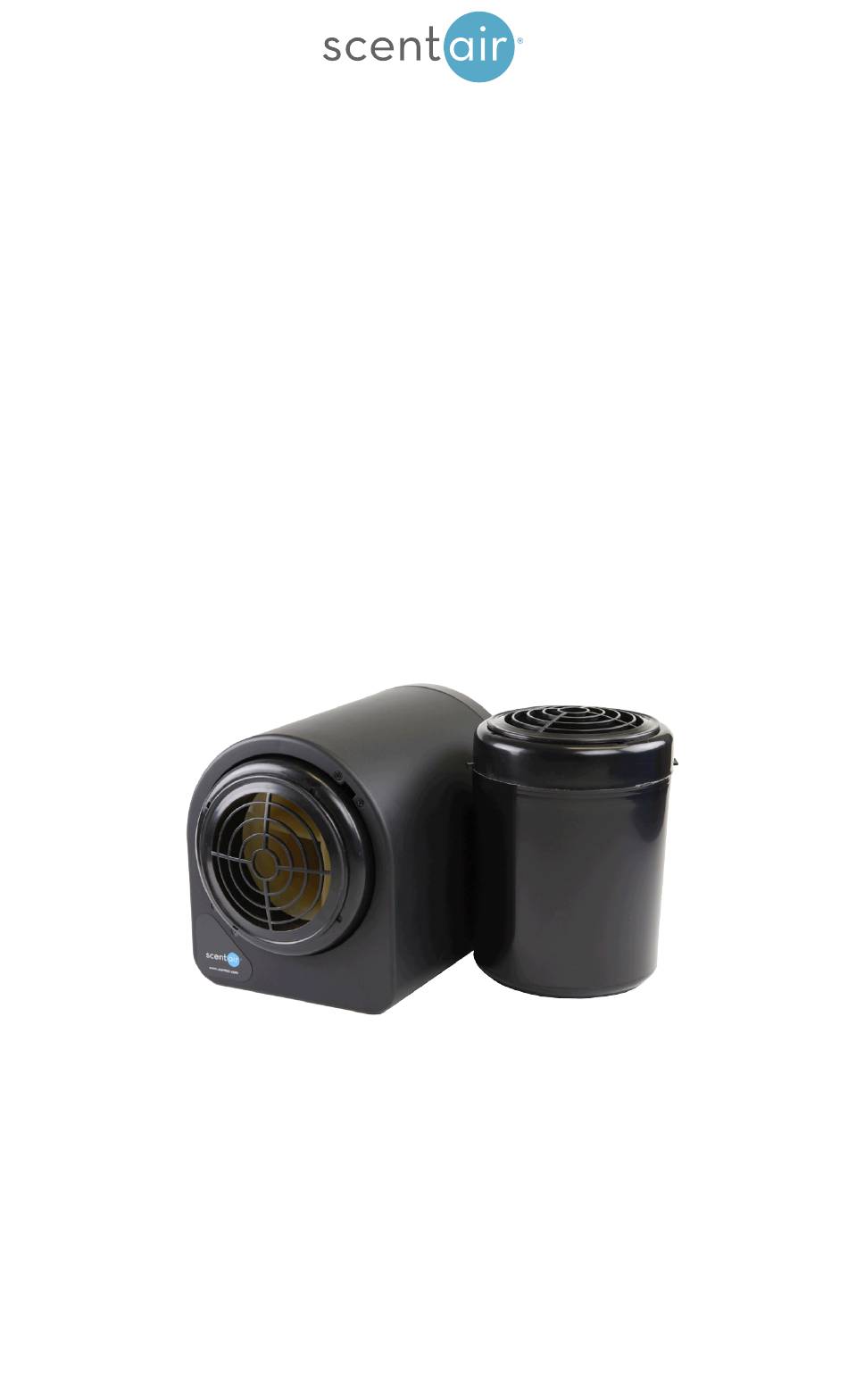

  • Page 1 ScentWave ™ SWD1004 User’s Manual Patent No. 7651077...
  • Page 2 The ScentWave offers multiple installation options and is easy to maintain. ScentAir supplies interchangeable cartridges that are quickly loaded into the ScentWave to deliver fragrance. The cartridges are recyclable and replace easily to help you coordinate with new themes or seasons.

  • Page 3: Table Of Contents

    Run Mode........................12 Date & Time ........................ 13 Fan Speed ........................14 Lockcode ........................15 Thank you for joining our ScentAir family! We hope you enjoy our incredible ScentWave system. When paired with a ScentWave Cartridge, we can help create even more lasting memories through the power of scent.

  • Page 4: Default Settings

    DEFAULT SETTINGS The ScentWave will arrive with Event 1 preset to run from 9:00am to 5:00pm, 7 days a week. The Scent Level will be 4 and the Fan Speed will be set to 50%. By default, the system will automatically adjust its clock for daylight savings time.

  • Page 5: Swd1004 Quick Setup

    SWD1004 QUICK SETUP The ScentWave can be programmed to run up to 6 separate events. An event can be programmed to run on separate days of the week and will use the selected Scent Level to deliver fragrance to the space.

  • Page 6: Determine Proper Placement

    DETERMINE PROPER PLACEMENT Placement of the ScentWave system within a space is key to creating an effective scented environment. Before installing the ScentWave, take into account the following placement suggestions when finding I am most effective when the best location of the system within your space. positioned and aimed so SUGGESTED POSITIONING: that my scent output crosses...

  • Page 7: Getting Started

    GETTING STARTED My power cord is essential ScentWave Cartridges are designed to last for 300 to making sure I function hours; when running 10 hours a day at Scent Level correctly. 4. It is ideal to replace the ScentWave Cartridge when a new one is received.

  • Page 8: Control Panel

    CONTROL PANEL Buttons are used to execute the primary functions of the ScentWave system. Some buttons also have secondary functions that are activated when the buttons are held down. The sections within this manual will highlight the buttons and associated features. DISPLAY SCREEN When the system is running the word ON will be displayed.

  • Page 9: Scent Level

    SCENT LEVEL EVENT OVERRIDE SCENT PAUSE EVENT The ScentWave uses the Scent Level to control the amount of fragrance that is emitted into the space. The Scent Level cycles a fan within the cartridge on and off for specific intervals. Adjust the Scent Level to increase or decrease the amount of fragrance within the space.

  • Page 10: Scent Events

    SCENT EVENTS EVENT OVERRIDE SCENT PAUSE EVENT The ScentWave uses a Scent Event to schedule the system to run at certain times and on specific days of the week. During a Scent Event, the system will use an On Time and Off Time on scheduled days of the week.
  • Page 11 CREATING A NEW EVENT: EVENT OVERRIDE SCENT PAUSE EVENT Press EVENT SETTINGS until you reach an empty event. (Fig.5) • Press - or + to begin creating a new event by changing the On Time hours. Follow steps 2 - 5 (p.6) for “EDITING AN EVENT”...

  • Page 12: Run Mode

    RUN MODE EVENT OVERRIDE SCENT PAUSE EVENT The ScentWave has alternate run modes to temporarily change the way the system will perform without editing the details of a Scent Event. Under normal operation a bar is shown under SCENT EVENT. There are two EVENT OVERRIDE modes called PAUSE and RUN.

  • Page 13: Date & Time

    TIME & DATE EVENT OVERRIDE SCENT PAUSE EVENT View the current time and date by pressing the CLOCK button. Press CLOCK from the home screen to view the time. Press CLOCK a second time to view the date. EDITING THE TIME & DATE: Press and hold the CLOCK button for two EVENT NEXT...

  • Page 14: Fan Speed

    FAN SPEED The ScentWave uses Fan Speed to control the coverage of the system. The Fan Speed is controlled with the knob at the lower right of the ScentWave. Adjust the Fan Speed to increase or decrease the fragrance coverage of the ScentWave system. Set the fan speed by turning the knob left or right.

  • Page 15: Lockcode

    LOCKCODE EVENT OVERRIDE SCENT PAUSE EVENT The ScentWave controls can be locked to prevent unintended changes. When active, the display will show Lockcode and the buttons and knob will not perform their ordinary functions. Turning the knob or pressing a button will display ‘CodE’ confirming that the machine has been locked.
  • Page 16 For further assistance please contact ScentAir: US & Canada: +1 704 504 2320 UK: +44 1628 601650 France: +33 5 62 57 63 20 Hong Kong: +852 3563 5566 71001001 - Rev.A...
