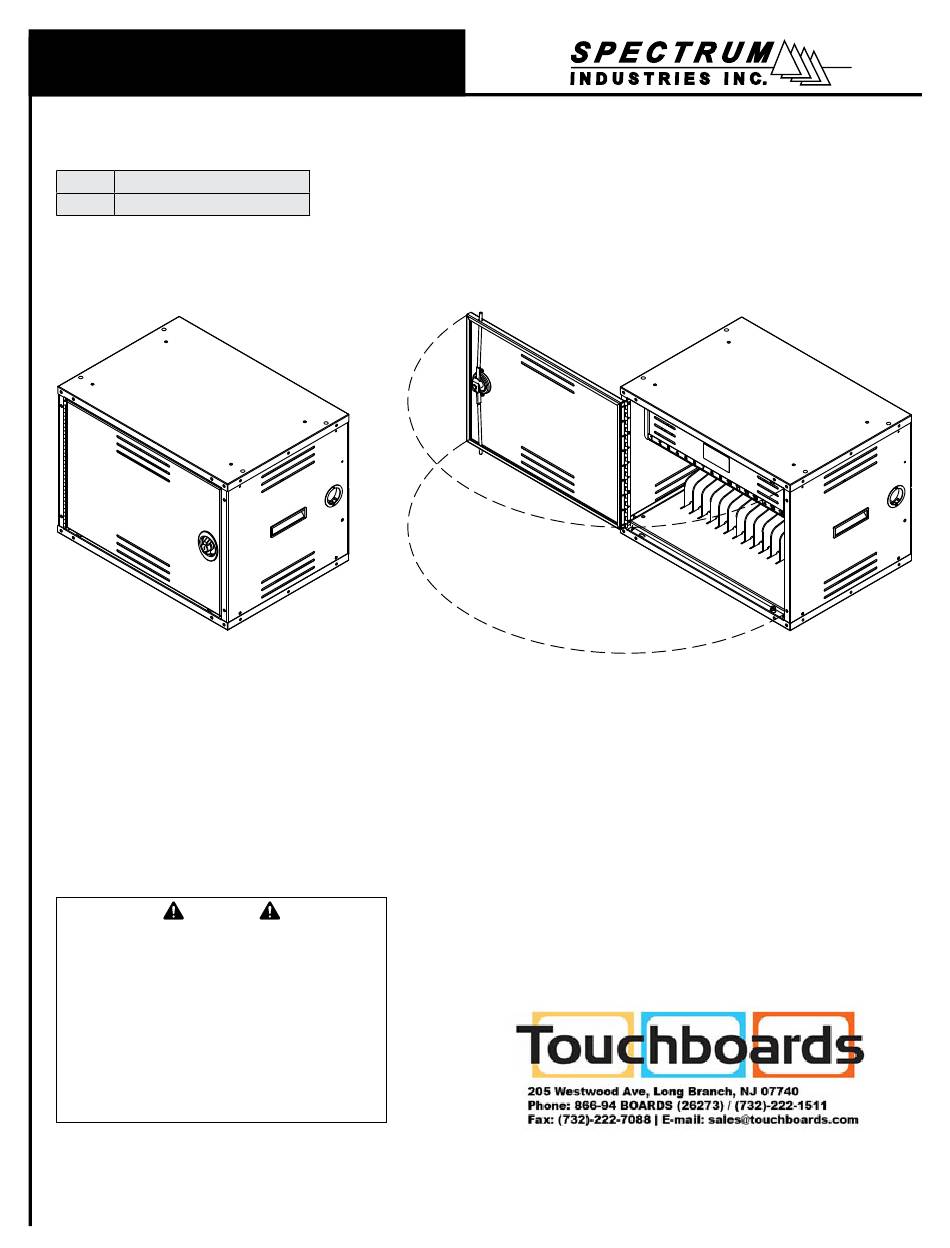

Owner's Manual
™
InTouch16
iPad
55431
IT-16 Cabinet with power strips
55430
IT-16 Cabinet-no power strips
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
®
/ Chromebook
®
/ Laptop Cabinet
0116418R2 Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Industries InTouch16
Summary of Contents for Spectrum Industries InTouch16
- Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
- Page 2 • Do not step on, drive over, drag, or place objects on the power cord. contact Spectrum Industries for assistance. • For added safety, plug the cart into a grounded outlet controlled by a GFI (Ground Fault Interrupter) circuit breaker.
- Page 3 Assembly / Setup Anchoring unit to worksurface or floor 1. The laptop cabinet needs to be permanently and securely attached to a desk or floor to prevent tipping and for security. Back view 2. Set the cabinet into position. Using the mounting holes located on the bottom of the unit as a template, locate and mark the mounting hole locations on the floor / worksurface.
- Page 4 Dividers 1. The cabinet dividers can be configured for use with multiple devices Figure 3B-C. If dividers need to be reconfigured, remove the retaining bracket at the back of the cabinet with a Phillips screwdriver, Figure 3A remove/reconfigure the dividers, then replace the bracket. Dividers Retaining bracket...
- Page 5 Power drawer setup 1. Open the front door and pull out the power drawer. Figure 4A. 2. Mount the 2 power strips to the drawer with Velcro. Note: The left and right sides of the drawer Figure 4B are most commonly used, but the front and back sides Figure 4C, or bottom of drawer (not shown) can be used based on the type of chargers and devices that are stored.
-
Page 6: Cord Management
Cord management 1. With the power strips unplugged and switched OFF, Plug the chargers into the power strips. CAUTION Some wall chargers may need to be staggered depending on their size. Figure 5A-B. 2. Use the cord wrap cutouts to secure a length of charge cord to each device. Figure 5C. Always disconnect the device charge cords Leave just enough slack in the cords to provide easy connection to each device. - Page 7 3. Route the charge cords down through the drawer bottom holes (at front) to the device storage area. Figure 5D. 4. Switch the power strips ON and close the drawer. 5. Place the devices into the cabinet. Figure 5E. 6. Plug the charge cords into the devices to begin charging. Figure 5D Section view Full-size laptop...
- Page 8 Changing door swing direction Phillips screwdriver 1. The door can be mounted to be hinged from the left or right-side of the cabinet. 2. To switch the direction, remove the (5) screws that attach the door and hinge to the cabinet. Figure 6A.
-
Page 9: Door Stop Adjustment
Door stop adjustment Phillips screwdriver If necessary, the door stop can be moved to adjust the closed position of the doors and lock rods. 1. To adjust, loosen the Phillips screw slightly with a screwdriver. Figure 7. 2. Move the stop until the door is positioned correctly. Be sure the lock rods will engage the lock rod hole. -
Page 10: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
