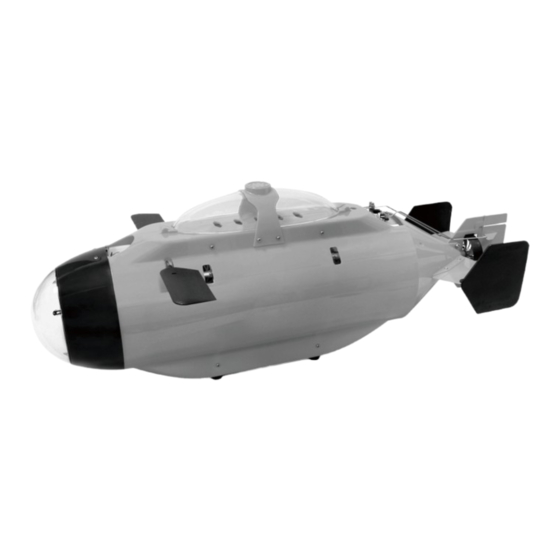

No.5222-F

Please read all instructions thoroughly before assembling the kit.

For fresh water use only.

The contents are subject to change without prior notice due to product improvements and specification changes.

Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship. The

total monetary value under warranty will in no case exceed the cost of the original kit purchased. This warranty does

not cover any components damaged by use or modification. Part or parts missing from this model must be reported

within 60 days of purchase. No part or parts will be sent under warranty without proof of purchase. To receive part or

parts under warranty, the service center must receive a proof of purchase and/or the defective part or parts. Should

you find a defective or missing part, contact the authorized Thunder Tiger Service/Distributor nearest you. Under no

circumstances can a dealer or distributor accept return if assembly has started.

Table of Contents

Need help?

Do you have a question about the TTR-SB Seawolf and is the answer not in the manual?

Questions and answers

Summary of Contents for TTRobotix TTR-SB Seawolf

Page 1 No.5222-F Please read all instructions thoroughly before assembling the kit. For fresh water use only. The contents are subject to change without prior notice due to product improvements and specification changes. Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship. The total monetary value under warranty will in no case exceed the cost of the original kit purchased.
Page 2: Table Of Contents
Seawolf submarine float back to the surface. TTRobotix Seawolf submarine will take you to enjoy the mystery world under the water! INTRODUCTION ITEMS &...
Page 3: Items & Tools Requirement
1. This radio control submarine is not a toy. If not properly assembled and operated, it is capable of causing property damage. TTRobotix and it’s distributor have no control over damage resulting from shipping, improper construction, or improper usage.
Page 4: Configuration
Switch-Power On Rear Elevator Switch-Not in Used Verticle Stabilizer Charging Plug Rudder Control Cable Connector Propeller Front Elevator Water Inlet/Outlet hole...
Page 5: Radio Control Vs Submarine Movement
1) The radio show in the drawing is similar to MODE 2 of RC airplanes: throttle is at the left stick and elevator is at the right one. However, the stick radio easily allows to shift to Mode 1. Open the inner hull and exchange the servo connectors at the receiver.
Page 6: Introduction For The Main Device
On the main control PCB unit, there are 3 LED lights are designed to show the current status of the Seawolf submarine. You can observe the light and refer to the following chart to get the light information. Light Sign Seawolf Status Light Sign Seawolf Status...
Page 7: Operation
For fresh water use only. The main power switch is located at the bottom of the front flange. From the bottom view, the left switch is to control the main battery power for all the electric devices. The right switch is unused.
Page 8 Find a good launch location, with the possibility to stand stable with no risk of falling into the water. The water surface should be easily reachable and must not be too low. Becareful with tide. Insert the handle into the holes of the external hull. Be sure that the hooks are connected to the metal rod of the inner hull and not only to the outer plastics .
Page 9 All the controls are described above. Rudder and throttle functions are similar to other R/C models. This submarine is capable to perform both static and dynamic dive. For a full static dive, keep the motor idle and start the pump flooding the bag. You will see the waterline at the turret become higher and higher until the entire submarine will be submerged and will go down vertically to the bottom.
Page 10: Charger Connection
CHARGER CONNECTION CHARGER CONNECTION STEPS Remove the fuse. Keep it in a safe place. Connect the charger to the AC power source. Connect the charging cables and balance board to the charger as shown. CAUTION! Always: BLACK cable to the BLACK port, RED cable to RED port. Connect Red Cable to Red Jack on the Seawolf.
Page 11: Exploded View
External & Body Assembly PJ6414 PJ6414 PJ6414 PJ6413 PJ6410 PJ6410 PD0888-S PJ6414 PJ6415 PJ6133 PJ6413 PD0889-S PD7811-S PJ6409 PD0889-S PJ6413 PD7814 PD7818 PJ6124 PJ6161 PD0889-S PD7814 PD7824 PD7811-S PJ6162 PJ6408 PJ6170 PD7808 PD0889-S *Camera and case are not included. PJ6162 PD7818 PJ6161 PD6419...
Page 12 Front Flange Unit Assembly Rear Cone Assembly PD7803 PJ6411 PJ6106 PJ6106 PJ6155 PJ6155 PJ6165 PJ6142 PJ6140 PJ6411 PD7804 PJ6412 PJ6416 PD7816 PJ6178 PD7815 PJ6411 PJ6412 PJ6101 PJ6120 PD7802 PD7825 PJ6411 PJ6116 PJ6175 PJ6104 PJ6411 PJ6120 PJ6156 PD7820 PD7801 PJ6412 PJ6413 PJ6179 PJ6172 PJ6101...
Page 13 PJ6400 8901 2853 PJ6403 PJ6403 PJ6403 PJ6399 PJ6403 PJ6402 PJ6402 PJ6404 PJ6404 PJ6402...
Page 14: Spare Parts
SPARE PARTS...
Page 15 SPARE PARTS PJ6159 WEIGHT/A,WT416G PJ6160 WEIGHT/B(2),WT740G...
Page 16 SPARE PARTS PJ6183 WEIGHT(4),WT120G PJ6402 PJ6403 SEMI-ROUND FRAME SET PJ6404 PJ6399 PJ6400 PJ6401 PJ6405 PJ6406 PJ6407 PJ6408 PJ6409 PJ6410 PJ6411 PJ6412 PJ6413 PJ6414 PJ6415 PJ6416...
Page 17 SPARE PARTS PJ6421 WEIGHT/C(2),WT540G 2540S CHARGER,6S PJ6417 5 BLADE PROP.,D62x40 PJ6418 PJ6419 CAMERA BRACKET PJ6420 2853 LIFE BATTERY,5000mAH 8091 ESC,BLC -25M 8175 STD SERVO/DS1903 8603S SEA WOLF COMMANDER BT P. TAP SCREW F.T P. MACH. SCREW BT P. MACH. SCREW F.T P.
Page 18: Spare Parts List
SPARE PARTS LIST PD0982 NYLON STRAP,2.5(SMALL,20) PD1712-S BT P. TAP SCREW,M2.6X8S(20) PD7478 O-RING,Ø6(20) PD7795-S BT P. MACH. SCREW,M3X16S(20) PD7801 F.T P. MACH. SCREW,M4X60S(4) PD7802 F.T P. MACH. SCREW,M6X38S(12) MOTOR SET,550 PD7803 PDS.K MACH. SCREW,M3X4S(20) PD7804 PDS.K MACH. SCREW,M3X6S(20) PD7805 PDS.K MACH. SCREW,M3X8S(20) PD7806 PDS.K MACH.
Page 19: Service
TTRobotix strives to bring you the highest level of quality and service we can provide. We test our prod- ucts around the world to bring you state-of-the-art products. TTRobotix guarantees that you should enjoy many hours of trouble free use from our R/C products. TTRobotix products have been sold worldwide through the authorized distributors that are supported directly and rapidly from TTRobotix.
Page 20 More information can view the tutorial videos on our TTR official website This product is not a toy. Before you assemble and use this product, please (www.ttrobotix.com) or YouTube channel read this manual thoroughly. (https://www.youtube.com/user/ThunderTigerVideo) This product and its contents may different from the graphics shown on this manual and are subject to change without prior notice due to product improvements and specification changes.
