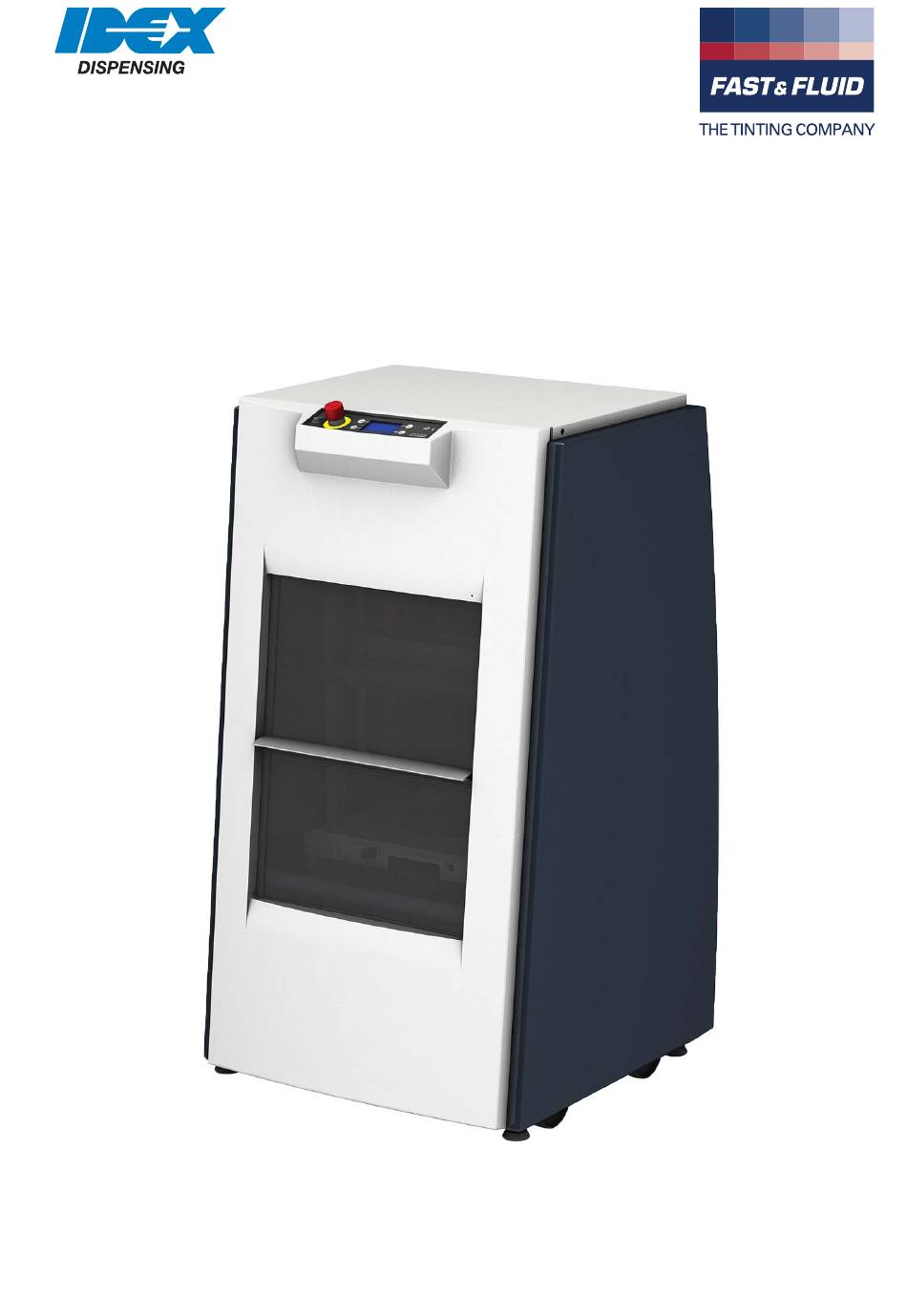

  • Page 1 Manual SK550 1.1 V. 2.0 Fast & Fluid Management B. V. PO Box 220 2170 AE Sassenheim The Netherlands www.fast-fluid.com...
  • Page 2 © Fast & Fluid Management B.V. This manual or parts thereof may not be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, nor otherwise, without the prior written permission of Fast & Fluid Management B.V.

  • Page 3: Table Of Contents

    Table of Contents SK550 1.1 V 2.0 Table of Contents About this manual......................5 How to work with the manual.................... 5 Record of changes ......................5 Safety ..........................6 Intended use........................6 Liability..........................6 2.2.1 General liability ..................... 6 2.2.2 Machine-specific liability ..................
  • Page 4 Table of Contents SK550 1.1 V 2.0 4.1.2 Remove the plastic foil ..................16 4.1.3 Unlock the machine.................... 17 4.1.4 Remove the wooden blocks ................17 4.1.5 Remove the transport brackets ................18 4.1.6 Dispose of the packaging material ..............18 Put the machine in position ....................

  • Page 5: About This Manual

    The SK550 1.1 and all its versions are referred to in the manual as the ’machine’. This manual contains the original instructions. The original language of the manual is English. All other language versions are translations of the original instructions.

  • Page 6: Safety

    Safety SK550 1.1 V. 2.0 Safety WARNING Read the manual before you install or use the machine. Failure to do so can result in personal injury, death or property damage. Intended use The machine is designed to shake colorants in a can. Any other use of the machine is strictly forbidden.

  • Page 7: User Qualification For Installation

    Safety SK550 1.1 V. 2.0 Personal harm should be avoided by strictly following the materials safety data sheets (MSDS) for colorants and (base) paint. The use of flammable colorants or colorants that diffuse potential explosive vapors may present fire and explosion risks.

  • Page 8: Disposal Of The Machine

    Safety SK550 1.1 V. 2.0 Disposal of the machine 1. Sort the machine, the accessories and the packaging for environmentally friendly recycling. 2. Do not dispose of the machine into domestic waste. Dispose of the machine according to local regulations.

  • Page 9: Operator Manual

    Operator manual SK550 1.1 V. 2.0 Operator manual Description 3.1.1 Overview of the machine Net entry Wheels Type plate. See also § 3.1.4. Adjustable feet Spindle Can table Door Can plate Lid padding Control panel. See also § 3.1.2. Can handle retainer...

  • Page 10: Overview Of The Control Panel

    Operator manual SK550 1.1 V. 2.0 3.1.2 Overview of the control panel Main switch Emergency stop switch Program keys Stop/Up key Display Note The display shows the program menu. 3.1.3 Type plate: serial number Fast & Fluid Management B.V. IDEX Dispensing P.O.

  • Page 11: Type Plate: Details

    Operator manual SK550 1.1 V. 2.0 3.1.4 Type plate: details Fast & Fluid Management B.V. IDEX Dispensing P.O. Box 220 2170 AE Sassenheim The Netherlands THE TINTING COMPANY www.fast-fluid.com ~ XX/XX z XXX Model XXX XX-XXX Brand Xxxxxxxxxxx Serial no.

  • Page 12: General Shaking Procedure

    Operator manual SK550 1.1 V. 2.0 1. Push any key. When the machine is on, the display shows the default shake times. 3.2.3 General shaking procedure 1. Place the can. See § 3.2.4. 2. Start the machine, See § 3.2.5.

  • Page 13: Start The Machine

    Operator manual SK550 1.1 V. 2.0 Retain the can handle 1. If you place one can, make sure that the can handle (A) cannot move. Use the can handle retainer (B). 2. If you place more than one can at the same time, make sure that the can handles cannot move.

  • Page 14: Adjust The Shake Time During Operation (Optional)

    Operator manual SK550 1.1 V. 2.0 3.2.6 Adjust the shake time during operation (optional) Note During operation: The display shows the remaining shake time. You can adjust the shake time. 1. Use the program keys to increase (+) or decrease (-) the shake time.

  • Page 15: Restart The Machine

    Operator manual SK550 1.1 V. 2.0 Note After the reset, the machine is on and initiated when the display shows the shake times. 3.2.10 Restart the machine 1. Set the main switch to the off position. 2. Wait 30 seconds.

  • Page 16: Installation

    Installation SK550 1.1 V. 2.0 Installation Unpack the machine 4.1.1 Remove the cardboard 1. Remove the cardboard (A). 4.1.2 Remove the plastic foil 1. Remove the plastic foil (A).

  • Page 17: Unlock The Machine

    Installation SK550 1.1 V. 2.0 4.1.3 Unlock the machine 1. Remove the bolts (A) at both sides of the machine. The wooden blocks (B) are now free to move. 4.1.4 Remove the wooden blocks CAUTION If you do not remove all loose parts, this can cause severe damage to the machine when it is in operation.

  • Page 18: Remove The Transport Brackets

    Installation SK550 1.1 V. 2.0 4.1.5 Remove the transport brackets 1. Remove the screws (A). 17mm 2. Remove the transport brackets (B). 4.1.6 Dispose of the packaging material 1. Dispose of the packaging material in an environmentally friendly way, according to local regulations, see § 2.7.

  • Page 19: Level The Machine

    Installation SK550 1.1 V. 2.0 WARNING Mind the minimum requirement of the load capacity of the floor. See § 6.2. Note Make sure the final location is well-lit and well- ventilated. 1. Push the machine to the final location. 2. Connect the power cable to the net entry.
  • Page 20 Installation SK550 1.1 V. 2.0 1. Select the user ID code. Use the program keys. Refer to the table. 2. Choose the user ID code. Use the Stop/Up key (E). Function To go to the previous value of the digit...

  • Page 21: Troubleshooting

    Troubleshooting SK550 1.1 V. 2.0 Troubleshooting General troubleshooting procedure 1. Try to solve the problem with the information in this manual. See § 5.3. 2. If it is not possible to solve the problem with the information in this manual, contact service. See § 5.2.

  • Page 22: Technical Data

    Technical data SK550 1.1 V. 2.0 Technical data General specifications Parameter Specification Materials used are suitable for Water, universal and solvent colorants Maximum load weight [kg] Can table dimensions [cm] 36 x 35 Maximum can height [cm] Minimum can height [cm]...

  • Page 23: Noise Level

    Technical data SK550 1.1 V. 2.0 Noise level Parameter Specification Maximum noise level [dB(A)] < 65 Safety classifications Parameter Specification IP (Ingress Protection) classification EMC (ElectroMagnetic Compliancy) classification Class B Overvoltage category Class II Electrical specifications Parameter Specification Power consumption, maximum [W]...

  • Page 24: Electrical Diagram

    Technical data SK550 1.1 V. 2.0 Electrical diagram...
