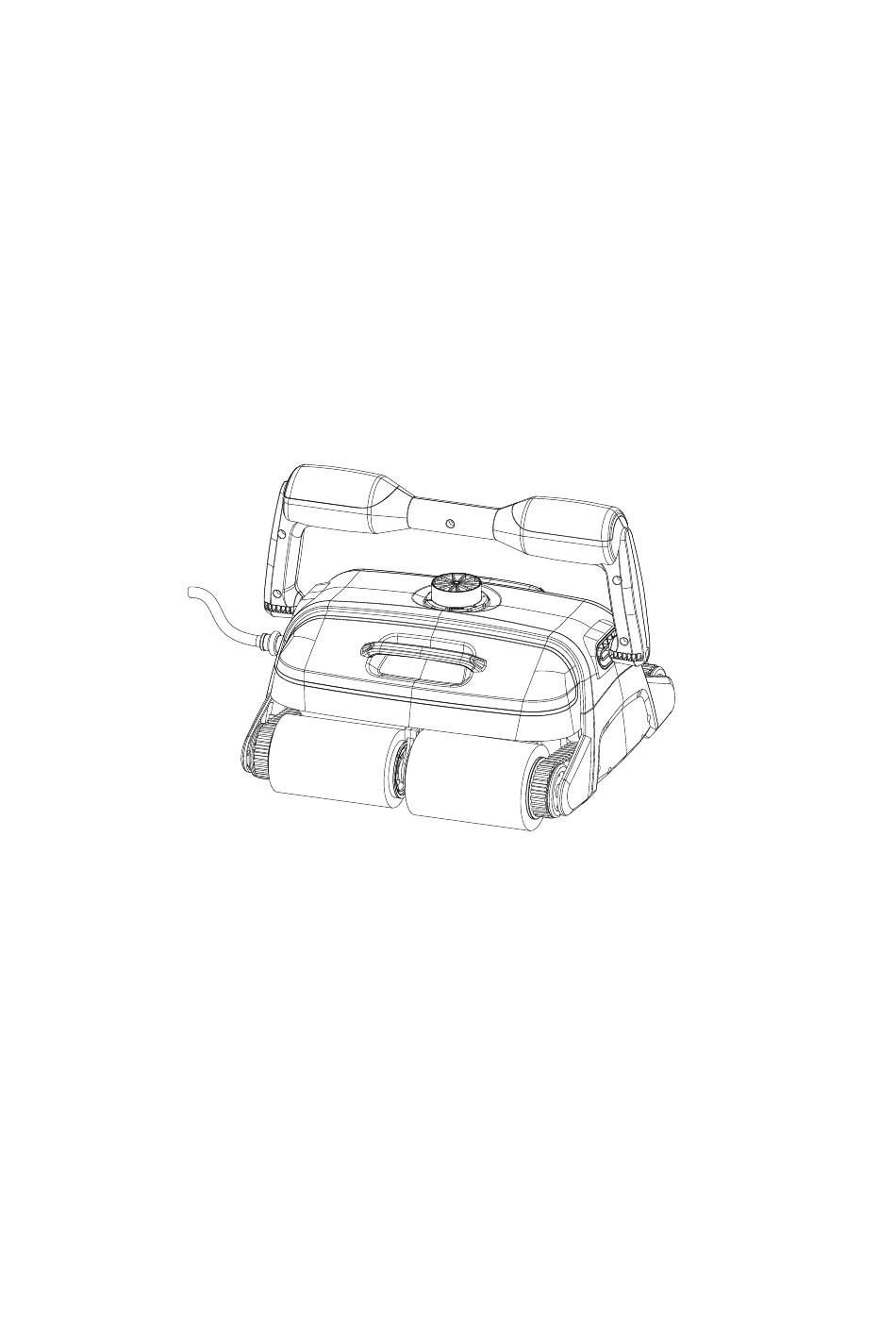

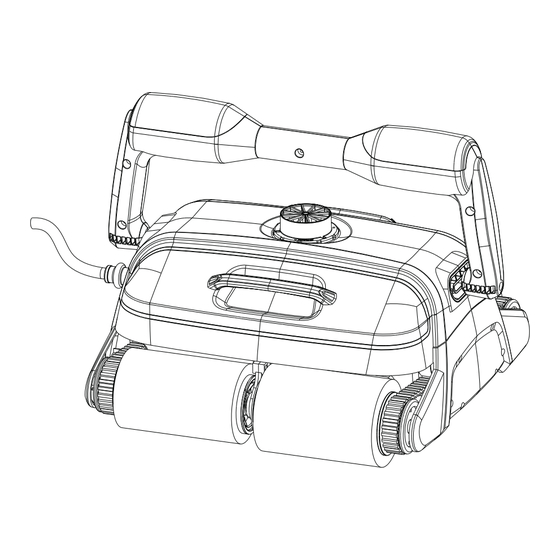

- Page 1 Pool Cleaner User Manual For warranty and service, please contact your place of purchase...
-
Page 2: Table Of Contents
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. Catalogue 1 Safety warning........... 2 Product overview..........2.1 Functions..............2.2 Product parameters............. 2.3 Parts list..............3 Packing List............4 Product operation..........4.1 Power connection................4.2 Start up procedure................4.3 How to order the time and timing............ -
Page 3: Safety Warning
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 1 Safety Warnings Please read this manual carefully before using the Pool Cleaner. Before performing maintenance or service on the Pool Cleaner please ensure the power is disconnected to avoid personal injury or property loss. -
Page 4: Product Overview
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 2 Product Overview 2.1 Functions ◇ Automatic Cleaning: the default mode is automatic, however, this can be overridden using the Remote Control. When the Remote Control is not being used, the pool cleaner will return to automatic mode. -
Page 5: Parts List
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 2.3 Parts List Main Body Parts Handle Guide Vane Top Cover Floating Cable Sponge Wheel Side Cover Drive Belt Motor Box Filter cartridge Impeller... - Page 6 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. Top Cover 2.4 Power Box Parts Display interface Keyboard Cable Socket Power Wire Bottom Cover Display interface Trouble light Enter Power Climb Direction Timer Order...
-
Page 7: Packing List
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 3 Packing List Part Name Quantity Serial Number Unit Body Guide Vane Power Box Remote Control User Manual Warranty Card Certificate of Quality Filter cartridge Pool Cleaner User Manual Warranty Card... -
Page 8: Product Operation
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 4 Product Operation 4.1 Power Connection Please connect the Floating Cable to the Cable Socket of Power Box (see Pic. 4.1.1), then connect the Power Box to an outside AC power of 100v/240v 50/60Hz (see Pic.4.1.2). - Page 9 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 4.2 Start Up Procedure (1) When placing the Pool Cleaner in the pool: you must wobble the Pool Cleaner according Pic.4.2.1 to make sure the air inside is released to enable it to sink to the bottom of pool.
-
Page 10: Proper Shut Down And Care
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 4.4 Proper Shut Down and Care (1)The iCleaner will shut down at the end of the cycle.Turn power off at the wall socket, and disconnect the power lead. Remove the floating cable from the side of the power box. -
Page 11: Remote Control 8
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. (3) Pool Cleaner Storage: When the Pool Cleaner is clean, disconnect the floating cable reel it in hand-over-hand and place on the Pool Cleaner, then store the Pool Cleaner in a dry, well-ventilated area. If you have the Caddy, please put the Pool Cleaner &... -
Page 12: Maintenance
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. Order time button 1.Pressing the button “ ”, then indicator light “ ” flassing(on the power box). 2. Press the button “ ”or “ ” to select the time: . Press the button “ ” or “... - Page 13 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 5.2 Sponge Wheel Replace the Sponge Wheels if they are badly worn or broken Step 1 Remove the Filter cartriages from the pool cleaner(pic.5.2.1). (pic.5.2.1) Screw & Nuts Step 2 Using a Phillips head screwdriver and 7mm...
- Page 14 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. Step 3 Remove the Rolling Brush. (Pic.5.2.3) Rolling Brush (pic.5.2.3) Step 4 Slide the old sponge wheels off, and replace with new sponge wheels(Pic.5.2.4) （Pic.5.2.4） Axle Step 5 Assemble the Rolling Brush to the axle (Pic.5.2.5) .
- Page 15 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. Step 6 Reassemble the Transmission components and Side Covers to the body of the unit.(Pic.5.2.6) (PIC.5.2.6) Step 7 Fasten the transmission components and side covers to the body of the unit using the nuts and bolts.(Pic.5.2.7)
- Page 16 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 5.3 Filter cartridge Press Button Lock Post-filter Prefilter Step 1: Press the Buttom Lock of the Post-filter and rotate a Prefilter certain Angle and take it out. (pic.5.3.1) Step 2: Washing the filter Cartridge use the water spray or firm brush.
-
Page 17: Trouble Shooting And Warning Lights
HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 6 Troubleshooting and Warning Lights 1.The Robot out of water 2.The Motor Pump 8.The Motor Pump is have over heated. over loaded. 3.Abnormal voltage. 4.The robot is upside down. 7.Signal connection problem. 5.The walking motors are over loaded. - Page 18 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. Solution Commonfault Reason Remarks The socket is Plug in the power lead The robot not plugged in doesn't work Connection is wrong Check the connection Impeller is Clean the Impeller jammed or dirty Weak pumping...
- Page 19 HANGZHOU GAOYUE TECHNOLOGY CO., LTD. 7 Safty Checklist ◇Please shut down the pool cleaner according to chapter 4.4 when you have finished cleaning the pool. ◇ Please inspect and clean the impeller & Guide Vane according to chapter 5.1, after use.
- Page 20 HANGZHOU GAOYUE TECHNOLOGY CO., LTD LIANGZHU UNIVERSITY SCIENCE PARK, HANGZHOU, CHINA T: 86-571-88759508 F: 86-571-88759501 E:SALE@ICHROBOTER.COM WWW.ICHROBOTER.COM...
