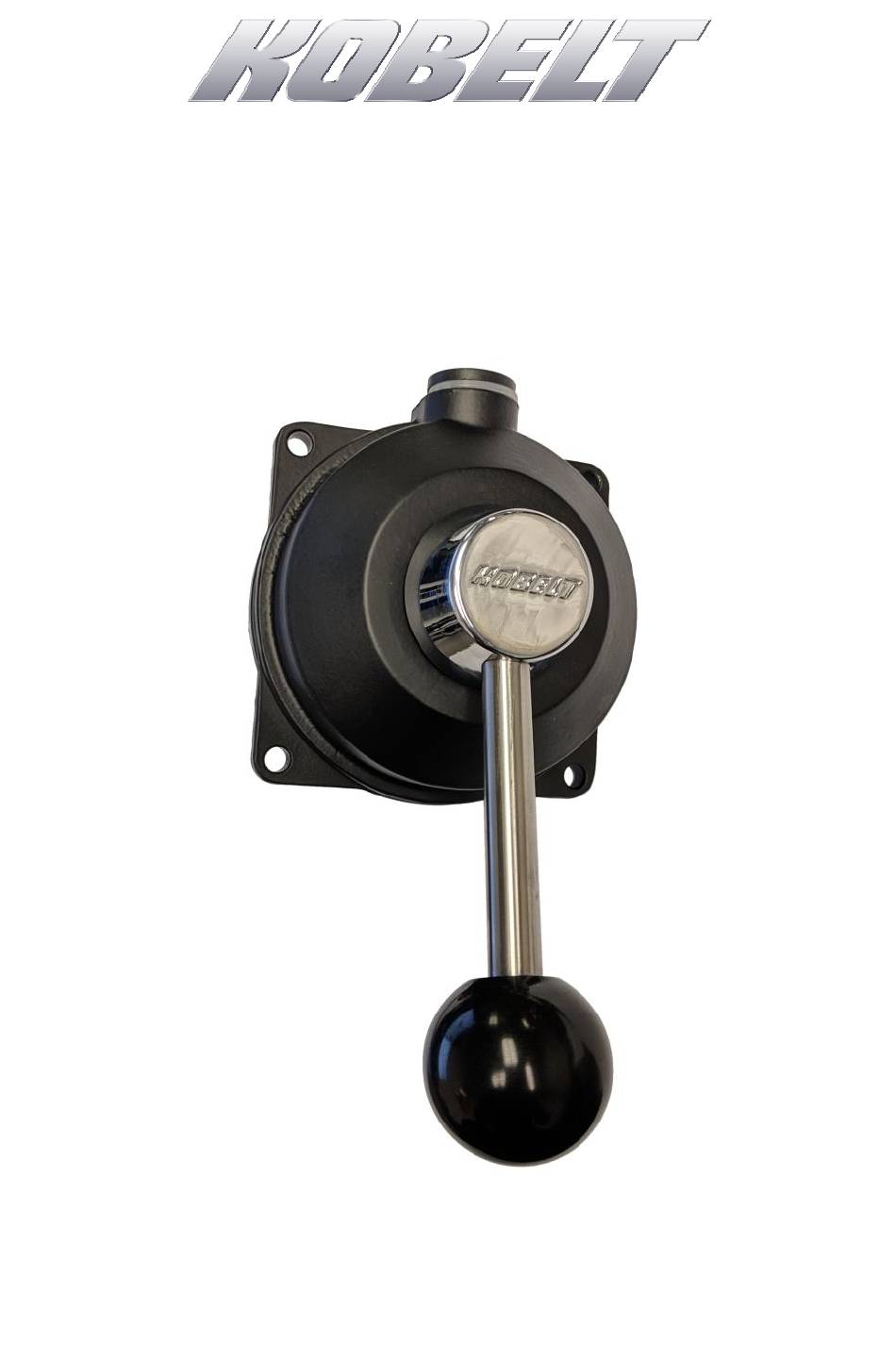

- Page 1 7170 Jog Lever Owner’s Operation, Installation & Maintenance Manual February 2019 Kobelt Manufacturing Co. Ltd.
- Page 2 7170 Jog Lever Kobelt Manufacturing Co. Ltd. NOTES RECORD DATA BEFORE INSTALLATION FOR FUTURE REFERENCE Model #: Serial #: Date of Purchase: Date of Installation: Rev B MNL_7170 2 of 24...
-
Page 3: Table Of Contents
7170 Jog Lever Kobelt Manufacturing Co. Ltd. ABLE OF ONTENTS Introduction ......................4 Contact ........................4 Safety ........................4 Product Description ....................6 Technical Data ......................6 Installation ......................7 Mechanical ......................7 Electrical ........................7 Commissioning ...................... 10 Electrical Check ...................... 10 Functional Test ...................... -
Page 4: Introduction
Kobelt reserves the right, without notice, to change the design, or construction, of any products and to discontinue or limit distribution of any products. Kobelt also reserves the right to change, or update, without notice, any technical information contained within this document. - Page 5 • Do not carry out any modifications to the product. • Only use authentic Kobelt spare parts. • Observe all local regulations, directives and laws during the installation of this product. • All installation, commissioning, and maintenance work must only be conducted by qualified personnel.
-
Page 6: Product Description
RODUCT ESCRIPTION The Kobelt 7170 Jog Lever is used for input jog control to electronic and power hydraulic steering systems. The operator can maneuver the vessel by simply jogging the lever port or starboard to activate its internal micro switches. The Jog Lever can be used for steering applications, other marine applications, or industrial installations. -
Page 7: Installation
7170 Jog Lever Kobelt Manufacturing Co. Ltd. NSTALLATION ECHANICAL Ideally, the jog lever should be mounted in a central location at each station on-board the vessel to control steering operation. • Within 6 feet [1.8 m] of electrical junction box. - Page 8 7170 Jog Lever Kobelt Manufacturing Co. Ltd. Figure 1: 7170 Cable Penetration Location Figure 2: 7170 Internal Wiring Diagram Rev B MNL_7170 8 of 24...
- Page 9 7170 Jog Lever Kobelt Manufacturing Co. Ltd. The operating direction of the Switches in relation to the Jog Lever handle is shown in Figure Figure 3: 7170 Switch Direction Diagram Do not operate the Jog Lever if the internal spring has broken.
-
Page 10: Commissioning
7170 Jog Lever Kobelt Manufacturing Co. Ltd. OMMISSIONING LECTRICAL HECK Ensure that the rear cover is installed and secured before powering on the 7170. • Confirm that the electrical connections to the 7170 have been made. UNCTIONAL The Functional Test should be carried out while the vessel is still at dock and before it is taken out to sea after installation has been completed. -
Page 11: Operation
Kobelt Manufacturing Co. Ltd. PERATION The Kobelt 7170 Jog Lever contains a pair of contact switches, one for each direction of travel. The Jog Lever also contains a centering spring that forces the lever back to centre when pressure is not being applied by the operator. -
Page 12: Maintenance
PARE ARTS AND As a minimum Kobelt recommends that a spare 7170 Repair Kit be kept on-hand. Depending on the date of purchase, a retro-fit kit may be required to mount the new more robust spring found in the 7170 Repair Kit. When ordering a retro-fit kit, a repair kit should also be ordered and installed together. -
Page 13: Troubleshooting
If you encounter problems with the operation of your product, please refer to the trouble- shooting suggestions before contacting Kobelt for assistance. If the steps below do not resolve your issue, please reach out either Kobelt directly or our Dealers in your area. Table 4: Common Solutions... -
Page 14: Warranty
If any part is found to be defective, Kobelt will replace said part FOB the Kobelt factory provided that any such defective part is returned by the Buyer with freight and applicable forwarding charges prepaid by the Buyer. -
Page 15: Appendix A: Installation Dimensions
7170 Jog Lever Kobelt Manufacturing Co. Ltd. A: I PPENDIX NSTALLATION IMENSIONS Figure 5: 7170 Installation Dimensions Rev B MNL_7170 15 of 24... -
Page 16: Appendix B: Parts List
7170 Jog Lever Kobelt Manufacturing Co. Ltd. 10 A B: P PPENDIX ARTS Figure 6: 7170 Parts Diagram Rev B MNL_7170 16 of 24... - Page 17 7170 Jog Lever Kobelt Manufacturing Co. Ltd. Table 5: 7170 Parts List Model Number: 7170 Part Number: 7170-A_ 7170-B_ 7170-C_ ITEM DESCRIPTION PART NUMBER 7170-0001- JOG LEVER HOUSING 7170-0001B 7170-0001B CHROME 7170-0002- JOG LEVER COVER 7170-0002B 7170-0002B CHROME 7170-0003 7170-0004-K...
-
Page 18: Appendix C: Repair Kit Installation
C: R PPENDIX EPAIR NSTALLATION It is recommended that any required service work on a Kobelt unit be performed by a factory authorized service representative. Please contact the nearest Kobelt authorized distributor for assistance. Steps for replacement of spring and seals: Loosen cable gland. - Page 19 7170 Jog Lever Kobelt Manufacturing Co. Ltd. Figure 7: 7170 Parts Diagram for Maintenance Figure 8: 7170 Maintenance Small Housing O-Rings Close-up Rev B MNL_7170 19 of 24...
-
Page 20: Appendix D: Spring Arm Replacement
PPENDIX PRING EPLACEMENT It is recommended that any required service work on a Kobelt unit be performed by a factory authorized service representative. Please contact the nearest Kobelt authorized distributor for assistance. If your Jog Lever contains previous generation Spring Arms,... - Page 21 7170 Jog Lever Kobelt Manufacturing Co. Ltd. Page Intentionally Left Blank Rev B MNL_7170 21 of 24...
- Page 22 7170 Jog Lever Kobelt Manufacturing Co. Ltd. Page Intentionally Left Blank Rev B MNL_7170 22 of 24...
-
Page 23: Appendix E: Installation Cut-Out Template
7170 Jog Lever Kobelt Manufacturing Co. Ltd. 13 A E: I PPENDIX NSTALLATION EMPLATE Scale may not be exactly 1:1 due to PDF and printer scaling. Verify primary dimension with a ruler after printing and before using to cut. Figure 10: Installation Cut-out Template... - Page 24 Kobelt Manufacturing Co. Ltd. 8238 129th Street Surrey, British Columbia, Canada, V3W 0A6 Sales Tel: +1-604-572-3935 Fax: +1-604-590-8313 Email: sales@kobelt.com Website: www.kobelt.com Made in Canada / Printed in Canada...
