Technical description and operating instructions
gb was
here

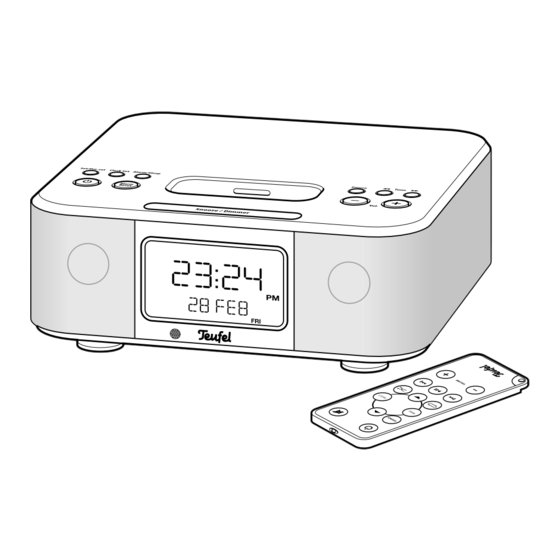

iTeufel Clock
v3
Radio alarm clock with iPod/iPhone dock

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iTeufel Clock v3 and is the answer not in the manual?

Questions and answers

Related Manuals for Teufel iTeufel Clock v3

Summary of Contents for Teufel iTeufel Clock v3

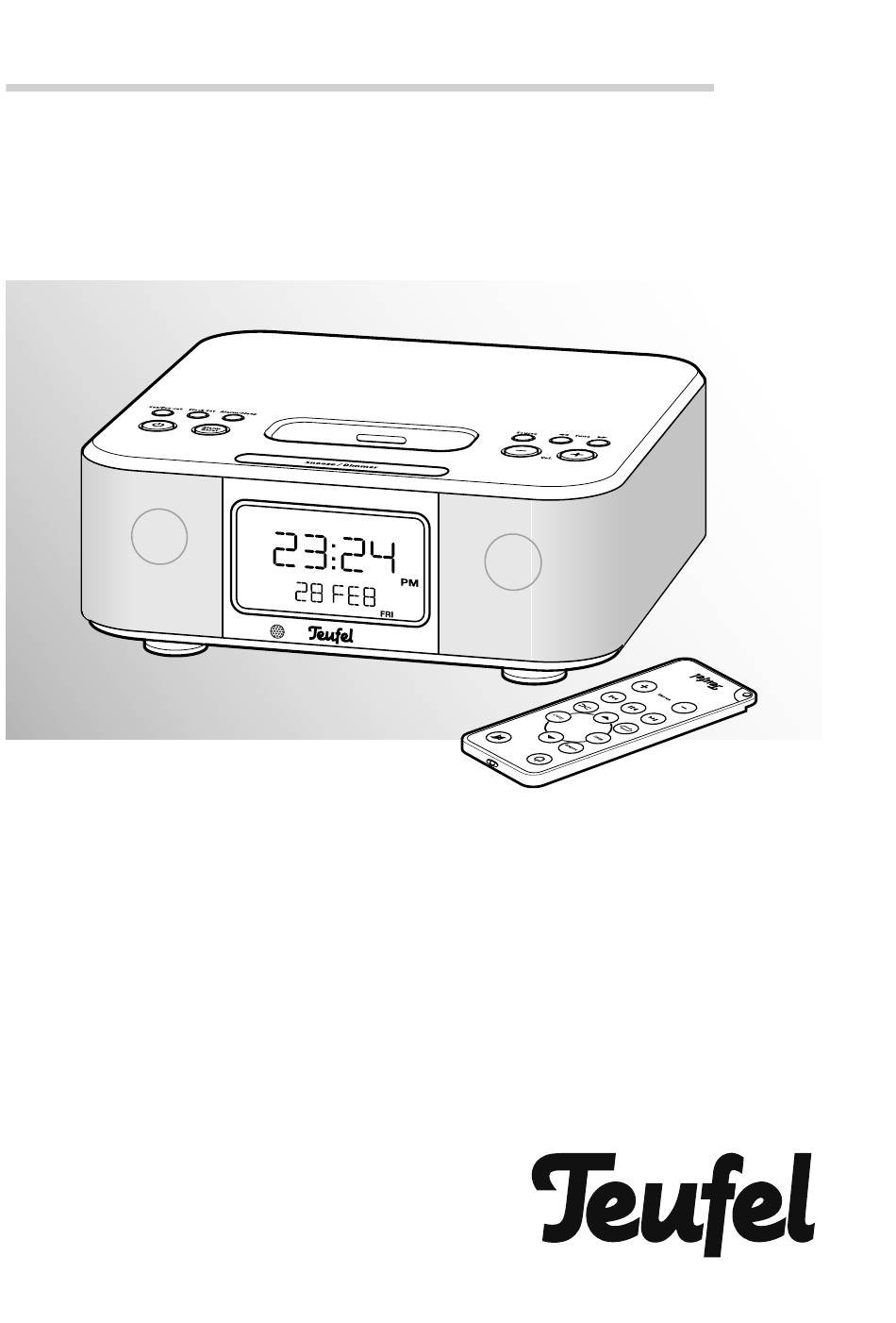

  • Page 1 Technical description and operating instructions gb was here iTeufel Clock Radio alarm clock with iPod/iPhone dock...

  • Page 2: Table Of Contents

    Contents General notes and information ................3 Safety notes ......................4 Product contents ......................7 Control elements and connections ................8 Setup and preparation ..................12 Clock and alarm ....................13 Setting the time and date ................13 Alarm function (alarm) ................14 iPod/iPhone operation ................... 16 Connecting an iPod/iPhone ................

  • Page 3: General Notes And Information

    IT04..changed without prior notice and in no way constitutes any liability on the part Many thanks for your support! of Lautsprecher Teufel GmbH. No part of these instructions may be re- Contact produced in any form or be broadcast-...

  • Page 4: Safety Notes

    Safety notes Caution icons • The standby button does not dis- connect the device from the mains You will fi nd the following caution icons line. Set the unit up so that the mains in these instructions: adapter is easily accessible and no vents are blocked.
  • Page 5 Danger Danger of explosion! • Ensure that children do not remove small parts from the unit or take them Lithium batteries can explode off of the unit (e.g. the remote con- if handled improperly. trol batteries, control buttons or mains •...
  • Page 6 • Do not place the unit in direct sun- • If the unit is to be left unsupervised for light. a long period (e.g. during a holiday), • Ensure suffi cient ventilation. or if a thunderstorm is forecast, dis- • Do not cover the vents with curtains, connect the mains adapter from the cloths, newspapers or similar.

  • Page 7: Product Contents

    Product contents Check to be sure • Check that all items have been deliv- ered and that nothing is damaged: 1 x iTeufel Clock 1 x mains adapter 1 x remote control including bat- tery Various dock adapters for various iPod/iPhone models •...

  • Page 8: Control Elements And Connections

    Control elements and connections Front view View from 3 4 5 above Rear view • iTeufel Clock...
  • Page 9 No Name Meaning/function Sensor for remote control Display panel 3 SET / PRE-SET For setting the time, date and alarm Setting the clock 4 CLOCK SET 5 ALARM / SLEEP Alarm/sleep function iPod-/iPhone dock Selecting the signal source (radio, iPod/iPhone or ext. de- 7 SOURCE vice) 8 TUNE...
  • Page 10 Display 18 19 Remote control • iTeufel Clock...
  • Page 11 No Name Meaning/function Sleep function is activated Alarm setting Alarm source: Buzzer Radio mode/alarm source: Radio Signal source: External device iPod/iPhone mode/alarm source: iPOD Time display, alarm time AM = before noon, PM = afternoon Display of the date/the (alarm) volume Display of the weekday Mute 27 ▲...

  • Page 12: Setup And Preparation

    Setup and preparation Setup location Changing the batteries 1. Hold the remote control with the bot- • Select a stable, level base. tom facing up. • Make sure that the environment is clean and free from dust. • Avoid placing the unit close to sourc- es of heat or in direct sunlight.

  • Page 13: Clock And Alarm

    Clock and alarm Setting the time and date 1. Push and hold The display will CLOCK SET (4) blink. 2. Briefl y push ◄ ◄ Set 12 / 24 hour TUNE ► ► (8) time mode (AM or PM (23) is dis- played in 12 hour time mode).

  • Page 14: Alarm Function (Alarm)

    Alarm function (alarm) Alarm einstellen 1. Briefl y push Symbols on the Alarm/Sleep (5) display blink 2. Repeatedly push Select the alarm SOURCE (7) source Buzzer Alarm sources Radio iPod/iPhone 3. Repeatedly push Set the alarm vol- – VOLUME + (9) 4.
  • Page 15 the desired station must be selected or the iPod/iPhone must be located in the dock. If no iPod/iPhone is in the dock, the buzzer alarm will sound instead of the music from the iPod/iPhone. When the alarm sounds ... The alarm of the selected source with the previously set volume sounds when the alarm time is reached.

  • Page 16: Ipod/Iphone Operation

    iPod/iPhone operation Connecting an iPod/iPhone 1. Search for the corresponding dock adapter (see adapter back side). 2. Push the adapter into the iPod/iPhone dock 6 until it audibly locks into place. 3. Carefully place the iPod/iPhone on the plug-in contact in the dock.The iPod/iPhone is now ready for play- back and the storage battery is charged.

  • Page 17: Adjusting The Volume

    Adjusting the volume • You can adjust the volume with the buttons – VOLUME + (9) or – VOLUME + (32). • With the button Mute (26), you can turn the sound off and on again. Removing the iPod/iPhone 3. Turn the device off with the On/Stand- by button (12) or (37).

  • Page 18: Radio Mode

    Radio mode Antenna Unwind the throw-out aerial (14) and ad- just the position of the antenna for ideal reception. Then fi x the antenna in place with adhesive tape. Selecting radio mode 1. Turn the device on with the On/Stand- by button (12) or (37).

  • Page 19: Operation With An External Device

    SOURCE (7) or (36). • All control functions can only be exe- cuted on the external device. Only the volume control and the mute function can be controlled with the buttons of the iTeufel Clock v3. • iTeufel Clock...

  • Page 20: Special Functions

    Special functions Sleep function This function deactivates your iTeufel Clock v3 after a preset time. 1. During music playback, push and hold the button ALARM / SLEEP (5) un- appears on the display. 2. With the buttons – VOLUME + (9) or ◄...

  • Page 21: Care And Cleaning

    Care and cleaning Clean the device regularly with a soft, Attention Risk of damage! damp microfi bre cloth. Please be abso- The wrong cleaner could dam- lutely sure to observe the following notes age the sensitive case surface. in the process: •...

  • Page 22: Technical Data

    Technical data Operating voltage: 100-240 V~ / 50/60 Hz Mains adapter: 5 V DC / 2,5 A Radio reception range FM (87,5 MHz – 108,0 MHz) Dimensions (W x H x D): 180 x 70 x 170 mm Net weight: 675 g Technical changes reserved! This product conforms with Council of the...
  • Page 23 • iTeufel Clock...
  • Page 24 For questions, suggestions or criticism please contact our customer service department: Lautsprecher Teufel GmbH Gewerbehof Buelowbogen – Aufgang D1 10783 Berlin (Germany), Buelowstrasse 66 Phone: 00800 – 200 300 400 (free of charge) Fax: +49 (0)30 – 300 930 930 www.teufelaudio.com...
