Regulus PG 500 Compact Installation, Wiring And Operation Manual
Backup power supply
Hide thumbs
Also See for PG 500 Compact:
- Installation and operator's manual (10 pages) ,
- Installation, wiring and operation instructions (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Regulus PG 500 Compact
Summary of Contents for Regulus PG 500 Compact

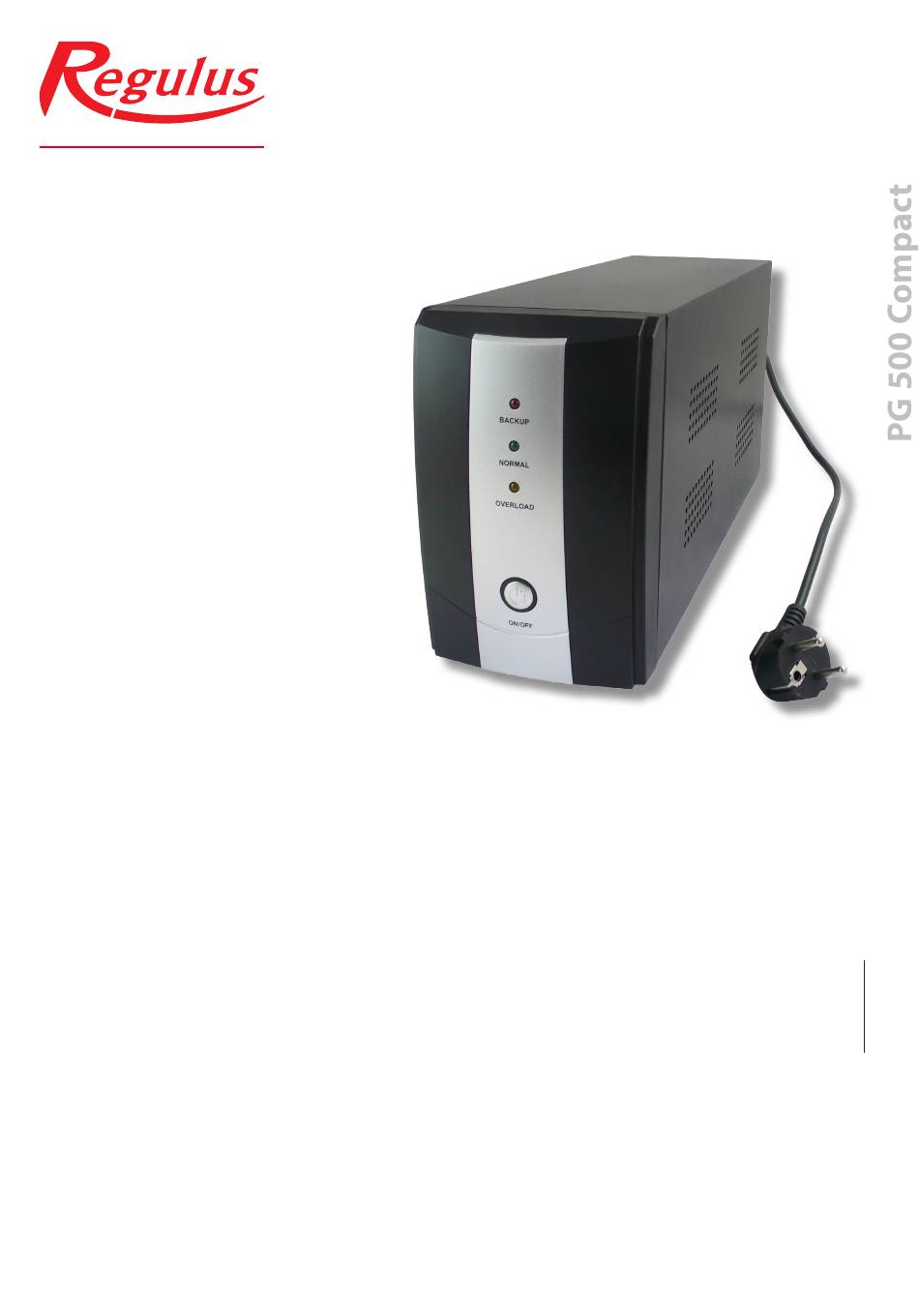

- Page 1 Installation, Wiring and Operation Manual PG 500 Compact Backup Power Supply PG 500 Compact...
-
Page 2: Table Of Contents
2.4 Commissioning ....................2.5 Turning on PG Compact with no grid power ........... 2.6 Battery replacement ..................3 UNIT CONDITION INDICATION ..................4 POSSIBLE FAULTS, TROUBLESHOOTING ................ 5 TECHNICAL DATA ......................6 MAINTENANCE ........................ REGULUS - PG 500 Compact - www.regulus.eu │... -
Page 3: Essential Information
The appliance connects to the power supply with a standard power cord with wall plug. The load is power supplied via the 230 V socket. WARNING! WHEN TESTING A PUMP BACKUP, NEVER UNPLUG THE PG 500 COMPACT FROM ELECTRICAL SOCKET. DOING SO WOULD INTERRUPT THE PE LINE. DE-ENERGIZING SHALL BE DONE BY A CIRCUIT BREAKER OR A FUSE. -
Page 4: Installation, Operation
230 VAC coil, 2x NO + 2x NC • it must be ensured that the PE lead cannot be disconnected! • unconditional separation of the circuit fed from PG 500 from the mains shall be respected REGULUS - PG 500 Compact - www.regulus.eu │... - Page 5 BACKUP Do respect the separation between the circuits with and without backup. Not only for the live wire but also for the neutral one! DETAILED PIC. SHOWING TERMINAL BOARDS MARKING AND WIRING REGULUS - PG 500 Compact - www.regulus.eu │...
- Page 6 BACKUP Do respect the separation between the circuits with and without backup. Not only for the live wire but also for the neutral one! DETAILED PIC. SHOWING TERMINAL BOARDS MARKING AND WIRING REGULUS - PG 500 Compact - www.regulus.eu │...
- Page 7 BACKUP Do respect the separation between the circuits with and without backup. Not only for the live wire but also for the neutral one! DETAILED PIC. SHOWING TERMINAL BOARDS MARKING AND WIRING REGULUS - PG 500 Compact - www.regulus.eu │...
- Page 8 Fireplace Backup of a fireplace circulation pump with flue thermostat. PG 500 COMPACT BACKUP POWER PUMP WITH SUPPLY W. INTEGRATED BATTERIES BACKUP FLUE THERMOSTAT MAINS 230 V, 50 Hz REGULUS - PG 500 Compact - www.regulus.eu │...
- Page 9 STDC, TRS etc. controller STDC, TRS etc. controller Backup of a PWM-controlled pump. PG 500 COMPACT BACKUP POWER SUPPLY W. INTEGRATED BATTERIES PUMP WITH BACKUP MAINS 230 V, 50 Hz STDC, TRS etc. controller REGULUS - PG 500 Compact - www.regulus.eu │...
-
Page 10: Commissioning
3. Connect your pump or another load by plugging its cable into the socket of PG 500 Compact. It is necessary to stick to a TN-S system (three-wire system, i.e. live wire is black, neutral wire is pale blue and protective earth wire is yellow-green). -
Page 11: Unit Condition Indication
The backup time is charged grid for at least 24 hours, preferably 48. significantly reduced. ● Charging circuit does not work ● Contact service staff. ● Battery lifetime overi ● Contact service staff. REGULUS - PG 500 Compact - www.regulus.eu │... -
Page 12: Technical Data
3 h 30 min 6 MAINTENANCE PG 500 Compact does not require any special maintenance. Disconnect it from the mains before cleaning. If needed, wipe its surface with a wet cloth without detergent. Do not use a spray for cleaning.
