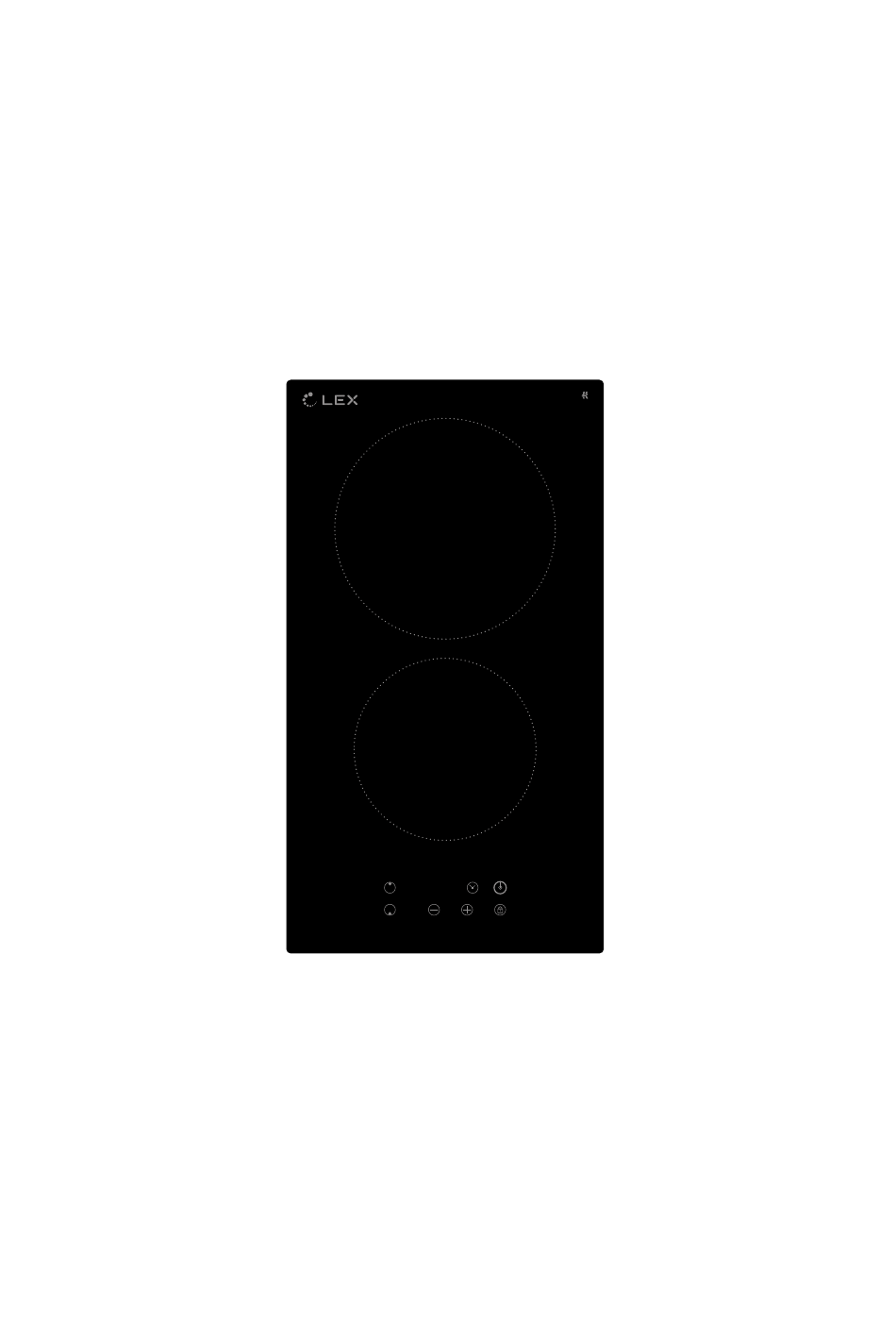

- Page 1 Service Manual Ceramic hob Model: EVH 320BL& EVU320BL N.B. There are different serial No. regulation that concern to the different spare parts, please read these instructions carefully before attempting to repair this appliance.
- Page 2 Instruction for model EVH320BL (general model) Serial No. like this:...
- Page 3 Exploded view Model: EVH320BL(general model)
-
Page 4: Spare Parts List
Spare parts list Model: EVH320BL (general model) Code New code Component Ceramic Glass DAN2CY DT0003 1220004 Left-Right Bracket DT0075 1220019 Front-Rear Bracket DT0022 1180001/1180011/1180023 Heating Element 1200W DT0025 1180002/1180012/1180024 Heating Element 1800W DT0026 1220008 Hob fixing bracket DT0027 1220064 Spring bracket 1040003 Display Board CD3001 DT0033... - Page 5 Wiring diagram Model: EVH320BL (general model)
- Page 6 Instruction for model EVH320BL&EVU320BL (with thin body) N.B. For model EVH320BL, this instruction is used for the Rating label with a letter “S” in the end of the Serial No. For model EVU 320BL, this instruction is used for the rating label...
-
Page 7: Exploded View
Exploded view Model: EVH320BL(with thin body) - Page 8 Spare parts list Model: EVH320BL& EVU320BL (with thin body) Code Component Ceramic Glass 1220004 Left-Right Bracket 1220019 Front-Rear Bracket 1180023 Heating Element 1200W 1180024 Heating Element 1800W 1190025 Silicone Heat-insulated Strip 1190005 U-shaped Silicone Seal 1220034 Heat-insulated Bracket 1040003-0130/1040003-0329 Display Board...
- Page 9 Wiring diagram Model: EVH320BL& EVU320BL (with thin body)
- Page 10 Sticker of Spare parts Please remain the label that stick over the inner package like this. From this sticker you can know the spare parts are used for which model. Please take care both the Code and the Model No. on the label when you replace the spare parts.
-
Page 11: What To Do If Something Goes Wrong
What to do if something goes wrong There is no power to the appliance: - Check there is not a power cut - Check there is power to the electric socket/appliance - Has the auto time elapsed? After cooking the letter ‘H’ is displayed: - This is the hot surface indicator –...
