Summary of Contents for Lex EVH 431BL

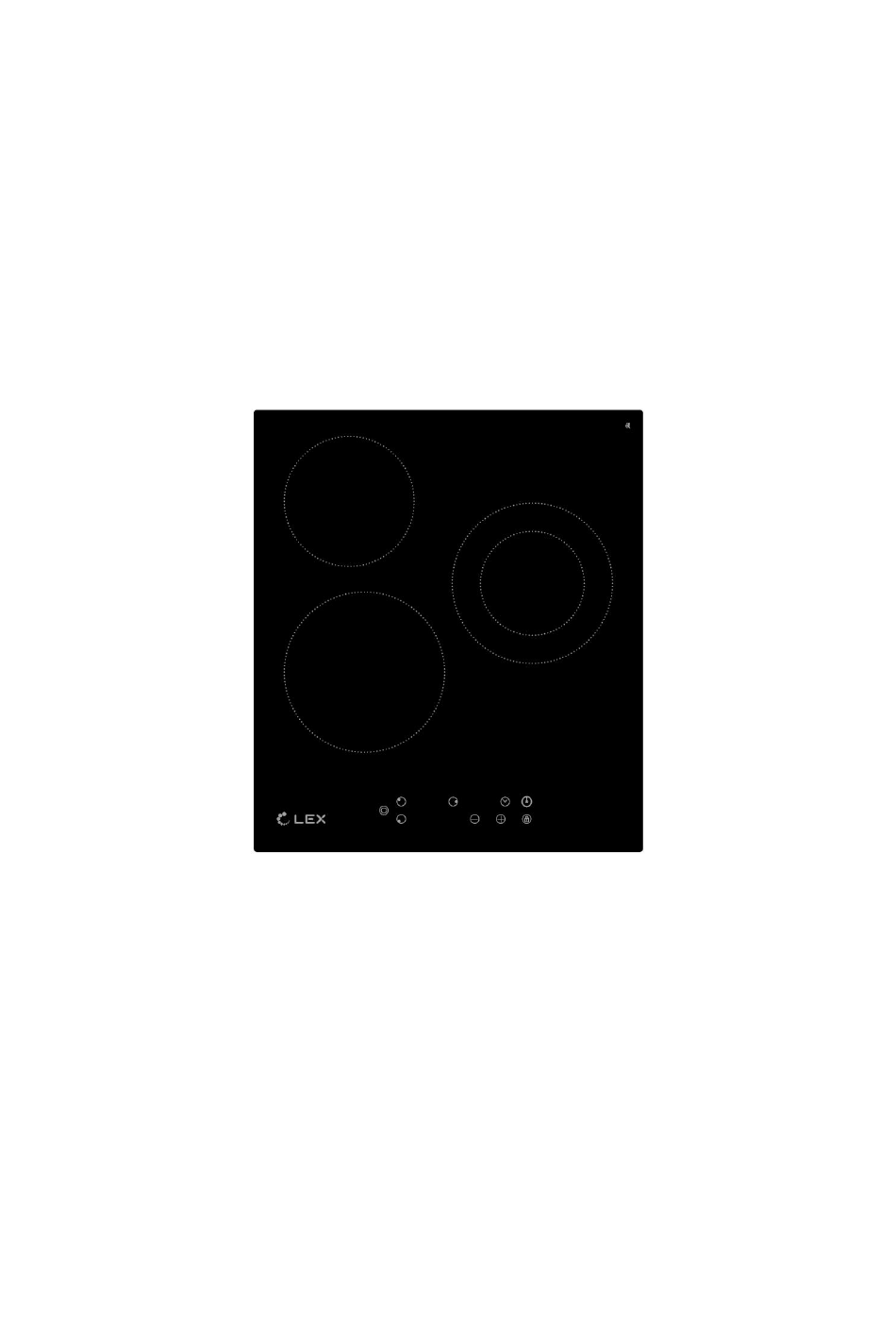

- Page 1 Service Manual Ceramic hob Model: EVH 431BL N.B. There are different serial No. regulation that concern to the different spare parts, please read these instructions carefully before attempting to repair this appliance.
- Page 2 Instruction for model EVH431BL Serial No. like this:...
- Page 3 Exploded view Model:EVH431BL...
-
Page 4: Spare Parts List
Spare parts list Model: EVH431BL New code Component 1010316 Ceramic Glass 1220004 Left-Right Glass Plate Metal Fixer 1080023 Heating Element 1200W 1080024 Heating Element 1800W 1080029 Hob Component 2000W 1190056 Silicone Heat Insulation Strip 1190005 U-shaped Silicone Sealing Ring 1220047 Heat Insulation Bracket 1040007-0131 Display Board... - Page 5 Wiring diagram Model: EVH431BL...
- Page 6 Sticker of Spare parts Please remain the label that stick over the inner package like this. From this sticker you can know the spare parts are used for which model. Please take care both the Code and the Model No. on the label when you replace the spare parts.
-
Page 7: What To Do If Something Goes Wrong
What to do if something goes wrong There is no power to the appliance: - Check there is not a power cut - Check there is power to the electric socket/appliance - Has the auto time elapsed? After cooking the letter ‘H’ is displayed: - This is the hot surface indicator –...
