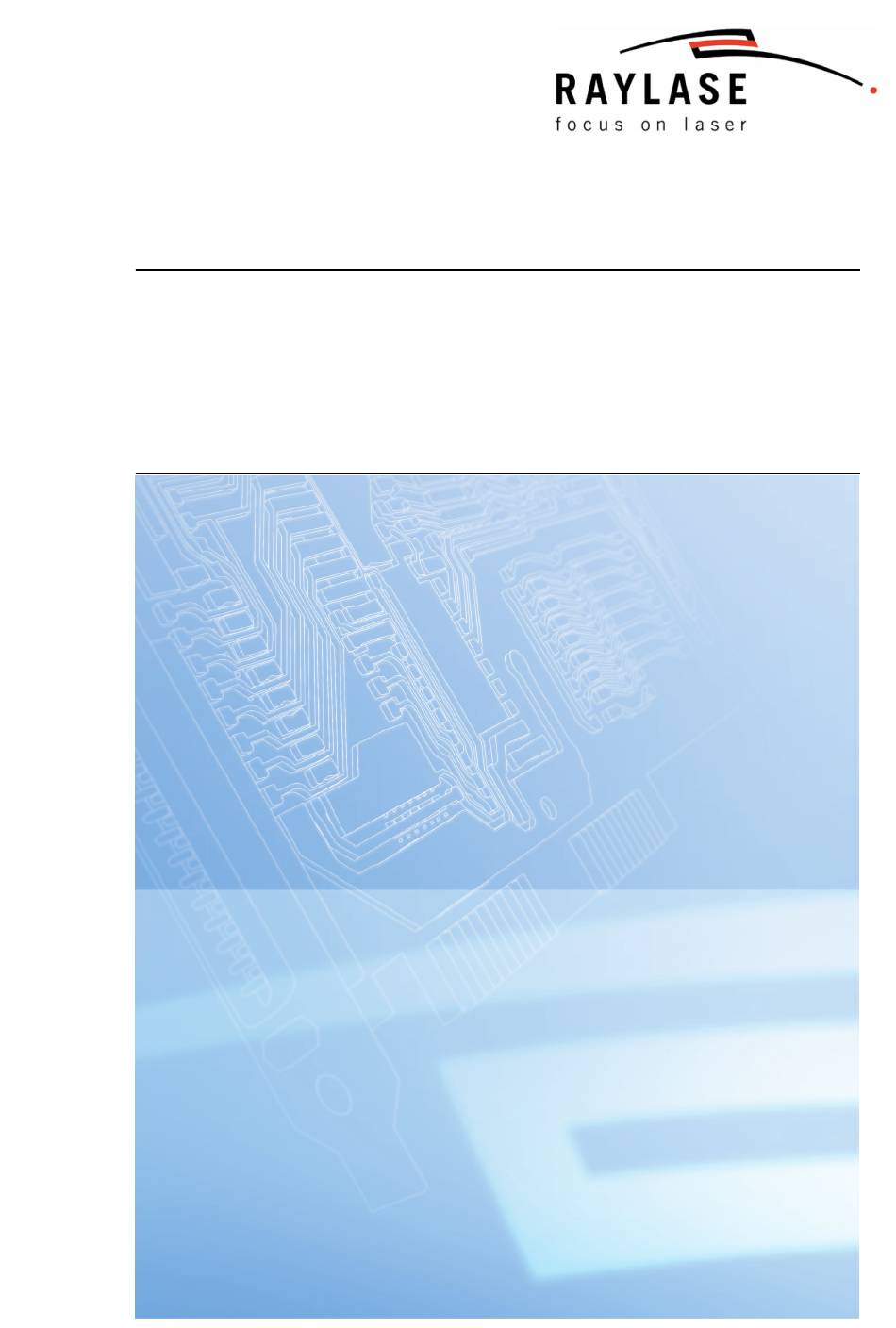

- Page 1 Hardware Manual SP-ICE-1 PCI/e PRO Control Cards...
- Page 2 This manual has been compiled by RAYLASE for its customers and employees. RAYLASE reserves the right to change the product described in this manual and the information contained therein without prior notice. The software included in the product and this manual itself are protected by copyright. All rights are reserved.
-
Page 3: Table Of Contents
Master-Slave Configuration ..................16 MOTF Configurations ....................16 INSTALLATION ......................17 Preparation ......................17 Installation Procedures ....................17 4.2.1 Standard Mode ....................17 4.2.2 Master-Slave Mode ....................18 4.2.3 Master-Master Mode ....................19 4.2.4 Stand-Alone Mode ....................19 TROUBLESHOOTING ....................20 INDEX ........................21 MN055 / v1.4.0 RAYLASE SP-ICE-1 PCI/e PRO Control Cards... -
Page 4: Basic Information
Chapter 1 BASIC INFORMATION The SP-ICE-1 PCI/e PRO control cards are either to use as PC-version or as stand-alone ver- sion. They are equipped with the RAYLASE advanced scanning. The control card comprises a complete processor system for scan head and laser control in real time. -
Page 5: Delivery Scope
Warranty The rights of the customer in respect of any defects in quality or deficiencies in title are gov- erned by the general conditions of business of RAYLASE AG. These conditions are available for review on our website. Before returning the product, please request an authorization number from RAYLASE. Pack the product in the original packaging or in packaging that provides equivalent protection for shipping. -
Page 6: Laser Safety
Health) certification. CAUTION: Switch on the PC or the stand-alone SP-ICE-1 PCI/e PRO control card first, before switching on the laser system. In this way you can avoid an uncontrolled action of the laser when switch- ing on the SP-ICE-1 PCI/e PRO control card. -
Page 7: Technical Data
Operating systems: ..........Windows XP/ Windows Vista/ Windows RAM:......................1GB recommended Graphic card: ......................VGA (16Bit) Extension slot: ........One to four PCI/e slots, according to the configuration Free hard disc memory: ..................Minimum 30MB RAYLASE SP-ICE-1 PCI/e PRO Control Cards MN055 / v1.4.0... -
Page 8: Overview
10 J405 Port E, TTL Input J406 J300 Activate MOTF page 16 LEDs Status_LEDs page 15 LM = laser modulation, FPS = first pulse suppression, MIP = mark in progress MN055 / v1.4.0 RAYLASE SP-ICE-1 PCI/e PRO Control Cards... -
Page 9: Sp-Ice-1 Pcie Pro
10 J405 Port E, TTL Input J406 J300 Activate MOTF page 16 LEDs Status_LEDs page 15 LM = laser modulation, FPS = first pulse suppression, MIP = mark in progress RAYLASE SP-ICE-1 PCI/e PRO Control Cards MN055 / v1.4.0... -
Page 10: Scan Head Interface
Technical Data Chapter 2 2.4.3 Scan Head Interface At the 25-pin D-SUB connector a RAYLASE XY(Z) scan head can be connected. All signals are in accordance with the RAYLASE XY2-100 standard interface. Signal Signal Diff.Output- SENDCLOCK Diff.Output+ SENDCLOCK Diff.Output- SYNC Diff.Output+... -
Page 11: Port C, Laser / I/O Interface
0V to +10V ± 1% TTL low max. 0,5V max. 40mA Output current 5mA max. TTL high min 2V max. 40mA Bandwidth 1kHz DAC resolution 16Bit Noise ratio (1 GHz) 60dB min. RAYLASE SP-ICE-1 PCI/e PRO Control Cards MN055 / v1.4.0... -
Page 12: Rs-232 Serial Interface
In order to use the RS-232 serial interface DLL-drivers have to be installed on the host PC. Data transmission rate is 115.2kBaud. For more information on how the RS-232 serial interface can be linked to your application, please contact the RAYLASE staff. MN055 / v1.4.0 RAYLASE SP-ICE-1 PCI/e PRO Control Cards... -
Page 13: Laser Control Interface
ANA_OUT_2 FPS = first pulse suppression, LM = laser modulation, MIP = mark in progress CAUTION: A short-circuit on a signal line will immediately destroy the SP-ICE-1 PCI/e PRO control card! Please note: Some of the input functions can be applied additionally at Laser / I/O Interface (J2). -
Page 14: Interface For Marking-On-The-Fly-Option (Motf)
The SP-ICE-1 PRO PCI/e control card evaluates the signals A and B. This results twice the resolution in comparison to previous version (SP-ICE-1) which only evaluates signal A . >250ns >1000ns Maximum MOTF frequency: 1MHz MN055 / v1.4.0 RAYLASE SP-ICE-1 PCI/e PRO Control Cards... -
Page 15: Voltage Supply
Note: The separate RAYLASE manual "Applications Manual", describes in detail the use of MOTF function with examples. Voltage Supply If the SP-ICE-1 PCI/e PRO control card is used in stand-alone mode, it has to be supplied with voltage via connector I9 as shown in the following figure. Fig. 4... -
Page 16: Configurations
CONFIGURATIONS Master-Master Configuration It is possible to run up to four master SP-ICE-1 PCI/e PRO control cards in one PC in order to control up to four RAYLASE scan heads independently. All cards are supplied with the on- board processor. Each card controls one scan head and one laser. Each head is associated with its own correction file via software. -
Page 17: Installation
Switch off the PC. Disconnect the PC from the mains supply outlet. Open the housing of the PC. Plug the SP-ICE-1 PCI/e PRO control card in a free PCI slot/PCIe slot and fasten the board with screw. Close the housing of the PC. -
Page 18: Master-Slave Mode
Disconnect the PC from the mains supply outlet. Open the housing of the PC. Plug the SP-ICE-1 PCI/e PRO control cards in free PCI slots/PCIe slots and fasten the boards with screw. Connect the SP-ICE-1 PCI/e PRO control cards via a backplane adapter as shown below. -
Page 19: Master-Master Mode
Disconnect the PC from the mains supply outlet. Open the housing of the PC. Plug the first SP-ICE-1 PCI/e PRO control card in a free PCI slot/PCIe slot and fasten the board with screw. Please be aware, that all other SP-ICE-1 PCI/e PRO control cards will be installed later on. -
Page 20: Troubleshooting
The version of the SP-ICE.dll must be at least 12.8.74.0 (c:\Program Files\RAYLASE\SP-ICE\bin). It can be checked by right-click Properties>version. You may uninstall the old drivers and install the drivers for the SP-ICE-1 PCI/e PRO from the installation CD. Uses a different application (eg SpiceCfg.exe) the SP-ICE-1 PCI/e PRO control card(s)? Only one application can access at the same time the SP-ICE.dll, even when multiple... -
Page 21: Index
Master-Master Mode ......19 Weight ............7 Master-Slave Mode ......18 Stand-Alone Mode ......19 Standard Mode .........17 XY2-100-Standard ........10 Interface Marking-On-The-Fly ......14 Laser / I/O Interface ........11 Laser Control Interface ......13 Laser Safety ..........6 Manufacturer ..........6 RAYLASE SP-ICE-1 PCI/e PRO Control Cards MN055 / v1.4.0... - Page 22 Index MN055 / v1.4.0 RAYLASE SP-ICE-1 PCI/e PRO Control Cards...
