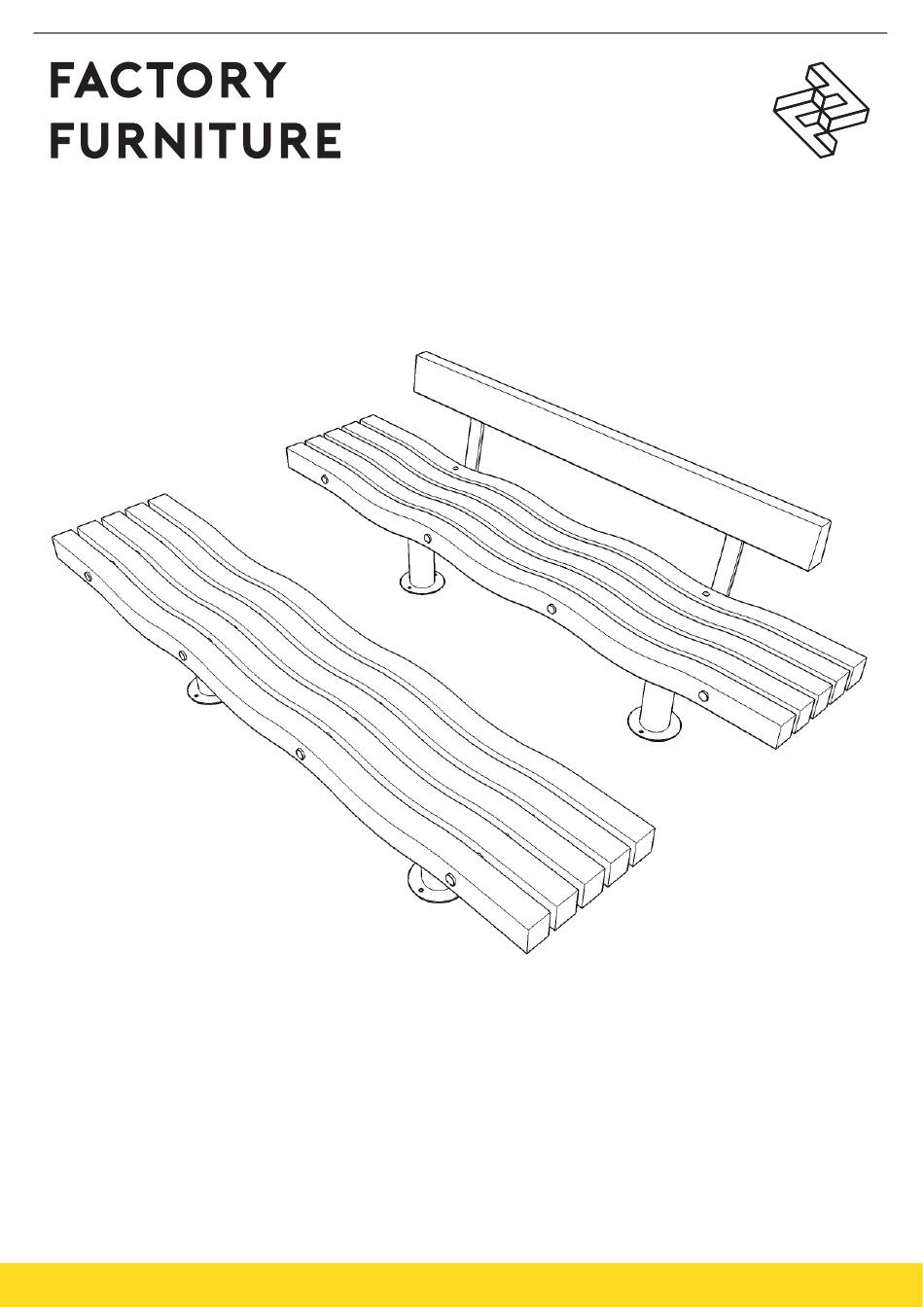

5 Slat SERPENTINE bench & seat
Operation & Maintenance Manual
Factory Furniture Ltd
|
5 Pioneer Road
|
Faringdon
|
Oxfordshire SN7 7BU
|
T +44 (0)1367 242731
hello@factoryfurniture.co.uk
|
www.factoryfurniture.co.uk
We reserve the right to change specification without notice. © 2017 Factory Furniture Ltd
Advertisement
Related Manuals for Factory Furniture 5 Slat SERPENTINE
Summary of Contents for Factory Furniture 5 Slat SERPENTINE
- Page 1 5 Slat SERPENTINE bench & seat Operation & Maintenance Manual Factory Furniture Ltd 5 Pioneer Road Faringdon Oxfordshire SN7 7BU T +44 (0)1367 242731 hello@factoryfurniture.co.uk www.factoryfurniture.co.uk We reserve the right to change specification without notice. © 2017 Factory Furniture Ltd...
-
Page 2: General Specifications
Replacement products or components thereof should be ordered direct from Factory Furniture Ltd. Copyright The design copyright for the product and drawing copyright remains the sole property of Factory Furniture Ltd. General Specifications Bench length 2300mm | width 460mm | height 475mm * Metric Imperial length 7’... -
Page 3: General Maintenance
Products for respraying larger areas are available from Factory Furniture Ltd. Heavy Damage In the event of serious damage to any component, replacements should be ordered from Factory Furniture Ltd. Should further assistance be required (or if the product needs to be disassembled for any reason), please contact Factory Furniture for detailed technical advice. - Page 4 finishes and polyester powder coat colours etc. In any event where either, additional orders are required, or spares and replacements are required please contact Factory Furniture Ltd. Using the part numbers given above as reference should help us to process your enquiry more efficiently.
-
Page 5: Important Notes
Ground level 1200 Ctrs Tubular Base (Sub-surface Fix) 5 slat Serpentine bench / seat on tubular bases (surface & sub-surface fix) M10x130mm threaded 1. Install suitable foundation pads (see illustration) each with top face at ground level or rod anchor (resin fixed) into Ø14mm hole... - Page 6 1200 Ctrs Elliptical Base (Detail same for seat) 5 slat Serpentine bench / seat on elliptical bases 1. Install suitable foundation pads (see illustration) each with top face at ground level. 2. Unpack pair of bases and attach to the bench / seat using 8 no. M8 x 25mm button head bolts into threaded inserts in seat slats - apply thread lock and tighten bolts to 14Nm.
