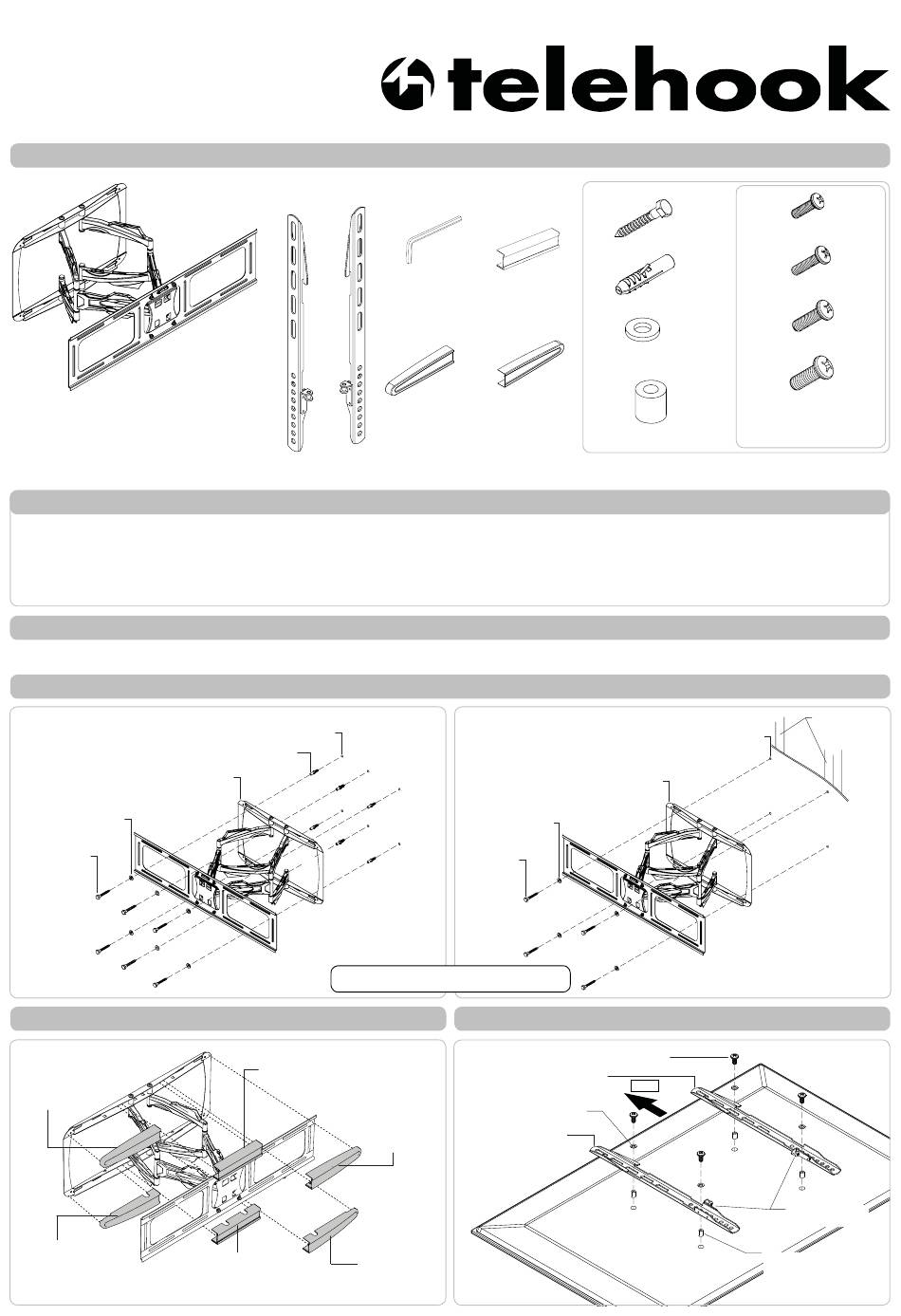

Telehook TH-3070-UFL Installation Instructions

Large-medium tv, articulated arm

Advertisement

Quick Links

TH-3070-UFL

Component Checklist

Arm/Wall Mount

Tools Required:

• Power Drill
• 3mm(0.12") Drill Bit
• 10mm(0.39") Masonry Drill Bit
• Phillips head screw driver
• 13mm(0.5") Socket Wrench or Shifter

IMPORTANT INFORMATION:

! IMPORTANT - Install Telehook 3070 Large-Medium TV Articulated Arm Mount as per installation instruction.
! This product supports a maximum load of 60kg (132lbs.).
! This product has a universal mounting hole pattern that suits a broad range of TV's:
From 200-800mm in width and 200-400mm in height.
! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received against the component checklist and hardware above.

Step 2. Install Arm/Wall Mount to the Wall

Masonry Wall
Arm/Wall Mount
M8 Washer (x6)
Coach
Screw (x6)

Step 3. Attach Wall Mount Covers

Wall Mount
Cover Left
Wall Mount
Cover Right
Right Mounting
Bracket
Left Mounting
Bracket
Ø10mm(0.4")
Drilled Hole
Nylon Anchor (x6)
Tip: Use a spirit level to ensure
Wall Mount
Cover Centre
Wall Mount
Cover Centre

Installation Instructions

Allen Key
Wall Mount Cover
Centre (x2)
Wall Mount
Wall Mount
Cover Left (x2)
Cover Right (x2)
Timber Stud Wall
M8 Washer (x4)
Coach
Screw (x4)
wall plate is horizontal.
Step 4.
Right Mounting
Wall Mount
Left Mounting
Cover Right
Bracket
Wall Mount
Cover Left
Large-Medium TV
Hardware
Coach Screw (x6)
Nylon Anchor (x6)
M8 Washer (x6)
M6.5 Washer (x4)
M8 Spacer (x4)
Ø5mm(0.2")
Drilled Hole
Arm/Wall Mount
Attach Mounting Brackets to Display
Mounting Screw
TOP
Bracket
Washer
l
Articulated Arm
M6x12 (x4 each)
M6x30mm (x4 each)
M8x16mm (x4 each)
M8x30mm (x4 each)
Display Mounting
Screws
Timber Studs
Note: Use a stud finder to
accurately locate the center of
the stud. Ensure that all screws
fix securely into the stud.
Ensure locking
screw is in inside.
Spacer
(optional, use only
for recess mounting
holes)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH-3070-UFL and is the answer not in the manual?

Questions and answers

Summary of Contents for Telehook TH-3070-UFL

  • Page 1: Installation Instructions

    • 13mm(0.5”) Socket Wrench or Shifter IMPORTANT INFORMATION: ! IMPORTANT - Install Telehook 3070 Large-Medium TV Articulated Arm Mount as per installation instruction. ! This product supports a maximum load of 60kg (132lbs.). ! This product has a universal mounting hole pattern that suits a broad range of TV’s: From 200-800mm in width and 200-400mm in height.
  • Page 2 Step 5. Attach Display to the Arm/Wall Mount 3 CENTER 1. Hook the display to the mounting plate. 2. Push the bottom of the display. 3. Ensure display is positioned in the 1 HOOK center of the mounting plate. 4. Tighten the locking screws using a phillips head screw driver.
