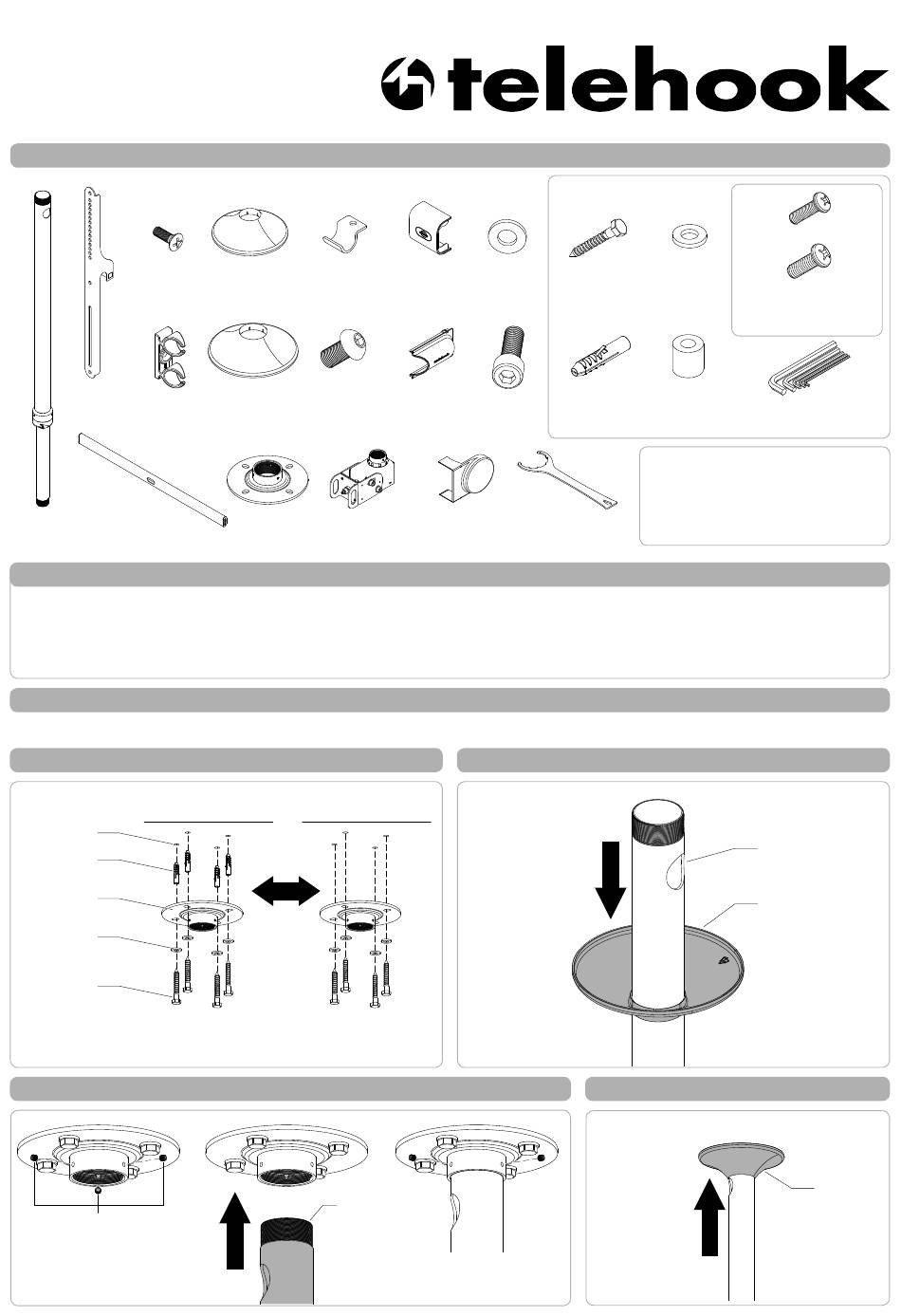

Telehook TH-3070-CTL Installation Instructions

TH-3070-CTL
TH-3070-CTS
TH-3070-CTLW
TH-3070-CTSW

Component Checklist

M4x12mm
Screw (x2)
Mounting
Cable
Bracket (x2)
Clip (x2)
Horizontal Rail
Pole
Assembly

IMPORTANT INFORMATION:

! IMPORTANT - Install Telehook Ceiling Mount as per installation instruction.
! This product supports a maximum load of 65kg (143lbs.).
! This product has a universal mounting hole pattern that suits a broad range of TV's:
From 200-800mm in width and 200-500mm in height.
! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received against the component checklist and hardware above.
Step 2.
Install Mounting Plate to the ceiling
Using the Mounting Plate as a template, mark and drill 4 holes.
Masonry Ceiling
Drilled Holes
Nylon Anchor
Mounting Plate
M10 Washer
Coach Screw
NOTE: Drilled hole sizes,
For Masonry Ceiling, Ø12mm (0.5") and 70mm (2.75") deep.
For Timber Ceiling, Ø7mm (0.75").

Step 4. Attach Pole Assembly to Base Plate

4A
Set Screws
Remove the three set
screws using the supplied
3mm Allen Key.
Ceiling Cover
Bracket Locking
Plate (x2)
Mounting M8x15mm
Cover Screw (x2)
Head Clamp
Mounting
Assembly
Plate
Timber Ceiling
OR
4B
Pole Assembly
INSERT

Installation Instructions

Ceiling Tilt Short Mount / Ceiling Tilt Long Mount
HARDWARE
Clamp Cover M10
M10 Coach
Middle Washer
Clamp Cover M10x30
Bottom Screw
Clamp Cover Tightening Tool
Side (x2)

Step 3. Install Mounting Cover

4C
Insert the three set screws
using the supplied 3mm
Allen Key to secure.
M6/M8/M10
Bolt (x4) Washer (x4 each)
Nylon
M6/M8
Anchor (x4)
Spacer (x4 each)
Tools Required:
• Power Drill
• 7mm(0.25") Drill Bit
• 12mm(0.5") Masonry Drill Bit
• Phillips head screw driver
• 17mm(0.7") Socket Wrench or Shifter
PUSH
Step 5.
Position Mounting Cover
PUSH
M6x16mm/30mm/45mm
M8x16mm/30mm/50mm
Display Mounting
Screws (x4 each)
2mm/2.5mm/3mm
5mm/8mm Allen Key
Pole Assembly
Mounting Cover
Mounting
Cover
