Terbly GLW760 IP User Manual

Led moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

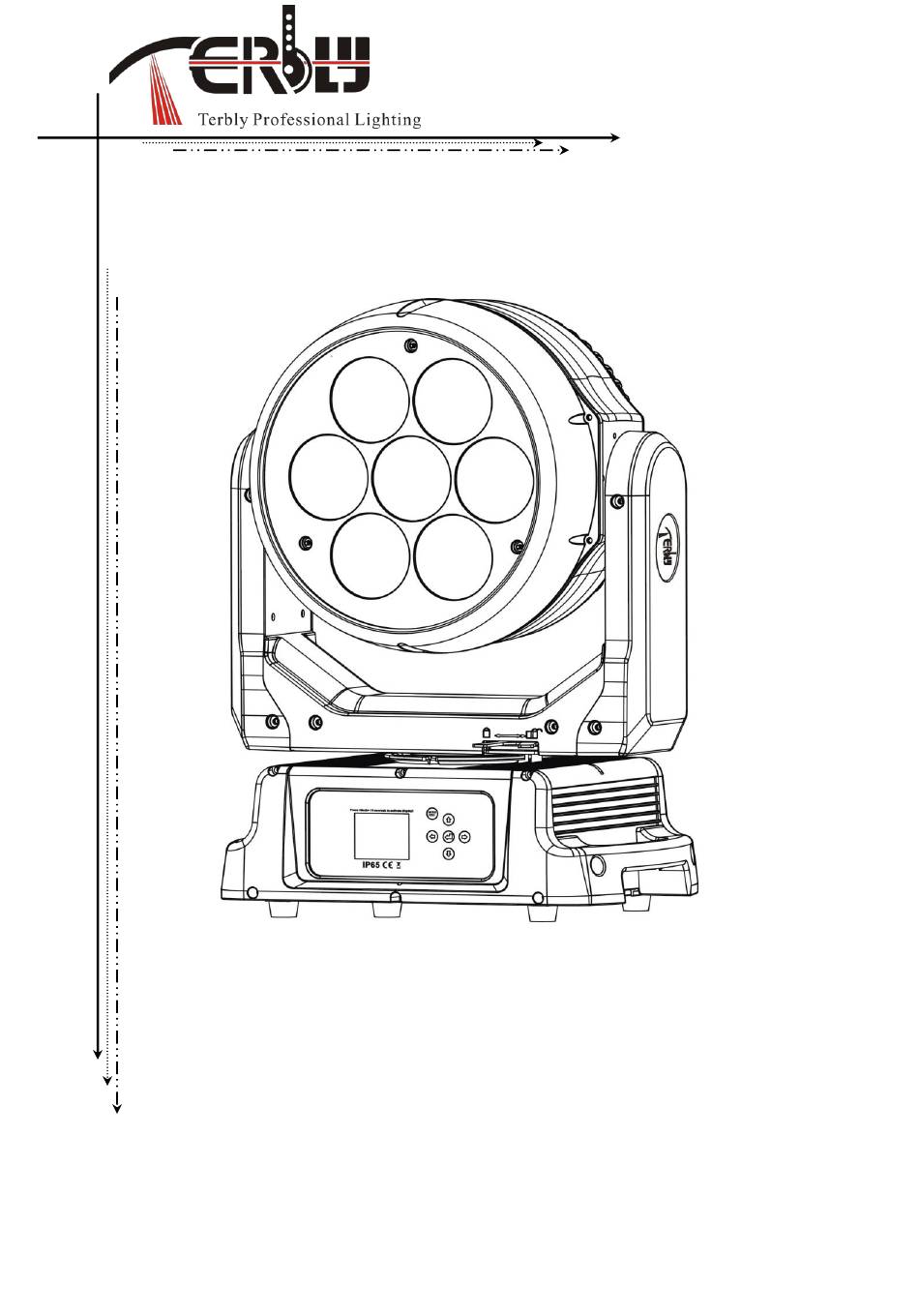

LED MOVING HEAD
USER MANUAL
GLW760 IP
KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLW760 IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Terbly GLW760 IP

Summary of Contents for Terbly GLW760 IP

  • Page 1 LED MOVING HEAD USER MANUAL GLW760 IP KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Table Of Contents

    Thank you for purchasing a TERBLY product. You have acquired a powerful and versatile fixture. We are confident that you will be satisfied with our excellent products and service. For your own safety, please read this user manual carefully before installing and operating the device.

  • Page 3: Safety Instructions

     If the external flexible power cord of this device is damaged, it shall be exclusively replaced by the manufacturer or their service agent or a similar qualified person in order to avoid injury. GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 4: Features

    If this device is operated in any way different to the ones described in this manual, the product may suffer damage and the warranty becomes void. Furthermore, any other operation may lead to short-circuits, burns, electric shocks etc. 2. FEATURES GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 5  Dimmer：0%~100% full range dimming. DISPLAY  Advanced and convenient full –color LCD touch screen，with rechargeable battery  Locked automatically after standby for 15 seconds to prevent error；hold the button for 3 seconds to activate GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 6 Reset DMX address，remote lamp switch，reset can all be done by the controller Running time of fixture on display for reference OTHER SPEC Input signal isolation：guarantees stable signal transmission without interference Advanced RDM function WHIGHT Net weight：16.8 kg PHOTOMETRIC DATA DMX CHANNEL DATA IMAGE GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 7 GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 8: Fixture Overview

    5） ENTER-button 6） Down-button 7） Right-button 8） Up-button 9） Pan Lock 10） Handle 11） DMX out 12） DMX in 13） RJ45 out 14） RJ45 in 15） Fuse 16） Service Port 17） Valve 18） Power in GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 9: Dimensional Drawings

    4. DIMENSIONAL DRAWINGS GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 10: Installation Instructions

    Step 4：Remove the display screen assembly Step 5：Remove the control board assembly Step 6： Remove the pan motor assembly， then can install the pan motor， see below picture in blue frame GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 11 Step 1：Remove the front head cover assembly Step 2：Remove the lens cover assy Step 3：Remove the motor bracket assembly Step 4：Remove the tilt motor bracket assembly，then can replace and install the tilt motor and belt，see below picture in blue frame GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 12 Improper installation/ rigging can result in serious bodily injury.  Before rigging make sure that the installation area can hold a minimum point load of 10 times the device’s weight. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 13  Pull the safety cable through the holes on the bottom of the base and over the trussing system or another suitable rigging point Insert the end into the carabiner and tighten the safety screw Important: This step is very important to ensure safe rigging of the fixture GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 14 If you lack these qualifications，do not attempt the rigging of this device yourself Improper installation/ rigging can result in serious bodily injury GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 15: Dmx-512 Control Connection

    XLR plug with a 120 Ω resistor connected between pins 2 and 3，which is then plugged into the output (female) XLR socket of the last fixture in the chain Please see illustrations below GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 16: Device Dmx Start Address Selection

    The Display does not need external power to operate Hold down the -button for 3 seconds and the Display will turn on by using the unit’s battery built in battery GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 17 Shutoff Time 02~60m 05m Display shutoff time Display Setting Display Reverse OFF/ON Reverse 180 degree Key Lock ON/OFF Key Lock Celsius Temperature switch Temperature C/F between ℃/℉ Fahrenheit PAN =XXX Initial Status Initial effect position ……. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 18 Save and exit Program 10 Step 64=SCxxx Pan,Tilt,…… Edit Scene 001 --Fade Time-- Save and automatically return Edit Scenes ~ Edit Scene 250 --Scene Time-- manual scenes edit Input By Out Rec. Controller XX~XX Automat. scenes rec GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 19 3. Press <ENTER>，the display will show“Auto Program” 4. Tap the <Up/Down> button，the display will show“Master” ， “Alone” 5. Press <ENTER>R to confirm or press <MODE/ESC> to return to the main menu 9.2. Information 9.2.1. Time information GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 20 <ENTER>，the display will show“Time Information” 2. Press <Up/Down>，the display will show“LastRun Password” 3. Press< ENTER>，the display will show“LastRun Password” The time password is 4. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 21 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu 9.2.5. Software Ver With this function，you can display the software version of the device 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Information”is displayed Press <ENTER>，the display will show“Information” GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 22 With this function you can reverse the Pan-movement. 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Personality”is displayed. Press < ENTER>，the display will show“Personality”. Tap the <Up/Down> button until the display will show“Status settings”.Press <ENTER>，the display will show“Status settings”. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 23 2. Press <Up/Down>，the display will show“LED Degree Change”. 3. Press< ENTER>，the display will show“LED Degree Change”. 4. The display show“0” ，Press <Up/Down>，the display will show“180”. 5. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 24 <Up/Down> button until the display will show “Service Setting” .Press <ENTER>， the display will show“Service Setting”. 2. Press <Up/Down>，the display will show“USB Update”. 3. Press< ENTER>，the display will show“USB Update”. 4. The display show“OFF” ，Press <Up/Down>，the display will show“ON”. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 25 1．Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Personality”is displayed. Press <ENTER>，the display will show“Personality”. 2．Press <Up/Down>，the display will show“Temperature C/F”. 3．Press< ENTER>，the display will show“Temperature C/F”. 4．The display show“Fahrenheit” ，Press <Up/Down>，the display will show“Celsius”. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 26 4. The display show“000-32767”. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 9.3.11. White Balance 1. Tap <MODE/ESC> button，access the main menu，Tap the <Up/Down> button until “Personality”is displayed. Press <ENTER>，the display will show“Personality”. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 27 With this function you can reset the device via the Display. You can select the different reset functions from the display screen or a DMX console. 1．Tap <MODE/ESC> button，access the main menu. 2．Tap <Up/Down> button until“Reset Function”is displayed. 3．Press <ENTER>，the display will show“Reset Function”. GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 28 4．The display shows “User Mode” ， Press <Up/Down> button， then you can choose “ Edit User Mode A” ， “Edit User Mode B”and“Edit User Mode C”. 5．Press <ENTER> to confirm or press <MODE/ESC> to exit. As well as Standard Mode，Basic Mode and Extended Mode，this fixture has another three GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 29 3．Enter the menu of 1-4，1-5 Function Mode---Set To Master. 4．Enter the menu of 8-1 Edit Program---Auto Program Part1.The host outputs three groups driven program---Part1， Part2， Part3(Part1 program runs the same effect as the host) GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 30: Dmx Protocol

    3．Press< ENTER>，the display will show“Language Set”. 4．The display show“English” ，Press <Up/Down>，can choose“Chinese”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 10. DMX PROTOCOL DMX channel´s functions and their values (26/20/48DMX channels): GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 31 Led turn on 192-223 Random strobe effect slow to fast 224-255 Led turn on Dimmer intensity: 0-255 Intensity 0 to 100% Dimmer intensity fine: 0-255 Fine control for Dimmer adjustment Dim Modes 0-20 Standard 21-40 Stage 41-60 GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 32 From RED to WHITE 232-255 Color Rainbow from slow to fast Color Presets: No function 10--50 White2700k 51--91 White3200k 92-132 White4300k 133-173 White5600k 174-214 White6500k 215-255 White8000k Color Presets Dimmer: 0-255 Dimmer 100 to 0% GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 33 White ( 0-Black , 255-100% White ) Red LED -array 2 : 0-255 Red ( 0-Black , 255-100% Red ) Green LED-array 2 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -array 2 : GLW760 IP User Manual XM1586-V1.1-NR...
  • Page 34 Green LED -array 7: 0-255 White ( 0-Black , 255-100% White ) Blue LED -array 7: 0-255 White ( 0-Black , 255-100% White ) White LED -array 7: 0-255 White ( 0-Black , 255-100% White ) GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 35: Error Messages

    4) The power supply cables must not show any damage, material fatigue or sediment. Further instructions depending on the installation location and usage have to be adhered to by a qualified installer and any safety concerns have to be removed. GLW760 IP User Manual XM1586-V1.1-NR...

  • Page 36: Service

    Please refer to the instructions under“Installation instructions”. Should you need any spare parts，please order genuine parts from your local dealer. 13. SERVICE For all service needs please contact your local authorized dealer or Terbly directly. Our contact details are： Email：...
