Summary of Contents for ADOLF THIES CLIMA 4.3324.32.000

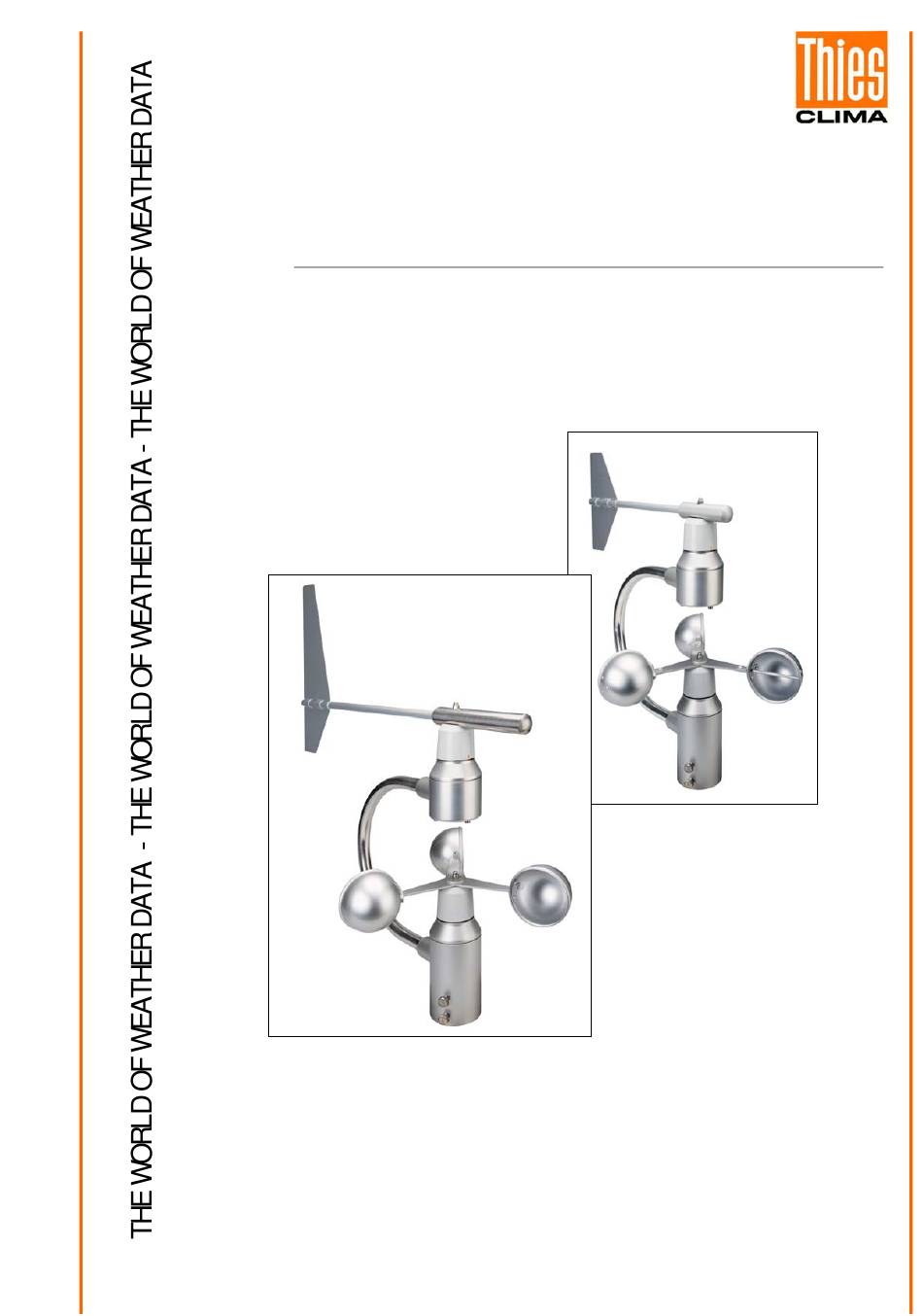

- Page 1 Instruction for Use 021591/02/09 Combined Wind Transmitter Output: 8 Bit parallel 4.3324.32.000 / 001 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com...
- Page 2 • Repairs and maintenance may only be carried out by trained staff or Adolf Thies GmbH & Co. KG. Only components and spare parts supplied and/or recommended by Adolf Thies GmbH & Co. KG should be used for repairs.
-
Page 3: Table Of Contents
Contents Models available ........................4 Application ..........................4 Construction and Mode of Operation ..................4 Recommendation Side Selection/ Standard Installation ............5 Installation..........................6 Mounting of wind vane ......................6 Mounting of Cup Star ......................7 Mounting of Wind Transmitter ..................... 7 Electrical Mounting ...................... -
Page 4: Models Available
Models available Order-No. Measuring range Electrical Output Model WV 0,3 ... 50 m/s 3 … 1042 Hz (with Offset) 4.3324.32.000 Standard version WD 0 ... 360° 8 Bit parallel (with Offset) Ship version* WV 0,3 ... 50 m/s 3 … 1042 Hz (with Offset) (short wind vane, 4.3324.32.001 reinforced cup star, special... -
Page 5: Recommendation Side Selection/ Standard Installation
A connected micro-controller calculates from these voltages the wind direction in 144 sectors (2.5° / sector). Related to sector 1 is the wind direction 0° – 2,5°, sector 144 corresponds to the wind direction 357.5°- 360°. 60,0 120,0 180,0 240,0 300,0 62,5 122,5... -
Page 6: Installation
Installation Attention: Storing, mounting and operation under weather conditions is permissible only in vertical position, as otherwise water can get into the instrument. Remark: When using fastening adapters (angle, traverses, hangers etc.) please take a possible effect by turbulences into consideration. Remark: It is advisable to attach lightning rod, order no. -
Page 7: Mounting Of Cup Star
Mounting of Cup Star Tools • Screw wrench SW 8 Mounting 1. Remove cup star from the packing. 2. Screw-off cap nut (SW 8) and remove disc.. The gasket remains in the protective cap. 1. Mounting of cup star acc. to figure. -
Page 8: Electrical Mounting
Electrical Mounting For electrical connection please refer to the connecting diagram. Maintenance After proper mounting the instrument works maintenance free. Heavy pollution can clog up the slit between the rotating and the stationary parts of the wind transmitter. This slit must be kept clean. Remark: Please use only original packing for transporting the instrument. -
Page 9: Technical Data
Technical Data Wind Speed Wind Direction Measuring range 0,3 ... 50 m/s 0 ... 360° 0,3 m/s <0,6 m/s at 90° vane move Start-up (with 4.3324.32.000) Start-up (with 4.3324.32.001) 0,3 m/s <1 m/s at 90° vane move Accuracy ±0,3 m/s resp. ±1,5°... -
Page 10: Dimensional Drawings
Dimensional Drawings Figure 2: Dimension 4.3324.32.000 10 - 14 021591/02/09... -
Page 11: Figure 3: Dimension 4.3324.32.001
Figure 3: Dimension 4.3324.32.001 11 - 14 021591/02/09... -
Page 12: Ec-Declaration Of Conformity
EC-Declaration of Conformity Document-No.: 000439 Month: 02 Year: 09 A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: Combined Wind Transmitter Article No. - Page 13 13 - 14 021591/02/09...
- Page 14 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 14 - 14 021591/02/09...
