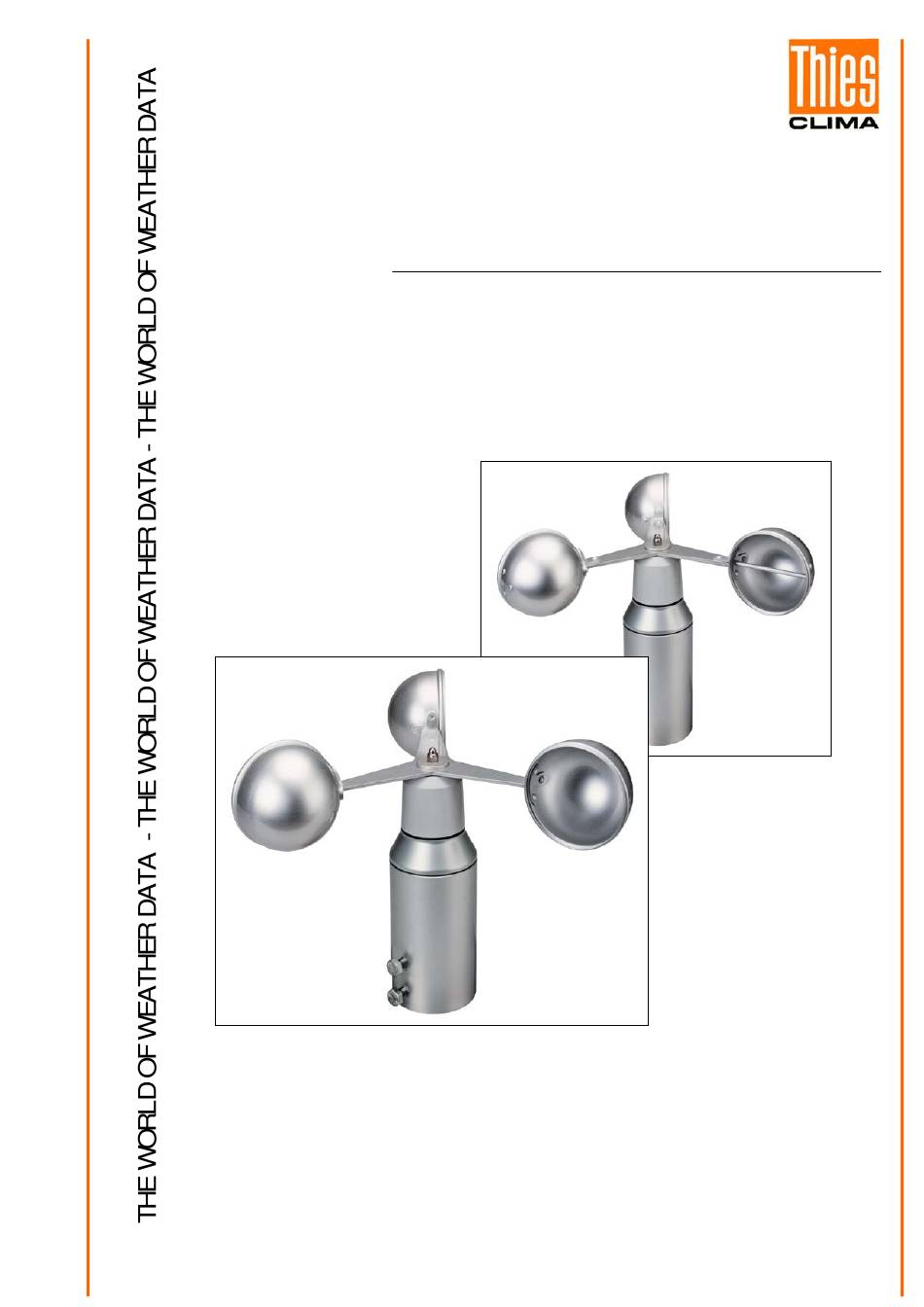

- Page 1 Instruction for use 020856/10/07 Wind Transmitter - with analogue output 4.3303.22.xxx ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com...
- Page 2 • Repairs and maintenance may only be carried out by trained staff or Adolf Thies GmbH & Co. KG. Only components and spare parts supplied and/or recommended by Adolf Thies GmbH & Co. KG should be used for repairs.
-
Page 3: Table Of Contents
Contents Models ............................3 Application ..........................4 Set-up of the instrument ......................4 Recommendation Site Selection / Standard Installation ............4 Installation ..........................5 Mounting of the cup star ..................... 5 Electrical Mounting ......................6 Mounting of the Wind Transmitter..................7 Maintenance .......................... -
Page 4: Application
2 Application The wind transmitter is used for the registration of the horizontal component of the wind velocity. The measuring value will be placed at the output as analogue signal. The signal can be given to display instruments, recording instruments, datalogger as well as process wise systems. The wind transmitter is equipped with an electronically regulated heating system in order to prevent ice and frost from the ball bearings and the outer rotation parts. -
Page 5: Installation
5 Installation Attention: Storing, mounting and operation under weather conditions is permissible only in vertical position, as otherwise water can get into the instrument. Remark: When using fastening adapters (angle, traverses, etc.) please take a possible effect by turbulences into consideration. 5.1 Mounting of the cup star Unscrew the cap nut (SW 8) from the wind velocity sensor case and remove the disk. -
Page 6: Electrical Mounting
5.2 Electrical Mounting A shielded cable with a diameter of 5..8 mm and a core section of 0,5…0,75 mm² must be soldered on to the enclosed plug. • The number of required cores, and the PIN assignment is stated in the connection diagram (chapter 7). -
Page 7: Mounting Of The Wind Transmitter
5.3 Mounting of the Wind Transmitter Mount the transmitter to a short piece of pipe of R 1½“ (Ø 48 mm) and a length of 50 mm. The short piece of pipe must have an internal diameter of at least 36 mm as the wind transmitter must be connected electrically with a plug from below. - Page 8 Wind Transmitter: Operation without Heating Order - no. View on the Heizung soldered side of 4.3303.22.040 Heating 20 W the coupling 4.3303.22.041 socket 4.3303.22.060 4.3303.22.061 5 pol. Binder Steckverb. / Plug 4.3303.22.073 4.3303.22.640 1 2 3 4 5 4.3303.22.641 Schirm Shield 4.3303.22.660 4.3303.22.661...
-
Page 9: Technical Data
8 Technical Data Measuring range see models available 0,3 m/s Starting speed Max. load 60 m/s Electrical output see models available Accuracy ± 0,4 m/s resp. 2,5 % of meas. value Resolution 0,05 m wind run Wind load at 35 m/s approx. -
Page 10: Ec-Declaration Of Conformity
10 EC-Declaration of Conformity Document-No.: 000434 Month: 06 Year: 08 A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: Wind Transmitter, Wind Direction Transmitter, Combined Wind Transmitter Article No. - Page 11 11 - 12 020856/10/07...
- Page 12 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved - 12 - 12 020856/10/07...
