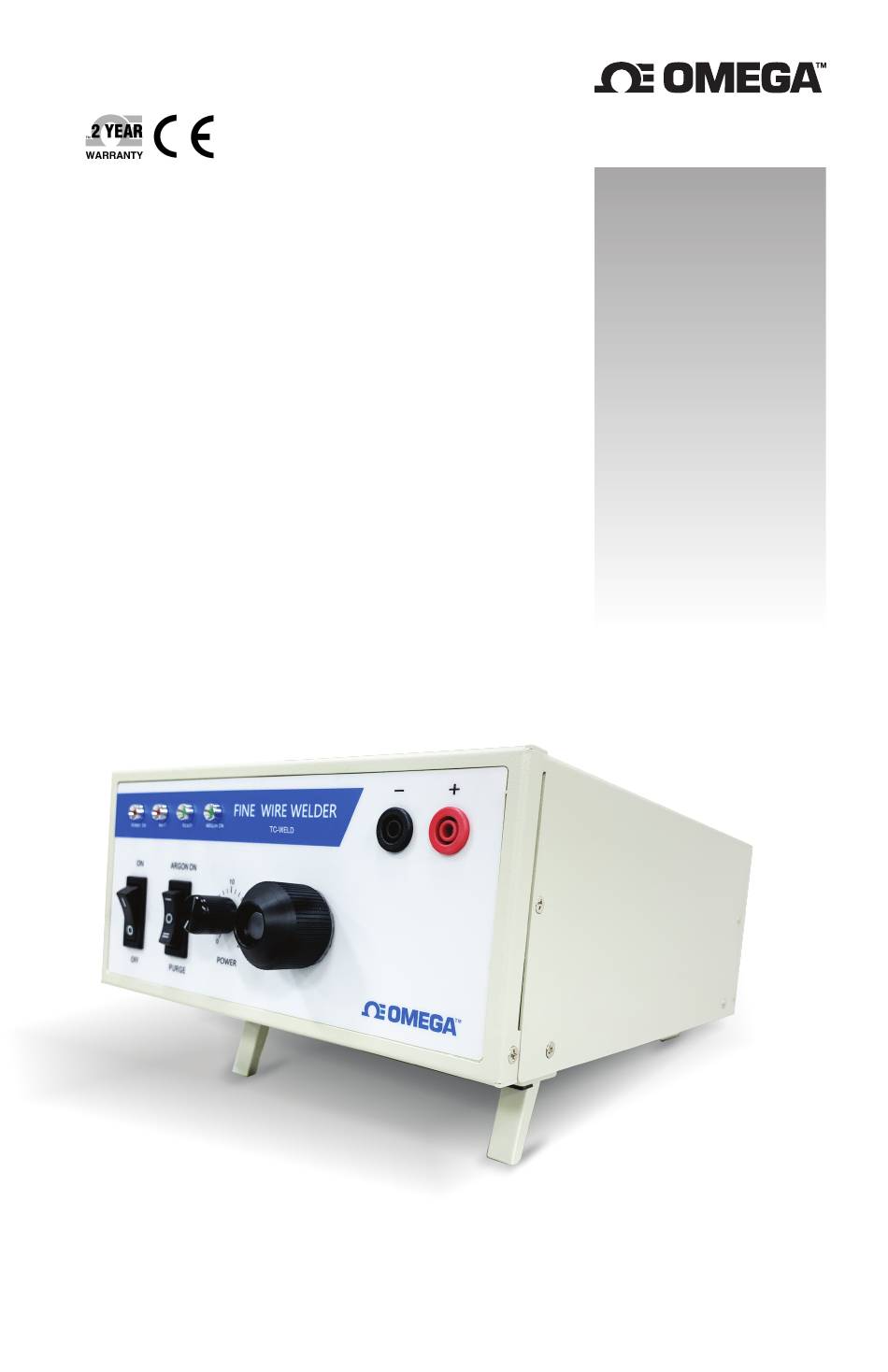

- Page 1 User’s Guide Shop online at omega.com e-mail: info@omega.com For latest product manuals: omega.com/en-us/pdf-manuals TC-WELD Thermocouple & Fine Wire Welder...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter speci cations without notice.
- Page 3 General Specification Product Name: Fine Wire Welder Model: TC-WELD Dimension: 220 (W) x 100 (H) x 270 (D) mm Weight: 3.6 kg / 7.94lbs Weld Wire Diameter: 0.08mm / 0.003” to1.1mm / 0.043” Duty Cycle: 5-10 welds per minute Input:...
- Page 4 Safety Notes Thank you for choosing the Fine Wire Welder. This welder is designed for producing commercial grade thermocouple hot junction. It’s easy to use and operate. But it is still very important to read the instructions carefully prior using the welder. •...
-
Page 5: Front Panel Controls

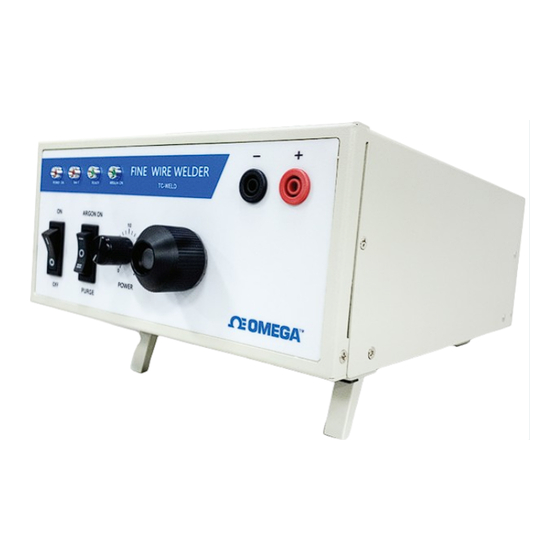

Front Panel Controls Power On LED Indicates power is connected. Wait LED Glows when weld charge is building. Ready LED Indicates it is ready to weld. Argon On LED Indicates argon is on. Black (-) Socket Output socket connects to the electode. Negative end. Red (+) Socket Output socket for using the pliers. - Page 6 Welding Instructions Adjust the power level according to the thermocouple wire diameter. As a reference, we suggest the following: Wire Diameter Power Output Level Electrode 20AWG (0.80mm) 16-17 Carbon 28AWG (0.32mm) Carbon 30AWG (0.25mm) Carbon 36AWG (0.13mm) Copper 40AWG (0.08mm) Copper •...
- Page 7 Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modi cation.
- Page 8 Where Do I find Everything I need for Process Measurement and Control? OMEGA... Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
