- Page 1 PS 1 USER MANUAL ATTENTION: Strictly follow this user manual and pay close attention to all warnings. Please DO NOT operate before reading this USER MANUAL.
-
Page 2: Notices
• PowerOak™ products are protected by patent law. • PowerOak reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. • PowerOak shall not be liable for losses caused by either incidental or... -
Page 3: Table Of Contents
©2018 PowerOak B.V. Netherlands TABLE OF CONTENTS NOTICES ......................2 PRODUCT CERTIFICATION ................2 TABLE OF CONTENTS ..................3 Introduction ....................4 ➢ Foreword .................... 4 ➢ Applicable ................... 4 ➢ Product Description ................4 Safety Precaution ................... 5 Usage and Maintenance ................5 Work Diagram of the Generator .............. -
Page 4: Introduction

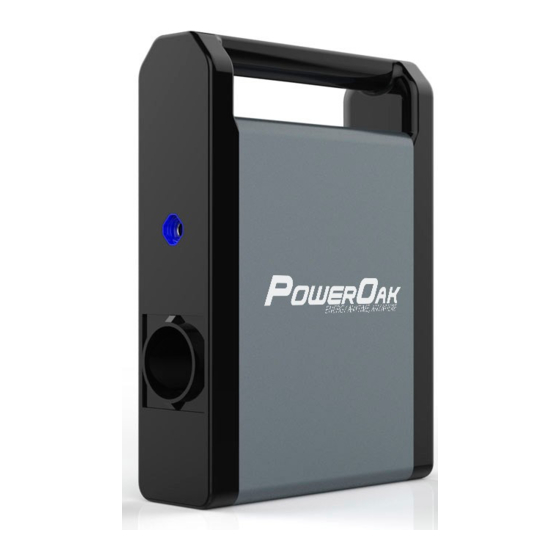

(see page 8). ➢ Product Description This portable solar generator is developed by PowerOak, it’s a smart, portable, home and camping, solar generator battery. This PowerOak generator has an integrated MPPT solar charge controller, inverter, system controller, lithium battery, DC 12V, USB QC3.0, USB-C PD2.0 and BMS. -
Page 5: Safety Precaution
DO NOT open the case or touch any internal parts or wiring. Only connect cables to the provided external ports. Please contact PowerOak or a certified electrician for any maintenance needs. (See page 8 for contact information) Usage and Maintenance... -
Page 6: Work Diagram Of The Generator
©2018 PowerOak B.V. Netherlands Work Diagram of the Generator Page 6 of 13 Kanaaldijk Noord 111 | 5642 JA | Eindhoven | Nederland... -
Page 7: Unpacking
➢ Unpack Checking Please check if the box has been damaged before opening. After unpacking, please check if product appearance is damaged, or if there are any missing parts. If so, please contact PowerOak. (See Page 13) ITEM. QUANTITY PowerOak PS ONE... -
Page 8: Display
©2018 PowerOak B.V. Netherlands NOTICE: Before turning on the POWER ON/OFF BUTTON, both DC ON/OFF button and AC ON/OFF button don’t work. After turning on the POWER ON/OFF BUTTON, both DC ON/OFF button and AC ON/OFF button are in OFF status. -
Page 9: Trouble Shooting
2.Screen backlight will turn off after a while with no operation, and it will turn on again when pressing any button. Trouble Shooting This generator has been fully tested prior to shipping. Contact PowerOak customer service if any failure occurs. During a call, please provide us with the following information. -
Page 10: System Failure Diagnosing
©2018 PowerOak B.V. Netherlands ➢ System Failure Diagnosing Failure Cause Solution code Over Temperature Check that the ambient temperature is not Protection higher than 45°C. Battery pack Over Voltage Disconnect the charger and restart the Protection unit. Battery Damage Protection Contact PowerOak. - Page 11 ©2018 PowerOak B.V. Netherlands Total output power Reduce the load power. overloaded Over temperature when The unit is too hot. Continue charging charging once the temperature gets lower. Over temperature when The unit is too hot. Continue discharging discharging once the temperature gets lower.
-
Page 12: Specification
©2018 PowerOak B.V. Netherlands Specification Model PSONE-P1 PSONE-P2 Battery capacity 200Wh 200Wh Output Spec Rated Output Power 120W 120W Max. Output Power 200W(1s) 200W(1s) Rated Output Voltage 110Vac 230Vac Rated Frequency 50/60HZ 50/60HZ Power Factor THDV <3% <3% AC output Overload ability 125W<... -
Page 13: Contact Us
©2018 PowerOak B.V. Netherlands Contact us Should you have any technical or other questions, please contact PowerOak with following information 1.System model 2.System serial No. 3.System failure Code 4.Displaying information Kanaaldijk Noord 111 | 5642 JA | Eindhoven | Nederland M +31 (0) 40 240 5888 | E info@poweroak.nl...
