Neck pickup:
Seymour Duncan '59 SH-1N
Duncan Designed
Bridge pickup:
Seymour Duncan
Custom Custom SH-11
Duncan Designed
3-way switch settings
1
2
3
Neck
push/pull
in DOWN position
Bridge
Tone
Bridge Vol
Neck Vol
For technical or warranty questions please email: tech@schecterguitars.com
Diagram copyright Schecter Guitar Research 2011

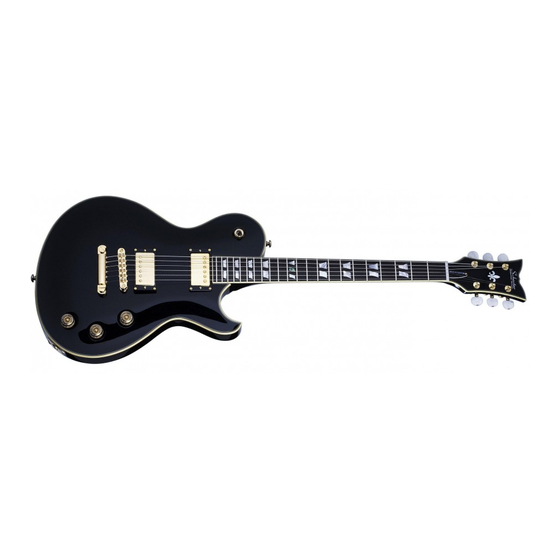

Solo-6 Custom

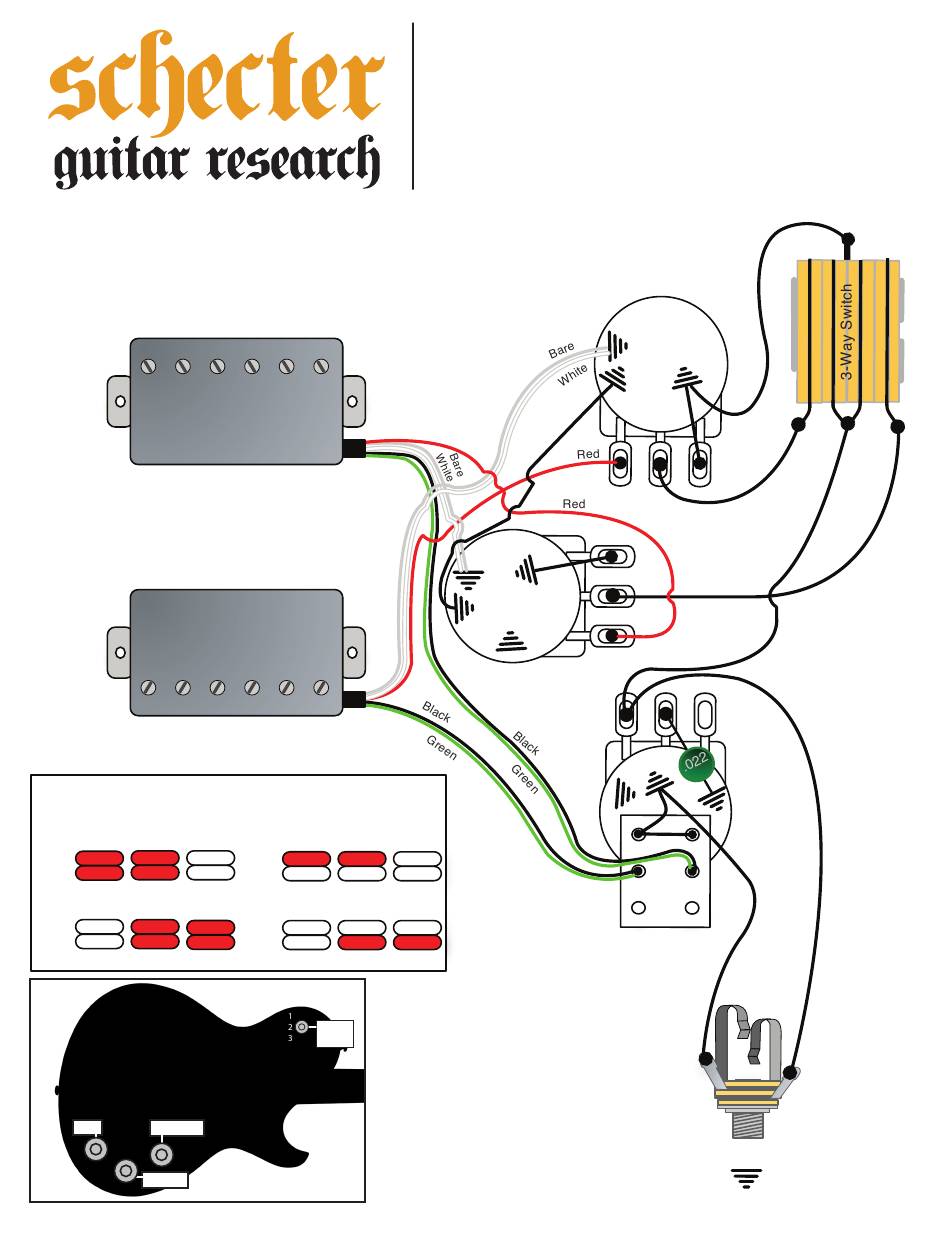

Wiring Diagram
2
3
1
push/pull
in UP position
3-Way
Switch
Bridge
Volume
500k
Neck
Volume
500k
Sleeve (ground)
Output Jack
is found where any ground connection
3
2
1
Tone
500k
push/pull
Tip (hot output)
= ground. This symbol
should be soldered.
Advertisement
Related Manuals for Schecter Solo-6 Custom
Summary of Contents for Schecter Solo-6 Custom
-
Page 1: Wiring Diagram
Switch Tip (hot output) Sleeve (ground) Tone Bridge Vol Output Jack = ground. This symbol Neck Vol is found where any ground connection For technical or warranty questions please email: tech@schecterguitars.com should be soldered. Diagram copyright Schecter Guitar Research 2011... - Page 2 Strings 6-String Guitar* Tuning: E-A-D-G-B-E Gauge: .046-.036-.026-.017-.013 .010 (EB Regular Slinky #2221) *Changing to different string gauges and/or alternate tunings may require minor neck/bridge adjustments for optimal performance. For Schecter setup tips refer to Schecter Setup Guide.
- Page 3 This model is equipped with a Graph Tech Ivory TUSQ XL nut. The TUSQ XL delivers a rich and balanced tone with big open lows and a noticeable increase in overall sustain followed by a very balanced output from your strings. Laboratory-proven to enhance harmonic content up to 200% and sustain up to 16% and is engineered for maximum vibration transfer.
