DoorHan DHRE-1 Installation And Operation Manual

1. ASSIGNMENT

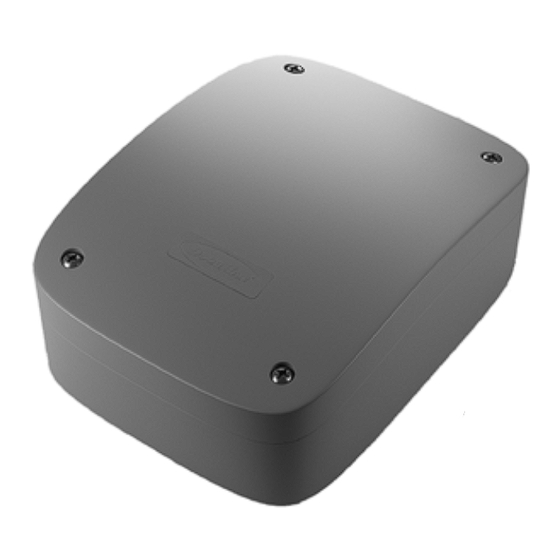

External radio receiver DHRE-1(2) is intended to receive radio signal remote control console at frequency 433
MHz, decoding of code mark and generating of control signal (NO) for electric actuators controlling.

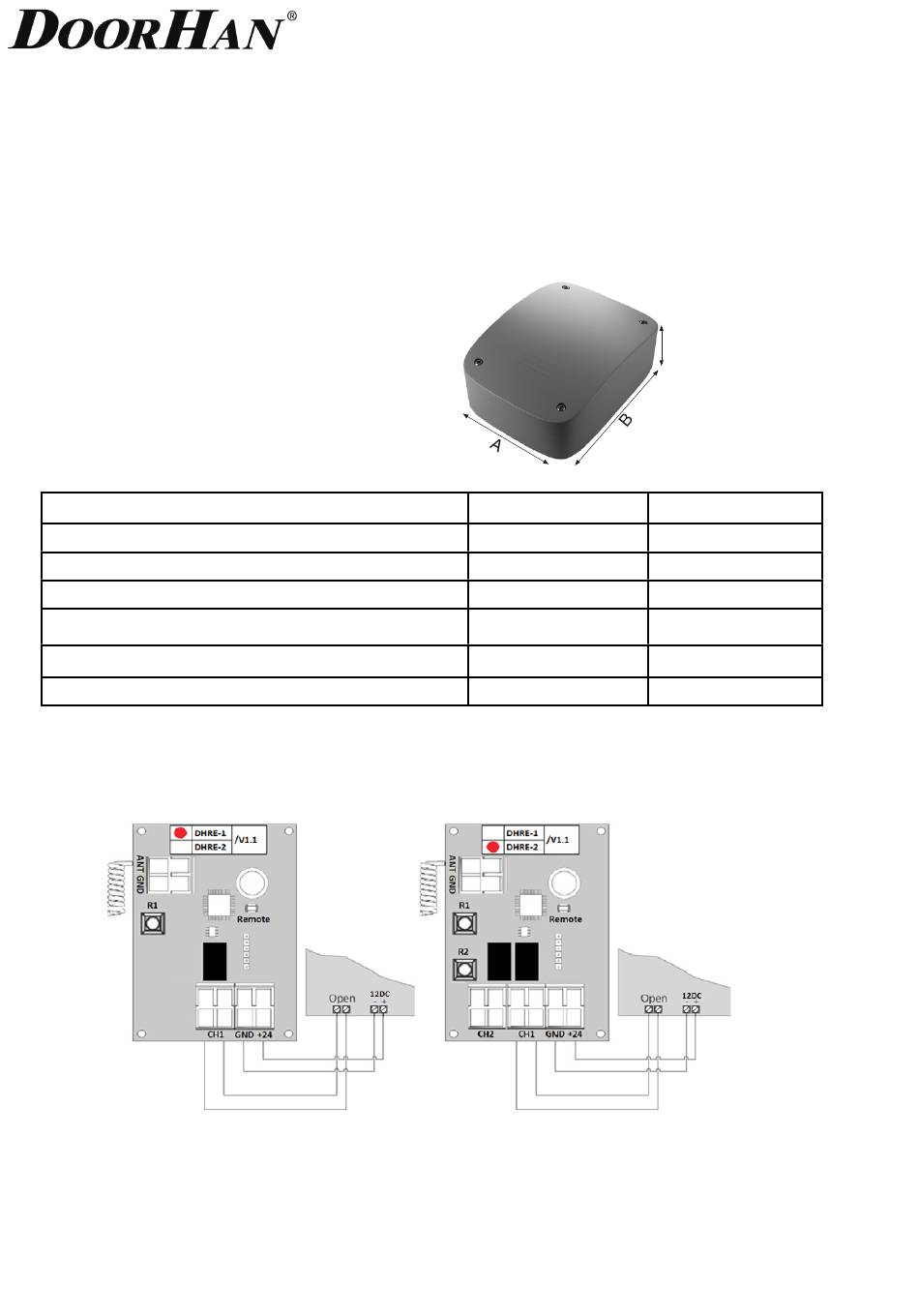

2. OVERALL DIMENSIONS

A= 63mm
B= 90mm
C= 25mm

3. TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATION
Operating frequency, MHz
Voltage supply (DC), V
Absorbed current, mA
Maximum number of consoles on one channel, pcs
Quantity of channels, pcs
Operating temperature, °С

4. CONNECTION

1. Connect device to a power supply 12/24V DC, using terminals + 24V and GND.
2. Connect control contacts of electric actuator to outputs of radio receiver CH1 and CH2 (for DHRE-2)

5. PROGRAMMING

1. Cl l l e e e a a a r r r i i i n n n g g g o o o f f f r r r e e e c c c e e e i i i v v v e e e r r r ' ' ' s s s m m m e e e m m m o o o r r r y y y . After turning on the power, press and hold record button of recording
consoles "R1" ("R1" or "R2" to DHRE-2) It should be a beep. Indicator "Remote" will go up with constant light
for 10 sec., then go out and it will be a long beep in confirmation of deleting of written to consoles memory.
INSTALLATION AND OPERATION MANUAL OF THE
EXTERNAL RADIO RECEIVER DHRE-1(2)
С
DHRE-1
433,92
12/24
0,6
1000
1
-40...+50
Actual versions:
soft -1.0
pcb -1.1
DHRE-2
433,92
12/24
0,6
110
2
-40...+50
