STUDIO DUE Terra Series User Manual

Monochromatic and rgbw/fc inground and spot series
Hide thumbs

Advertisement

Quick Links

Download this manual
Terra
Aria
and
Terra
Aria
mini
mini
and
inground
spot series
monochromatic and rgbw/fc
and
User manual / Manuale d'uso

Advertisement

loading
Need help?

Need help?

Do you have a question about the Terra Series and is the answer not in the manual?

Questions and answers

Related Manuals for STUDIO DUE Terra Series

Summary of Contents for STUDIO DUE Terra Series

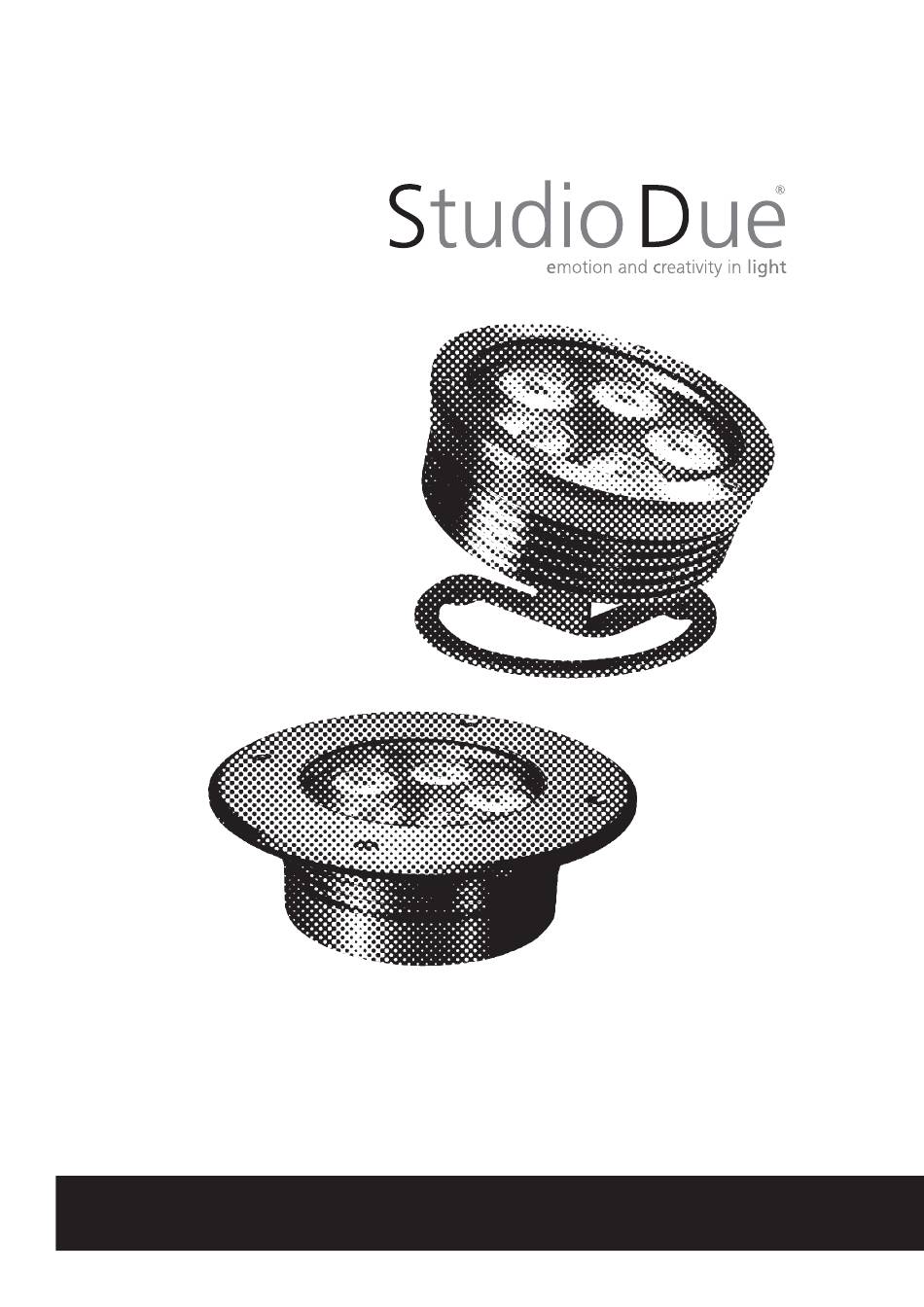

  • Page 1 Terra Aria Terra Aria mini mini inground spot series monochromatic and rgbw/fc User manual / Manuale d’uso...

  • Page 2: Plastic Case

    IMPORTANT BEFORE MOUNTING / IMPORTANTE PRIMA DEL MONTAGGIO ground level fixture DRAINAGE PLASTIC CASE be sure to create sufficient drainage around the plastic case t ud /2019...

  • Page 3: On-Board Power Supply

    (example: 1 LED monochromatic) TERRA inground (example: 5 LEDs RGBW/FC with plastic box accessorie ARIA spot (example: 5 LEDs RGBW/FC) ARIA spot ARIA spot with (example: 3 LEDs RGBW/FC) ON-BOARD POWER SUPPLY (example: 1 LED monochromatic) Studio Due - Rel.7 - 02/2019...
  • Page 4 TERRA PHYSICAL / MISURE TERRA TERR t ud /2019...
  • Page 5 ARIA PHYSICAL / MISURE ARIA  134,00  134,00 128,92 ARIA spot series: example with long bracket on request Studio Due - Rel.7 - 02/2019...
  • Page 6 ARIA with ON-BOARD POWER SUPPLY PHYSICAL / MISURE ARIA con ALIMENTATORE INCLUSO ARIA series versions with on-board Power Supply t ud /2019...
  • Page 7 MINI ARIA - MINI TERRA / MINI ARIA - MINI TERRA MINI ARIA spot MINI ARIA spot (1 LED RGBW/FC) (1 LED monochromatic) MINI TERRA inground MINI TERRA inground (1 LED RGBW/FC) (1 LED monochromatic) MINI TERRA inground with plastic box accessorie Studio Due - Rel.7 - 02/2019...
  • Page 8 MINI TERRA PHYSICAL / MISURE MINI TERRA 130,00 62,00 46,00 ø 110,00 t ud /2019...
  • Page 9 MINI ARIA PHYSICAL / MISURE MINI ARIA 72,00 62,00 2,00 25,00 72,00 Descrizione : Nr.Revisione e Data Progettato da Materiale : Trattamento Superficiale : Studio Due - Rel.7 - 02/2019...
  • Page 10 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiate waste collection centre or to a dealer providing this service.
  • Page 11 Per ottenere il meglio delle prestazioni ed un corretto funzionamento negli anni di questa unità, Vi consigliamo di leggere attenta- mente questo manuale prima di collegarla e metterla in uso. In questo modo acquisirete familiarità con i suoi comandi e collegamenti affinché possiate facilmente utilizzarla. Studio Due - Rel.7 - 02/2019...
  • Page 12 TECHNICAL FEATURES / CARATTERISTICHE TECNICHE art. 1401: TER-WR (monochromatic) art. 14011: TER-WL3 (monochromatic) art. 1430: AR-WR (monochromatic) art. 1431: AR-WL3 (monochromatic) • SOURCE: n.1 LED array 50W • SOURCE: n.3 LEDs • OPTIC: 34° Total out lumen: 2100lm • LUMINOUS FLUX: 2200lm Total light power: 15W •...
  • Page 13 Se avesse subito dei danni o se non dovesse funzionare, rivolgetevi al vostro rivenditore. Se l’apparecchio vi è stato spedito direttamente, rivolgetevi subito alla ditta di trasporto. Solo il destinatario (la persona o ditta ricevente l’apparecchio) può reclamare per questo tipo di danni. Studio Due - Rel.7 - 02/2019...
  • Page 14 On board Control Drive for RGBW or MONOCHROMATIC TERRA - ARIA series. IP 67. (Stainless steel box). art. PLASTIC CASE TER Inground plastic case for TERRA series. art. AR-WB Long bracket for ARIA series to fix the unit on wall and rotate the device up to 90°.
  • Page 15 Power Supply for MINI TERRA - MINI ARIA to control up to 2 fixtures simultaneously in IP 67 box. CODE APV 11. accessories PLUG-IN. art. PLASTIC CASE M-TER Inground plastic case for MINI TERRA series. accessories Studio Due - Rel.7 - 02/2019...
  • Page 16 ENDOWED WITH THE FIXTURE / A CORREDO DELL’APPARECCHIO violet 1mm endowed white 0,5mm blue 0,5mm incluso green 0,5mm red 0,5mm RGBW connection 1,5 mt lenght 4x0,5mm + 1x1mm cable 1,5 mt lenght 1,5 mt lenght violet 1mm white 0,5mm white 0,5mm blue 0,5mm red 0,5mm WHITE BALANCE connection...
  • Page 17 SCATOLA DI CONNESSIONE IP67 ’ PER ULTERIORE COLLEGAMENTO DELL APPARECCHIO OPTIONAL OPTIONAL IP68 CONNECTOR FURTHER CONNECTING OF THE FIXTURE / CONNETTORE OPTIONAL IP68 PER ULTERIORE COLLEGAMENTO DELL’APPARECCHIO optional IP68 junction box / scatola di connessione IP68 Studio Due - Rel.7 - 02/2019...
  • Page 18 RGBW / FC CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 19 15 MAIN POWER DMX cables IP 67 rating protection 4 PIN CONNECTORS / CONNETTORI 4 PIN n.c. 100 ohm Termination resistor Terminale di linea Termination resistor 100 ohm Terminale di linea n.c. Studio Due - Rel.7 - 02/2019...
  • Page 20 MONOCHROMATIC / MONOCROMATICO CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 21 IP67 CONNECTION BOX - SCATOLA DI CONNESSIONE IP67 violet 1mm white 0,5mm blue 0,5mm green 0,5mm red 0,5mm 4x0,5mm + 1x1mm cable violet 1mm white 0,5mm white 0,5mm blue 0,5mm red 0,5mm WHITE BALANCE connection MONOCHROMATIC connection Studio Due - Rel.7 - 02/2019...
  • Page 22 TERRA OR ARIA RGBW EXAMPLE OF CONNECTIONS TERRA or ARIA - RGBW VERSION EXAMPLE OF CONNECTION RGBW TERRA or ARIA with ON BOARD CONTROL DRIVE TER Terra or Aria with Terra or Aria with art. CONTROL DRIVE TER art. CONTROL DRIVE TER ON BOARD/D ON BOARD/SS RGBW...
  • Page 23 IP67 CONNECTION BOX RGBW (code APV 19) CONTROL DRIVE TERRA or TERRA or ARIA ARIA MAIN IN Cable 30 cm. Cable 1,5 mt. DMX OUT DMX IN TERRA or TERRA or TERRA or ARIA ARIA ARIA Studio Due - Rel.7 - 02/2019...
  • Page 24 TERRA OR ARIA MONOCHROMATIC DIMMABLE EXAMPLE OF CONNECTIONS TERRA or ARIA - MONOCHROMATIC DIMMABLE and WHITE BALANCE VERSION EXAMPLE OF CONNECTION MONOCHROMATIC TERRA or ARIA with ON BOARD CONTROL DRIVE TER Terra with Terra with art. CONTROL DRIVE TER art. CONTROL DRIVE TER ON BOARD/D ON BOARD/SS 2900K...
  • Page 25 (code APV 19) CONTROL DRIVE TERRA or TERRA or ARIA ARIA MAIN IN Cable 30 cm. Cable 1,5 mt. DMX or DALI TERRA or TERRA or TERRA or DMX or DALI ARIA ARIA ARIA Studio Due - Rel.7 - 02/2019...
  • Page 26 TERRA OR ARIA MONOCHROMATIC PLUG-IN EXAMPLE OF CONNECTIONS TERRA or ARIA - MONOCHROMATIC PLUG-IN VERSION EXAMPLE OF CONNECTION MONOCHROMATIC TERRA or ARIA with ON BOARD POWER SUPPLY Terra or Aria with Terra or Aria with art. W-PS TER PLUG-IN art. W-PS TER PLUG-IN ON BOARD/D ON BOARD/SS warm neutral cool...
  • Page 27 253x217x90mm IP67 CONNECTION BOX (code APV 19) POWER SUPPLY TERRA or TERRA or ARIA ARIA MAIN IN Cable 1,5 mt. TERRA or TERRA or TERRA or ARIA ARIA ARIA Studio Due - Rel.7 - 02/2019...
  • Page 28 EXAMPLE OF CONNECTION DMX CONTROLLER - SPOT / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI RGBW/FC and MONOCHROMATIC / RGBW/FC e MONOCROMATICO Example 1/ Esempio 1 DMX out CONTROL CONTROL DRIVE DRIVE CONTROL DRIVE Last driver/ Ultimo driver Termination resistor/ Terminale di linea DMX Channels list 4Ch / Lista dei canali DMX 4Ch 8 BIT FUNCTION...
  • Page 29 (OFF, On) Reset (rSEt) Execute a reset of the electronic section Esegue un reset della parte elettronica Format (FrMt) Restore the factory setting (Require confirmation) Ripristina le impostazioni di fabbrica (Viene chiesta conferma) Studio Due - Rel.7 - 02/2019...
  • Page 30 DRS (DMX Remote Setup) FUNCTIONING To make the set-up of the various fixture parameter, proceed as follow: •Disconnect the fixture to set-up from the other DMX/RDM devices • Connect the DMX cable of the fixture to the DRS commander • Switch on the DRS (push any button) commander and wait for the 8888 sign •...
  • Page 31 CONNECTORS CONNECTORS art. 4 PIN/XLR MF male/female connectors are for INDOOR use are IP67 (optional) only art. 4 PIN/XLR MF connettori maschio/femmina questi connettori sono questi connettori (opzionale) solo per uso INTERNO sono IP67 Studio Due - Rel.7 - 02/2019...
  • Page 32 WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price. These prices should be subject to possible variations for eventual rises of production costs or duties. Claims for possible damages during the freight, must be notified to the carrier.
  • Page 33 Direttive: and therefore according to essential requirement of Directives: 2004/108/EC – Electromagnetic compatibility 2006/95/EC – Low Voltage directive Data di apposizione PAOLO SENSI Date of marking General Manager VITERBO, 05/05/14 Studio Due - Rel.7 - 02/2019...
  • Page 34 TERRA and MINI TERRA series IP67 included Power Supply and Control Driver code 1401, 14011, 14012, 14013, 14014, 1440, 1441 è conforme alle norme:...
  • Page 35 / questa pagina è stata intenzionalmente lasciata bianca Studio Due - Rel.7 - 02/2019...
  • Page 36 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...
