Summary of Contents for Glatz Fortello LED

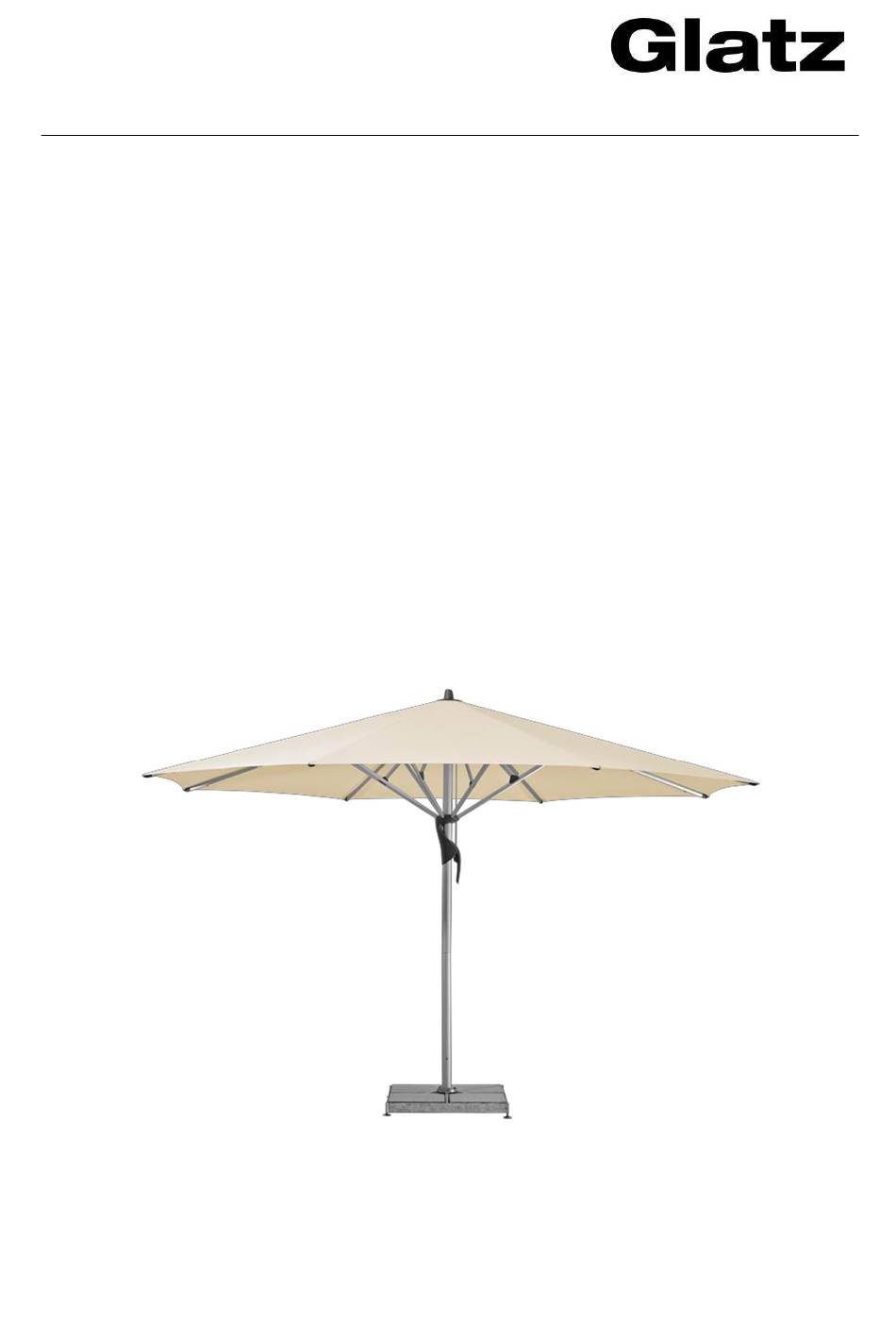

  • Page 1 Sunshade Fortello LED Service Manual Fortello LED...
  • Page 2 7. Replace rod extensions 8. Change lower pole Technical alterations reserved. © Glatz AG 02/2017 GLATZ AG . Neuhofstrasse 12 . 8500 Frauenfeld . Switzerland . www.glatz.ch latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017...
  • Page 3 · Screw off the top, screw in new top 2. Change cover · Screw off the top and loosen the screws at the rod ends. Take off the cover. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 4 · To replace the crown, the sunshade should be placed on a table. Crown screws · Tie the rods together with a strap to prevent them from dropping laterally onto the table. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 5 · Remove this part also, then install the new crown. You then need to attach new rivets to the lower part of the crown. · When attaching the new crown, mind the groove for the stretcher. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 6 · Once all the rods are installed correctly in the lower half of the crown, put the upper half on top and fasten using the hex-head screws. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 7 · When replacing a rod without LED, proceed as with the other F-Line sunshades. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 8 First pull the cable out of the hinge using a pair of pliers. · The other end of the power cable is located near the fork. The cable can be pulled out entirely from this end. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 9 · Now insert the new rod and re-tighten the crown screws. · Then loosen the screws of the auxiliary cap. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 10 Pull out the terminal and remove the broken rod. Then attach the new rod to the terminal. · Insert the rod with the pin into the auxiliary cap. Screw shut the cap. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 11 Remove the white plastic ring inside the slide by loosening the screws. · Fasten the cap of the slide including the white plastic ring with the strap. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 12 · On the distribution, first remove the power cable consisting of the blue and brown cables. · Then remove the white and grey cables. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 13 Once the 4 cables have been removed, you can install the new rod. · The distribution is labelled with the cable colours to allow them to be installed in the correct location. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 14 · Completely loosen all the rods in this location (incl. the rod with the power cable). · Then loosen all screws on the slide and remove the upper half with the plastic ring. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 15 Sunshade Fortello LED latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 16 Sunshade Fortello LED · Completely pull out the slide (incl. the loosened slide cap) at the bottom. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 17 Then attach the new crown, minding the groove for the stretcher. · As shown in the image, jam something in between the auxiliary cap and the pole (gluing is also possible). latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 18 Insert the stretcher at the bottom of the slide. · Then insert the rods with the bolt into the slide. · Reconnect the cables and screw shut the slide cap. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 19 Sunshade Fortello LED · Finally, attach the rods to the auxiliary cap with the bolt. · Screw on the auxiliary cap. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 20 7. Replace rod extensions · Pull out the extension and insert a new extension into the rod. 8. Change lower pole · Unplug the connector. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
  • Page 21 Screw together the two parts of the pole. · When establishing the connection, ensure that the groove is attached in the correct location. latz AG 2017_Servicemanual Fortello_LED_en Path: K:\Marketing\Drucksachen\Service Manual\Fortello LED\Word-Dateien\2017_Servicemanual Fortello_LED_en.docx Created: Mattea Pelusi / 16.05.2017 Updated: Released:...
