Summary of Contents for Glatz Sombrano S+

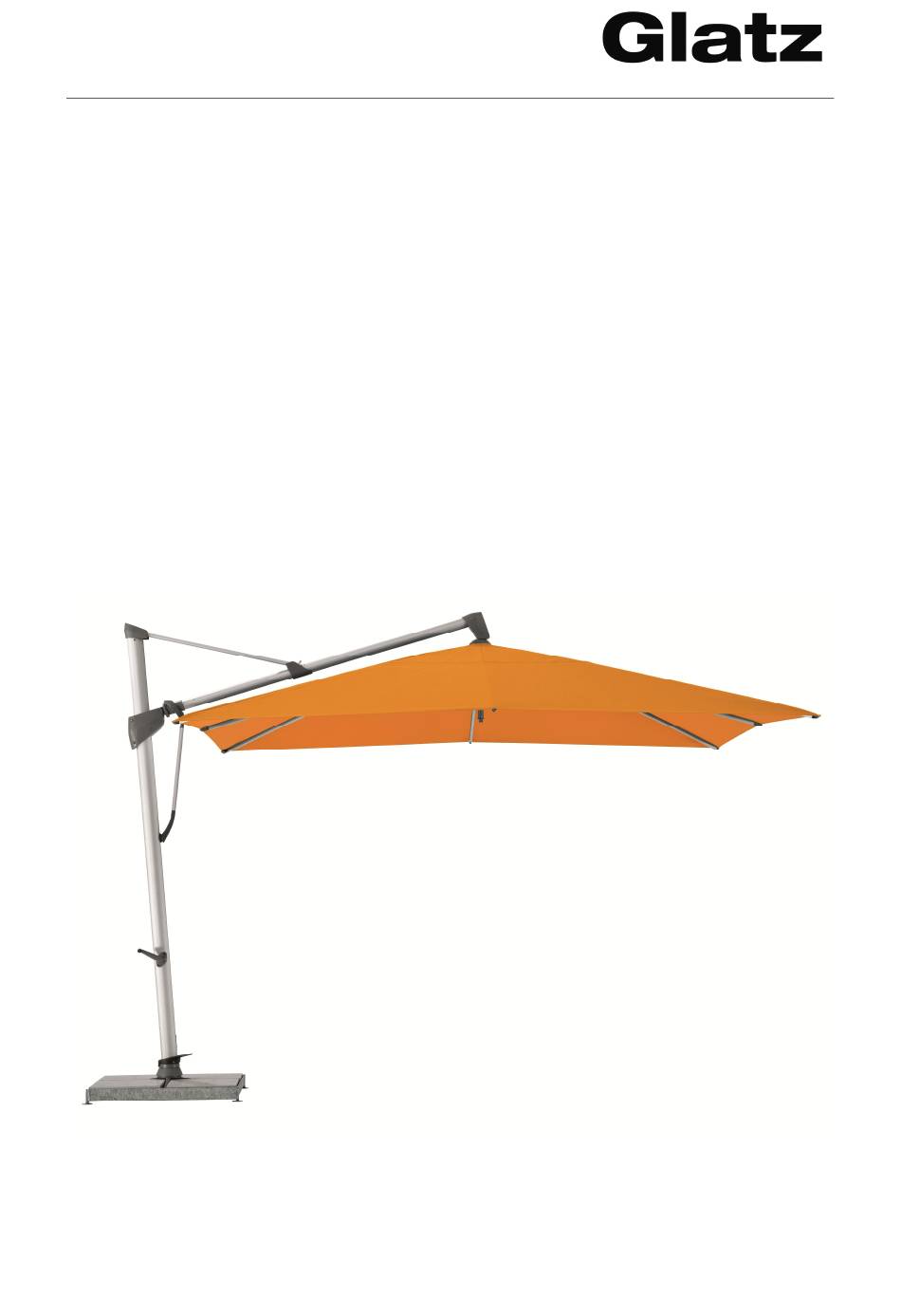

- Page 1 Sunshade Sombrano S+ Maintenance manual Sombrano S+...
-
Page 2: Table Of Contents
An adhesive is also to be used after repair works so that a permanently stable connection is created. Technical changes remain reserved. © Glatz AG 11/2013 GLATZ AG . Neuhofstrasse 12 . 8500 Frauenfeld . Switzerland . www.glatz.ch latz AG Service Manual_Sombrano S+_en Path:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx... -
Page 3: Replacing The Gear / Car Cord
Sunshade Sombrano S+ Preparation: prepare a clean base to place the sunshade on Tool: pin spanner 6-point 2 mm, 3 mm, 4 mm, 5 mm, 6 mm Spanner with adjustable spanner length 1. Replacing the gear / car cord 1.1. Dismount Proceed as follows with the upright or lying sunshade: ·... -
Page 4: Gear Change
Sunshade Sombrano S+ 1.2. Gear change · Unscrew gearbox, remove 2 countersink screws M5 x 30 · Hold and pull out the axis on the hexagonal nut latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx Created: Dino Aeschbacher/29.09.2013 Updated: Mattea Pelusi/06.03.2018 Released: hon_mg/22.11.2013... - Page 5 Sunshade Sombrano S+ · In order to remove the upper link, countersink screw M6 x12 must be released and removed from the masthead. · Pull out the masthead. Subsequently, take out the gear and insert the new gear accordingly. In order to open the car (due to the cord guide), proceed as follows: latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx...
-
Page 6: Replacing The Transmission Part
Sunshade Sombrano S+ · Remove the upper half of the car (at the side of the female screw) · Lay the sunshade down so that all screws on the car can be released from below with the pin spanner. Important: do not pull out the screws! 1.3. -
Page 7: Final Check
Sunshade Sombrano S+ 1.5. Final check · After a successful function check, completely roll out the cord. · Place the sunshade on the base again. · Reassemble the gear, axis and gearbox, analogous to the previous step. 2. Replacing the support shaft cord Preparation: prepare a clean base to place the sunshade on Tool:... -
Page 8: Inserting A New Support Shaft Cord Into The Car
Sunshade Sombrano S+ 2.2. Inserting a new support shaft cord into the car · Lay down the sunshade so that all screws of the car can be released from below with the pin spanner. Important: do not pull out the screws! ·... -
Page 9: Correct Adjustment Of The Support Shaft Cord
Sunshade Sombrano S+ 2.3. Correct adjustment of the support shaft cord To ensure that the fabric and the rope are well stretched, the distance between the pole head and the car must be as follows: 350x350cm & 400cm -> 49cm 300x300cm &... -
Page 10: Replacing The Screen, Canopy Or Inner Shaft
Sunshade Sombrano S+ 3. Replacing the screen, canopy or inner shaft 3.1. Dismounting the screen · Remove the hexagonal nut, hold the framework and pull out the cylinder cross bolt · At the top, remove 2 countersink screws · Remove material fastening screws and remove the material from the framework 3.2. -
Page 11: Exchanging The Canopy
Sunshade Sombrano S+ 3.4. Mounting the screen with new canopy below the support shaft head · Conduct the cord further through the inside rod Use a passage aid (wire or previous cord) · Turn the plastic screw cover out of the screen runner ·... -
Page 12: Replacing The Ribs
Sunshade Sombrano S+ 4. Replacing the ribs Tool: small and medium cross recess screw driver Can be carried out on a closed or upright sunshade or placed on a clean base. Remove the cross recess screws at the corner fastenings of the material from each defect rib and at each rib left and right of each rib affected ·... -
Page 13: Replacing The Locking Clip
Sunshade Sombrano S+ 5. Replacing the locking clip Remove the dowel by Ø 5 x 57mm with a drift. Insert a new clip and install the dowel. 6. Replacing hand grip Release the locking clip from the pole. The hand grip is attached to the steering link with two blind rivets. latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx... - Page 14 Sunshade Sombrano S+ The rivets must be drilled out with a drill. After drilling out the rivets, the old hand grip can be pulled out. latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx Created: Dino Aeschbacher/29.09.2013 Updated: Mattea Pelusi/06.03.2018 Released: hon_mg/22.11.2013...
- Page 15 Sunshade Sombrano S+ With the new hande grip two rivets are shipped with, which are needed for the attachment. Insert the new hand grip into the steering link. ¨ latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx Created: Dino Aeschbacher/29.09.2013 Updated: Mattea Pelusi/06.03.2018 Released: hon_mg/22.11.2013...
- Page 16 Sunshade Sombrano S+ The blind rivets must be fixed with the machine. latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx Created: Dino Aeschbacher/29.09.2013 Updated: Mattea Pelusi/06.03.2018 Released: hon_mg/22.11.2013...
-
Page 17: Replacing The Steering Link
Sunshade Sombrano S+ 7. Replacing the steering link · First, the screen needs to be dismounted ( see chapter 3.1 ) · Subsequently, the two screws of the tilting rod are removed · Further, the 3 screws at the plastic part are undone and removed latz AG Service Manual_Sombrano S+_en Pfad:K:\Marketing\Drucksachen\Service Manual\Sombrano S+\Word Dateien\Service Manual_Sombrano S+_en.docx... - Page 18 Sunshade Sombrano S+ 1. Pull the cord out of the support shaft and install a new tilting rod 2. If the holes of the tilting rod screws are enlarged, the linkage must be completely replaced (see image 3). In this case, the thread is worn and only new screws would not hold.
-
Page 19: Replacing The Top Notch / Runner (2 People Required)
Sunshade Sombrano S+ 8. Replacing the crown / runner (2 people required) 8.1. Preparation for replacing the runner Preparation; put the wooden holder in the standpipe and remove runner cover. Turn the framework upside down so that the runner is underneath and can be put on the wooden holder. -
Page 20: Preparation For Replacing The Top Notch
Sunshade Sombrano S+ 8.2. Preparation for replacing the top notch Preparation; turn framework completely upside down and place upside down on the wooden holder so that at the top notch the screws are exposed at the top. Position the aluminium pipe between the top notch and the runner so that the framework stays open. Aluminium pipe from an aluminium understaff, shortened to an appropriate... -
Page 21: Dismounting The Top Notch / Runner
Sunshade Sombrano S+ 8.3. Dismounting the top notch / runner: Undo all screws on the top notch / runner with the cordless screwdriver. Top notch or runner must be facing downwards in order to undo the screws. Separate the top notch / runner halves (upper and lower halves) with the screwdriver. ·... -
Page 22: Closing The Sunshade
Sunshade Sombrano S+ 9. Closing the sunshade Close the sunshade: turn the crank with one hand and conduct the slide downwards with the other (closing and retracting movements take place simultaneously). It is essential to close the sunshade with both hands in order to ensure that the cord is conducted optimally.
