LONG BEACH FIRE DEPARTMENT
GlobalFix PRO 406 MHz RLB-37
FIREBOAT TRAINING MANUAL 1.1:
Introduction

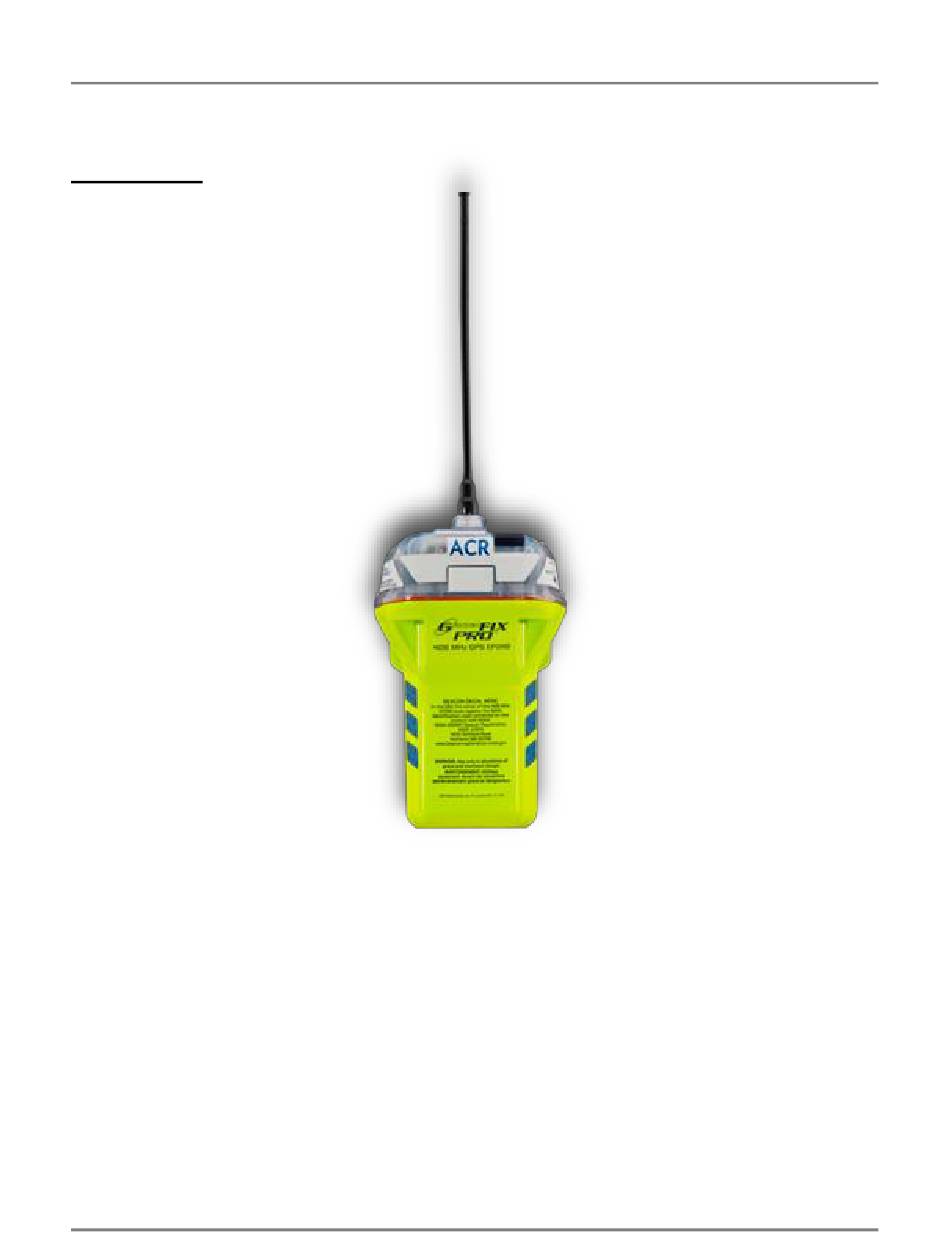

Boat 20 is equipped with the The GlobalFix™ PRO EPIRB (Emergency Position
Indicating Radio Beacon). This unit broadcasts a unique registered distress signal
that not only tells rescuers where you are, but who you are. The internal GPS will
automatically turn on and acquire your position upon activation and then utilizes a
powerful 406 MHz signal to relay your distress call to orbiting satellites. As local
Search and Rescue is deployed, a separate homing signal and integrated LED
strobe light guide rescuers to your exact location.
LBFD MARINE DIVISION
Chapter # Page #
DECEMBER 2015
Advertisement
Related Manuals for ACR Electronics GlobalFix PRO
Summary of Contents for ACR Electronics GlobalFix PRO
- Page 1 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: Introduction Boat 20 is equipped with the The GlobalFix™ PRO EPIRB (Emergency Position Indicating Radio Beacon). This unit broadcasts a unique registered distress signal that not only tells rescuers where you are, but who you are. The internal GPS will automatically turn on and acquire your position upon activation and then utilizes a powerful 406 MHz signal to relay your distress call to orbiting satellites.
- Page 2 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: Technical Specifications Part Number 2842 (Category I); 2844 (Category II) Model Number RLB-37 7.0 X 4.2 X 3.6” (17.7 X 10.7 X 9.1 cm) Size (no antenna) Weight 20.5 oz (581 g)
- Page 3 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: Replacement Replacement due six (6) years from date of manufacture or five (5) years after beacon is placed into service, whichever is first, or after emergency use.
- Page 4 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: Operating Temp. -4°F to +131°F (-20°C to +55°C ) (Class 2) Storage Temp. -30°F to + 158°F (-34°C to +70°C) LBFD MARINE DIVISION Chapter # Page #...
- Page 5 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: Operation 1. EPIRB is activated either automatically via hydrostatic release or manually by crew members. 2. Beacon transmits a 406 MHz emergency message containing your Unique Identifier Number (UIN) to the LEOSAR (polar orbiting) and GEOSAR* (geostationary) satellite systems.
- Page 6 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: Automatic Activation Manual Activation 1.) Remove the beacon from its bracket 2.) Activation method one: Place beacon in water 3.) Activation method two: • Lift the switch to a vertical position •...
- Page 7 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: • Push the switch down to the opposite side of the beacon (see illustration above) Links https://www.acrartex.com/media/1374784/y1-03-0242h.pdf Care and maintenance Inspection At least every ninety days, the float free mounting bracket and beacon should be inspected for deterioration and/or residue buildup that may affect the function of the beacon or automatic release.
- Page 8 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: for evaluation. Call ACR Electronics Technical Service +1 (954) 981- 3333. Self-Testing the beacon The RLB-37 beacon may be self-tested as is warranted, up to a maximum of sixty times in the five-year life of the battery, or once per month for the life of the battery.
- Page 9 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: certified ACR Battery Replacement Centers (BRCs). Visit ACR’s website at www.acrartex.com for authorized ACR BRCs. Servicing the SeaShelter 3 The SeaShelter 3TM Category I bracket has two main pieces, the lid and the base.
- Page 10 LONG BEACH FIRE DEPARTMENT GlobalFix PRO 406 MHz RLB-37 FIREBOAT TRAINING MANUAL 1.1: • Mount the beacon in its bracket in an obvious location, so that all can see it • Mount the beacon in its bracket with the rolled lanyard facing inward (facing the bracket) •...
