For use with OBD II Compliant Vehicles
4
3

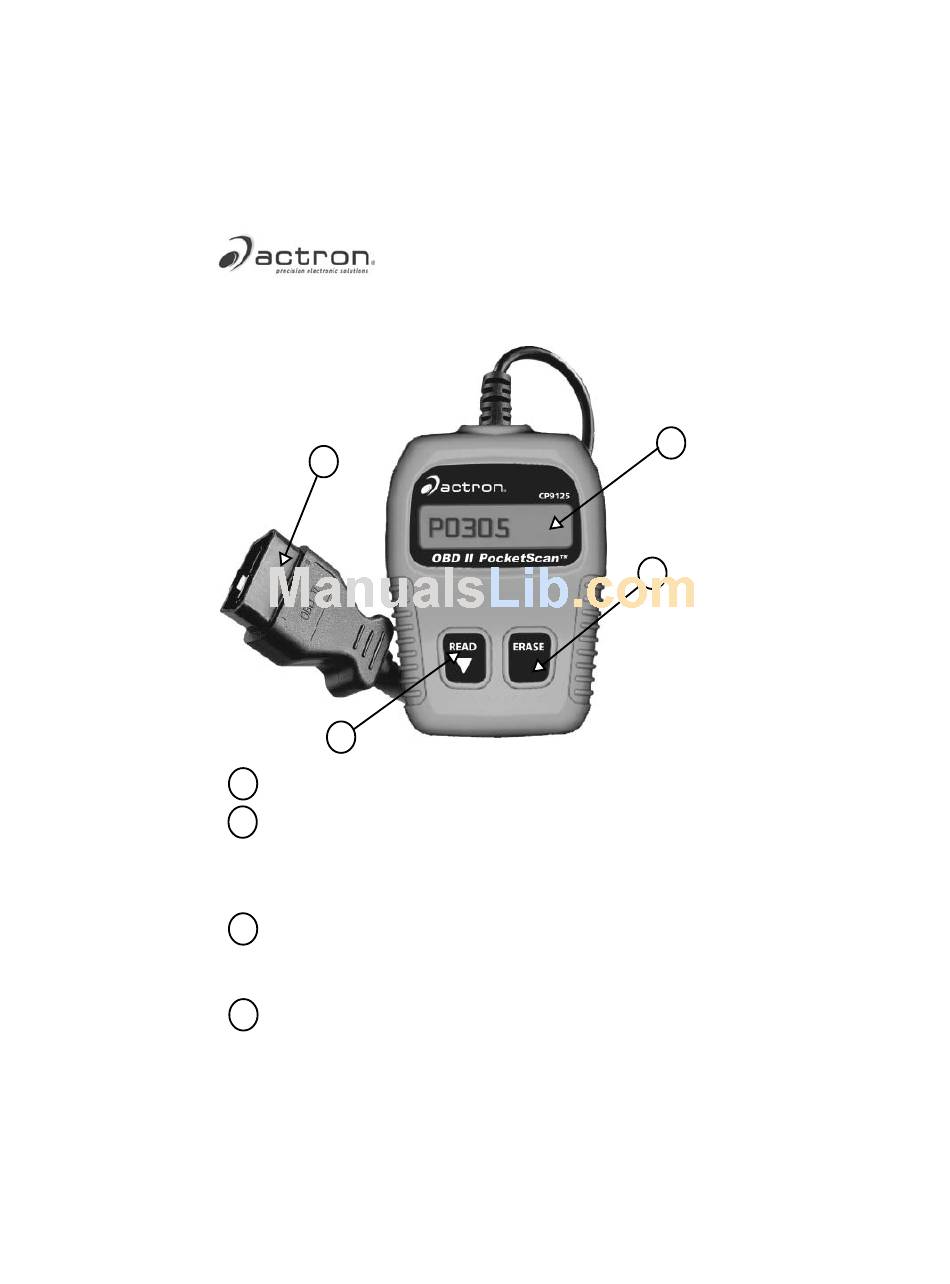

LCD Display - Is a Single Line Display with 8 characters.
1
ERASE Key - Used to Erase Trouble Codes and I/M
2
Monitor Status from Vehicle's Computer Modules and
scroll up through screens. (I/M Monitors are currently
used for state emissions tests.)
READ/Scroll Down Key - Used to view Read Codes, MIL
3
Status, I/M Readiness Status and Scroll down through
screens.
OBD II Connector - Used to communicate with OBD II
4
compliant vehicles.
OBD II PocketScan™
Code Reader
CP9125
1
2
0002-003-2666
