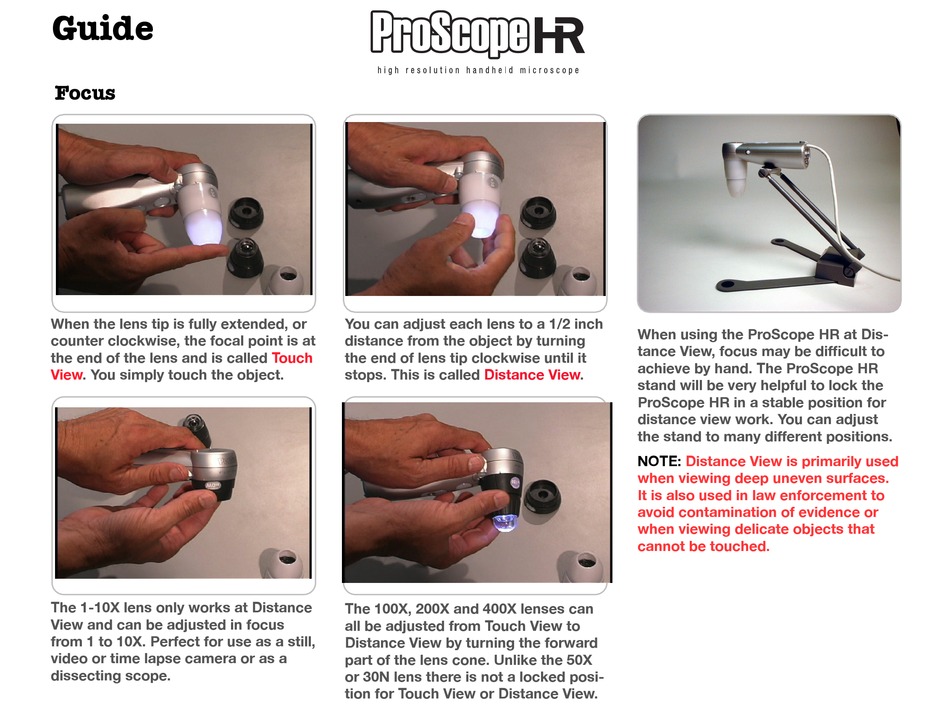

Guide
Focus
When the lens tip is fully extended, or
counter clockwise, the focal point is at
the end of the lens and is called
View. You simply touch the object.
The 1-10X lens only works at Distance
View and can be adjusted in focus
from 1 to 10X. Perfect for use as a still,
video or time lapse camera or as a
dissecting scope.
!
!
You can adjust each lens to a 1/2 inch
distance from the object by turning
Touch the end of lens tip clockwise until it
stops. This is called
The 100X, 200X and 400X lenses can
all be adjusted from Touch View to
Distance View by turning the forward
part of the lens cone. Unlike the 50X
or 30N lens there is not a locked posi-
tion for Touch View or Distance View.
When using the ProScope HR at Dis-
tance View, focus may be difficult to
achieve by hand. The ProScope HR
Distance View.
stand will be very helpful to lock the
ProScope HR in a stable position for
distance view work. You can adjust
the stand to many different positions.
NOTE:
when viewing deep uneven surfaces.
It is also used in law enforcement to
avoid contamination of evidence or
when viewing delicate objects that
cannot be touched.
Distance View is primarily used
!
