RDC SMX Installation Instructions

Primary
SIM
GETTING STARTED
SIM card preparation
Choose the right SIM cards
SIM cards from any network on prepaid or on contract
(recommended) can be used. Choose network/s with the best
coverage in the area and the best SMS rates.
NOTE – Make sure that sufficient airtime or SMS bundles are
loaded. Air time loading methods are network specific.
Disable SIM PIN before installation
The SMX will not function with a SIM PIN enabled. Disable the
PIN by inserting it in a mobile phone and deselecting the SIM
PIN function. If a PIN is not requested when the phone is
switched on, the PIN has been disabled.
CLIP (Calling Line Identification Presentation)
A CLIP enabled SIM is required for missed call functions. Most
pre-paid SIMs are CLIP enabled, but contract SIMs usually
carry additional charges for CLIP.
SIM churning
Prepaid SIMs that do not produce billable events for about
three months are churned (de-activated by the network).
Configure a regular self test SMS to keep SIMs active.
IMPORTANT
When using dual SIMs configure the SMX to periodically use
the redundant SIM to avoid churning. See remote
configuration leaflet.
Signal strength
Network signal strength can be improved by using a blade
antenna or repositioning the unit. A minimum of 1-2 bars,
indicated on a mobile phone in the same position, is required.
IMPORTANT:
DO NOT insert or remove SIM cards
while the unit is powered!
NC NO CM NC NO CM
Relay 2 Relay 1

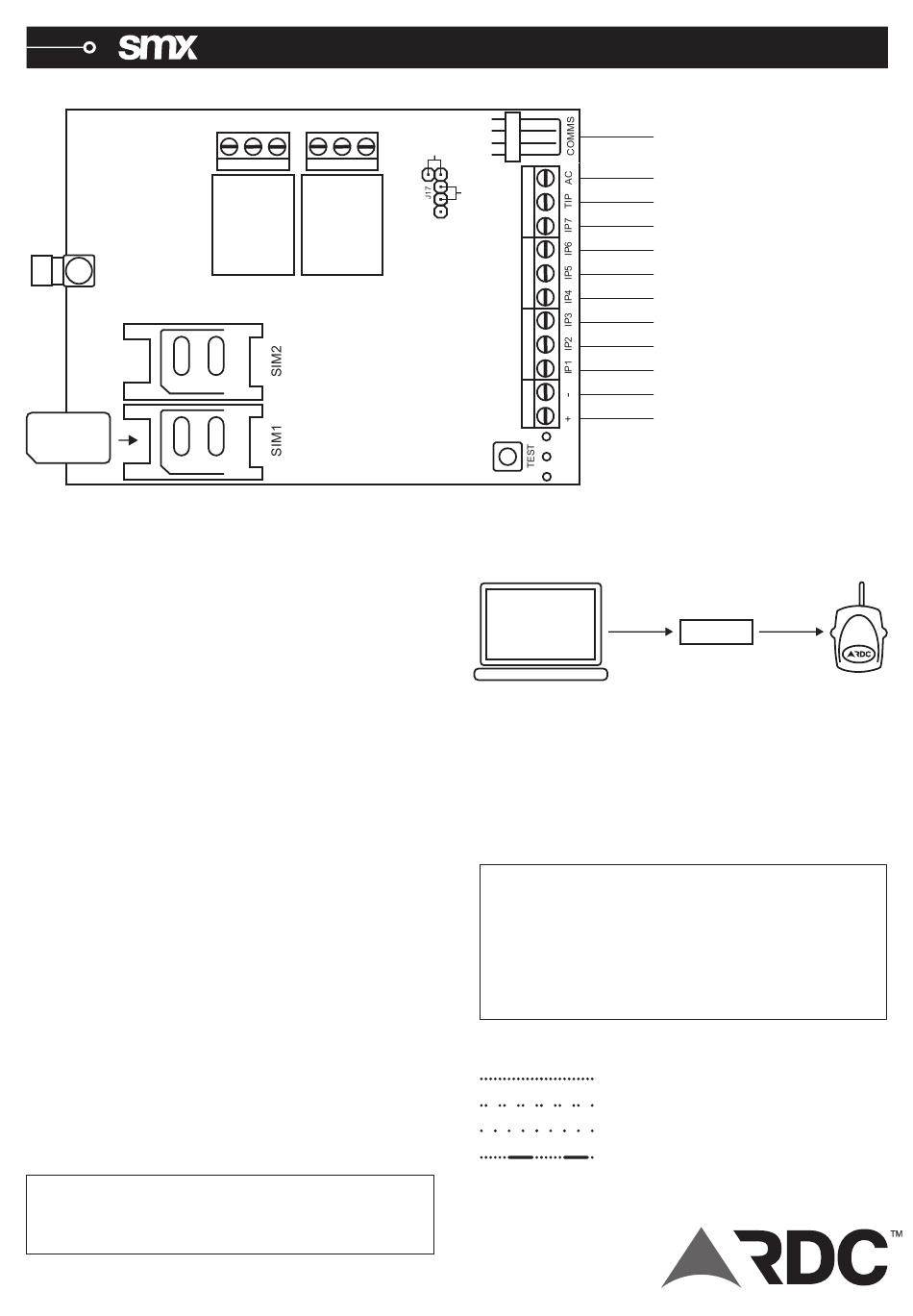

Installation Instructions
AC bypass
jumper
J18
CID
jumper
SYS
GSM
PWR
Install PC software and connect to the unit
Software
installation
Status screen
Refer to the status screen in the programming application for
SIM, network, battery and hardware status information.
Configure the message centre number/s
The unit cannot reply to SMS messages if the correct
message centre number/s are not selected. Input the
number/s manually if not listed.
Power requirements
The unit operates between 10-16V DC.
- 60mA when idle with no inputs or relays active
- 300mA (average) when GSM active
- 1000mA (peak) during power up
- 120mA with I/O expander connected (idle with no inputs
or relays active)
LED indications
Serial connection to I/O expander
or DSC panel
Mains fail/restore
TIP (to alarm panel telephone interface)
Input 7
Input 6
Input 5
Input 4
Input 3
Input 2
Input 1
- DC Supply & RING
+ 12V DC Supply
SMX USB
dongle
Searching for GSM network
Registered on GSM network - AC failure
Registered on GSM network - AC present
Configuration failure
