DigitaLinx DL-HD28A-H2 Quick Install Manual

Hide thumbs Also See for DL-HD28A-H2:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

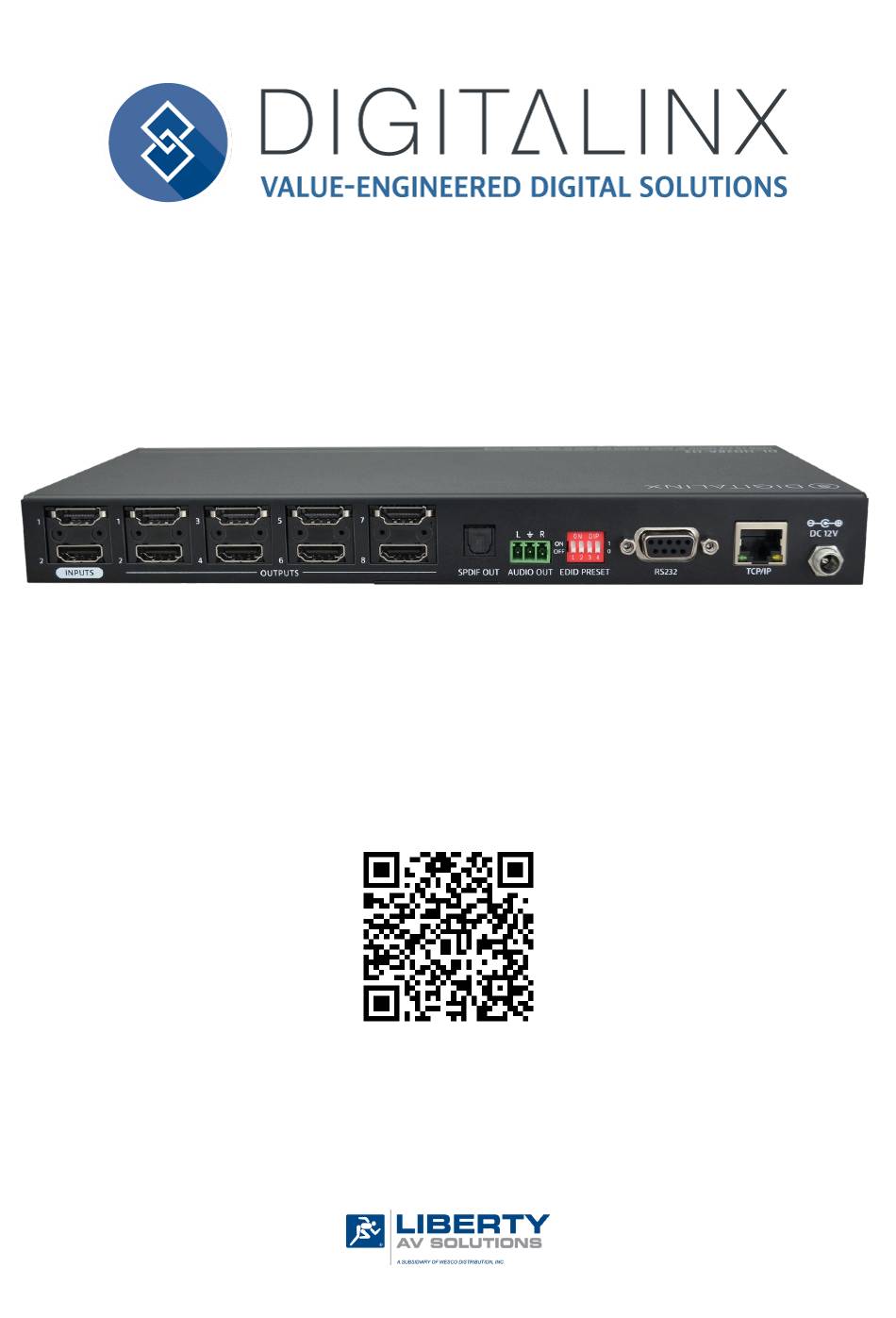

DL-HD28A-H2 Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 190501
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-HD28A-H2 and is the answer not in the manual?

Questions and answers

Related Manuals for DigitaLinx DL-HD28A-H2

Summary of Contents for DigitaLinx DL-HD28A-H2

  • Page 1 DL-HD28A-H2 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 190501...

  • Page 3: Product Overview

    4K video input can automatically be down scaled to an 1080p output when connecting a display that only supports resolutions up to 1080p. The DL-HD28A-H2 supports 4K signals up to 4K@60Hz / 4:4:4 / 8 bit color and features an easy EDID management option using dip switches on the rear panel of the unit.
  • Page 4 DL-HD28A-H2 Quick Guide Front Panel View 1. POWER LED INDICATOR Illuminates solid RED when device is powered ON 2. OUTPUT LED INDICATORS - Illuminates solid GREEN when there is an HDMI output on the corresponding channel 3. SOURCE BUTTON and LED INDICATORS AUTO - Switching mode indicator;...
  • Page 5 DL-HD28A-H2 Quick Guide Rear Panel View 1. INPUTS - Two HDMI input ports to connect HDMI sources 2. OUTPUTS - Eight HDMI output ports to connect HDMI displays 3. AUDIO OUT -3 pin phoenix connector for analog audio output 4. SPDIF OUT - Toslink digital audio output port for digital audio output 5.
  • Page 6 4k/60Hz signals. For source devices that are further away, it is highly recommended to install an extender such as the Digitalinx DL-HD70, DL-HDE100 or DL-HD2100. 4. Connect the display devices to HDMI outputs using HDMI cables that are less than or equal to 7 meters in length for 4k/60Hz signals.

  • Page 7: Technical Specifications

    DL-HD28A-H2 Quick Guide Technical Specifications Input/Output Connections HDMI Inputs Two (2) HDMI Type A Receptacles HDMI Outputs Eight (8) HDMI Type A Receptacles TCP/IP One (1) 8P8C Port (Shielded RJ45 Female) RS232 One (1) Female DB9 Port Audio - One (1) Analog L/R audio output, 3-Pin 3.5mm Phoenix...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
