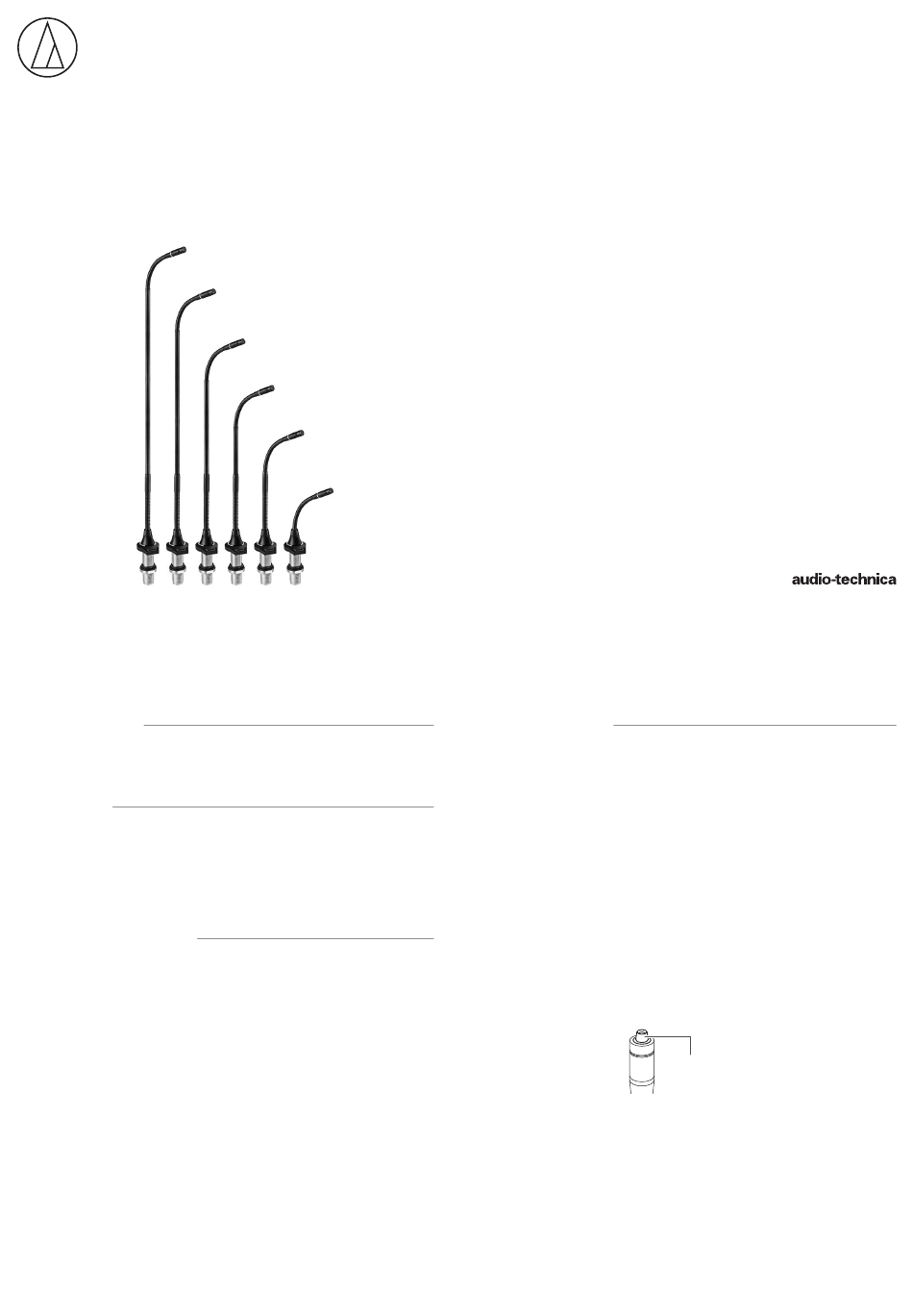

Cardioid condenser modular gooseneck microphone with 3-pin flush-mount power module

Advertisement

Quick Links

■ Introduction

Thank you for purchasing this product. Before using the product, read through
the user manual to ensure that you will use the product correctly. Please keep
this manual for future reference.

■ Features

• Modular microphone system comprised of an ES Series capsule, gooseneck
Assembly, and power module.
• RGB LEDs built into both the flush-mount power module and gooseneck
assembly indicate the on/off status of the microphone.
• Capacitive touch switch for microphone control.
• Three-pin output power module allows for inconspicuous tabletop installation.

■ Safety precautions

Although this product was designed to be used safely, failing to use it correctly
may result in an accident. To ensure safety, observe all warnings and cautions
while using the product.
Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a
hot, humid or dusty place.
WITH 3-PIN FLUSH-MOUNT POWER MODULE

■ Notes on use

• Check the strength of the mounting area. Insufficient strength or poor
mounting will cause objects to fall or become damaged.
• The circuitry in the microphone takes about 30 seconds to stabilize after power
is supplied. You may hear some audio disturbance during startup.
• Install the microphone on a flat, unobstructed mounting surface.
• Depending on the surface finish of a table, the isolators may leave marks on
the table.
• Do not excessively bend the gooseneck assembly, rotate the ends of the
capsule, or pull on them. Doing so may cause disconnection or malfunction.
• The product is a modular system comprised of a microphone element,
gooseneck assembly and power module. Make sure the parts are firmly
attached before use.
• Do not remove the rubber O-ring on the power module connecting part at the
lower section of the gooseneck assembly.
• When attaching parts, remove the black cap on the capsule connecting part
of the gooseneck assembly. Do not remove the silicone part at the end of
the capsule connecting part.
1
ES925C6/FM3
ES925C12/FM3
ES925C15/FM3
ES925C18/FM3
ES925C21/FM3
ES925C24/FM3

User Manual

CARDIOID CONDENSER
MODULAR GOOSENECK MICROPHONE
Silicone part
Do not remove

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES925C15/FM3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Audio Technica ES925C15/FM3

  • Page 1: User Manual

    ES925C6/FM3 ES925C12/FM3 ES925C15/FM3 ES925C18/FM3 ES925C21/FM3 ES925C24/FM3 User Manual CARDIOID CONDENSER MODULAR GOOSENECK MICROPHONE WITH 3-PIN FLUSH-MOUNT POWER MODULE ■ Introduction ■ Notes on use Thank you for purchasing this product. Before using the product, read through • Check the strength of the mounting area. Insufficient strength or poor the user manual to ensure that you will use the product correctly.
  • Page 2 ■ Assembly ■ Switch setting and functions • Insert the gooseneck assembly (c) while rotating it into the flush-mount power module (d). • Tighten until it does not rotate, and use the hex wrench (i) to tighten the set screw (h) and set the gooseneck assembly in place. •...
  • Page 3: Specifications

    ES925C12/FM3: 315 mm (12.4“) x 38 mm (1.5“) x 48 mm (1.9“) ■ Dimensions ES925C15/FM3: 391.2 mm (15.4“) x 38 mm (1.5“) x 48 mm (1.9“) ES925C18/FM3: 467.4 mm (18.4“) x 38 mm (1.5“) x 48 mm (1.9“) Dimensions ES925C21/FM3: 543.6 mm (21.4“) x 38 mm (1.5“) x 48 mm (1.9“) ES925C24/FM3: 619.8 mm (24.4“) x 38 mm (1.5“) x 48 mm (1.9“)
