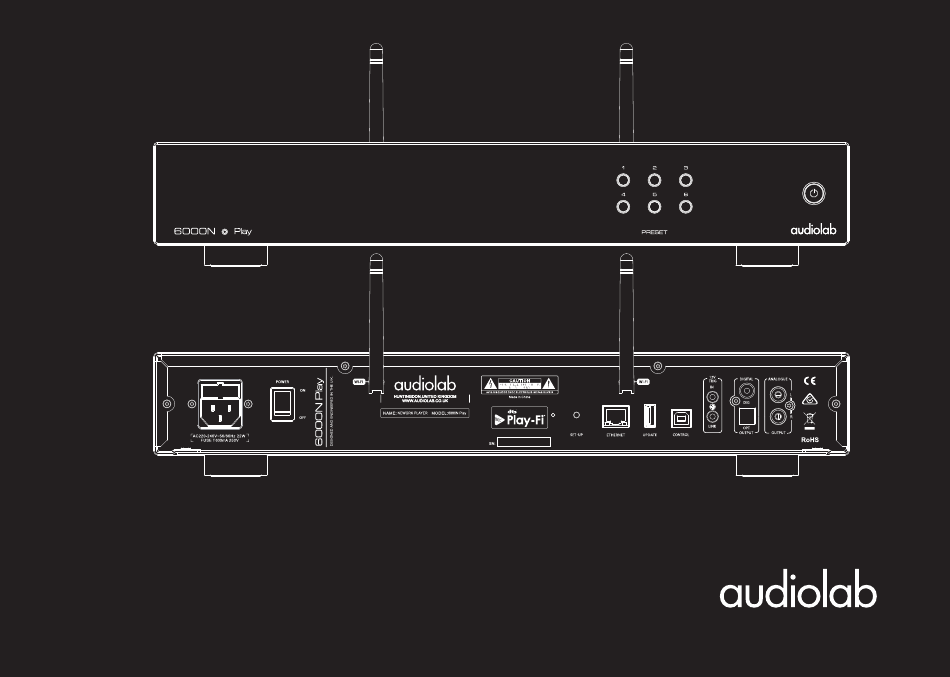

- Page 1 6000N Play User Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION has been spilled or objects have fallen into the apparatus, Mains Supply: The mains operating voltage of Audiolab Read these instructions. the apparatus has been exposed to rain or moisture, does 6000 series units is shown on the rear panel.
-
Page 3: Table Of Contents
2: Contents audiolab 6000N Play GETTING STARTED ………………………………………………………………………………………………………………………………………………………………………………… 4 CONTROLS AND FUNCTIONS ………......…………………………………………………………………………………………………………………………………. 5 CONNECTION ……………………………………………………………………………………………………………………………………………....………………….…………..7 DTS PLAY-FI® WIRELESS STREAMING TECHNOLOGY ……………………………………………………………………………………………………………………………… 8 DOWNLOAD THE APP ……………………………………………………………………………………………………………………………………………………………….……………. 9 WI-FI CONNECTION USING THE APP ……………………………………………………………………………………………………………………………………………………… 10 WI-FI CONNECTION SETUP USING A WINDOWS PC OR MAC .…………....………………………………………………………………………………………… 11 APP OPERATIONS ………......………………………………………………………………………………………………………………………………….……..….……... -
Page 4: Getting Started
The unit must be mounted on a solid, level and stable surface. Before you connect the Audiolab 6000N Play the to AC mains power, ensure your AC mains voltage corresponds to the rating on the rear panel of the product. If in doubt, consult your dealer. -
Page 5: Controls And Functions
fixed to the maximum output. When set to variable mode, the red LED on the front panel will flash twice, then the analogue output level can be adjusted by APP. The default setting on 6000N Play is variable mode. - Page 6 4.Fuse media sources. Upgrade method: Put the Audiolab upgrade file on a USB memory stick and insert into the Update The fuse specification: Interface. Hold down the Standby Button on the front panel, turn on the power switch then release 220~240V (UK, China, etc.) T630mAL 250V Slow Blow...
-
Page 7: Connection
1. For Audiolab 6000N the COAX and OPT outputs transfer the PCM digital signal at up to 24 bit/192kHz resolution. 2. Using the DTS Play-Fi APP the volume of the analogue output can be controlled. When using the 6000N with the Audiolab 6000A amplifier, connect the USB... -
Page 8: Dts Play-Fi® Wireless Streaming Technology
6: DTS PLAY-FI® wireless streaming technology Page 8 Key Features DTS Play-Fi puts you in complete control of your music. It gives you the freedom to effortlessly MULTI-SPEAKER stream via Wi-Fi ® from any device to any speaker in any room in your house. It’s never been DTS Play-Fi is open to all speakers, no matter easier to listen to music with the people you love, in the place you love most. -
Page 9: Download The App
7.Download the APP Page 9 Download the DTS Play-Fi APP Network settings Wired network setting The DTS Play-Fi APP can be downloaded from the Google Play Store, Amazon APP Market or Apple App Store. For Windows PC you can download the Play-Fi Windows APP from the official Connect the Ethernet Port to the LAN port of a wireless router using a suitable cable. -
Page 10: Wi-Fi Connection Using The App
(2) Open the Play-Fi APP and find the 6000N PlayFi Device name. Select it and enter your wireless network password. (3) During installation the APP will find and upgrade the 6000N Play-Fi settings which may take a few minutes. (4) After completing the network setup and upgrading you can set a name for your 6000N Device and use it. -
Page 11: Wi-Fi Connection Setup Using A Windows Pc Or Mac
If you cannot connect using the DTS Play-Fi APP, or you need to do some high-level option such as setting the static IP configuration, you can setup the Audiolab 6000N Play using a web browser from your Windows PC or a Mac. -
Page 12: App Operations
10.APP operations - 1 Page 12 Device Selection Internet Radio The DTS Play-Fi APP allows you to control and direct streaming music to a variety of Devices DTS Play-Fi has a built-in Internet Radio service that gives you access to throughout your home that use the DTS Play-Fi system. - Page 13 10.APP operations - 2 Page 13 Media Server SoundMachine Got a hard drive full of music? Avid digital collectors can access and Business never sounded so good! Whether it's in an office or a stream from media servers using DTS Play-Fi. The system automatically restaurant, a retailer or a hotel, background music enhances both the discovers and indexes music from DLNA and UPnP servers on your customer and the employee experience.
- Page 14 Speakers Group To stream music from 6000N Play to multi-room Devices such as DTS Play-Fi enabled Speakers, open the DTS Play-Fi APP, find the Device or Speaker, give it a name and then add it. To delete the Device or Speaker, just click on the right side of the Device name and then delete.
- Page 15 Spotify Group will be greyed out. Once you’re satisfied, head to the Spotify app to start streaming. So far, Audiolab 6000N Play can’t support the playing of “Surround Sound”. For common problems in utilization and fault diagnosis, you can open the APP settings to find the "Fault diagnosis", then enter the DTS Play-Fi website knowledge base which has detailed information.
-
Page 16: Warranty
Audiolab shall not be liable for any incidental or consequential damages for breach replace (at Audiolab’s option) this product, or any defective part in this product, if it is found to of any express or implied warranty in this product. Except to the extent prohibited by law, this be defective due to faulty materials, workmanship or function. -
Page 17: Specifications
12.Specifications Page 17 Measurement made with 230V power supply 6000N Play Model Digital Section: Digital Output Level 500 +/- 50mVpp Output Impedance 75 ohm Frequency Response +/-0.01dB (20Hz-20kHz,ref.1kHz) Maximum Resolution 192kHz/24bit Digital Output 1 x Coaxial , 1 x Optical... - Page 20 Audiolab IAG House, 13 /14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, Tel: +44(0)1480 452561 Fax: +44(0)1480 413403 http://www.audiolab.co.uk CODE: AH14-MNL0004a...
