Summary of Contents for Ruck PODOLOGSTOOL BIOSWING

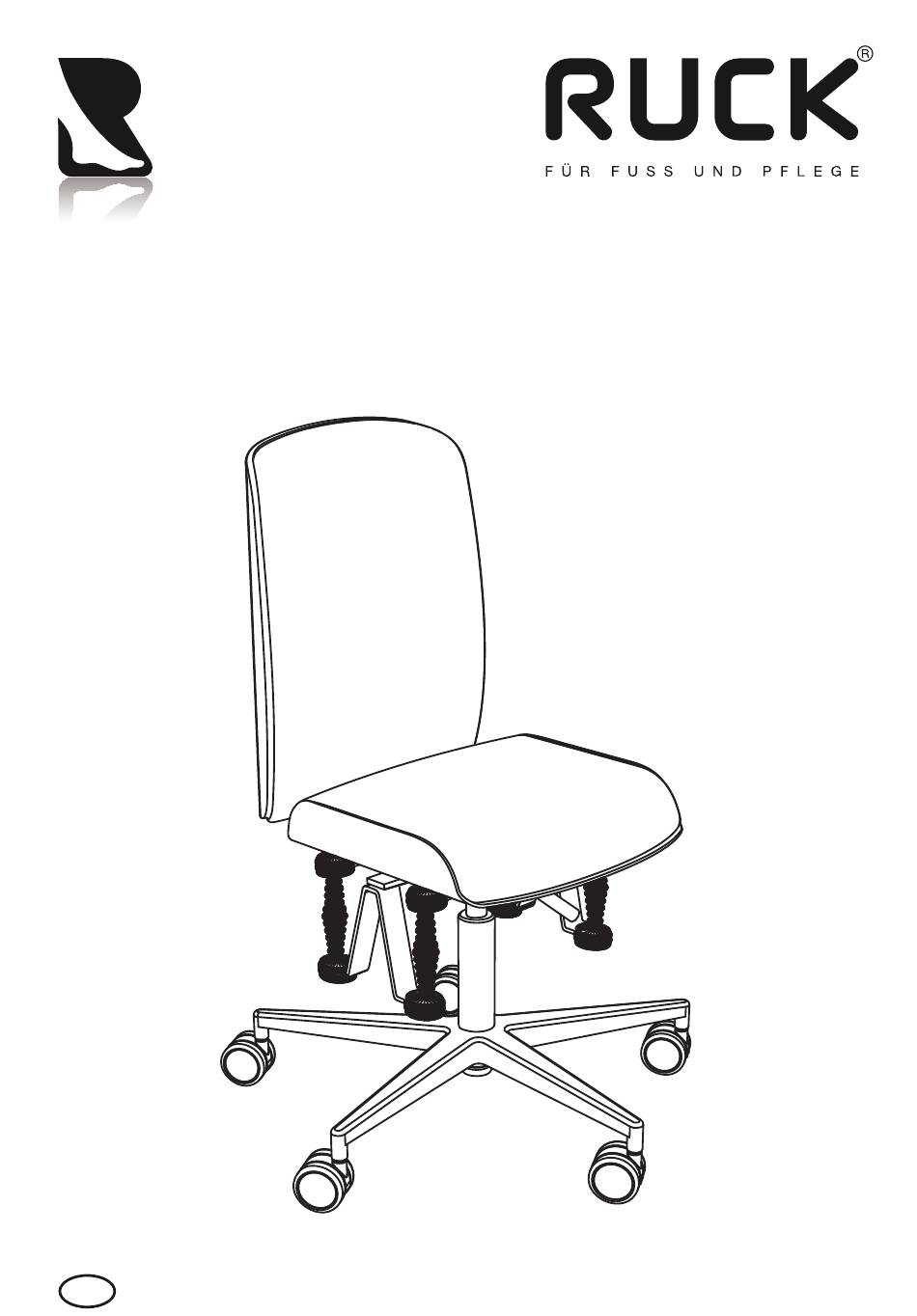

- Page 1 PODOLOGSTOOL BIOSWING Operating Instructions | Revision 0 | Print | REF 8000701...
- Page 2 Copyright © 2016 Hellmut Ruck GmbH. All rights reserved. This document must not be copied, edited, reproduced or translated without the prior written permission of Hellmut Ruck GmbH. Operating Instructions for PODOLOG ® STOOL BIOSWING | Revision 0...
- Page 3 This results in improved concentration and higher performance throughout the working day. In order to use all settings optimally, please read these operating instructions. Kind regards, HELLMUT RUCK GmbH Operating Instructions for PODOLOG ® STOOL BIOSWING | Revision 0...
-
Page 4: Table Of Contents
CONTENTS Page TABLE OF CONTENTS SCOPE OF DELIVERY PRODUCT DESCRIPTION 6–7 SAFETY NOTE OPERATION SEAT HEIGHT SEAT TILT SEAT DEPTH BACKREST BACKREST TILT (VarioBackMatic) 12–13 DISINFECTION, CLEANING AND CARE 14–15 REPLACING CUSHIONS MAINTENANCE SPARE PARTS DISPOSAL WARRANTY TECHNICAL DATA Operating Instructions for PODOLOG ®... -
Page 5: Scope Of Delivery
Hellmut Ruck GmbH reserves all rights to modify and supplement these operating instruc- tions. Hellmut Ruck GmbH has taken great care to keep these instructions free of inaccura- cies and omissions. Please contact us if you find mistakes or inaccuracies. However, Hellmut... -
Page 6: Product Description
PRODUCT DESCRIPTION Max. 125 kg SEAT TILT SEAT HEIGHT BACKREST HEIGHT Operating Instructions for PODOLOG ® STOOL BIOSWING | Revision 0... -
Page 7: Seat Depth
PRODUCT DESCRIPTION BACKREST TILT (VarioBackMatic) SEAT DEPTH BACKREST TILT PRESSURE Operating Instructions for PODOLOG ® STOOL BIOSWING | Revision 0... - Page 8 SAFETY NOTE | OPERATION Use the PODOLOG® STOOL BIOSWING exclusively for seating purposes accord- ing to the intended use. Never step onto a swivel chair! SEAT HEIGHT The angle of the thigh and calf should range from a right angle to a slightly open angle.
- Page 9 OPERATION ADJUSTING THE SEAT TILT To support the physiologically correct pelvic tilt, you can adjust the seating surface either with permanent contact or at any tilt. The tilt ensures the desired straightening of the spine in its natural double-S position. SEAT TILT WITH PERMANENT CONTACT While seated, push the control handle forward and then down.
- Page 10 10 | OPERATION ADJUSTING THE SEAT DEPTH With the seat depth adjustment, you can optimally adjust the seating surface to your thigh. Note that the seat front edge is about 3 fi nger widths from the hollow of the knee. INDIVIDUAL ADJUSTMENT OF THE SEATING SURFACE While seated, pull the control handle up and simultaneously change the seat depth by push- ing the seat cushion forward or backward.
- Page 11 OPERATION ADJUSTING THE HEIGHT OF THE BACKREST You can adjust the backrest individually to your height. While seated, use both hands to reach backwards and raise or lower the backrest to the desired height by sliding it. Please note: The backrest can only be slid down when it is in the highest position.
-
Page 12: Backrest Tilt (Variobackmatic)
12 | OPERATION BACKREST TILT The backrest adjustment enables stepless tilting. This can be fi xed or follow your movements with the permanent function. In this way you promote dynamic seating behaviour in particular. For the permanent function, pull the control handle upwards while seated – the backrest fol- lows your movements. - Page 13 OPERATION VARIOBACKMATIC (BACKREST TILT/PRESSURE) VarioBackMatic is the stepless back pressure adjustment for optimised seating. Try to choose the setting so that you never have the feeling of using a great amount of force when you lean back. While seated, pull the control handle up. The backrest follows your movements. Release the lever and the backrest is fi xed in its tilt.
- Page 14 Danger due to disease transmission! Insufficient disinfection can result in transmission of disease. Always comply with the require- ments of the responsible national body for hygiene and disinfection. Use the RUCK ® disin- fection cloths – alcohol-free (art. no. 29428) – do not use any spray disinfectants. It must be possible to effectively evaporate surface disinfectants before the next treatment;...
- Page 15 Cushion discolouration due to articles of clothing Clothing, such as jeans, can cause discolouration of the cushion surfaces. If possible you should attempt to remove discolouration residues with a soft cloth and the RUCK plastic ®...
-
Page 16: Replacing Cushions
16 | REPLACING CUSHIONS REPLACING CUSHIONS As shown in the illustrations below, the cushions of the treatment chair can be replaced individ- ually. RECOMMENDATION FOR CUSHION REPLACEMENT Because the cushions of the treatment chairs are constantly subjected to signifi cant stress, we recommend replacement after approx. -
Page 17: Maintenance
Available in the colours turquoise (01), slate (02), mocha (03), sand (04), white (05), bamboo (06), mint (07), Baltic (08), orchid (09) and mango (10). Please contact RUCK SERVICE for more spare parts. If you have any questions, please also contact our RUCK SERVICE department Telephone +49 (0)7082 944 22 55... -
Page 18: Warranty
The date of purchase must be confirmed by the sales receipt. Within the scope of the warran- ty, HELLMUT RUCK GMBH will, at no charge, either repair or replace the defective products – at RUCK’s discretion. The prerequisite is carriage-paid shipment of the defective product together with the purchase receipt. -
Page 19: Technical Data
TECHNICAL DATA TECHNICAL DATA Seat height with “short” gas-pressurised spring: 48–61 cm Seating surface (W/D): 41/40 cm Backrest surface (W/H): 40/49 cm Castors: Easy-roll castors for hard floors Base, aluminium diameter: Aluminium base Special benefits: Bioswing seat workings, seat depth adjust- ment of 5 cm Seat tilt: 8°... - Page 20 HELLMUT RUCK GmbH Daimlerstrasse 23 D -75305 Neuenbürg, Germany Tel. +49 (0)7082 944 20 Fax +49 (0)7082 944 22 22 mail contact @ hellmut-ruck.de web www.hellmut-ruck.de...
