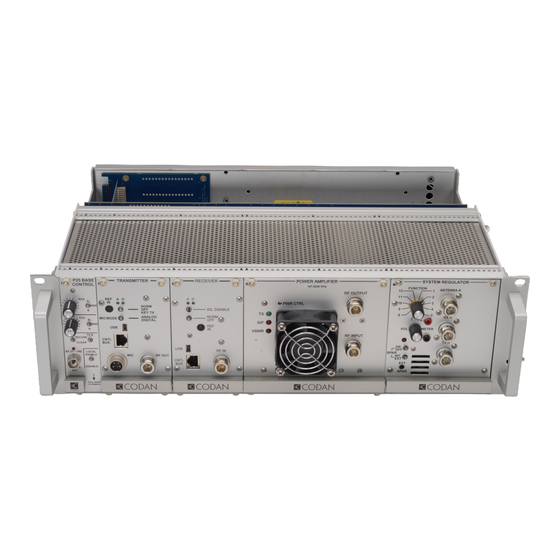

Page 1 TECHNICAL NOTES Technical Notes for Tuning, Installing, Maintaining and Servicing MT-3 and MT-4 Radio Systems Codan Communications 43 Erie Street Victoria, British Columbia Canada V8V 1P8 International Phone: 250-382-8268 Fax: 250-382-6139 Email: LMRsales@codancomms.com Web: www.codancomms.com Toll Free Canada and U.S.A.
Page 2: Table Of Contents
TECHNICAL NOTES MT-3/4 Radio Systems Table of Contents System Overview TN105 Dual Subrack Interconnection TN110 Channel and Frequency Selection TN150 Repeater / Tone Remote Controlled Base Station TN151 Base Station Interface Connections TN152 Linked Repeater Networks TN160 Base Station or Link Conﬁ guration Settings...
Page 3 TECHNICAL NOTES MT-3/4 Radio Systems Table of Contents Subracks TN500 SR-39-1 Subrack TN520 SR-39-3 Multiple Receiver Subrack Control Cards TN600 AC-3E Audio Control Card TN640 CI-PM-3 Paging Modulator TN650 CI-RC-4L Repeater Control Card TN652 CI-RC-4M-G2 Multiple Link Controller TN655 CI-BC-4E Base Control Card...
Page 4 TECHNICAL NOTES MT-3/4 Radio Systems Table of Contents Other TN800 A-PNL-AUX96-3 Auxiliary Connector TN811 SM-3 System Regulator TN830 AC to DC and DC to DC Power Supplies TN835 High Current AC to DC Power Supplies TN836 High Current Digital Series AC to DC Power Supplies...
Page 5: Tn105 Dual Subrack Interconnection
The voltage regulator is designed to source enough current to operate all modules in the subrack. If a Codan radio system is designed so that a second subrack is required, the conﬁ guration is dependent on the modules in the second subrack:...
Page 6 TECHNICAL NOTES MT-3/4 Radio Systems TN105 Dual Subrack Interconnection FIRST SUBRACK WITH TRANSMITTERS, RECEIVERS, SYSTEM MONITOR & CONTROL CARD REPEATER TRANSMITTER RECEIVER TRANSMITTER RECEIVER SYSTEM REGULATOR CONTROL FUNCTION FREQUENCY (MHz) FREQUENCY (MHz) FREQUENCY (MHz) FREQUENCY (MHz) NORM NORM SQ. DISABLE SQ.
Page 7: Tn110 Channel And Frequency Selection
On older motherboards (Serial # 123125 and earlier), the Receiver Bank A/B select line uses the same line as the MT-3 Receiver ISO COR K and the Transmitter Bank A/B select line uses the same line as the MT-3 Transmitter Standby.
Page 8 TECHNICAL NOTES MT-3/4 Radio Systems TN110 Channel and Frequency Selection There are 3 diﬀ erent ways to change the channel and bank of a transmitter / receiver module: The user can set jumpers mounted on the motherboard for each Channel Select signal line (set of four for each Tx / Rx module) and Bank A/B select line.
Page 9 TECHNICAL NOTES MT-3/4 Radio Systems TN110 Channel and Frequency Selection Transmitter A Channel Select Switching Control Option Diagram TECHNICAL NOTE: CODANCOMMS.COM TN110, REV 4-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066...
Page 10 TECHNICAL NOTES MT-3/4 Radio Systems TN110 Channel and Frequency Selection This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN110, REV 4-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 4 of 4...
Page 11: Tn150 Repeater / Tone Remote Controlled Base Station
TN150 Repeater / Tone Remote Controlled Base Station A Codan radio system can be conﬁ gured for a wide variety of radio system solutions. The large number of varied solutions and the customizability of the radio system makes for a wide variety of audio, serial data and COR-PTT routing conﬁ...
Page 12 TECHNICAL NOTES MT-4 Radio Systems TN150 Repeater / Tone Remote Controlled Base Station TECHNICAL NOTE: CODANCOMMS.COM TN150, REV 1-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 13: Tn151 Base Station Interface Connections
MODEL # CODE MODEL # CODE MADE IN CANADA ANALOG SUBSCRIBER CODAN RADIO SYSTEM WITH AUDIO CARD OR BASE CONTROL CARD Figure 1: Analog Tone Remote Interface IP Network Remote Interface An IP Network Remote Interface provides a means of remotely controlling base stations by any available Wide Area Network (WAN) or Local Area Network (LAN) IP connection.
Page 14 • DFSI is an open standard multi-vendor protocol platform. IP-223/224 is a proprietary protocol. • DFSI supports a direct digital interface to the Codan Base Station via IP. The IP-223/224 is an IP connection to an analog gateway (IP-223/224) that connects to the Codan Base Station via analog audio.
Page 15: Tn152 Linked Repeater Networks
TECHNICAL NOTES MT-3/4 Radio Systems TN152 Linked Repeater Networks A linked repeater network is a series of repeaters that are linked together through RF links to create a wide area conventional repeater network that allows for a widely conﬁ gurable system with an expandable area of coverage for mobile and portable radios (subscribers).
Page 16 TECHNICAL NOTES MT-3/4 Radio Systems TN152 Linked Repeater Networks Technical Description Linked repeaters are made up of two transceivers, the repeater (sometimes referred to as the “Drop”), and the Link. The Drop repeaters are on separate frequencies, while the link frequencies are matched (and reversed).
Page 17 TECHNICAL NOTES MT-3/4 Radio Systems TN152 Linked Repeater Networks Linked repeaters can be linked together to form diﬀ erent conﬁ gurations depending on requirements. For larger systems a repeating link may be required as a centralized “hub” for the network as shown in Figure 3. Repeating Links are full duplex and require a duplexer for the antenna connection, and possibly multiple antennas with a power splitter or a multi-directional antenna.
Page 18 TECHNICAL NOTES MT-3/4 Radio Systems TN152 Linked Repeater Networks Some linked repeater conﬁ gurations may also require multiple switched links in order to form a “chain” of repeater links as shown in Figure 4. This requires another set of frequencies and another transceiver pair, but can allow more customizing of the conﬁ...
Page 19: Tn160 Base Station Or Link Conﬁ Guration Settings
The receiver and transmitter modules are used with speciﬁ c control cards to facilitate the external connections of a base station, or to allow the complex connectivity of a linked system. The MT-3 modules are connected to an AC-3E Audio Control Card and the MT-4 modules are connected to a CI-BC-4E Base Controller for base station operation, or a CI-RC-4L Repeater Controller or CI-RC-4M-G2 Multiple Link Controller for a linked system.
Page 20 MT-3 Systems require that two resistors within the receivers be replaced with 47K ohm resistors (1150-4B1002FP). R95 and R96 require replacement in FM receivers. AM receivers require that R35 and R83 are replaced.
Page 21: Tn175 Mt-4E Firmware Upgrading
ﬁ x minor software bugs or to upgrade the functionality of the equipment. Firmware versions earlier than 1.6.0 must be returned to the factory for upgrading. Firmware version 1.6.0 and 1.7.0 may need to be returned to the factory for minor hardware upgrades. Contact the Codan service department for more information.
Page 22 TECHNICAL NOTES MT-4 Radio Systems TN175 MT-4E Firmware Upgrading Download the latest ﬁ rmware version (Analog or Digital) from the website for both the receiver and transmitter. If the current ﬁ rmware version of the MT-4E Receiver or Transmitter is 1.6.0 or 1.7.0, an additional Bootloader and Version 2.0.0 ﬁ...
Page 23 TECHNICAL NOTES MT-4 Radio Systems TN175 MT-4E Firmware Upgrading Flashing the Firmware To apply the ﬁ rmware upgrade (or Bootloader), click on File - Open and navigate to the directory where the ﬁ rmware upgrades are stored on your PC. Load the appropriate update ﬁ le (Transmitter / Receiver; Analog only / Digital and Analog;...
Page 24 TECHNICAL NOTES MT-4 Radio Systems TN175 MT-4E Firmware Upgrading Upgrading Firmware version 1.6.0 and 1.7.0 If the current ﬁ rmware version of the MT-4E Receiver or Transmitter is 1.6.0 or 1.7.0, a dialog box will appear as shown in Figure 4, warning that the ﬁ rmware is out of date and will require the Bootloader. Figure 4: Version 1.6.0 and 1.7.0 Warning Dialog Box Once the Bootloader is applied, the module’s ﬁ...
Page 25: Tn180 P25 Digital Ping Feature
Since the radio users may not have consistent radio traﬃ c, a Codan repeater can be programmed to ping after an inactive time interval allowing the vote-scanning subscriber radios to lock onto the best repeater. The ping uses the P25 standard “silent” message, so that users will not hear the radio traﬃ...
Page 26 TECHNICAL NOTES MT-4 Radio Systems TN180 P25 Digital Ping Feature This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN180, REV 1-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 27: Tn181 Adjustable Courtesy Tone
• Courtesy Tone when input pin B14 or Z14 on the Transmitter module is asserted. This is the MT-3 PTT NTO pin. Accessible as J1-3 (TX A PTT) for TXA and J1-11 (TX B PTT) for TXB on the back panel Auxiliary connector (P1). Also, JU21 must be installed in the A position for TXA and JU20 must be installed in the A position for TXB.
Page 28 TECHNICAL NOTES MT-4 Radio Systems TN181 Adjustable Courtesy Tone Setting the Adjustable Courtesy Tone The priority level of each scenario can be independantly selected, or any scenarios can be individually disabled. The priority arrangement must be the same for both analog and P25 digital mode. The courtesy tone operation consists of 2 tones.
Page 29: Tn182 Battery Level Reporting And Remote P25 Test Tone
TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone Battery Level Reporting is a method of activating a repeater remotely to have it transmit a signal that reports the battery voltage level over RF. The Remote P25 Test Tone is a remotely activated Standard 1011 Hz P25 test tone transmitted out of a repeater that allows a mobile coverage test to be done with a receiver performing a P25 Bit Error Rate test.
Page 30 TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone Figure 1: Transmitter Battery Level Reporting TECHNICAL NOTE: CODANCOMMS.COM TN182, REV 1-0-0, © Mar 2017 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 8...
Page 31 TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone Remote Keying of 1011 Hz P25 Test Tone This feature is only applicable to P25 digital mode. When the receiver receives a DTMF code of **123 (or any three-digit programmed ID code), it will initiate the transmitter with the corresponding three digit value (ID code of 123) to key up and transmit the1011 Hz P25 Test Tone.
Page 32 More than one subscriber manufacturer / model may work, but to guarantee the best operation the most common subscriber should be used to tune this feature. This is an issue with subscribers that Codan tries best to accom- modate.
Page 33 TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone Receiver Analog DTMF Decoder Alignment Procedures: Tools Required: Oscilloscope Optional: Analog communication test set (eg. Marconi 2955) RSS version 1.7.6 or later Extender card The subscriber model to be used with the receiver Steps: 1.
Page 34 TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone 12. Turn on the Battery Level Reporting and click program if it is not already on. The following values are a good starting point 5 : Detection Threshold for First Harmonics 100: Input Audio Sample Gain (Narrow Band) 100: Input Audio Sample Gain (Wide Band) Figure 5: Receiver Battery Level Reporting...
Page 35 TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone 15. Figure 7 shows what the output at Pin Z24 may look like when it is not tuned correctly for a particular subscriber. More than a single pulse will correspond to some of the bursts of diﬀ erent DTMF tones. You will sometimes see no pulse corresponding to some of the burst of diﬀ...
Page 36 TECHNICAL NOTES MT-4 Radio Systems TN182 Battery Level Reporting and Remote P25 Test Tone This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN182, REV 1-0-0, © Mar 2017 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 8 of 8...
Page 37: Tn247 Vr-4E Vhf Mt-4E Receiver
TECHNICAL NOTES MT-4 Radio Systems TN247 VR-4E VHF MT-4E Receiver The VR-4E VHF receiver is an FM radio module capable of analog operation in 12.5 KHz RECEIVER FREQUENCY (MHz) (narrowband) or 25 KHz (wideband) channels. A ﬁ rmware upgrade may be purchased to allow P25 digital operation.
Page 38 TECHNICAL NOTES MT-4 Radio Systems TN247 VR-4E VHF MT-4E Receiver The VR-4E VHF receiver is primarily software-controlled, allowing tuning, programming and maintenance to be done via software service with few hardware adjustments required. RF Preselector Alignment: Alignment for the RF Preselector consists of tuning the ﬁ ve-section helical ﬁ lter only. There are two methods of tuning the RF Preselector.
Page 39: Tn267 Ur-4E Uhf Mt-4E Receiver
TECHNICAL NOTES MT-4 Radio Systems TN267 UR-4E UHF MT-4E Receiver The UR-4E UHF receiver is an FM radio module capable of analog operation in 12.5 KHz RECEIVER FREQUENCY (MHz) (narrowband) or 25 KHz (wideband) channels. A ﬁ rmware upgrade may be purchased to allow P25 digital operation.
Page 40 TECHNICAL NOTES MT-4 Radio Systems TN267 UR-4E UHF MT-4E Receiver The UR-4E UHF receiver is primarily software-controlled, allowing tuning, programming and maintenance to be done via software service with few hardware adjustments required. RF Preselector Alignment: Alignment for the RF Preselector consists of tuning the ﬁ ve-section helical ﬁ lter only. There are two methods of tuning the RF Preselector.
Page 41 TECHNICAL NOTES MT-4 Radio Systems TN287 UR-4E UHF 700 / 800 / 900 MHz MT-4E Receiver The UR-4E UHF 700 / 800 / 900 MHz receiver is an FM radio module capable of analog RECEIVER FREQUENCY (MHz) operation in 12.5 KHz (narrowband) or 25 KHz (wideband) channels. A ﬁ rmware upgrade may be purchased to allow P25 digital operation.
Page 42 TECHNICAL NOTES MT-4 Radio Systems TN287 UR-4E UHF 700 / 800 / 900 MHz MT-4E Receiver The UR-4E UHF 700 / 800 / 900 MHz receiver is primarily software-controlled, allowing tuning, programming and maintenance to be done via software service with few hardware adjustments required. RSS Service Mode: The RSS has the ability to put a receiver into Service Mode, where the Reference Oscillator may be aligned, Audio Levels may be set, Jumper Settings may be selected, a BER test can be performed, and an RSSI meter can be...
Page 43: Tn347 Vt-4E Vhf Mt-4E Transmitter
TECHNICAL NOTES MT-4 Radio Systems TN347 VT-4E VHF MT-4E Transmitter The VT-4E VHF transmitter is an FM radio module capable of analog operation in 12.5 KHz TRANSMITTER FREQUENCY (MHz) (narrowband) or 25 KHz (wideband) channels. A ﬁ rmware upgrade may be purchased to NORM allow P25 digital operation.
Page 44 TECHNICAL NOTES MT-4 Radio Systems TN347 VT-4E VHF MT-4E Transmitter The VT-4E VHF transmitter is primarily software controlled, allowing tuning, programming and maintenance to be done via software service with few hardware adjustments required. VSWR Alarm / Overload Adjustment: The VSWR alarm / overload only requires adjustment if the VSWR Alarm is being used. When the VSWR alarm / overload circuit is properly set, the Ampliﬁ...
Page 45: Tn367 Ut-4E Uhf Mt-4E Transmitter
TECHNICAL NOTES MT-4 Radio Systems TN367 UT-4E UHF MT-4E Transmitter The UT-4E UHF transmitter is an FM radio module capable of analog operation in 12.5 KHz TRANSMITTER FREQUENCY (MHz) (narrowband) or 25 KHz (wideband) channels. A ﬁ rmware upgrade may be purchased to NORM allow P25 digital operation.
Page 46 TECHNICAL NOTES MT-4 Radio Systems TN367 UT-4E UHF MT-4E Transmitter The UT-4E UHF transmitter is primarily software controlled, allowing tuning, programming and maintenance to be done via software service with few hardware adjustments required. VSWR Alarm / Overload Adjustment: The VSWR alarm / overload only requires adjustment if the VSWR Alarm is being used. When the VSWR alarm / overload circuit is properly set, the Ampliﬁ...
Page 47 TECHNICAL NOTES MT-4 Radio Systems TN387 UT-4E UHF 700 / 800 / 900 MHz MT-4E Transmitter The UT-4E UHF 700 / 800 / 900 MHz transmitter is an FM radio module capable of analog TRANSMITTER FREQUENCY (MHz) operation in 12.5 KHz (narrowband), 25 KHz (wideband) or 20 KHz (NPSPAC) channels. A NORM ﬁ...
Page 48 TECHNICAL NOTES MT-4 Radio Systems TN387 UT-4E UHF 700 / 800 / 900 MHz MT-4E Transmitter The UT-4E UHF 700 / 800 / 900 MHz transmitter is primarily software controlled, allowing tuning, programming and maintenance to be done via software service with few hardware adjustments required. VSWR Alarm / Overload Adjustment: The VSWR alarm / overload only requires adjustment if the VSWR Alarm is being used.
Page 49: Tn441 Amp-4 Vhf And Uhf 30 Watt Power Ampliﬁ Ers
The AMP-4 was designed to mate with any of the MT-3 / MT-4 transmitter exciter modules.. The input to the power ampliﬁ er cannot exceed 8.0 Watts.
Page 50 TECHNICAL NOTES MT-3/4 Radio Systems TN441 AMP-4 VHF and UHF 30 Watt Power Ampliﬁ ers Power Ampliﬁ er Alignment: Before aligning the 30 Watt Power Ampliﬁ er, the Transmitter Exciter should be tuned properly following the alignment procedures in the Technical Notes or Instruction Manual for the transmitter. Disable the output power alarm, VSWR alarm, and VSWR overload by turning the adjustment pots fully counter clockwise (if applicable, depending on use and model).
Page 51: Tn490 19" Rack Mount High Power Ampliﬁ Ers
TECHNICAL NOTES MT-3/4 Radio Systems TN490 19” Rack Mount High Power Ampliﬁ ers FRONT VIEW REAR VIEW RF IN DC ON ALARM GND LOW OUTPUT SH/D CTRL HIGH VSWR FAN+ GND HIGH TEMP +13.8 VDC RF OUT The 19” rack mount high power ampliﬁ ers are available in VHF, UHF and 700 / 800 MHz frequency bands. The power ampliﬁ...
Page 52 The VHF power ampliﬁ er is available in both a 19” rack mount package and a rear panel mount that attaches to the back of the Codan subrack. The rear panel mount cannot be used with an A-PNL- AUX96-3 Auxiliary Connector or the rear panel mount AC to DC or DC to DC Power Supplies.
Page 53 TECHNICAL NOTES MT-3/4 Radio Systems TN490 19” Rack Mount High Power Ampliﬁ ers Power Ampliﬁ er Operation The 19” rack mount high power amplifer has a heavy duty heatsink and an RF switched cooling fan. The power ampliﬁ er has four standard LEDs (not available on the VHF rear panel mount), and a summary alarm pin.
Page 54 TECHNICAL NOTES MT-3/4 Radio Systems TN490 19” Rack Mount High Power Ampliﬁ ers This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN490, REV 2-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066...
Page 55: Tn491 Modular 5-Pack Series High Power Ampliﬁ Ers
TECHNICAL NOTES MT-3/4 Radio Systems TN491 Modular 5-Pack Series High Power Ampliﬁ ers FRONT VIEW REAR VIEW RF IN DC ON LOW OUTPUT HIGH VSWR HIGH TEMP ALARM +13.8 VDC RF OUT RF POWER AMPLIFIER The modular 5-pack series high power ampliﬁ ers are available in VHF, UHF and 700 / 800 MHz frequency bands.
Page 56 TECHNICAL NOTES MT-3/4 Radio Systems TN491 Modular 5-Pack Series High Power Ampliﬁ ers Models Available A-RACK19-AMP-02 19” Subrack for 5-Pack Series Ampliﬁ ers, holds up to 5 amps AMP-140-100-D1M 5 Pack Series, 100 Watts continuous duty, 136 - 144 MHz...
Page 57: Tn500 Sr-39-1 Subrack
MT-3/4 Radio Systems TN500 SR-39-1 Subrack The SR-39-1 subrack is designed to hold and interconnect the MT-3 and MT-4 series of receiver, transmitter and control modules on one universal motherboard. This Type 84 motherboard makes extensive use of cage jacks to interconnect the A and B systems supporting a number of ﬁ eld conﬁ gurations. Additional auxiliary control connectors provide easy access to virtually all control and audio lines, simplifying many standard base / repeater conﬁ...
Page 58 TECHNICAL NOTES MT-3/4 Radio Systems TN500 SR-39-1 Subrack If a VHF or UHF power ampliﬁ er is installed, only one transmitter and receiver pair can be installed since the power ampliﬁ er takes up two slots, as shown in Figure 3.
Page 59 There is an identical +9.5 Vdc power output connector on the motherboard that is used to power other Codan equipment at +9.5 Vdc (the CI-RC-4M-G2 controller, for example). NOTE: Do not connect the main power input to the +9.5 Vdc power output connector, as a transient suppressor (over voltage protection) will short to ground to protect the equipment.
Page 60 TECHNICAL NOTES MT-3/4 Radio Systems TN500 SR-39-1 Subrack Channel and Bank Select MT-4E radio modules are capable of 16 channel operation in 2 banks (32 channels total). The 16 channels are controlled via four CSEL signal lines connected to each receiver and transmitter module. The CSEL signal lines are set as either a 0 (0 Vdc) or a 1 (+9.5 Vdc).
Page 61: Tn520 Sr-39-3 Multiple Receiver Subrack
TN520 SR-39-3 Multiple Receiver Subrack The SR-39-3 subrack is designed to hold and interconnect the MT-3 and MT-4 series of receivers on one universal motherboard. The SR-39-3 subrack holds up to ﬁ ve receiver modules and one system regulator (the system regulator will require jumpers JU15 to JU24 installed for multiple receiver subrack compatibility) as shown in Figure 1.
Page 62 TECHNICAL NOTES MT-3/4 Radio Systems TN520 SR-39-3 Multiple Receiver Subrack This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN520, REV 3-1-0, © Mar 2013 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 63: Tn600 Ac-3E Audio Control Card
The AC-3E audio control card is a plug-in module which provides audio routing, PTT routing, and muting control for MT-3 and MT-4 radio systems. The audio control card includes the following features: • jumper selectable audio routing, PTT, and muting.
Page 64 TECHNICAL NOTES MT-3/4 Radio Systems TN600 AC-3E Audio Control Card Although the Audio Control Card can be conﬁ gured to work in various conﬁ gurations with add-in options and functionality, the three main functions of the AC-3E Audio Control Card are shown in Figures 1, 2 and 3: PTTA CORA ->...
Page 65: Tn640 Ci-Pm-3 Paging Modulator
The Paging Modulator is a plug-in module which provides digital and/or analog paging capability, such as base station paging, remote paging or simulcast paging, for MT-3 and MT-4 radio systems. The CI-PM-3 is conﬁ gured via the front panel switches and internal jumper settings.
Page 66 MT-3/4 Radio Systems TN640 CI-PM-3 Paging Modulator Installation: Figure 1 shows a generic connection between the Codan subrack with A-PNL-AUX96-3 auxiliary connector to the Zetron Model 66 for analog and/or digital 2 level paging. P1 (A-PNL-AUX96-3 CONTROL CONNECTOR) ZETRON MODEL 66...
Page 67: Tn650 Ci-Rc-4L Repeater Control Card
TECHNICAL NOTES MT-4 Radio Systems TN650 CI-RC-4L Repeater Control Card The CI-RC-4L repeater control card is a plug-in module which provides LVDS Serial Data routing, COR-PTT routing, and receiver priority settings for an MT-4 repeater radio system. The repeater control card includes the following features: •...
Page 68 RXB priority TECHNICAL NOTE: CODANCOMMS.COM TN650, REV 6-0-0, © Nov 2018 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2 TN650 Rev 6-0-0 Nov 18 © 2018 Codan Limited All rights reserved.
Page 69: Tn652 Ci-Rc-4M-G2 Multiple Link Controller
TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller The CI-RC-4M-G2 Multiple Link Controller provides control capability for up to four receiver / transmitter pairs in an MT-4E repeater radio system. The CI-RC-4M-G2 controller provides the following features: • interconnection (LVDS Serial Data routing, COR-PTT routing, Audio routing) of up to four receiver and four transmitter modules in any conﬁ...
Page 70 CI-RC-4M-G2, as shown in Figure 2. The information in brackets is the function that uses that particular connection. For example, if you are using CTCSS tones, the Rx Disc O/P must be connected. The diagram only shows connections for Receiver and Transmitter A. CI-RC-4M-G2 MULTIPLE CODAN RADIO EQUIPMENT LINK CONTROLLER J9 + +9.5 Vdc +9.5 Vdc...
Page 71 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Multiple Link Controller Programming: The CI-RC-4M-G2 multiple link controller is software programmable using the MLCS (Multiple Link Controller Software). The MLCS allows ﬂ exible programming options for the radio system. A type A to 5 pin mini-type B USB cable is used to connect the USB port of the computer to the USB port on the front panel of the controller.
Page 72 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Each link on the grid can be programmed separately for a diﬀ erent conﬁ guration. Three diﬀ erent link conﬁ gurations are shown in Figure 4: COR Controlled Link, DTMF Controlled Link and a Conditional Link (with both CTCSS and NAC conditions, as well as Channel Selection capability).
Page 73 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Analog Audio Bridging Circuit: The CI-RC-4M-G2 controller is equipped with a 4 way analog audio bridge. This audio bridge allows the user to interconnect RF modules using an analog audio interface similar to the AC-3E and BC-4E products. It allows the user to interconnect up to four RF modules modules as well as an auxiliary audio input and output.
Page 74 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Figure 6: Audio Routing and Audio Pot adjustments TECHNICAL NOTE: CODANCOMMS.COM TN652, REV 3-0-0, © Nov 2018 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 6 of 10...
Page 75 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Figure 7: Example Multiple Link Controller System with analog links TECHNICAL NOTE: CODANCOMMS.COM TN652, REV 3-0-0, © Nov 2018 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 7 of 10...
Page 76 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Figure 8: Example Multiple Link Controller System with P25 Digital uplink TECHNICAL NOTE: CODANCOMMS.COM TN652, REV 3-0-0, © Nov 2018 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 8 of 10...
Page 77 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Figure 9: Example Multiple Link Controller System with co-located repeater TECHNICAL NOTE: CODANCOMMS.COM TN652, REV 3-0-0, © Nov 2018 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 9 of 10...
Page 78 TECHNICAL NOTES MT-4 Radio Systems TN652 CI-RC-4M-G2 Multiple Link Controller Multiple Link Controller Conditional Linking and Channel Change Programming: The Multiple Link Controller can be conﬁ gured to operate as a Conditional Link. If the Conditional Link is selected the path from Rx to Tx will only be active if the received signal contains one of the programmed CTCSS tones or NACs.
Page 79: Tn655 Ci-Bc-4E Base Control Card
TECHNICAL NOTES MT-3/4 Radio Systems TN655 CI-BC-4E Base Control Card The CI-BC-4E base control card is a plug-in module which provides audio routing, COR and PTT routing and front panel control for an MT-4 base station radio system. The base control card includes the following features: •...
Page 80 TECHNICAL NOTES MT-3/4 Radio Systems TN655 CI-BC-4E Base Control Card The three main functions of the CI-BC-4E Base Control Card are shown in Figures 1, 2 and 3: CORA -> PTTA INHIBIT JUMPER CORA INHIBIT CORA -> PTTB FRONT PANEL RX...
Page 81: Tn661 Uic-5 Universal Interface Card
The UIC transports digital P25 audio data packets (IMBE™or AMBE+2™) between the console and the transmitter and receiver radio modules without any conversion to or from baseband audio. The UIC uses Codan LVDS serial data to transport digital information between the UIC and the receiver and transmitter modules. This preserves a fully end-to-end digital link, including audio encryption.
Page 82 TECHNICAL NOTES MT-4 Radio Systems TN661 UIC-5 Universal Interface Card The UIC supports all of the following features: • Channel and Bank control of receiver and transmitter modules (2 banks of 16 channels each). • Detect the mode (analog or P25) of an inbound call on the receiver and report to the console. •...
Page 83 TECHNICAL NOTES MT-4 Radio Systems TN661 UIC-5 Universal Interface Card Programming and Networking Ethernet Port 10/100 Base-T, auto-sensing Default IP Address 192.168.123.66 Rescue IP Address 172.23.123.2 Default Username and Password p25admin (for both) Maximum Network Bandwidth Requirement: • Analog PCM Voice Call 100 Kbps •...
Page 84 TECHNICAL NOTES MT-4 Radio Systems TN661 UIC-5 Universal Interface Card UIC Web GUI Conﬁ guration Parameters The UIC Web GUI can also be used to set the indivicual conﬁ guration parameters for each of the radio pairs connected to the UIC (Side ‘A’ and Side ‘B’). TECHNICAL NOTE: CODANCOMMS.COM TN661, REV 2-0-0, ©...
Page 85 TN661 UIC-5 Universal Interface Card Recommended Network Requirements for P25 DFSI with Codan UIC Following is a list of recommended network requirements for both the Codan UIC-4 and UIC-5 cards for P25 Digital Fixed Station Interface connection (in both P25 and analog mode).
Page 86 TECHNICAL NOTES MT-4 Radio Systems TN661 UIC-5 Universal Interface Card This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN661, REV 2-0-0, © Jan 2019 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 6 of 6...
Page 87: Tn670 Stratus Controller
The Stratus Controller uses the TIA-102 (P25) standard Digital Fixed Station Interface (DFSI) to link to FSI capable devices such as the Codan Universal Interface Card (UIC). The Stratus Controller can support both Fixed Station radios using the UIC, or emulate Fixed Station Radios allowing DFSI capable consoles to connect to the Stratus Controller.
Page 88 • Backup / Restore conﬁ guration ﬁ les • Update Firmware • Buﬀ er and correct network voice issues (with limitations) • When used with a Codan UIC card • Control channel selection • Local repeat / No repeat / Stratus Controller repeat selection •...
Page 89 TECHNICAL NOTES MT-4 Radio Systems TN670 Stratus Controller Stratus Controller Software Features The Stratus Controller software allows for remote (IP) conﬁ guration and monitoring of the Stratus Controller using any web browser as the Graphical User Interface (GUI). This means that no software package is required for the Stratus Controller GUI.
Page 90 TECHNICAL NOTES MT-4 Radio Systems TN670 Stratus Controller The Stratus Controller GUI shows the layout of the Stratus Controller system as a tree. Real-Time Site Monitoring is available through the GUI that can display frequently updated (< 5 seconds) system status as shown in Figure 4.
Page 91: Tn710 Et-3 Transportable Radio System Case
MT-3/4 Radio Systems TN710 ET-3 Transportable Radio System Case The ET-3 transportable radio system case is a rugged, waterproof aluminum case. Any standard 19” Codan subrack can be mounted inside for repeater, crossband or base conﬁ gurations. The ET-3-03-00 Orange Transportable Case includes the following: •...
Page 92 TECHNICAL NOTES MT-3/4 Radio Systems TN710 ET-3 Transportable Radio System Case This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN710, REV 10-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 93: Tn720 Et-4 Transportable Radio System Case
MT-3/4 Radio Systems TN720 ET-4 Transportable Radio System Case The ET-4 transportable radio system case is a compact watertight polyethylene case. Any standard 19” Codan subrack can be mounted inside for repeater, crossband or base conﬁ gurations. The ET-4 case includes the following: •...
Page 94 TECHNICAL NOTES MT-3/4 Radio Systems TN720 ET-4 Transportable Radio System Case The transportable radio case is 24.6” (62.5 cm) wide, 11.7” (29.7 cm) high and 19.7” (50.0 cm) deep, and weighs approximately 50 lbs. (22.68 kg) with typical radio package installed. The maximum depth for equipment from the rack to the bottom of the case is 8.25”...
Page 95: Tn730 Et-5 Transportable Tactical Radio System
MT-4 Radio Systems TN730 ET-5 Transportable Tactical Radio System The ET-5 transportable tactical radio system is mounted in a compact watertight polyethylene case. Any Codan MT-4E receiver and transmitter can be mounted inside for repeater conﬁ gurations. The ET-5 supports analog and transparent P25 digital (clear or secure) repeat capability.
Page 96 TECHNICAL NOTES MT-4 Radio Systems TN730 ET-5 Transportable Tactical Radio System The transportable radio case is 14.2” (36.1 cm) wide, 11.4” (29.0 cm) high and 6.5” (16.5 cm) deep, and weighs 20 lbs. (9.07 kg) fully equipped with batteries installed. Frequency band RF Power Output Internal duplexer frequency separation...
Page 97: Tn735 Et-6 Transportable Tactical Radio System
TN735 ET-6 Transportable Tactical Radio System The ET-6 transportable tactical radio system is mounted in a compact watertight polyethylene case. Any Codan receiver, transmitter and 30 Watt power ampliﬁ er can be mounted inside for repeater or base conﬁ gurations. The ET-6 supports analog and transparent P25 digital (clear or secure) repeat capability.
Page 98 TECHNICAL NOTES MT-3/4 Radio Systems TN735 ET-6 Transportable Tactical Radio System The ET-6 tranportable radio system comes with a front panel control interface with the following features: • internal interface connectors for RF and AC/DC power inputs (for stealth appearance with the lid closed).
Page 99 TECHNICAL NOTES MT-3/4 Radio Systems TN735 ET-6 Transportable Tactical Radio System The ET-6 case with the lid removed is shown in Figure 1. This shows how the receiver, transmitter and power ampliﬁ er are mounted inside of the ET-6 case.
Page 100 TECHNICAL NOTES MT-3/4 Radio Systems TN735 ET-6 Transportable Tactical Radio System This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN735, REV 4-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 4 of 4...
Page 101: Tn750 Et-1 Transportable Radio System Case
Any standard 19” Codan subrack can be mounted inside. Racks are mounted inside the front and back of the case. Codan subracks can be mounted back to back on both front and back racks.
Page 102 TECHNICAL NOTES MT-3/4 Radio Systems TN750 ET-1 Transportable Radio System Case Dimensions for ET-1-A12-00 (12 RU Height Shelf) Outside Depth: 31” (78.7 cm) Internal Rack Depth: 20” (50.8 cm) Outside Width: 26” (66 cm) Internal Rack Width: 19” (standard mounting) Outside Height: 29.2”...
Page 103: Tn760 Stratus Transportable Tactical Radio System
The Stratus transportable tactical radio system is mounted in a compact watertight polyethylene case. Any Codan receiver, transmitter and 30 Watt (or 25 Watt) power ampliﬁ er can be mounted inside for repeater or base conﬁ gurations. The Stratus supports analog and transparent P25 digital (clear or secure) repeat capability. The Stratus repeater incorporates a Sierra Wireless cellular modem to backhaul P25 Digital Fixed Station Interface (DFSI) compliant signalling across existing cellular 3G or 4G Long Term Evolution (LTE) infrastructure.
Page 104 TECHNICAL NOTES MT-4 Radio Systems TN760 Stratus Transportable Tactical Radio System There are two diﬀ erent versions of the Stratus transportable radio system: LMR-STRATUS-CPXXX Stratus with full cellular (3G / 4G LTE) capability (modem, antennas, UIC and ﬁ rmware) LMR-STRATUS-LPXXX Stratus LiTE with no cellular, antennas or UIC and ﬁ...
Page 105 TECHNICAL NOTES MT-4 Radio Systems TN760 Stratus Transportable Tactical Radio System The Stratus case with the lid removed is shown in Figure 1. This shows how the receiver, transmitter, UIC, cel- lular modem, duplexer and power ampliﬁ er are mounted inside of the Stratus case. 30 WATT POWER DUPLEXER AMPLIFIER...
Page 106 TECHNICAL NOTES MT-4 Radio Systems TN760 Stratus Transportable Tactical Radio System This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN760, REV 1-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 4 of 4...
Page 107: Tn761 Stratus Fixed Infrastructure Radio System
This interconnectivity is achieved via a Stratus controller which acts as an arbitrator for multiple DFSI interconnects. Up to four Codan UIC controllers can be linked to a single Stratus Fixed Link Infrastructure device at each site, enabling multiple systems to take advantage of the Stratus Fixed Infrastructure capabilities.
Page 108 TECHNICAL NOTES MT-4 Radio Systems TN761 Stratus Fixed Infrastructure Radio System The Stratus Fixed Link Infrastructure includes the following: • 2 RU (rack unit) harware mounting shelf. • 6 to 34 VDC input power supply. • 2 N-type 3G/4G LTE Antenna connectors (2nd connector is for a diversity antenna). •...
Page 109 TECHNICAL NOTES MT-4 Radio Systems TN761 Stratus Fixed Infrastructure Radio System The Stratus Fixed Link case with the lid removed is shown in Figure 1. This shows how cellular modem, ethernet switch and power supply are mounted inside of the Stratus Fixed Link case. POWER ETHERNET SWITCH &...
Page 110 TECHNICAL NOTES MT-4 Radio Systems TN761 Stratus Fixed Infrastructure Radio System This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN761, REV 1-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 4 of 4...
Page 111: Tn765 Stratus Tactical Controller
TECHNICAL NOTES MT-4 Radio Systems TN765 Stratus Tactical Controller The Stratus Tactical Controller is based on the Stratus Controller technology and is housed in a rapidly deployable, rugged, compact watertight polyethylene transportable case that can be located anywhere in the world with a cellular 3G or 4G Long Term Evolution (LTE) connection.
Page 112 TECHNICAL NOTES MT-4 Radio Systems TN765 Stratus Tactical Controller The Stratus Tactical Controller is shown below in a standard system conﬁ guration with two Stratus transportable repeaters and a Stratus ﬁ xed site. A DFSI console is connected directly into the RJ45 Ethernet connector on the side of the Stratus Tactical Controller case.
Page 113: Tn790 Transportable Radio System Accessories
TECHNICAL NOTES MT-3/4 Radio Systems TN790 Transportable Radio System Accessories Codan Communications has a number of accessories available for the Transportable Radio System cases. Tactical Antenna • broadband 1/2 wave antenna. • 2.0 dB of gain. • no ground plane required.
Page 114 This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN790, REV 6-0-0, © Jan 2019 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2 TN790 Rev 5-0-0 May 14 © 2014 Codan Limited All rights reserved.
Page 115: Tn791 Stratus Power Center
The Stratus Power Center is a compact and rugged polycarbonate transportable case that provides a 12 V DC power source to the Stratus Transportable Tactical Radio System or other Codan transportable repeaters. The 35 A hour battery housed in the power center is charged and maintained by a 15 V DC input from an AC/DC power supply or optional solar panel.
Page 116 TECHNICAL NOTES MT-4 Radio Systems TN791 Stratus Power Center Part numbers for the Stratus Power Center are as follows: LMR-STRATUS-POWC1 Stratus Power Center STRATUS-PSA-1 110/220 VAC (auto-switching) to 12 VDC power supply STRATUS-EXTCBL-1 DC DC power extension cable LMR-STRATUS-SOLP3 60 Watt optional solar power kit The Stratus Power Center is 14.1”...
Page 117: Tn792 Stratus Rapid Antenna
TECHNICAL NOTES MT-4 Radio Systems TN792 Stratus Rapid Antenna The Stratus Rapid Antenna is a compact, lightweight and robust rapidly deployable antenna solution. The antenna is enclosed in a patented Rolatube mast made of thermoplastic reinforced composites that transports as a ﬂ at coil then rapidly expands into a rigid mast within seconds.
Page 118 TECHNICAL NOTES MT-4 Radio Systems TN792 Stratus Rapid Antenna The Stratus Rapid Antenna ANT-TACSYSTEM includes the following: • custom built backpack. • base unit with tensioning knobs and built-in mast. • 3” end cap and cable hook adapter for connectiing the antenna. •...
Page 119: Tn800 A-Pnl-Aux96-3 Auxiliary Connector
TECHNICAL NOTES MT-3/4 Radio Systems TN800 A-PNL-AUX96-3 Auxiliary Connector The A-PNL-AUX96-3 option provides convenient access to all signals on the motherboard auxiliary PLUG IN SCREW CONNECTORS control connector. This is accomplished with two circuit boards: the Terminal Block board and the Connector...
Page 120 TECHNICAL NOTES MT-3/4 Radio Systems TN800 A-PNL-AUX96-3 Auxiliary Connector Table 1: Auxiliary Control Connector Deﬁ nitions for Control Cards Name Old Name Pin # AC-3E CI-BC-4E CI-PM-3 UIC-4 GPIO 1 Spare 1 J3-1 AUX 1 AUDIO I/P 1 AUX 1 AUDIO I/P 1...
Page 121 TECHNICAL NOTES MT-3/4 Radio Systems TN800 A-PNL-AUX96-3 Auxiliary Connector Table 2: Auxiliary Control Connector Deﬁ nitions for Transmitter / Receiver Series Connector Name Pin # MT-3 Module MT-4E Module Tx A Bank Sel J6-1 TX A STANDBY TX A BANK A/B SEL...
Page 122 TECHNICAL NOTES MT-3/4 Radio Systems TN800 A-PNL-AUX96-3 Auxiliary Connector This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN800, REV 5-0-0, © Aug 2013 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 4 of 4...
Page 123: Tn811 Sm-3 System Regulator
The SM-3 system regulator is a plug-in module which provides voltage regulation, system metering and audio monitoring for an MT-3 or MT-4 radio system. The SM-3 includes the following features: • High current +9.5 Vdc voltage regulator with an anti-latchup hysteresis circuit.
Page 124 TECHNICAL NOTES MT-3/4 Radio Systems TN811 SM-3 System Regulator System Regulator Testing The System Regulator module is designed with a convenient and easy test point built in to the front panel. This test point allows a technician access to the DC supply and regulated voltages. Simply connect a standard Digital Volt Meter (DVM) to the METER jacks on the front panel of the System Regulator as shown in Figure 1.
Page 125: Tn830 Ac To Dc And Dc To Dc Power Supplies
A high power schottky diode at the output prevents any unwanted feedback into the power supply from the load. TECHNICAL NOTE: CODANCOMMS.COM TN830, REV 7-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 TN830 Rev 7-0-0 Aug 16 Page 1 of 2 © 2016 Codan Limited All rights reserved.
Page 126 TECHNICAL NOTES MT-3/4 Radio Systems TN830 AC to DC and DC to DC Power Supplies The DC to DC converters provide a regulated +13.8 Vdc to the output terminals over a wide range of DC input voltages. Valuable rack space has been saved by mounting the DC to DC converter inside the rear panel frame that attaches to the rear of the subrack.
Page 127: Tn835 High Current Ac To Dc Power Supplies
TECHNICAL NOTES MT-3/4 Radio Systems TN835 High Current AC to DC Power Supplies The PSA-12-40-RB-00 and PSA-12-60-RB-00 AC switching power supplies provide a regulated +13.8 Vdc to the output terminals. The power supplies are 19” rack mountable and include battery revert capability. An input fuse, electronic current limiting and voltage limiting protection, transient voltage suppressor and thermistor are built into the unit as standard protection to safeguard the unit from abnormal conditions.
Page 128 TECHNICAL NOTES MT-3/4 Radio Systems TN835 High Current AC to DC Power Supplies Battery Backup During normal operation, the power supply provides all of the necessary power to the output while ﬂ oat charging the battery that is connected at the battery backup output. In the event that the AC power source is interrupted, the battery will start to supply power to the load through an isolation diode;...
Page 129: Tn836 High Current Digital Series Ac To Dc Power Supplies
TECHNICAL NOTES MT-3/4 Radio Systems TN836 High Current Digital Series AC to DC Power Supplies The high current digital series power supplies provide 675 Watts (50 Amps @ +13.8 Vdc) or 1350 Watts (100 Amps @ +13.8 Vdc) of power and are 19” rack mountable in a 1 RU rack mount chassis and include battery backup capability.
Page 130 TECHNICAL NOTES MT-3/4 Radio Systems TN836 High Current Digital Series AC to DC Power Supplies Installation 1. Mount the unit to the 19” rack. 2. Connect the positive side of the load to the “POS” busbar and the negative side of the load to the “NEG” busbar.
Page 131 TECHNICAL NOTES MT-3/4 Radio Systems TN836 High Current Digital Series AC to DC Power Supplies Remote Control and Alarm Connector A REMOTE connector on the back panel of the power supply allows for the following functionality: Pin Number Pin Description...
Page 132 TECHNICAL NOTES MT-3/4 Radio Systems TN836 High Current Digital Series AC to DC Power Supplies TCP / IP Web Based Utility The power supplies may be equipped with an embedded Web server that allows status monitoring and changing of the settings and conﬁ guration of the power supply. The embedded Web server provides an interface to the power supply that can be accessed through a standard web browser on a network connected computer.
Page 133: Tn840 Extender Cards And Kits
MT-3/4 Radio Systems TN840 Extender Cards and Kits To facilitate testing, alignment and maintenance for the MT-3 and MT-4 radio systems, extender cards and kits can be used to extend the individual modules out from the subrack. Extender cards plug directly into the subrack, and are shown in Figure 1.
Page 134 TECHNICAL NOTES MT-3/4 Radio Systems TN840 Extender Cards and Kits The following extender cards and kits are available: EC-48RD Extender Card Used for all transmitter, receiver and system regulator modules. Direct connect (no cables). Extender card and adapter panel extrusion are mounted in the subrack in TX, RX or SM-3 slot.
Page 135: Tn855 Ci-Dsp-223 Telex (Vega) Dsp Tone-Remote Adapter
• PTT, Monitor and Power LED indicators • F1 and F2 Relays (programmable to any function tone) • Digital outputs for channel selection of the Codan Tx and Rx modules (programmable to any function tone) • CTCSS encode generation (64 frequencies available) •...
Page 136 TN855 CI-DSP-223 Telex (Vega) DSP Tone-Remote Adapter Installation: The A-PNL-AUX96-3 auxiliary connector can be used to connect the Telex DSP-223 to a Codan Base Station with an AC-3E or CI-BC-4E, as shown in Figure 1. Select the two or four-wire-line operation and setup jumpers J20 and J21on the Telex.
Page 137 TECHNICAL NOTES MT-3/4 Radio Systems TN855 CI-DSP-223 Telex (Vega) DSP Tone-Remote Adapter A female DB25 connector on the back of the subrack (J10) can also be used for basic base connections to a Telex DSP-223, using a straight-through male-to male DB25 cable as follows:...
Page 138 The software shown in Figure 4 is version 2.8 and is programmed for channels 1 through 9 with CTCSS tones of 100.0 Hz on channel 1, 203.5 Hz on channel 2 and no CTCSS on channels 3 through 9. Codan radio systems do not require the “Set Gains”...
Page 139 Step 6 - Adjust R13 (RXA to Aux Out 1) for an audio level of 0 dBm (775 mV @ 600 ohms) across GPIO 5 (Aux 1 O/P 1) and GPIO 6 (Aux 1 O/P 2) on the Codan radio system. Note: MT-4R and MT-4D P25 Receiver modules have a higher audio level output when receiving a digital signal (as opposed to analog).
Page 140 TECHNICAL NOTES MT-3/4 Radio Systems TN855 CI-DSP-223 Telex (Vega) DSP Tone-Remote Adapter AC-3E Audio Control Card and CI-BC-4E Base Control Card Bypassing the The AC-3E Audio Control Card and CI-BC-4E Base Control Card can be bypassed and the MT-4E Receiver and Transmitter can be connected directly to the Telex adapter.
Page 141: Tn856 Ci-Ip-223 Telex (Vega) Ip Network Remote Adapter
TN856 CI-IP-223 Telex (Vega) IP Network Remote Adapter The Telex IP-223 IP Network remote adapter provides a reliable means of remotely controlling up to two Codan base stations. The adapter can be used in conjunction with Telex model C-6200, C-Soft, IP-1616, IP-2002 consoles.
Page 142 2 pins on the DB25 (PTT COM - pin2 and MON COM - pin 16) are wired to ground for proper operation. The A-PNL- AUX96-3 auxiliary connector can also be used to connect to the Telex board to a Codan Base Station with an AC-3E or CI-BC-4E, as shown in Figure 1.
Page 143 Step 12 - Press and hold the LINE button on the front of the Telex and double click the IC button so that “Tx Align” is displayed on the LCD display. Step 13 - Key the Codan transmitter and adjust the TX pot for a transmitter deviation of ± 3 KHz (WB), ± 1.5 KHz (NB).
Page 144 Tx A PTT (J1-3) TECHNICAL NOTE: CODANCOMMS.COM TN856, REV 7-0-0, © Aug 2016 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 4 of 4 TN856 Rev 7-0-0 Aug 16 © 2016 Codan Limited All rights reserved.
Page 145: Tn857 Ci-Ip-Adapter-1 Telex (Vega) Ip-224 Ethernet Adapter
TN857 CI-IP-ADAPTER-1 Telex IP-224 Ethernet Adapter The Telex IP-224 Ethernet Adapter provides a reliable means of remotely controlling up to two Codan base stations remotely. The adapter can be used in conjunction with Telex model C-6200, C-Soft, IP-1616 and IP-2002 consoles.
Page 146 TN857 CI-IP-ADAPTER-1 Telex IP-224 Ethernet Adapter Installation: The A-PNL-AUX96-3 auxiliary connector can be used to connect the Telex IP-224 to a Codan Base Station with an AC-3E or CI-BC-4E, as shown in Figure 1. Ensure jumpers JU67A (or JU67X for CI-BC-4E) and JU68 are installed on the AC-3E and CI-BC-4E.
Page 147 TECHNICAL NOTES MT-4 Radio Systems TN857 CI-IP-ADAPTER-1 Telex IP-224 Ethernet Adapter A female DB25 connector on the back of the subrack (J10) can also be used for basic base connections to a Telex IP-224, using a straight-through male DB25 to male DC37 cable as follows: CBLC40-DB0DC061 Interconnect cable, CI-IP-ADAPTER-1 (DB25 to DC37) WARNING: JU108 must be conﬁ...
Page 148 Step 6 - Adjust R13 (RXA to Aux Out 1) for an audio level of 0 dBm (775 mV @ 600 ohms) across GPIO 5 (Aux 1 O/P 1) and GPIO 6 (Aux 1 O/P 2) on the Codan radio system. Note: MT-4R and MT-4D P25 Receiver modules have a higher audio level output when receiving a digital signal (as opposed to analog).
Page 149 TECHNICAL NOTES MT-4 Radio Systems TN857 CI-IP-ADAPTER-1 Telex IP-224 Ethernet Adapter Bypassing the AC-3E Audio Control Card and CI-BC-4E Base Control Card The AC-3E Audio Control Card and CI-BC-4E Base Control Card can be bypassed and the MT-4E Receiver and Transmitter can be connected directly to the Telex adapter. The control card needs to be removed from the subrack, or unwanted loading could occur.
Page 150 TECHNICAL NOTES MT-4 Radio Systems TN857 CI-IP-ADAPTER-1 Telex IP-224 Ethernet Adapter DB25 Connector (J10) Schematic Figure 5: DB25 Connector Schematic Diagram TECHNICAL NOTE: CODANCOMMS.COM TN857, REV 2-0-0, © Oct 2018 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 6 of 6...
Page 151: Tn870 Ci-Rswitch Redundant Switch
The CI-RSWITCH Redundant Switch Module provides a simple interface between two redundant radio systems composed of Codan receivers, transmitters, ampliﬁ ers and controllers. The Redundant Switch Module allows the Main or Backup radio system to be selected for operation and can be connected to various alarm modules such as the Power Monitors to control the switching function.
Page 152 TECHNICAL NOTES MT-3/4 Radio Systems TN870 CI-RSWITCH Redundant Switch This Page Intentionally Left Blank TECHNICAL NOTE: CODANCOMMS.COM TN870, REV 2-1-0, © Mar 2013 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 153 EXPLANATORY NOTES EN100 Quality Management System Codan Communications (Victoria, BC, Canada) is very proud that our Quality Management System has been registered to the ISO international quality standard since October 1993. Our Quality Management System is currently registered to the expanded ISO 9001:2008 standard, and is part of our commitment to provide high quality products and services to our customers.
Page 154 It also provides a framework for continual improvement of our products and services, with a goal to improving customer satisfaction. Codan is committed to continually expanding and improving our product line to meet the needs of our customers.
Page 155 Codan test equipment is calibrated annually or semi-annually to ensure it is operating at a proper performance level and is capable of the high reliability and high performance required by the customer. Codan Communications ﬁ...
Page 156 EXPLANATORY NOTES EN110 Equipment Calibration and Reference This Page Intentionally Left Blank EXPLANATORY NOTE: CODANCOMMS.COM EN110, REV 3-1-0, © Mar 2013 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 157 Certiﬁ cation in Codan hand soldering and rework program is required by all employees engaged in those aspects of product manufacture. Individual workmanship is reviewed on an ongoing basis, and re-certiﬁ cation may be required at any time.
Page 158 EXPLANATORY NOTES EN120 Equipment Soldering and ESD Procedures This Page Intentionally Left Blank EXPLANATORY NOTE: CODANCOMMS.COM EN120, REV 2-1-0, © Mar 2013 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...
Page 159 EXPLANATORY NOTES EN130 Atacama Large Millimeter Array (ALMA) What is ALMA? The Atacama Large Millimeter Array (ALMA) will be one of astronomy’s most powerful telescopes, providing unprecedented imaging capabilities and sensitivity many orders of magnitude greater than anything of its kind today.
Page 160 Astrophysic to build portions of the 84 - 116 GHz ALMA Band 3 Receivers and completed the contract on March 31, 2011. Codan built a clean room that meets requirements for ISO Class 7 standards and MIL-STD-1686 static control standards.
Page 161 RoHS directive. Codan is in the process of moving the manufacturing of all printed circuit boards (PCBs) to lead-free solder and ensuring that components of select products are certiﬁ ed as RoHS compliant. Codan PCBs that are RoHS compliant have board numbers beginning with 6- and will also bear the following RoHS logo if room on the board is available.
Page 162 EXPLANATORY NOTES EN140 Restriction of Hazardous Substances (RoHS) This Page Intentionally Left Blank EXPLANATORY NOTE: CODANCOMMS.COM EN140, REV 1-1-0, © Mar 2013 LMRSALES@CODANCOMMS.COM CANADA/US | TOLL FREE +1 250 382 8268 +1 800 664 4066 Page 2 of 2...

This manual is also suitable for:

Mt-4

Codan MT-3 Technical Notes For Tuning, Installing, Maintaining And Servicing

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Codan MT-3

Summary of Contents for Codan MT-3

This manual is also suitable for:

Table of Contents
