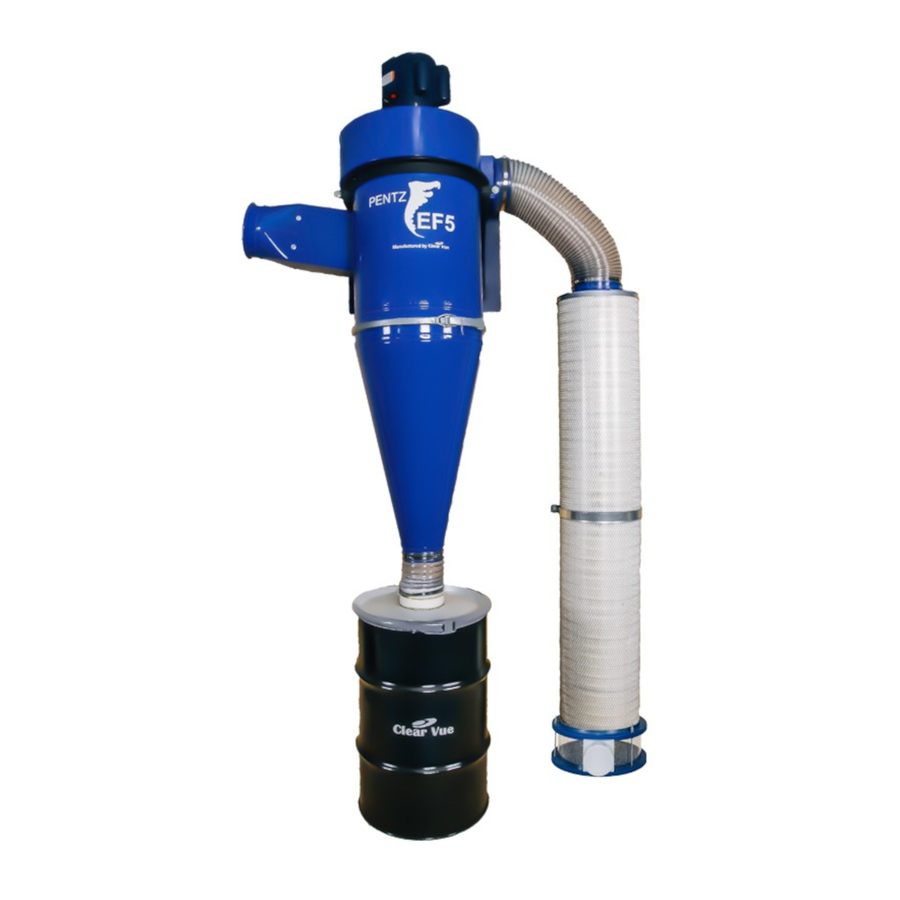

- Page 1 Pentz EF5 Installation Guide Clear Vue Cyclones 145 Nix Road Liberty, SC 29657 888-299-0221 www.clearvuecyclones.com...
-
Page 2: Disclaimers & Warnings
Disclaimers & Warnings WARNING: All persons, by purchasing a motorized dust collection system, motor, or individual parts from CLEAR VUE CYCLONES, or using these instructions which are provided as suggestions only, agree to the following disclaimer: Installing and/or operating this motorized dust collection system, or use of individual parts, involves the risk of serious bodily injury or even death. -
Page 3: Table Of Contents
Assembling and Hanging the Cyclone ............. 12 Assembling the Flangeless Filter Stack (filtered systems only) ....... 13 Installing the Exhaust and Collection Drum ............14 Electrical – Single-Phase Motors ..............15 Electrical – Three-Phase Motors ..............16 Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 4: Dimensional Drawing
Dimensional Drawing Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 5: Cyclone Components
Cyclone Components Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 6: Specifications
Dimensions based on intake positioned 180° from exhaust. Depth/width will vary depending on rotation. ** Height with 30-gallon drum. Add 6” for 55-gallon drum. A minimum of 6” of additional height is recommended for installation purposes. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 7: Installation Tools
• Box Cutter • (1) tube of Caulk o ALEX PLUS Acrylic Latex Caulk plus Silicone (color Crystal Clear) is recommended simply because it dries the clearest. Other brands/types may be used. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 8: Shipment Contents
(2) ¼"-20 Nuts Check the contents of your shipment as soon as possible to verify there was no damage sustained during transit. If there are any issues, please contact Customer Service at 888-299-0221. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 9: Mounting The Backer Board And Wall Bracket (For Wall-Mounted Systems Only)
Backer Board. b. Secure the Wall Bracket using (6) "-9 x 3" lag screws and (6) " flat washers. c. If desired, the holes may be pre-drilled in advance. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 10: Assembling The Metal Stand (For Stand-Mounted Systems Only)
5. Slide the upper frame onto the upper legs. 6. Adjust the set screws to ensure stand is level. It is recommended to bolt the stand to the floor to ensure it does not move. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 11: Constructing The Motor Assembly
Do NOT turn the motor on until the system is completely assembled, including the collection drum. Doing so may cause the circuit breaker to trip, physical damage to the system and/or bodily harm. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 12: Attaching The Impeller
” – ” gap between the taper-lock bushing and the impeller hub. ∕ 5. Firmly tighten the setscrew against the motor key using a ” hex key. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 13: Assembling And Hanging The Cyclone
Do NOT turn the motor on until the system is completely assembled, including the collection drum. Doing so may cause the circuit breaker to trip, physical damage to the system and/or bodily harm. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 14: Assembling The Flangeless Filter Stack (Filtered Systems Only)
Run a bead of silicone around the top of the filter stack. b. Secure the Filter Flange to the top of the filters using (4) #6 x 1-¼" sheet rock screws. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 15: Installing The Exhaust And Collection Drum
20 flat washers, (1) ¼"-20 lock washer and (1) ¼"-20 nut through each hole. 2. For stand-mounted systems, it is recommended to additonally bolt the stand to the floor to ensure it does not move. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018... -
Page 16: Electrical - Single-Phase Motors
Electrical – Single-Phase Motors Clear Vue Cyclones highly recommends the use of a professional, licensed electrician to complete the wiring and any electrical work associated with this installation. Significant damage to your system and/or bodily harm can result. The Leeson 5HP motor is designed to rotate either clockwise or counter-clockwise. Motors are prewired direct from Leeson and may be wired for either rotation. -
Page 17: Electrical - Three-Phase Motors
Electrical – Three-Phase Motors Leeson recommends the use of wire lugs in lieu of wire nuts to secure all connections. Pentz EF5 Installation Guide © Clear Vue Cyclones 2018...
