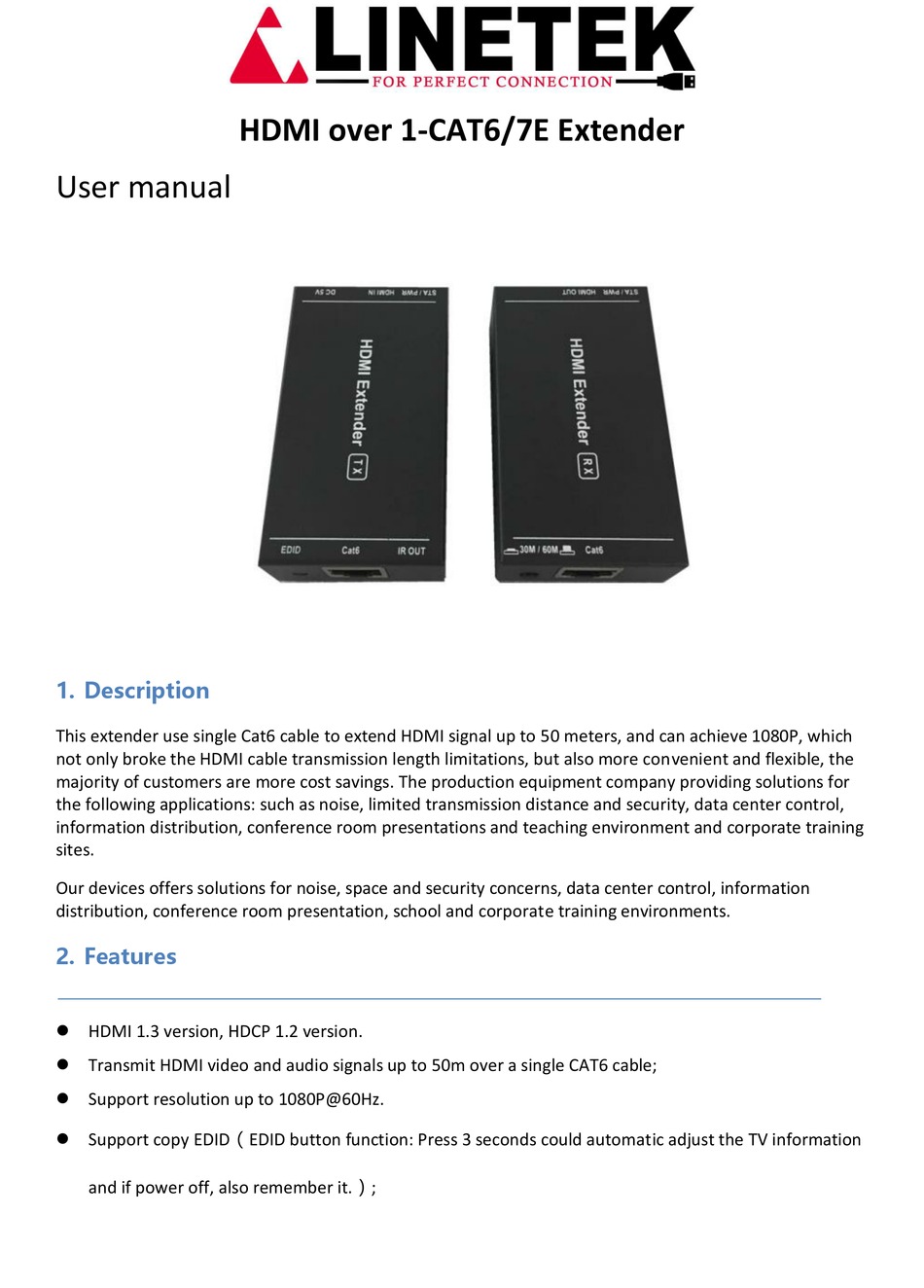

Linetek 50MTR User Manual

HDMI over 1-CAT6/7E Extender

User manual

1. Description
This extender use single Cat6 cable to extend HDMI signal up to 50 meters, and can achieve 1080P, which
not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the
majority of customers are more cost savings. The production equipment company providing solutions for
the following applications: such as noise, limited transmission distance and security, data center control,
information distribution, conference room presentations and teaching environment and corporate training
sites.
Our devices offers solutions for noise, space and security concerns, data center control, information
distribution, conference room presentation, school and corporate training environments.
2. Features
 HDMI 1.3 version, HDCP 1.2 version.
 Transmit HDMI video and audio signals up to 50m over a single CAT6 cable;
 Support resolution up to 1080P@60Hz.
 Support copy EDID（EDID button function: Press 3 seconds could automatic adjust the TV information
and if power off, also remember it.）;
