Summary of Contents for Selecon PLFRESNEL 1 MKII

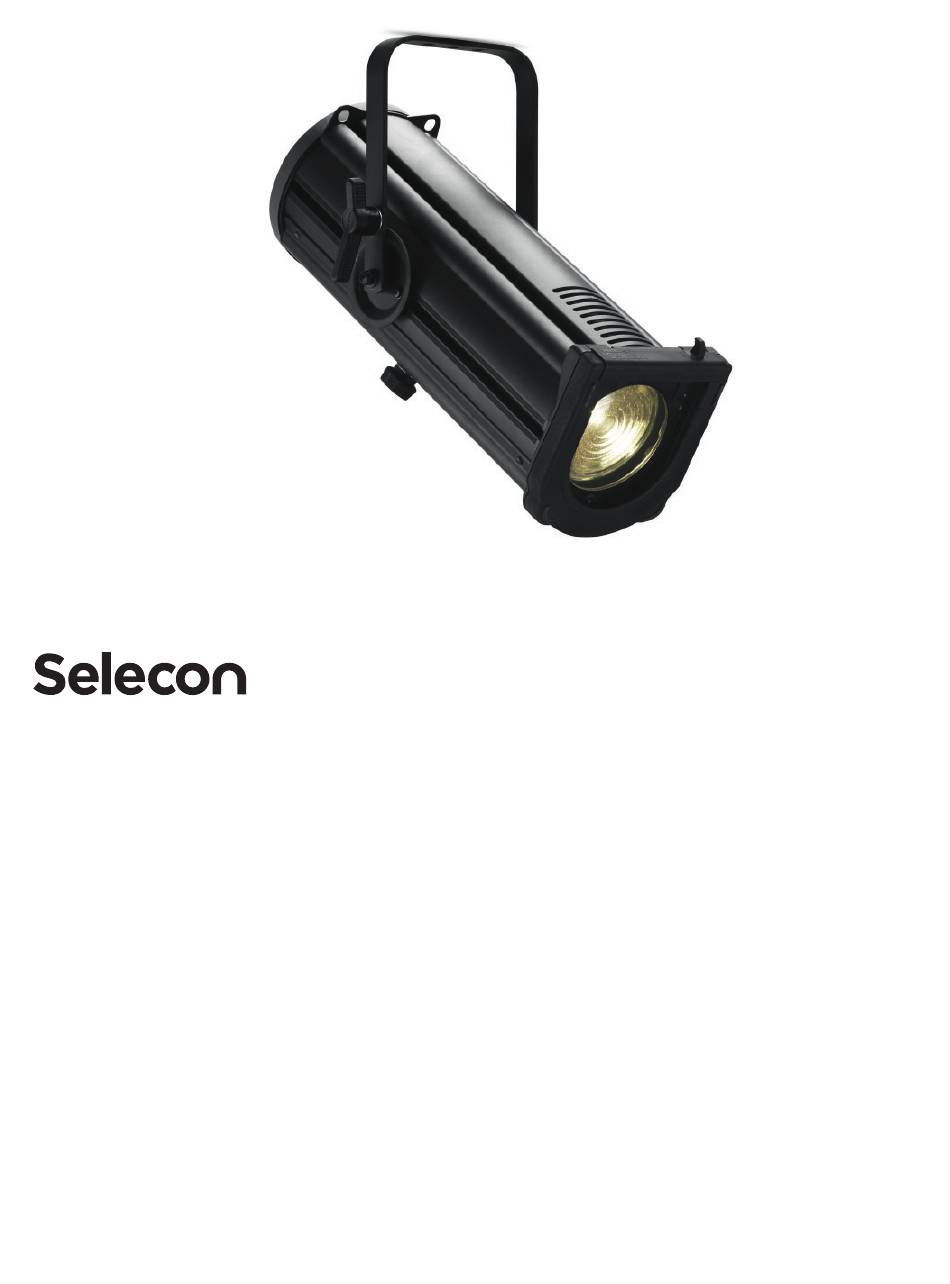

- Page 1 PLFRESNEL 1 MKII QUICK START GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT INFORMATION Warnings and Notices ............................. 2 Additional Resources for DMX512 ........................ 2 Selecon Limited Three-Year Warranty....................2 PREFACE About this Guide..............................3 Product Descriptions .............................. 3 INSTALLATION AND SET UP Top Box Connections ............................. 4 Power Requirements............................... -
Page 3: Important Information
Selecon offers a three-year limited warranty of its luminaires against defects in materials or workmanship from the date of delivery. A copy of Selecon three-year limited warranty containing specific terms and conditions can be obtained from the Selecon web site at www.seleconlight.com or by contacting your local Selecon office. IMPORTANT INFORMATION... -
Page 4: Preface
PLFRESNEL1 MKII LED Luminaire QuickStart Guide PREFACE 1. About this Guide This Quickstart Guide is intended for a knowledgeable user to unpack, install, and use the PLFRESNEL1 MKII LED Luminaire in a short time period. For the complete manual in PDF format, please visit our web site at: www.seleconlight.com and click the user manual download link on the product page. -
Page 5: Installation And Set Up
PLFRESNEL1 MKII LED Luminaire QuickStart Guide INSTALLATION AND SET UP 1. Top Box Connections All PLFRESNEL1 MKII LED Luminaires are supplied with a "Top Box" for AC Input/Output and DMX512 Input/ Output Connections. Figure 1 shows the AC and DMX512 Input and Output (Thru) Connections. DMX512 Input AC (Power) Output DMX512 Output/Thru... -
Page 6: Connecting Power
PLFRESNEL1 MKII LED Luminaire QuickStart Guide e. Do not connect PLFRESNEL1 MKII LED Luminaires to dimmed circuits. f. The MAXIMUM allowable number of PLFRESNEL1 MKII LED Luminaires which can be 'daisy- chained' on one power feed should not exceed ratings. DO NOT EXCEED! 3. -
Page 7: Mounting
PLFRESNEL1 MKII LED Luminaire QuickStart Guide Note: For more information on DMX512 networking and systems, refer to "Additional Resources for DMX512" on page 2. For PLFRESNEL1 MKII LED Luminaire DMX Mapping, refer to the product user’s manual DMX512 DMX512 (out to the next luminaire or (out from first to second luminaire) DMX512 controlled device) -
Page 8: Pan And Tilt Adjustments
PLFRESNEL1 MKII LED Luminaire QuickStart Guide C-Clamp Top Box Assembly Flat Washer Center Clamp Mounting Hole (13 mm) Flat Washer WARNING! *When installing a C-Clamp (or hook, or other type of clamp) with the Top Box Assembly C-Clamp Bolt* as shown, you MUST use the C-Clamp Bolt supplied with the fixture. -
Page 9: Tilt Adjustment
PLFRESNEL1 MKII LED Luminaire QuickStart Guide Tilt Adjustment PLFRESNEL1 MKII LED Luminaires offer variable tilt settings. The unit can be set at a specific angle (in relation to its mounting position) or at an angle between 0 to 90 degrees. When the yoke is in the position shown in Figure 4, you have full range access to luminaire adjustments. -
Page 10: Beam Adjustments
Step 3. Hand-tighten Beam Adjustment Knob to lock position. Beam Adjustment Knob Spot Flood Figure 5: Beam Adjustment Knob 2. Barndoor Assembly Selecon offers as an optional accessory, a four-leaf barndoor assembly. This assembly is sold separately and available from your Authorized Selecon Authorized Dealer. Beam Adjustments... -
Page 11: Operation And Programming
PLFRESNEL1 MKII LED Luminaire QuickStart Guide OPERATION AND PROGRAMMING 1. LCD Menu Operation The PLFRESNEL1 MKII LED Luminaire’s LCD Display and Menu System provides local control for accessing all the fixture’s status information, menu options, and settings. Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired. Upon power up, the LCD will display the main screen showing the product type/name. -
Page 12: Lcd Menu System
Note, Selecon does not have records of PIN codes established by users or owners. Note: Contact Selecon technical support if a unit is locked and the PIN code is lost for instructions on how to reset luminaire. -
Page 13: Locking Fixture
PLFRESNEL1 MKII LED Luminaire QuickStart Guide Locking Fixture To lock the fixture: Lock Fixture Step 1. At Main Menu, press [MENU] and scroll to . Note, default PIN is "0000" (four zeros). Step 2. Press [OK]. Step 3. Enter four-digit, user-selectable, PIN code. Press [OK]. Step 4. - Page 14 PLFRESNEL1 MKII LED Luminaire QuickStart Guide When done making changes on the Settings Screen press [ESC] to re-boot fixture and implement changes. Fixture will not re-boot if nothing was changed. Table 2: Settings Menu User-Settable Parameters Parameter Values Default Description General Normal Mode (120W), Sets the luminaire’s output mode - Normal...
-
Page 15: Troubleshooting
1. Troubleshooting Guide The chart below provides possible causes and remedies for various error messages and/or symptoms. WARNING! Any service and maintenance (including troubleshooting), other than described herein should be performed by an Authorized Selecon Dealer or Service Center. Description Symptom Possible Cause/Remedy Unit is set to Preset Off... - Page 16 AMERICAS EUROPE 10911 Petal Street Rondweg Zuid 85 Dallas, TX 75235 Winterswijk 7102 JD Tel: +1 214-647-7880 Netherlands Fax: +1 214-647-8039 Tel: +31 543-542516 Fax: +31 543-542513 ASIA 24 Sovereign Park Unit C, 14/F, Roxy Industry Centre Coronation Road 41-49 Kwai Cheong Road Park Royal, London Kwai Chung, Kwai Tsing NW10 7QP...
