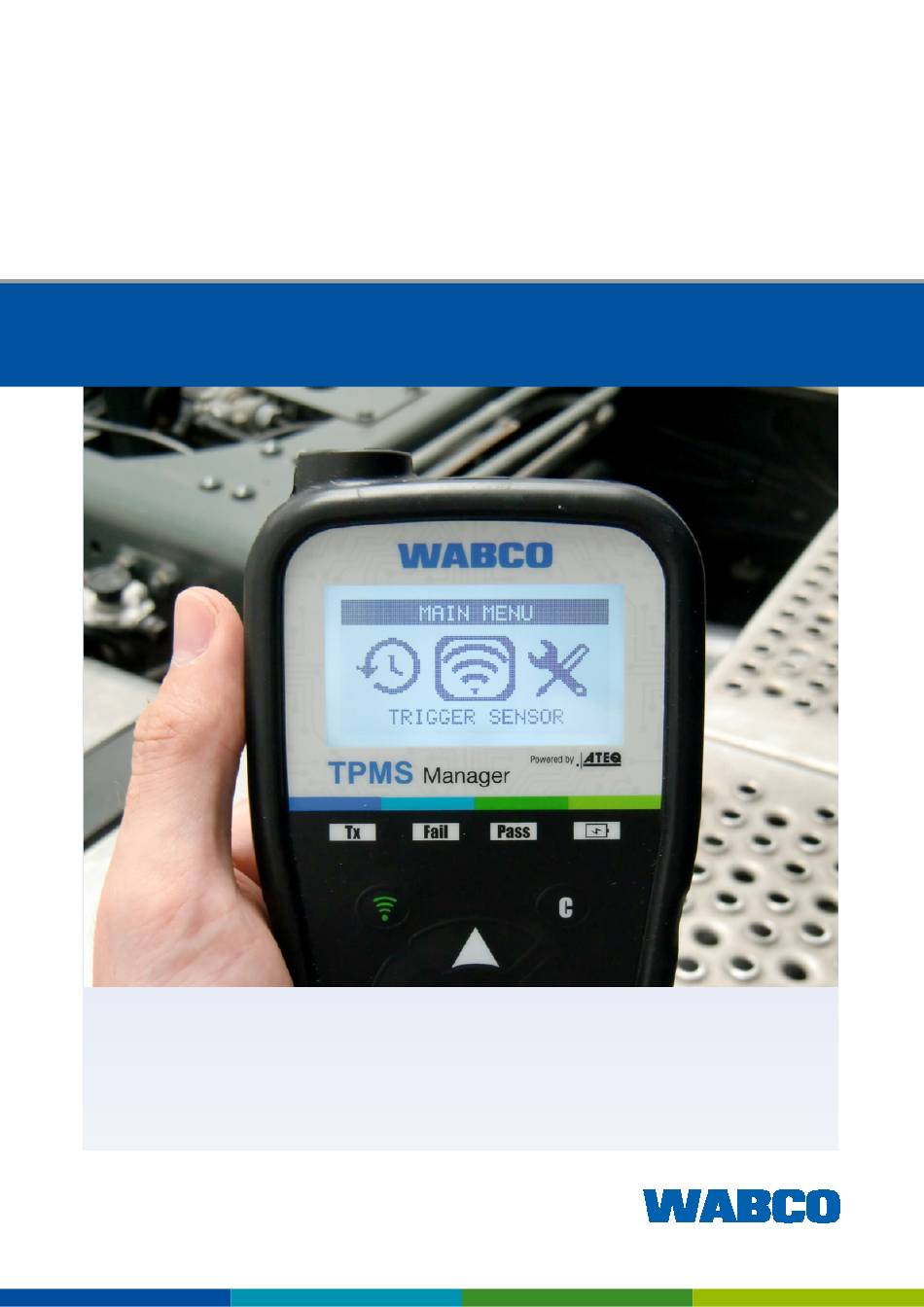

- Page 1 TPMS MANAGER SYSTEM DESCRIPTION...
-
Page 3: Table Of Contents
USB internet option update ............21 Recycling ................................ 22 Edition 1 This publication is not subject to an updating service. Version 1 (11.2017) You will find the current version at: 815 010 248 3 (en) http://www.wabco.info/i/728... -
Page 4: General Information
General information General information Purpose of this document This document is directed towards workshop employees and designed to assist in reading out faults from the brake control unit. Symbols used Indicates a potentially hazardous situation WARNING Failure to observe the safety instruction can result in severe injuries or death. - Page 5 Choose genuine WABCO parts Genuine WABCO parts are made of high quality materials and are rigorously tested before they leave our factories. You also have the assurance that the quality of every WABCO product is supported by an outstanding WABCO customer service network.
- Page 6 Your direct contact to WABCO In addition to our online services, trained members of staff are there to help you at our WABCO Service Partners to directly answer any technical or business-related questions you may have.
-
Page 7: Safety Information
Adhere to all instructions, information and safety information to prevent injury to persons and damage to property. WABCO will only guarantee the safety, reliability and performance of their products and systems if all the information in this publication is adhered to. - Page 8 Safety information CAUTION! Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and reliable when properly used. All TPMS TOOLS are intended to be used only by qualified and trained automotive technicians or in a light industrial repair shop environment. Please read all instructions below before using. Always follow these safety instructions.
-
Page 9: Components
Components Components TPMS Manager USB adapter Plug type A Plug type C Plug type G Plug type I USB cable Disc with TPMS software... -
Page 10: Specifications
Specifications Specifications Battery type: Rechargeable lithium ion Battery life: Approximately 400 activations per full charge. Dimensions (max. L,W,D): 6.5" x 3.7" x 1.5" (16.5 cm x 9.5 cm x 3.8 cm). Case material: High impact ABS. Response frequency: Main frequencies: 315 MHz and 433.92 MHz (support for most of the specific frequencies). -
Page 11: Functions
Functions Functions Power ON /OFF switch Test or trigger sensor Next, continue or confirm Cancel, previous step Navigate to select "up" Navigate to select "down" Navigate to select "left" Navigate to select "right" 1 Antenna 2 Result lights 3 Trigger light 4 Battery charge indicator and low bat light 5 Keyboard... -
Page 12: Operating Instructions
– Press and hold the Power ON/OFF switch for up to 3 seconds to show the battery level Ö Display of the battery level battery level – Press and hold the Power ON/OFF switch longer than 3 seconds to shut down the TPMS Manager. -
Page 13: Read/Trigger Sensor Test
Operating instructions Read/trigger sensor test Before servicing the tires/wheels using your TPMS Manager, trigger each of the vehicle's sensors to make sure they are working properly. This ensures that you are not liable for previously damaged or defective sensors. This procedure will not change the vehicle settings since the vehicle has not yet been put into learn/ retraining mode. - Page 14 Operating instructions – Hold the TPMS Manager at a distance of 5 cm to the sensor you want to check – Press the TRIGGER SENSOR button and wait for a beep Ö The sensor data is displayed (example: WABCO WIS)
-
Page 15: Triggering Procedure
Operating instructions Triggering procedure The sensors can be tested in any order. The OptiTire diagnostic software offers the option to trigger all sensors in a sequential order. When choosing this option, the test is run anticlockwise beginning with the front, left-hand wheel. With twin wheels, the left wheel (in driving direction) is tested first. -
Page 16: Settings
Operating instructions Settings – Use left or right in the MAIN MENU to select SETTINGS MAIN MENU settings – Press OK Ö The SETTINGS submenu is displayed SETTINGS lf power units : bar/°c buzzer on : yes contrast: 85 % –... -
Page 17: Units
PSI / °F 6.4.3 Buzzer ON The TPMS Manager can make a buzzer sound when a sensor is checked. The buzzer can be turned on or off in the SETTINGS menu. – Use up or down to select BUZZER ON –... -
Page 18: About
2: –––– Language The LANGUAGE menu can be used to change the language of all the menus in TPMS Manager. – Use left or right in the MAIN MENU to select LANGUAGE MAIN MENU language – Press OK Ö... -
Page 19: Recent Sensor Data
Operating instructions Recent sensor data The RECENT SENSOR DATA menu can be used to display or erase the last sensor data that was read out. – Use left or right in the MAIN MENU to select RECENT SENSOR DATA MAIN MENU recent sensor data –... -
Page 20: Charging
Battery replacement The TPMS Manager must be returned to the factory for battery replacement. Do not open the TPMS Manager or to tamper with the seal attached to the TPMS Manager. Once the seal is broken the warranty is void. -
Page 21: Troubleshooting
Tool update Troubleshooting If the TPMS Manager is unable to trigger one or more of the sensors using either electronic or magnetic activation, please check the following possibilities: The vehicle does not have a sensor even though a metal valve stem is present. Be aware of „... -
Page 22: Recycling
The crossed-out wheeled dustbin means that the product must be taken to separate collection at the product end-of life. This applies to your tool but also to any enhancements marked with this symbol. Do not dispose of these products as unsorted municipal waste. For further information, please contact WABCO. - Page 24 Founded nearly 150 advanced fleet management years ago, WABCO continues systems and mobile solutions. to pioneer breakthrough WABCO reported sales of $2.8 innovations for advanced driver billion in 2016. Headquartered in assistance, braking, stability Brussels, Belgium, WABCO has control, suspension, transmission 13,000 employees in 40 countries.
