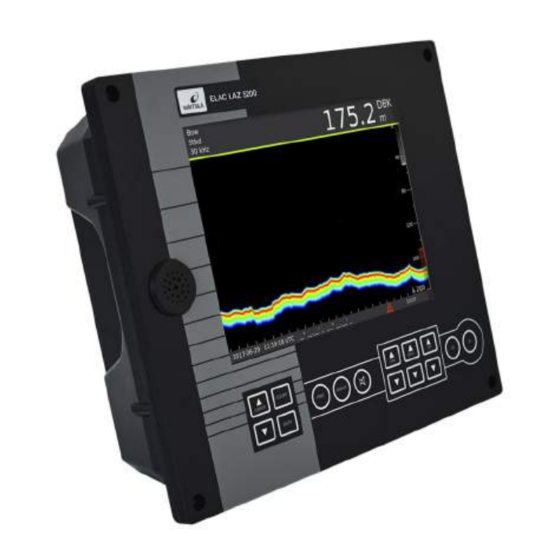

Navigation echo sounder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

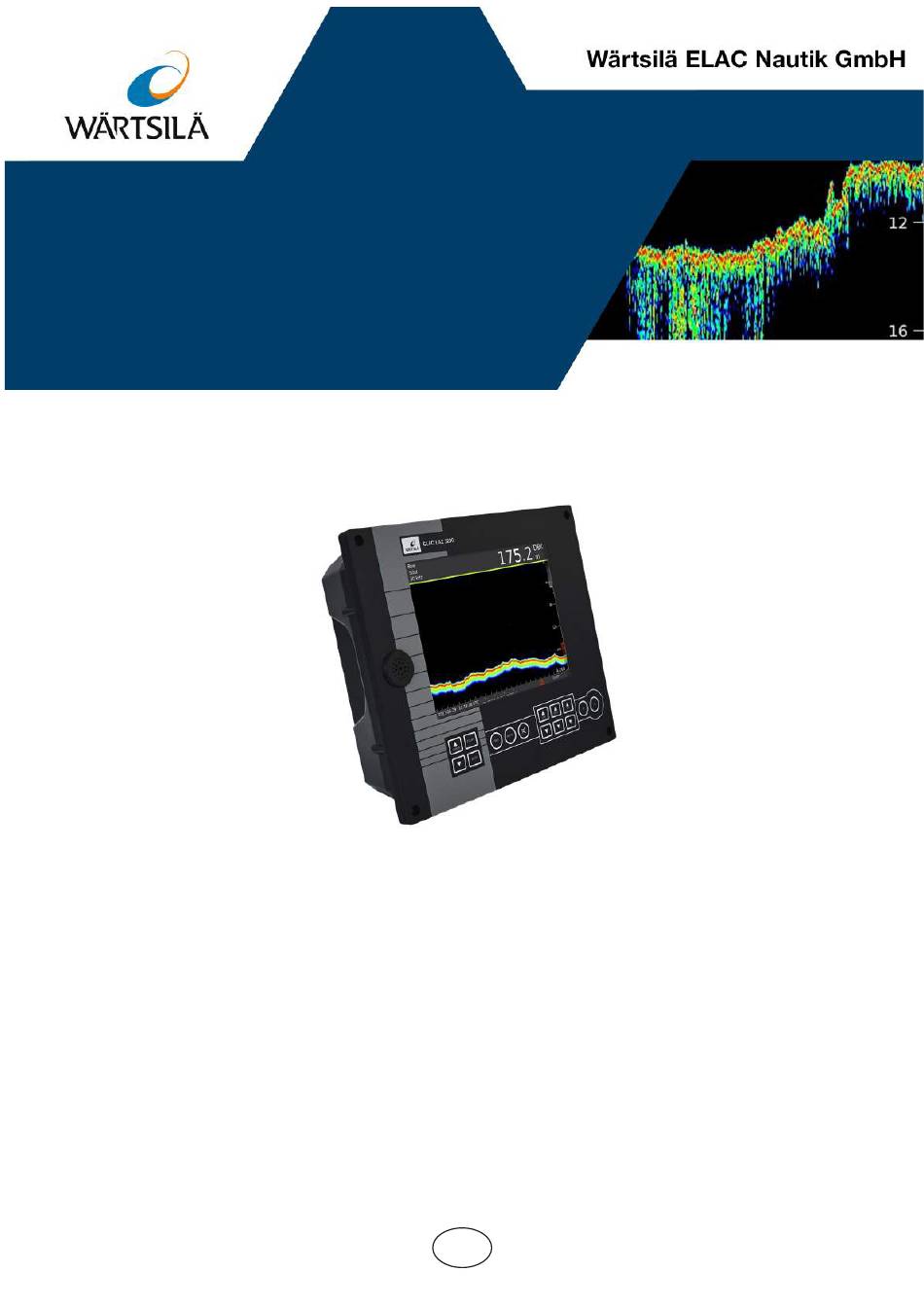

Operating Instructions
Navigation Echo Sounder
Wärtsilä ELAC LAZ 5200
Wärtsilä ELAC Nautik GmbH
TH 52 614 8001 EN
Rev. A
09/2018
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP IN A SAFE PLACE FOR FUTURE REFERENCE
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELAC LAZ 5200 and is the answer not in the manual?

Questions and answers

Related Manuals for WÄRTSILÄ ELAC LAZ 5200

Summary of Contents for WÄRTSILÄ ELAC LAZ 5200

  • Page 1 Operating Instructions Navigation Echo Sounder Wärtsilä ELAC LAZ 5200 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018 IMPORTANT READ CAREFULLY BEFORE USE KEEP IN A SAFE PLACE FOR FUTURE REFERENCE...
  • Page 3 ELAC LAZ 5200 – Operating Instructions Foreword Wärtsilä ELAC Nautik GmbH manufactures state-of-the-art quality products. The present document provides important information and knowledge for the safe, proper and efficient use of your product from Wärtsilä ELAC Nautik GmbH. Ensure that you are using the correct and latest document on your acquired product. Contact the manufacturer for the appropriate revision and issue of the document corre- sponding to the release status of the product.
  • Page 4 ELAC LAZ 5200 – Operating Instructions Open source software license notice To the extent the license terms applicable to open source software components included in our product require Wärtsilä ELAC Nautik GmbH to make an offer to provide the source code of the open source licensed software or otherwise entitle the customer to receive a copy of the source code of the open source licensed software, such offer is hereby made.

  • Page 5: Table Of Contents

    3.3.1 Navigation Echo Sounder ELAC LAZ 5200 ....... . 28 3.3.2...
  • Page 6 Description of the Installation Work ........40 4.3.1 Installation of Navigation Echo Sounder ELAC LAZ 5200..... 40 4.3.2 Installation of Transducer.
  • Page 7 General ............69 6.5.2 Switching ON the Navigation Echo Sounder ELAC LAZ 5200 ....69 6.5.3 Switching OFF the Navigation Echo Sounder ELAC LAZ 5200 .
  • Page 8 Description of the Maintenance Tasks ....... . 109 8.4.1 Cleaning of the Navigation Echo Sounder ELAC LAZ 5200 ....109 8.4.2 Cleaning the Transducer .
  • Page 9 ELAC LAZ 5200 ........
  • Page 10 ELAC LAZ 5200 – Operating Instructions Number Title Page Fig. 6.36: Change Parameter Value ........
  • Page 11 ELAC LAZ 5200 – Operating Instructions Number Title Page Fig. 9.6: ALF (Alert Sentence) ........
  • Page 12 ELAC LAZ 5200 – Operating Instructions 10 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...
  • Page 13 ELAC LAZ 5200 ........
  • Page 14 ELAC LAZ 5200 – Operating Instructions Number Title Page Tab. 9.11: DDC (Display Dimming Control) ....... .
  • Page 15 ELAC LAZ 5200 – Operating Instructions List of Abbreviations Abbreviation Description Explanation Automatic Gain Control Bridge Alert Management BITE Built In Test Equipment Digitalanzeigegerät Digital Slave Display Depth Below Keel Depth Below Surface Depth Below Transducer Deutsches Institut für Normung German Institute for Standard- ization Einbauanleitung Installation Instruction...
  • Page 16 ELAC LAZ 5200 – Operating Instructions Abbreviation Description Explanation RCOM Radio Communication Equip- ment Recommended Standard Recommended standard of the Electronic Industry Association and the Telecommunications Industry Association Reception SATD High update rate data Spezifikation Specification TGTD Target Data (AIS), Tracked Tar- get Messages (Radar) Technisches Handbuch Technical Manual...

  • Page 17: About This Document

    This document forms an integral part of the product. It is intended to help ensure the safe, proper and efficient use of your product. Product designation: Navigation Echo Sounder ELAC LAZ 5200 Part number of the documentation: TH 52 614 8001 EN...

  • Page 18: Representation Conventions

    ELAC LAZ 5200 – Operating Instructions About this Document Representation Conventions 1.6.1 Presentation of Warnings The warnings contained in this document are structured as follows: 1) General warning symbol and standardised signal word 2) Additional warning symbol or pictogram in the margin –...

  • Page 19: Presentation Of Warnings Of Potential Damage

    ELAC LAZ 5200 – Operating Instructions About this Document 1.6.2 Presentation of Warnings of Potential Damage The warnings of potential damage (e.g. material damage, possible pollution of the envi- ronment) in this document are structured as follows: 1) Signal word 2) Warning symbol or pictogram in the margin –...

  • Page 20: Presentation Of Other Warnings

    ELAC LAZ 5200 – Operating Instructions About this Document 1.6.3 Presentation of Other Warnings Indicates additional important information. Indicates recommendations and tips (e.g. indication of alternative methods of opera- tion). Indicates information on proper performance of work/installation. Indicates a reference to other applicable documents, further documentation, etc. (e.g. information materials or sub-suppliers' documentation).

  • Page 21: Text Markups

    ELAC LAZ 5200 – Operating Instructions About this Document 1.6.5 Text Markups Type of marking Meaning/category Examples Working instructions Sequences of actions 1. First step of a working in- are divided into working struction. steps and presented in a 2. Next step of a working in- numbered list.
  • Page 22 ELAC LAZ 5200 – Operating Instructions About this Document 20 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...

  • Page 23: Safety

    Compliance with the operating, service and maintenance instructions given by the manufacturer. Foreseeable Misuse It is not permitted to use the Navigation Echo Sounder ELAC LAZ 5200 for the following purposes. The Navigation Echo Sounder ELAC LAZ 5200 must not •...

  • Page 24: Personal Protective Equipment

    ELAC LAZ 5200 – Operating Instructions Safety Personal Protective Equipment Personal protective equipment (PPE) must be worn during all work and activities which, due to their nature, could lead to injuries and health impairment and which cannot be pre- vented by other measures (technical or organisational). Personal protective equipment is any device or means intended to be worn or carried by a person in order to protect this person against a risk or several risks which could endan- ger the person's health or safety.

  • Page 25: Fundamental Safety Precautions

    ELAC LAZ 5200 – Operating Instructions Safety Fundamental Safety Precautions WARNING! Dangerous electrical voltage! Improper work on electrical components can result in dangerous electric shocks and in accidents and falls.  All work on electrical components may only be carried out by qualified electricians. The electricians must be trained and instructed in the necessary operations such as earthing, cordoning off and securing the area in which electric voltages may occur.

  • Page 26: Specific Safety Precautions

    ELAC LAZ 5200 – Operating Instructions Safety Specific Safety Precautions Personnel Qualifications Personnel group Qualification Specialist personnel Specialist personnel • has, thanks to his technical training and experience, adequate knowledge of the work to be carried out; • is sufficiently familiar with the health and safety regu- lations, accident prevention regulations and general- ly recognised rules of engineering that he can assess the safe condition of the products described here.

  • Page 27: Obligations Of The Owner

    ELAC LAZ 5200 – Operating Instructions Safety Obligations of the Owner The owner is any natural person or legal entity using the product or system, or on whose behalf the product/system is used. The owner can appoint a deputy/representative to as- sume and exercise his rights and obligations.

  • Page 28: Further Regulations To Be Observed

    ELAC LAZ 5200 – Operating Instructions Safety 2.11 Further Regulations to be Observed In addition to the present documentation, the following rules and regulations must be ob- served: • The national and company-internal safety and accident prevention regulations appli- cable at the operating location •...

  • Page 29: Technical Description

    Technical Description Technical Description Functional Description The Navigation Echo Sounder ELAC LAZ 5200 is designed for electro-acoustic vertical range measurement under water. The system measures the distance between the installation location of the transducer and the sea bed, and hence calculates the depth under keel. The depth information is calculated from the time between the transmission of a sonar pulse (underwater sound) and the arrival of the reflected sound waves.

  • Page 30: Description Of The Components

    ELAC LAZ 5200 – Operating Instructions Technical Description Description of the Components 3.3.1 Navigation Echo Sounder ELAC LAZ 5200 Fig. 3.2: Navigation Echo Sounder ELAC LAZ 5200 The Navigation Echo Sounder ELAC LAZ 5200 • is the control and display unit of the system; •...

  • Page 31: Distribution Box Vk 10

    ELAC LAZ 5200 – Operating Instructions Technical Description 3.3.2 Distribution Box VK 10 Fig. 3.3: Distribution Box VK 10 The Distribution Box VK 10 • serves to connect the ultrasonic transducer to the ship's wiring installation; TH 52 614 8001 EN Rev. A 09/2018 Wärtsilä...

  • Page 32: Ultrasonic Transducer

    ELAC LAZ 5200 – Operating Instructions Technical Description 3.3.3 Ultrasonic Transducer Fig. 3.4: Ultrasonic Transducer The ultrasonic transducer • is a piezoelectric sonar transducer; • converts the transmitted electrical energy into acoustic energy and transmits this as acoustic signals into the water; •...

  • Page 33: Digital Slave Display (Option)

    Technical Description 3.3.4 Digital Slave Display (Option) A compatible digital slave display can be connected to the Navigation Echo Sounder ELAC LAZ 5200 via an NMEA interface. 3.3.5 Printer (Option) A PostScript-compatible printer can be connected to the Navigation Echo Sounder ELAC LAZ 5200 via the network.

  • Page 34: Technical Data - Navigation Echo Sounder Elac Laz 5200

    Nominal viewing distance from the display Compass safe distance Standard compass 0.7 m Steering compass 0.4 m Tab. 3.3: Technical Data – Navigation Echo Sounder ELAC LAZ 5200 32 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...
  • Page 35 Storage temperature (recommended) +20 °C Storage temperature peaks -20 to +60 °C ≤ 95 % (permanently) Relative humidity Tab. 3.3: Technical Data – Navigation Echo Sounder ELAC LAZ 5200 TH 52 614 8001 EN Rev. A 09/2018 Wärtsilä ELAC Nautik GmbH 33 / 134...
  • Page 36 ELAC LAZ 5200 – Operating Instructions Technical Description 34 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...

  • Page 37: Installation

    ELAC LAZ 5200 – Operating Instructions Installation Installation Section Safety Messages Section-specific safety precautions warn of specific dangers which can occur during all activities described in the following chapter or section. The safety precautions relate to all the following contents and are given once at the beginning of the chapter or section in order to avoid repetition.
  • Page 38 Risk of injury and crushing. Pay attention to the weight when handling and transporting the components. Information on weights can be found in section  3.4 "Technical Data – Navigation Echo Sounder ELAC LAZ 5200"and/or the further applicable documenta- tion ( 9.1 "Applicable Documents").

  • Page 39: Preparation For Installation

    ELAC LAZ 5200 – Operating Instructions Installation NOTICE Damage to the cables possible. Failure to observe the admissible bending radii can result in damage to the connection cables.  Observe the admissible bending radii during all cable connection and laying work. NOTICE Loosening of screws possible Vibration and impact loads can cause screws and threaded joints to come loose.

  • Page 40: General Information On Transducer Installation

    Other sonars or echo sounders – To avoid mutual interferences, it must be ensured during installation and configu- ration (in particular during transducer selection) that no other sonars or echo sounders use the frequencies of the Navigation Echo Sounder ELAC LAZ 5200. 4.2.3 Earthing Components must be earthed to satisfy the EMC requirements and to protect the person- nel from electric shocks.

  • Page 41: Fig. 4.1: Earthing

    ELAC LAZ 5200 – Operating Instructions Installation       Fig. 4.1: Earthing 1. The earth connection requires clean metallic surfaces. If necessary, remove any paint or other non-conductive materials from the earthing terminal. 2. Wipe all mounting surfaces with residue-free cleaning solution to ensure that these are clean and free from paint flakes, metal chips and other residues.

  • Page 42: Description Of The Installation Work

    ELAC LAZ 5200 – Operating Instructions Installation Description of the Installation Work 4.3.1 Installation of Navigation Echo Sounder ELAC LAZ 5200 The Navigation Echo Sounder ELAC LAZ 5200 can be installed in one of the following ways: • Rail mounting •...

  • Page 43: Installation Of Navigation Echo Sounder Elac Laz 5200 Connection Cable

    ALARM BLK/KEY REMOTE HV-PWR Fig. 4.2: Overview Pin Assignment Navigation Echo Sounder ELAC LAZ 5200 4.3.3.2 Installation of Navigation Echo Sounder ELAC LAZ 5200 Connection Cable One example of the connection of a connection cable is described below. Connect all other connection cables in the manner described.

  • Page 44: Fig. 4.3: Installation Of The Connection Cables

    The device can switch itself on unexpectedly if a corresponding signal is sent via the lines X16/1 and X16/2 (Remote ON) (see interconnection diagram of the Navigation Echo Sounder ELAC LAZ 5200  9.1 "Applicable Documents"). This can result in dan- gerous electric shocks and other injuries.
  • Page 45 Remove the insulation from the core ends as far as needed to ensure safe electrical contact with the terminals. 6. Thread the connection cable through the cable gland into the Navigation Echo Sounder ELAC LAZ 5200. – The outer sheath of the connection cable must be in contact with the spring con- tacts of the cable gland.
  • Page 46 ELAC LAZ 5200 – Operating Instructions Installation 44 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...

  • Page 47: Commissioning (Configuration)

    (e.g. changing of the transducer model). 2. Configure the transducer channels  6.5.11.1. 3. Configure the network settings for the Navigation Echo Sounder ELAC LAZ 5200  6.5.11.2. 4. If installed, configure the network settings for the printer  6.5.11.3.
  • Page 48 ELAC LAZ 5200 – Operating Instructions Commissioning (Configuration) 46 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...

  • Page 49: Operation

    ELAC LAZ 5200 – Operating Instructions Operation Operation Section Safety Messages Section-specific safety precautions warn of specific dangers which can occur during all activities described in the following chapter or section. The safety precautions relate to all the following contents and are given once at the beginning of the chapter or section in order to avoid repetition.

  • Page 50: Operating And Display Elements

      ESCAPE GAIN RANGE CURSOR PRINT MARKER ENTER Fig. 6.1: Operating and Display Elements of Navigation Echo Sounder ELAC LAZ 5200 Item Designation See section Display   6.2.2 Keyboard  Tab. 6.1: Operating and Display Elements of Navigation Echo Sounder ELAC LAZ 5200 48 / 134 Wärtsilä...

  • Page 51: Keyboard

    ELAC LAZ 5200 – Operating Instructions Operation 6.2.2 Keyboard            ESCAPE GAIN RANGE CURSOR PRINT MARKER ENTER Fig. 6.2: Keyboard Item Designation See section [CURSOR] keys  6.2.3.1   6.2.3.2 [ESCAPE] key ...

  • Page 52: Description Of The Operating And Display Elements

    ELAC LAZ 5200 – Operating Instructions Operation 6.2.3 Description of the Operating and Display Elements 6.2.3.1 [CURSOR] Keys The [CURSOR] keys • are used to navigate within the menu. CURSOR • are used to change parameters. Fig. 6.3: [CURSOR] Keys 6.2.3.2 [ESCAPE] Key and [ENTER] Key The [ESCAPE] key ...

  • Page 53: Confirmation Key

    ELAC LAZ 5200 – Operating Instructions Operation 6.2.3.5 Confirmation Key The confirmation key • is used to confirm alarms. Fig. 6.7: Confirmation Key 6.2.3.6 [GAIN] Keys The [GAIN] keys • are used for manual setting of the re- ception gain: GAIN –...

  • Page 54: Graphical User Interface

    ELAC LAZ 5200 – Operating Instructions Operation Graphical User Interface 6.3.1 Graphical User Interface – Overview     Fig. 6.12: Graphical User Interface Item Designation See section  6.3.2.1 Information field  Display area  6.3.2.2   6.3.2.3 Status bar ...

  • Page 55: Elements Of The User Interface

    Information Field The information field contains the digital depth display of the Navigation Echo Sounder ELAC LAZ 5200, as well as information on the transducer and the measuring parameters for the depth measurement. The appearance of the information field depends on the number of active channels. If only one channel is active, the whole width is used to display the information on this chan- nel (Fig.

  • Page 56: Tab. 6.5: Reliability Of The Depth Display

    ELAC LAZ 5200 – Operating Instructions Operation Description/ Item Designation see section Display of the installation position in trans- verse direction Transducer position (transverse  • Starboard direction) • Center • Port Digital display of the measured depth The colour of the figures indicates the re- Digital depth display ...

  • Page 57: Display Area

    ELAC LAZ 5200 – Operating Instructions Operation 6.3.2.2 Display Area  Fig. 6.15: Display Area (1-Channel Operation) The display area  is used for the visual display of the echo and sensor data. The ap- pearance of the display area depends on the number of active channels. If only one chan- nel is active, the whole width is used to display the echo for this channel (Fig.

  • Page 58: Fig. 6.17: Representation Of The Echo

    ELAC LAZ 5200 – Operating Instructions Operation 6.3.2.2.1 Representation of the Echo      Fig. 6.17: Representation of the Echo Item Designation Description Scale of the depth measuring Display of the depth in the selected unit  range Echo Graphic representation of the echo ...

  • Page 59: Fig. 6.18: Alarm Limits In The Display Area

    ELAC LAZ 5200 – Operating Instructions Operation 6.3.2.2.2 Representation of Alarm Limits   Fig. 6.18: Alarm Limits in the Display Area The set alarm limits are shown in the display area as white marks  on the scale of the depth measuring range.

  • Page 60: Status Bar

    ELAC LAZ 5200 – Operating Instructions Operation 6.3.2.3 Status Bar      Fig. 6.19: Status Bar Description/ Item Designation see section Display of the data in format "yyyy-mm-dd" Date   6.5.11.7 "Setting of the Date and Time" Display of the time (UTC) in format "hh:mm:ss UTC"...

  • Page 61: Description Of Non-Imo Mode

    ELAC LAZ 5200 – Operating Instructions Operation 6.3.2.4 Description of NON-IMO Mode NON-IMO mode is active if only a non-approved transducer (LSE 179) is in use. When NON-IMO mode is active, a corresponding message is displayed in the status bar  6.3.2.3. In NON-IMO mode, the depth information in NMEA data set DPT ...

  • Page 62: Tab. 6.8: Alarm Symbols

    ELAC LAZ 5200 – Operating Instructions Operation An overview of the possible alarm symbols and their meaning can be found in Table  6.8. Alarm symbol Description Unanswered alarms (flashing) Unconfirmed alarm • indicates that an alarm has been trig- gered, i.e. an alarm limit has been overrun.

  • Page 63: Description Of The Menus

    ELAC LAZ 5200 – Operating Instructions Operation Description of the Menus 6.4.1 “MAIN MENU”        Fig. 6.21: “MAIN MENU” Item Designation See section  6.4.2 Settings  Alarm setup  6.4.3  Network  6.4.4 ...

  • Page 64: Settings" Menu

    ELAC LAZ 5200 – Operating Instructions Operation 6.4.2 “SETTINGS” Menu      Fig. 6.22: “SETTINGS” Menu Description/ Item Designation see section Serves to select the display colour Colour palette   6.5.7.3. Serves to select the unit for the depth dis- Depth unit ...

  • Page 65: Alarm Setup" Menu

    ELAC LAZ 5200 – Operating Instructions Operation 6.4.3 “ALARM SETUP” Menu    Fig. 6.23: “ALARM SETUP” Menu Description/ Item Designation see section Shallow alarm Shallow water alarm Serves to activate and deactivate the Status shallow water alarm  6.5.6.1. ...

  • Page 66: Network" Menu

    Network settings for the Navigation Echo LAZ 5200 Sounder ELAC LAZ 5200 Serves to set the IP address of the Navi- gation Echo Sounder ELAC LAZ 5200  6.5.11.2.  Serves to set the network mask of the Mask Navigation Echo Sounder ELAC LAZ 5200 ...

  • Page 67: Serial Interfaces" Menu

    ELAC LAZ 5200 – Operating Instructions Operation 6.4.5 “SERIAL INTERFACES” Menu     Fig. 6.25: “SERIAL INTERFACES” Menu Description/ Item Designation see section RS422-1 Settings for the first serial port  RS422-2 Settings for the second serial port  RS422-3 Settings for the third serial port ...

  • Page 68: Interface Configuration

    ELAC LAZ 5200 – Operating Instructions Operation 6.4.6 Interface Configuration The following figure shows the sub-menu for one of the four serial interfaces. The sub- menus for the other interfaces have the same structure.        ...

  • Page 69: System Setup" Menu

    ELAC LAZ 5200 – Operating Instructions Operation 6.4.7 “SYSTEM SETUP” Menu       Fig. 6.27: “SYSTEM SETUP” Menu Description/ Item Designation see section Serves to configure the first receive chan- nel. Channel 1   6.5.11.1 "Configuration of a Channel" Serves to configure the second receive channel.

  • Page 70: Replay" Function

    ELAC LAZ 5200 – Operating Instructions Operation 6.4.8 “Replay” Function  Fig. 6.28: Replay Menu The "Replay" function serves to call up the history. Further information on the “Replay” function can be found in section  6.5.8 "“History” View". 6.4.9 “Auto Mode” Function ...

  • Page 71: Operation Of The System

    Operation Operation of the System 6.5.1 General The Navigation Echo Sounder ELAC LAZ 5200 has a keyboard that is used to • switch the device on and off; • navigate within the menus and to select and activate menu items;...

  • Page 72: Switching Off The Navigation Echo Sounder Elac Laz 5200

    The display colour is reset to the default setting "Day" at each reboot of the device. 6.5.4 Operation of the Menu The menu of the Navigation Echo Sounder ELAC LAZ 5200 is operated via the keyboard on the device. 6.5.4.1 Opening the Menu Proceed as follows to open the menu: 1.

  • Page 73: Navigate In Menu

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.4.2 Navigate in Menu Proceed as follows to navigate in the menu:   1. Open the menu  6.5.4.1. 2. Navigate to the desired menu item us-  ESCAPE CURSOR ing the [CURSOR] keys  (up or down).

  • Page 74: Changing A Parameter Value

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.4.3 Changing a Parameter Value Proceed as follows to change a parameter   value: 1. Open the menu  6.5.4.1.  ESCAPE CURSOR 2. Navigate to the corresponding menu item  6.5.4.2. ENTER 3.

  • Page 75: Closing The Menu

    ELAC LAZ 5200 – Operating Instructions Operation Unlocking sub-menu Proceed as follows to unlock a sub-menu:  1. Open the menu  6.5.4.1. 2. Navigate to the corresponding menu item  6.5.4.2. 3. Press the [ENTER] key to confirm the selection. –...

  • Page 76: Settings For The Depth Measurement

    If the depth measuring range is significantly larger than the actual depth, it is possible that the Navigation Echo Sounder ELAC LAZ 5200 does not find the sea bed and a yel- low question mark is displayed in the information field instead of the depth ( 6.3.2.1 "Information Field").

  • Page 77: Activating And Deactivating The "Auto Gain" Function

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.5.2 Activating and Deactivating the "Auto Gain" Function The "Auto Gain" function serves for automatic setting of the reception gain. The default setting is "On". Activating and deactivating the "Auto Gain" Function Proceed as follows to activate and deacti- vate the "Auto Gain"...

  • Page 78: Manual Setting Of The Reception Gain ("Gain")

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.5.3 Manual Setting of the Reception Gain ("GAIN") The reception gain can be set manually using the [GAIN] keys. When the lowest setting is selected, "Min Gain" appears in the display area. When the highest setting is selected, "Max Gain"...

  • Page 79: Activation Of The "Auto Mode" Function

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.5.4 Activation of the "Auto Mode" Function The "Auto Mode" function is used to automatically set the reception gain and the depth measuring range. When the function is activated, the reception gain and the depth mea- suring range are set once to values that provide the best possible display of the echo in the display area.

  • Page 80: Selecting The Active Channels

    Operation 6.5.5.5 Selecting the Active Channels Depending on the variant, the Navigation Echo Sounder ELAC LAZ 5200 has one or two channels. On systems with two channels, the channels can be activated or deactivated independently of one another. The number of active channels influences the display on the screen of the Navigation Echo Sounder ELAC LAZ 5200.

  • Page 81: Settings For The Depth Alarm

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.6 Settings for the Depth Alarm 6.5.6.1 Activating and Deactivating the Depth Alarm The depth alarm can be activated and deactivated for shallow water (Shallow alarm) and for deep water (Deep alarm). If one or both alarms are activated, the corresponding alarm limits are shown in the display area (...

  • Page 82: Setting The Alarm Limits

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.6.2 Setting the Alarm Limits The alarm limits for the shallow water alarm and the deep water alarm can be set in a range from 0 to 9999 m. The alarm limits of activated alarms are shown on the scale of the depth measuring range in the display area (...

  • Page 83: Activation Of The Test Alarm

    Navigation Echo Sounder ELAC LAZ 5200 and on all the interfaces (NMEA and relay). If the real alarm state changes during the test, the test alarm is automatically aborted.

  • Page 84: Settings For The Display

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.7 Settings for the Display 6.5.7.1 Selection of the Reference Point The following settings are available: Designation Description "Depth Below Keel" Display of the water depth under the keel (distance between the keel and the sea bed) "Depth Below Transducer"...

  • Page 85: Selection Of The Unit For The Depth Display

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.7.2 Selection of the Unit for the Depth Display The following settings are available: Designation Description Metres Feet Fathoms Tab. 6.18: Units for the Depth Display The default setting is "m" (metres). Selecting the unit for the depth display Proceed as follows to select the unit for the depth display: 1.

  • Page 86: Selection Of The Display Colour

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.7.3 Selection of the Display Colour The following settings are available: Designation Description Dusk Night B.Off Backlight Off Tab. 6.19: Display Colours The default setting is "Day". Selecting the display colour Proceed as follows to select the display co- lour: ...

  • Page 87: Setting Of The Background Lighting

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.7.4 Setting of the Background Lighting The background lighting of the display and keyboard can be set using the [DIM] keys. The brightness can be adjusted in ten levels. The default brightness after power-up is 50 %.

  • Page 88: History" View

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.8 “History” View The history allows the saved depth data to be displayed and printed out. Up to 168 hours of data can be saved.   Fig. 6.53: “History” View When the history is open, the display “REPLAY”  appears in the status bar. The record- ed echogram with any set marking lines ...

  • Page 89: Opening The History

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.8.1 Opening the History The history can only be opened when no depth alarm is active. In the event of an active depth alarm, the history is automatically closed. Proceed as follows to open the history: 1.

  • Page 90: Controlling The Cursor In The History

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.8.3 Controlling the Cursor in the History Pressing the [MARKER] key in the "History" view displays a cursor in the form of a ver- tical white line. The cursor can be moved to the left and right in the display area using the [CURSOR] keys (up or down).

  • Page 91: Exporting Of Recorded Data

    6.5.10 Exporting of Recorded Data The data recorded by the Navigation Echo Sounder ELAC LAZ 5200 can be stored on a USB stick. In order for data to be stored on the USB stick, the USB stick has to satisfy certain preconditions.

  • Page 92: Configuration

    6.5.11.1 Configuration of a Channel Depending on the variant, the Navigation Echo Sounder ELAC LAZ 5200 has one or two channels. The parameters for the channels are set during commissioning of the Naviga- tion Echo Sounder ELAC LAZ 5200 and may only be changed if modifications are made to the system (e.g.

  • Page 93: Fig. 6.60: Configuring The Channel

    ELAC LAZ 5200 – Operating Instructions Operation Configuring the channel Precondition: The "SYSTEM SETUP" menu is unlocked  6.5.4.4.  Proceed as follows to configure a channel: 1. Navigate to the menu MAIN MENU >  SYSTEM SETUP and select the de- ...

  • Page 94: Configuring The Network Settings For The Navigation Echo Sounder Elac Laz 5200

    Only IP addresses in the range 172.16.0.1 to 172.31.255.254 with the network mask 255.255.0.0 are conform to IEC 61162-450. If the IP address of the Navigation Echo Sounder ELAC LAZ 5200 is changed, the source ID for the TAG blocks also changes ( 9.2.3 "Calculation of the Source ID for TAG Blocks").

  • Page 95: Configuring The Network Settings Of The Printer

    ELAC LAZ 5200 – Operating Instructions Operation Setting the network mask of the Navigation Echo Sounder ELAC LAZ 5200 Precondition: The "NETWORK" menu is unlocked  6.5.4.4.  Proceed as follows to set the network mask: 1. Select menu item MAIN MENU > NET- WORK >...

  • Page 96: Configuring The Ethernet Interface

    4. Reboot the device  6.5.3. 6.5.11.4 Configuring the Ethernet Interface The Navigation Echo Sounder ELAC LAZ 5200 has an Ethernet interface via which NMEA data sets can be transmitted and received. The following transmission groups are available for the transmission: •...

  • Page 97: Fig. 6.66: Selecting Transmission Group (Output)

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.11.4.1 Selection of the Transmission Group for the Output The default setting is "NAVD". Select the transmission group for the output Precondition: The "NETWORK" menu is unlocked  6.5.4.4.  Proceed as follows to select the transmis- sion group: ...

  • Page 98: Fig. 6.68: Selecting User Groups

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.11.4.3 Selection of the User-Defined Transmission Groups for the Input The default setting for all user-defined Transmission Groups is "Off". Precondition: The "NETWORK" menu is unlocked  6.36.  Proceed as follows to select the user-de- fined transmission groups: ...

  • Page 99: Configuration Of The Serial Interfaces

    6.5.11.5 Configuration of the Serial Interfaces The Navigation Echo Sounder ELAC LAZ 5200 has four serial interfaces via which alarm information, depth information and information on the device status can be transmitted. Various NMEA data sets are available for transmission of the information.

  • Page 100: Fig. 6.69: Configuring The Interface

    ELAC LAZ 5200 – Operating Instructions Operation The serial interfaces are operated with 8-N-1 (8 data bits, no parity, 1 stop bit). This set- ting cannot be changed. Configuring the interface Precondition: The “SERIAL INTERFACES” menu is unlocked  6.5.4.4.  Proceed as follows to configure an inter- face: ...

  • Page 101: Setting The Draft

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.11.6 Setting the Draft Precondition: The "SYSTEM SETUP" menu is unlocked  6.5.4.4.  Proceed as follows to set the draft: 1. Select menu item MAIN MENU > SYS- TEM SETUP > Draft . ...

  • Page 102: Fig. 6.73: Setting The Time

    Synchronisation via NTP functions only if the time set on the Navigation Echo Sounder ELAC LAZ 5200 is roughly correct. If the set time deviates from the NTP time by more than 1000 seconds, the time cannot be synchronised via NTP. In this case the time must first be set more or less correctly by hand ...

  • Page 103: Fig. 6.74: Activate Synchronisation Of Date And Time

    ELAC LAZ 5200 – Operating Instructions Operation Activate synchronisation of date and time Precondition: The "SYSTEM SETUP" menu is unlocked  6.5.4.4.  Proceed as follows to activate the synchro- nisation of date and time: 1. Select menu item MAIN MENU > SYS- TEM SETUP >...

  • Page 104: Setting The Alarm Id

    ELAC LAZ 5200 – Operating Instructions Operation 6.5.11.8 Setting the Alarm ID The alarm ID is used when sending alarms via the interfaces of the Navigation Echo Sounder ELAC LAZ 5200. The following settings are available: Designation Description INS standard IEC 61924-2 uses the alarm ID "230"...

  • Page 105: Restoring The Factory Settings

    DBT, DPT, CSDS (RS422-1 to RS422-4) System setup > Channel 1 Along Across Center Model none Trim Tab. 6.25: Default Settings of the Navigation Echo Sounder ELAC LAZ 5200 TH 52 614 8001 EN Rev. A 09/2018 Wärtsilä ELAC Nautik GmbH 103 / 134...

  • Page 106: Fig. 6.76: Restoring Factory Settings

    Trim Blocking Depth System Setup > Date and Time Input (time synchronisation) Tab. 6.25: Default Settings of the Navigation Echo Sounder ELAC LAZ 5200 Restoring factory settings Precondition: The "SYSTEM SETUP" menu is unlocked  6.5.4.4.  Proceed as follows to restore the factory settings: 1.

  • Page 107: Troubleshooting And Remedy

     6.5.11.1 small 1) Internal software Reboot Navigation error Echo Sounder ELAC LAZ 5200; if Date and time are 2) Internal memory the fault persists, not displayed in full contact the manufac- the status bar turer’s service de-...
  • Page 108 Set correct GPS incorrect data sets (device ac- sets; reboot Naviga- sets cepts only valid tion Echo Sounder NMEA sets GGA ELAC LAZ 5200, if and GLL) necessary 3) Internal software Reboot Navigation error Echo Sounder Position data are ELAC LAZ 5200; if...

  • Page 109: Preventive Maintenance

    ELAC LAZ 5200 – Operating Instructions Preventive Maintenance Preventive Maintenance Section Safety Messages Section-specific safety precautions warn of specific dangers which can occur during all activities described in the following chapter or section. The safety precautions relate to all the following contents and are given once at the beginning of the chapter or section in order to avoid repetition.

  • Page 110: Cleaning Equipment And Cleaning Agents

    Maintenance intervals / maintenance plan Component Task section  8.4.1 LAZ 5200 Cleaning of the Naviga- • • tion Echo Sounder ELAC LAZ 5200 Transducer Cleaning the Transduc- •  8.4.2 108 / 134 Wärtsilä ELAC Nautik GmbH TH 52 614 8001 EN Rev. A 09/2018...

  • Page 111: Description Of The Maintenance Tasks

    Proceed as follows to clean and visually inspect the Navigation Echo Sounder ELAC LAZ 5200:: 1. Clean the Navigation Echo Sounder ELAC LAZ 5200 using a lint-free cloth and suit- able cleaning agent. 2. Clean the display of the Navigation Echo Sounder ELAC LAZ 5200 using a lint-free, anti-static cloth.

  • Page 112: Cleaning The Transducer

    ELAC LAZ 5200 – Operating Instructions Preventive Maintenance 8.4.2 Cleaning the Transducer Logistic Information Component Transducer Interval if necessary Operator On-board maintenance personnel Measure Cleaning / inspection Duration 0,5 h special tools/test- • Plastic spatula (---) ing instrument/ • Suitable cleaning tools (sponge, brush) (---) tools 1.

  • Page 113: Appendix

    ELAC Designation Document Number Connection plan for Navigation Echo Sounder VE 44 396 8000 ELAC LAZ 5200 Cable connection list for Navigation Echo Sounder KA 44 396 8000 ELAC LAZ 5200 Dimensional drawing for Navigation Echo Sounder MB 52 614 8001...
  • Page 114 LAZ 5200 Tab. 9.1: Further Applicable Documentation The listed further applicable documentation applies to all possible system configurations of the Navigation Echo Sounder ELAC LAZ 5200. Only the corresponding selection of documents is applicable for the installed system configuration.

  • Page 115: Description Of The Nmea Interfaces

    Appendix Description of the NMEA Interfaces The Navigation Echo Sounder ELAC LAZ 5200 has four serial interfaces and an Ethernet interface via which NMEA data sets with depth information and information on alarm sta- tuses and device status can be transmitted.

  • Page 116: Network Data Volume

    The Navigation Echo Sounder ELAC LAZ 5200 can receive 35 datagrams per second that are not intended for the Navigation Echo Sounder ELAC LAZ 5200 while it receives 50 % of the maximum datagram rate that are intended for and are processed by the Nav- igation Echo Sounder ELAC LAZ 5200.

  • Page 117: Calculation Of The Source Id For Tag Blocks

    The transmission of NMEA data sets must include the source ID in the respective TAG block. The source ID of the Navigation Echo Sounder ELAC LAZ 5200 is calculated from the IP address of the Navigation Echo Sounder ELAC LAZ 5200. The calculation formula is: AAA.BBB.CCC.DDD : DDD + (256 * (lower 4 bits of CCC + 16 * (LSB of BBB)))

  • Page 118: Tab. 9.4: Error Codes Of The Interfaces

    ELAC LAZ 5200 – Operating Instructions Appendix The following error codes are used in the error message test to provide further informa- tion: Designation Code Description undefined Unspecified error A datagram received via LWE contains no LWEHeaderInvalid header or an invalid header. Syntax of incoming data is faulty (e.g.

  • Page 119: Line Input

    Listener source identification: disabled This means that incoming LWE telegrams are only accepted if the source ID of the Nav- igation Echo Sounder ELAC LAZ 5200 is indicated as destination (d:) in at least one TAG block. Only the destination ID of incoming TAG blocks is used. All other parameters are ignored.

  • Page 120: Description Of The Nmea Data Sets

    This section describes the NMEA data sets that can be transmitted or received via the interfaces of the Navigation Echo Sounder ELAC LAZ 5200. The Navigation Echo Sounder ELAC LAZ 5200 transmits alarms either with the alarm ID "230" (according to IEC 61924-2) or with the alarm ID "3031" (according to IEC 62923-2) and the alarm title "Depth below keel alarm"...

  • Page 121: Acn (Alert Command)

    Annex J of IEC 61924-2. Alarm ID of the device The Navigation Echo Sounder ELAC LAZ 5200 uses alarms either with the  alarm ID "230" (according to IEC 61924-2) or with the alarm ID "3031" (ac- cording to IEC 62923-2).

  • Page 122: Alc (Cyclic Alarm List)

    Item Description Total number of data sets for this message (01 to 99)  With the Navigation Echo Sounder ELAC LAZ 5200, the total number is al- ways "01". Number of the data set (00 to 99)  With the Navigation Echo Sounder ELAC LAZ 5200, the number is always "01".

  • Page 123: Alf (Alert Sentence)

    Item Description Total number of ALF sets in this message  With the Navigation Echo Sounder ELAC LAZ 5200, the total number is al- ways "1". Number of the set  With the Navigation Echo Sounder ELAC LAZ 5200, the number is always "1".
  • Page 124 The alarm text can be expanded to include a description of the alarm. The alarm description is optional.  With the Navigation Echo Sounder ELAC LAZ 5200, the alarm text is always "Depth below keel alarm". The Navigation Echo Sounder ELAC LAZ 5200 transmits only an alarm title and no alarm description.

  • Page 125: Alr (Set Alarm State)

    Time (UTC) at which the alarm status changed  Alarm ID of the device The Navigation Echo Sounder ELAC LAZ 5200 uses alarms either with the  alarm ID "230" (according to IEC 61924-2) or with the alarm ID "3031" (ac- cording to IEC 62923-2).

  • Page 126: Dbt (Depth Below Transducer)

    DBT (Depth Below Transducer) DBT is an NMEA data set that indicates the water depth under the transducer. The data set is only transmitted by the Navigation Echo Sounder ELAC LAZ 5200. The data set contains the following information: $SDDBT,x.x,f,x.x,M,x.x,F*hh<CR><LF>...

  • Page 127: Ddc (Display Dimming Control)

    DDC (Display Dimming Control) DDC is an NMEA data set for setting the display colour of the Navigation Echo Sounder ELAC LAZ 5200. The data set is only received by the Navigation Echo Sounder ELAC LAZ 5200. The data set contains the following information: $--DDC,a,xx,a,a*hh<CR><LF>...

  • Page 128: Dpt (Depth)

    DPT is an NMEA data set that indicates the water depth. The indicated water depth de- pends on the distance between the transducer and the keel. The data set is only trans- mitted by the Navigation Echo Sounder ELAC LAZ 5200. The NMEA data set contains the following information: $SDDPT,x.x,-x.x,xx,*hh<CR><LF>...

  • Page 129: Gga (Global Positioning System (Gps) Fix Data)

    • 8 = Simulator mode Number of satellites used  Is not used by the Navigation Echo Sounder ELAC LAZ 5200. Horizontal DOP (Dilution of Precision)  Is not used by the Navigation Echo Sounder ELAC LAZ 5200. Antenna height above or below mean sea level (geoid) ...
  • Page 130 Appendix Item Description Unit of the antenna height, m  Is not used by the Navigation Echo Sounder ELAC LAZ 5200. Geoid separation  Is not used by the Navigation Echo Sounder ELAC LAZ 5200. Unit of the geoid separation ...

  • Page 131: Gll (Geographic Position - Latitude/Longitude)

    9.3.10 GLL (Geographic Position – Latitude/Longitude) GGA is an NMEA data set for transmitting position data. The data set is only received by the Navigation Echo Sounder ELAC LAZ 5200. The data set contains the following information: $--GLL,llll.ll,a,yyyy.yy,a,hhmmss.ss,A,a*hh<CR><LF>     ...

  • Page 132: Hbt (Heartbeat Supervision Sentence)

    • V = Device not operating normally.  The Navigation Echo Sounder ELAC LAZ 5200 outputs an "A" if at least one result has been obtained in echo sounding mode since the last heartbeat check. Message identification number from 0 to 9 that is assigned sequentially and ...

  • Page 133: Pelacsds

    In addition to the depth information, the data set contains informa- tion on the installation position of the transducer. The data set is only transmitted by the Navigation Echo Sounder ELAC LAZ 5200. In 2- channel mode, the data are transmitted alternately from the two channels. A distinction can be made between the channels using the transducer position.

  • Page 134: Zda (Time And Date)

    ZDA (Time and Date) ZDA is an NMEA data set for automatic synchronisation of date and time for a device. The data set is only received by the Navigation Echo Sounder ELAC LAZ 5200. The data set contains the following information: $--ZDA,hhmmss.ss,xx,xx,xxxx,xx,xx*hh<CR><LF>...

  • Page 135: Statistical Information On The Transmitted Data Sets

    ELAC LAZ 5200 – Operating Instructions Appendix 9.3.14 Statistical Information on the Transmitted Data Sets Max. block length Transmission For IEC 61162-1 For IEC 61162-450 Block interval (incl. trailing (incl. datagram <CR><LF>) overhead) 15 s 33 characters at changes 68 characters at changes 53 characters 1 to 15 s, depending...

  • Page 136: Alternative Network Function Block (Onf)

    Wireless LAN The Navigation Echo Sounder ELAC LAZ 5200 does not use Wireless LANs. Redundancy Redundancy can be created for the Navigation Echo Sounder ELAC LAZ 5200 in the fol- lowing ways: • Through the use of the 2-channel variant of the Navigation Echo Sounder ELAC LAZ 5200.

Table of Contents

Save PDF
