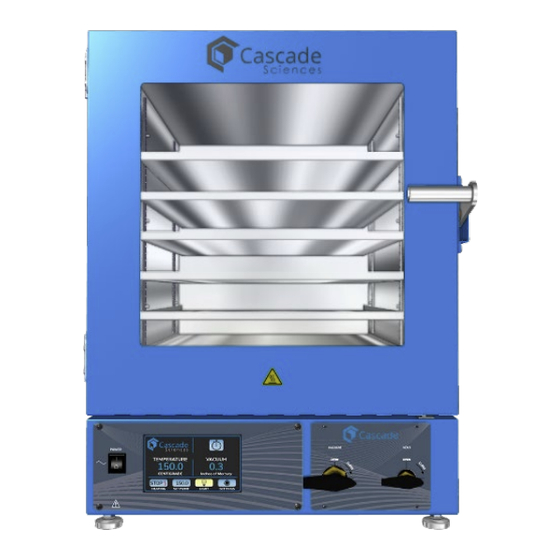

Cascade Sciences CVO-5 Installation And Operation Manual

Vacuum oven
Hide thumbs Also See for CVO-5:
Table of Contents

Advertisement

Quick Links

Vacuum Ovens
CVO-5 CVO-5-2 CVO-10
Installation - Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVO-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cascade Sciences CVO-5

Summary of Contents for Cascade Sciences CVO-5

  • Page 1 Vacuum Ovens CVO-5 CVO-5-2 CVO-10 Installation - Operation Manual...
  • Page 2 The CVO-10 and CVO5-2 require a 220 – 240-volt power supply outlet to plug into (NEMA 6-15R). The CVO-5 requires a standard 110 – 120-volt power supply outlet to plug into (NEMA 5-15R). Warning: This product contains chemicals, including Triglycidyl Isocyanurate, known to the State of California to cause cancer as well as birth defects or other reproductive harm.
  • Page 3 Vacuum Ovens CVO-10, CVO-5-2: 220 – 240 Voltage CVO-5: 110 – 120 Voltage Installation and Operation Manual Part Number (Manual): 4861833 Revision: July 15, 2019 P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS CERTIFICATIONS ............................... 7 UNIT SPECIFICATIONS ............................9 Temperature Performance ..............................9 Power ......................................11 Weight ....................................... 11 Dimensions ....................................11 Capacity ....................................12 Shelf Capacity by Weight ..............................12 INTRODUCTION ............................... 13 Read this Manual .................................. 13 Contacting Assistance ................................
  • Page 5 Cleaning and Disinfecting ..............................57 Maintaining Atmospheric Integrity ..........................58 Gaskets ....................................59 Electrical Components ............................... 60 Vacuum Pump Maintenance ............................60 REPLACEMENT PARTS ............................61 P a g e cascadesciences.com Tel. 503 847-9047...
  • Page 6 TABLE OF CONTENTS P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 7: Certifications

    CERTIFICATIONS This certificate satisfies NRTL safety requirements TÜV SÜD CUE Certificate Number: U8 064872 0095 These units are CUE listed by TÜV SÜD as vacuum ovens for appropriate professional, industrial, or educational use. TÜV SÜD America Inc. is an OSHA recognized NRTL and a Standards Council of Canada accredited certification body.
  • Page 8 CERTIFICATIONS P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 9: Unit Specifications

    EMPERATURE ERFORMANCE Operating Range Model Fahrenheit Celsius CVO-10 Ambient +26° to 302°F Ambient +14.4° to 150°C CVO-5 Ambient +26° to 302°F Ambient +14.4° to 150°C CVO-5-2 Ambient +26° to 302°F Ambient +14.4° to 150°C Temperature Uniformity Model @ 105°F @ 200°F @ 300°F...
  • Page 10 SPECIFICATIONS Temperature Stability Model @ 105°F @ 200°F @ 300°F CVO-10 ±0.2°F ±0.4°F ±0.2°F CVO-5 ±0.2°F ±0.4°F ±0.2°F CVO-5-2 ±0.2°F ±0.4°F ±0.2°F Model @ 40°C @ 90°C @ 150°C CVO-10 ±0.1°C ±0.2°C ±0.1°C CVO-5 ±0.1°C ±0.2°C ±0.1°C CVO-5-2 ±0.1°C ±0.2°C ±0.1°C...

  • Page 11: Power

    SPECIFICATIONS OWER Model AC Voltage Amperage Frequency Phase CVO-10 220 – 240 13.0 50/60 Hz CVO-5 110 – 120 14.0 50/60 Hz CVO-5-2 220 – 240 50/60 Hz EIGHT Model Shipping Net Weight CVO-10 775 lb / 352 kg 663.0 lb / 301.0 kg...

  • Page 12: Capacity

    SPECIFICATIONS APACITY Model Cubic Feet Liters CVO-10 263.0 CVO-5 127.0 CVO-5-2 127.0 HELF APACITY BY EIGHT Model Per Shelf Total CVO-10 50.0 lb / 22.7 kg 225.0 lb / 102.0 kg CVO-5 50.0 lb / 22.7 kg 225.0 lb / 102.0 kg CVO-5-2 50.0 lb / 22.7 kg...

  • Page 13: Introduction

    NGINEERING MPROVEMENTS Cascade Sciences continually improves all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications, and improvements may not be covered in this manual. If your unit’s operating characteristics or appearance differs from those described in this manual, please contact your oven dealer or customer service representative for assistance.

  • Page 14: Vacuum Supply Required

    ACUUM UPPLY EQUIRED Vacuum Pump CVO ovens require a vacuum supply source, which must be purchased separately from the oven. Please see the Cascade Sciences website for pumps and vacuum system accessories suitable for your application. cascadesciences.com/vacuum-pumps Building Vacuum Supply...

  • Page 15: Receiving Your Unit

    6. The unit should come with an Installation and Operation Manual. Carefully check all packaging for loose accessory items before discarding. Included Accessory Items CVO-10 Shelves Power Cord Vacuum Connection Kit CVO-5 & CVO-5-2 Shelves Shelf Clips Leveling Feet Power Cord, CVO-5-2 Power Cord, CVO-5 15 | P a g e cascadesciences.com...

  • Page 16: Orientation Images

    RECEIVING RIENTATION MAGES Oven Chamber Door CVO-10 Chamber Door Latch Door Gasket USB-A Port (On Left Side) Temperature Probe (Below the Shelf) Main Control Panel Backfill Intake Vent Control (controls backfilling of external atmosphere into the oven chamber) Caster with adjustable foot extended to prevent rolling 16 | P a g e cascadesciences.com...
  • Page 17 RECEIVING CVO-10 Back KF-25 Vacuum Port KF-25 Vacuum Port – connects for sensor probes to the vacuum pump USB-A Port Accessory Expansion Port Backfill Intake Vent Port ½-inch (12.7 mm) Vacuum Pump Power Outle Power Cord Inlet and Fuses *This power outlet is solely intended for powering a vacuum pump connected to the oven 17 | P a g e cascadesciences.com...
  • Page 18 RECEIVING CVO-5 and CVO-5-2 Chamber Liner Gasket Chamber Door Latch Temperature Probe Main Control Panel Vacuum and Backfill Valve Controls (Below the Shelf) 18 | P a g e cascadesciences.com Tel. 503 847-9047...
  • Page 19 RECEIVING CVO-5 and CVO-5-2 Back KF-25 Vacuum Por USB-A Port Intake Vent Port ¼-inch (6 mm) OD (Backfilling) Vacuum Port 3/8-inch (9.5 mm) OD Power Cord Inlet and Fuse(s) 19 | P a g e cascadesciences.com Tel. 503 847-9047...
  • Page 20 220 – 240 NEMA 6-20R CVO-5 and CVO-5-2 Vacuum Port 3/8” (9.5 mm) OD Intake Vent ¼” (6 mm) OD (Backfilling) Fuse Holder – CVO-5-2 only Accessory Power Cord Inlet with fuse Expansion Port 20 | P a g e cascadesciences.com...

  • Page 21: Recording Data Plate Information

    RECEIVING ECORDING LATE NFORMATION Record the unit model number and serial number below for future reference. Tech Support needs this information to provide accurate help during support calls and emails. • The data plate is located on the lower left side of the oven near the back. Data Plate Information MODEL NO: SERIAL NO:...
  • Page 22 RECEIVING 22 | P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 23: Installation

    INSTALLATION NSTALLATION ROCEDURE HECKLIST For installing the oven in a new workspace location. Pre-Installation  Verify a vacuum supply source suitable for your application is available and can be connected to the oven, page 14. See page 32 for the oven gas and vacuum port locations. •...

  • Page 24: Required Ambient Conditions

    INSTALLATION EQUIRED MBIENT ONDITIONS These units are built for use indoors at room temperatures between 15°C and 40°C (59°F and 104°F), at no greater than 80% Relative Humidity (at 25°C / 77°F). Operating outside these conditions may adversely affect the unit temperature performance. When selecting a location to install the unit, consider all environmental conditions that can adversely impact its temperature performance.

  • Page 25: Power Source Requirements

    Power Cord The unit must be positioned so that all operators can quickly unplug the power cord in the event of an emergency. The CVO-10 and CVO-5-2 are provided with a 250V, 15A, 8ft 2in (2.5m) NEMA 6-15P • power cord.

  • Page 26: General Power Safety

    Type Quantity Location CVO-10 T 12.5A 250V Power cord inlet and fuse holder adjacent to the cord inlet. CVO-5-2 T 10A 250V Power cord inlet and fuse holder adjacent to the cord inlet. CVO-5 T 16A 250V Power cord inlet CVO-10 Vacuum Pump Power Outlet Fuses: The CVO-10 ships with two 5x20mm fuses installed in fuse holders next to the vacuum pump outlet.

  • Page 27: Lifting And Handling

    INSTALLATION IFTING AND ANDLING The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow these guidelines when lifting the oven: Lift the oven only from its bottom surface. • Doors, handles, and knobs are not adequate for lifting or stabilization. •...

  • Page 28: Leveling

    INSTALLATION EVELING CVO-10 To lower a caster foot’s leveling footpad, turn the foot’s orange cog-style dial clockwise. To raise the footpad, turn the dial counterclockwise. All 4 footpads must be fully raised in order to safely move the oven. When installing in a workspace, the pads should be lowered far enough to prevent the oven from moving.

  • Page 29: Install The Oven

    INSTALLATION NSTALL THE Place the unit in a workspace location that meets the criteria discussed in the previous entries of the Installation section. Verify the oven stands level and does not rock. Adjust the leveling feet or casters as • needed.

  • Page 30: Install The Shelving

    INSTALLATION NSTALL THE HELVING CVO-10 Oven stand hidden for illustrative purposes only. 1. Install the first shelf in the bottom-most pair of shelf slides, just above the temperature sensor probe. A shelf must be installed here for the oven to accurately control the chamber •...
  • Page 31 INSTALLATION CVO-5 and CVO-5-2 The bottom of the lowest shelf must be placed close to the oven temperature probe. This is to ensure accurate temperature measurement. The probe extends out from the chamber back wall. Do not place the shelf in direct contact with the probe.

  • Page 32: Connect To The Vacuum Supply

    INSTALLATION ONNECT TO THE ACUUM UPPLY KF-25 CVO-10 Vacuum Connection Connect your vacuum supply to this KF-25 port. Connection Kit Pump Power Supply Optional: Connect the vacuum pump to the accessory power outlet on the back of the oven. The Pump power switch on the oven front control panel will turn the pump on and off.
  • Page 33 ½-inch OD vacuum port. Optional: The pump may be connected to the KF-25 port. Pump Vacuum Connection CVO-5 and CVO-5-2 units require a separate wall power source to power the vacuum pump. 33 | P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 34: Connect To A Gas Backfill Supply

    The maximum allowed gas backfill pressure is 15 psi. Intake Vent ½” OD – To the oven chamber CVO-10 Intake Vent Gas Supply CVO-5 & CVO-5-2 Intake Vent ¼” OD – To the oven chamber Intake Vent Gas Supply 34 | P a g e cascadesciences.com...

  • Page 35: Graphic Symbols

    GRAPHIC SYMBOLS The unit is provided with graphic symbols on its exterior. These identify hazards and adjustable components as well as important notes in the user manual. Symbol Definition Consult the user manual Consulter le manuel d'utilisation Caution hot surface Attention surface chaude AC Power Repère le courant alternatif...
  • Page 36 SYMBOLS 36 | P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 37: Control Overview

    CONTROL OVERVIEW CVO-10 Main Control Panel CVO-5s Main Control Panel Power Switch Controls all power to the oven and its systems. PUMP Pump Switch – CVO-10 This switch supplies power to the vacuum pump power outlet on the back of the CVO-10 oven. Touchscreen –...
  • Page 38 CONTROLS Home Screen Icons and Controls Heating Button Controls heating in the oven chamber. Tap START to begin heating to the current constant temperature setpoint. The Start button then becomes a Stop button. Tap STOP to turn off heating in the chamber. Heating Icon Pulses when the oven is pulsing power to the heating elements.
  • Page 39 CONTROLS CVO-10 Valves Vent Valve (Backfilling) Side Vacuum Valve Vacuum Valve Control The CVO-10 Vacuum Valve is located on the left side of the oven on a KF-25 vacuum port. This valve adjusts the level of vacuum draw applied to the oven chamber through the vacuum port. When open, this valve allows the connected vacuum supply to evacuate the oven •...
  • Page 40 In the closed position, the valve closes off the vacuum draw. • Vent Valve Control (Backfilling) This valve opens and closes the chamber inlet Vent Port on the back of the CVO-5. • When the control is in the open position, the evacuated oven chamber backfills with atmosphere.

  • Page 41: Operation

    OPERATION Safe operation of the oven is dependent on the actions and behavior of the oven operators. Operating personnel must read and understand the Safety Guidelines and Operating Precautions in this section prior to operating the oven. The operators must follow these instructions to prevent injuries and to safeguard their health, environment, and the materials being treated in the oven, as well as to prevent damage to the oven.

  • Page 42: Operating Precautions

    OPERATION Warning Hot Surfaces: These areas are marked with Hot Surface labels. Proper protective equipment should be employed to minimize the risk of burns. Avertissement Surface Chaude: Ces zones sont marquées avec des étiquettes de surface chaude. Un équipement de protection approprié devrait être utilisé pour minimiser le risque de brûlures. PERATING RECAUTIONS •...

  • Page 43: Theory Of Operation

    OPERATION HEORY OF PERATION Vacuum Vacuum is supplied by an external vacuum supply (a pump or building system) connected to the oven vacuum port. Vacuum levels obtained in the oven chamber are dependent on pump type and performance, valve settings, and the nature of the application or process, including the volume of materials outgassed.
  • Page 44 OPERATION Heating Control The oven controller monitors the chamber shelving temperature using a thermocouple temperature probe extending into the chamber from the back wall. In a vacuum environment, the probe senses the temperature of the shelf placed immediately above it. Placement of a shelf in close proximity to, but not in contact with the probe, is crucial for accurate measurement of the shelving temperature in the vacuum chamber.

  • Page 45: Put The Oven Into Operation

    OPERATION Note: There may be light smoking from protective oil coatings on the elements when running the oven near its maximum temperature for the first time. UT THE VEN INTO PERATION Verify all required procedures in the Installation chapter have been completed before beginning. Plug In the power cord Attach the power cord that came with the unit to the power inlet receptacle on the back of the oven.
  • Page 46 OPERATION Continued from the previous page. Verify the vacuum system integrity Evacuate the oven chamber for a minimum of 10 minutes to verify the integrity of the vacuum supply system. CVO-10: See page 48. • 10 Minute Minimum CVO-5s: See page 49. •...

  • Page 47: Change The Unit Of Measurement

    OPERATION HANGE THE NIT OF EASUREMENT Change the Homepage Temperature and Vacuum display values. 1. Tap the Settings button on the Homepage. 2. Tap the Select Units button in the Settings page. 3. Select the desired units of measurement for both the temperature and vacuum display values. Vacuum Pressure Temperature 4.

  • Page 48: Cvo-10 - Pumping Down And Backfilling

    OPERATION CVO-10 – P UMPING OWN AND ACKFILLING Put the oven chamber under vacuum and hold for at least 10 minutes when first putting the oven into operation in a new location to verify the integrity of the vacuum supply system. The oven chamber must be drawn down to at least 26inHg (500 torr) in order to seal.

  • Page 49: Cvo-5S - Pumping Down And Backfilling

    OPERATION CVO-5 – P UMPING OWN AND ACKFILLING Put the oven chamber under vacuum and hold for at least 10 minutes when first putting the oven into operation in a new location to verify the integrity of the vacuum supply system. The oven chamber must be drawn down to at least 26inHg (500 torr) in order to seal.

  • Page 50: Set The Temperature Setpoint

    OPERATION Note: The oven temperature probe must be in close proximity to a shelf to obtain an accurate display reading. See page 30 for the CVO-10 or page 31 for the CVO-5s. ET THE EMPERATURE ETPOINT Enter the target temperature of your constant temperature baking application. 1.

  • Page 51: Heat The Oven

    OPERATION EAT THE After saving a constant temperature setpoint, the oven is ready to begin heating. To heat the oven: 1. Tap the START Heating button. Oven heating to 150°C A STOP button replaces the START button. • The heat icon on the STOP button blinks on and off as the oven powers the heating •...

  • Page 52: Using The Timer

    OPERATION Note: Starting the timer does not turn on oven heating. Heating must be separately launched by operator. SING THE IMER The oven can be set to heat for a limited duration. At the end of this timed period, the oven automatically stops heating.

  • Page 53: Backfilling Temperature Display Pause

    A USB-A data port is located on the front, left side of the oven. This port is used for updating the oven controller software. Accessory Expansion Port Th 24-volt expansion port powers and supports accessories offered by Cascade Sciences. Only plug in devices specifically authorized for this port. 53 | P a g e cascadesciences.com...

  • Page 54: Set The Date And Time

    OPERATION ET THE ATE AND The date and time function is intended to support future data logging and export features. 1. Tap the Settings button on the Homepage. 2. Tap the Set Date and Time button. 3. Adjust the oven date and time to your local date and time. 4.

  • Page 55: Cvo-10 - Shelf Spring Color Change

    OPERATION CVO-10 – S HELF PRING OLOR HANGE The copper shelf springs will permanently change color from copper to a silver or platinum appearance when the oven is run at temperature. This is a normal process of oxidation (and some annealing) and does not affect the oven temperature performance.
  • Page 56 OPERATION 56 | P a g e cascadesciences.com Tel. 503 847-9047...

  • Page 57: User Maintenance

    USER MAINTENANCE Warning: Disconnect this unit from its power supply prior to performing maintenance or services. Avertissement: Débranchez cet appareil de son alimentation électrique avant d'effectuer la maintenance ou les services. LEANING AND ISINFECTING If a hazardous material or substance has spilled in the oven, immediately initiate your site’s Hazardous Material Spill Containment protocol.

  • Page 58: Maintaining Atmospheric Integrity

    MAINTENANCE Cleaning 1. Disconnect the unit from its power supply. 2. Remove any removable chamber accessory items, such as shelving, if present. 3. Use 99% isopropyl alcohol to clean chamber surfaces and shelving. Apply using lint-free wipes. 4. Take special care when cleaning around temperature sensor probes. Do not clean the probes. 5.

  • Page 59: Gaskets

    MAINTENANCE ASKETS The ovens come with cured silicone gaskets that help seal the chamber door when under vacuum. The gaskets are rated to 446°F (230°C) and are vulnerable to acids and solvents. See the Replacement Parts chapter at the end of this manual to order replacement gaskets. CVO-10 The door gasket most typically needs to be replaced due to cuts and nicks.

  • Page 60: Electrical Components

    MAINTENANCE LECTRICAL OMPONENTS Electrical components do not require maintenance. If the unit electrical systems fail to operate as specified, please contact Technical Support for assistance. ACUUM AINTENANCE Vacuum pumps are high wear equipment and require replacement of seals and diaphragms at least once per year.

  • Page 61: Replacement Parts

    Description Parts Number Adjustable Caster Foot for CVO-10, 1 each (requires 4) 1000520 Adjustable foot for CVO-5 and CVO-5-2, 1 each (requires 4) 2700506 Fuse CVO-10 T12.5A 250V, 5x20mm 2 fuses are required to operate the oven, with one in the power inlet and the other in an adjacent fuse holder.
  • Page 62 PARTS Description Parts Number Shelf clips for CVO-5 and CVO-5-2 ovens Requires 4 clips per shelf 1250510 Power cord, CVO-5-2 and CVO-10 250 Volt, 15Amp, 8.2 feet (2.5m), NEMA 6-15P 1800539 Power cord, CVO-5 125 volt, 15Amp, 9ft 5 in (2.86m), NEMA 5-15P...
  • Page 63 PARTS 63 | P a g e cascadesciences.com Tel. 503 847-9047...
