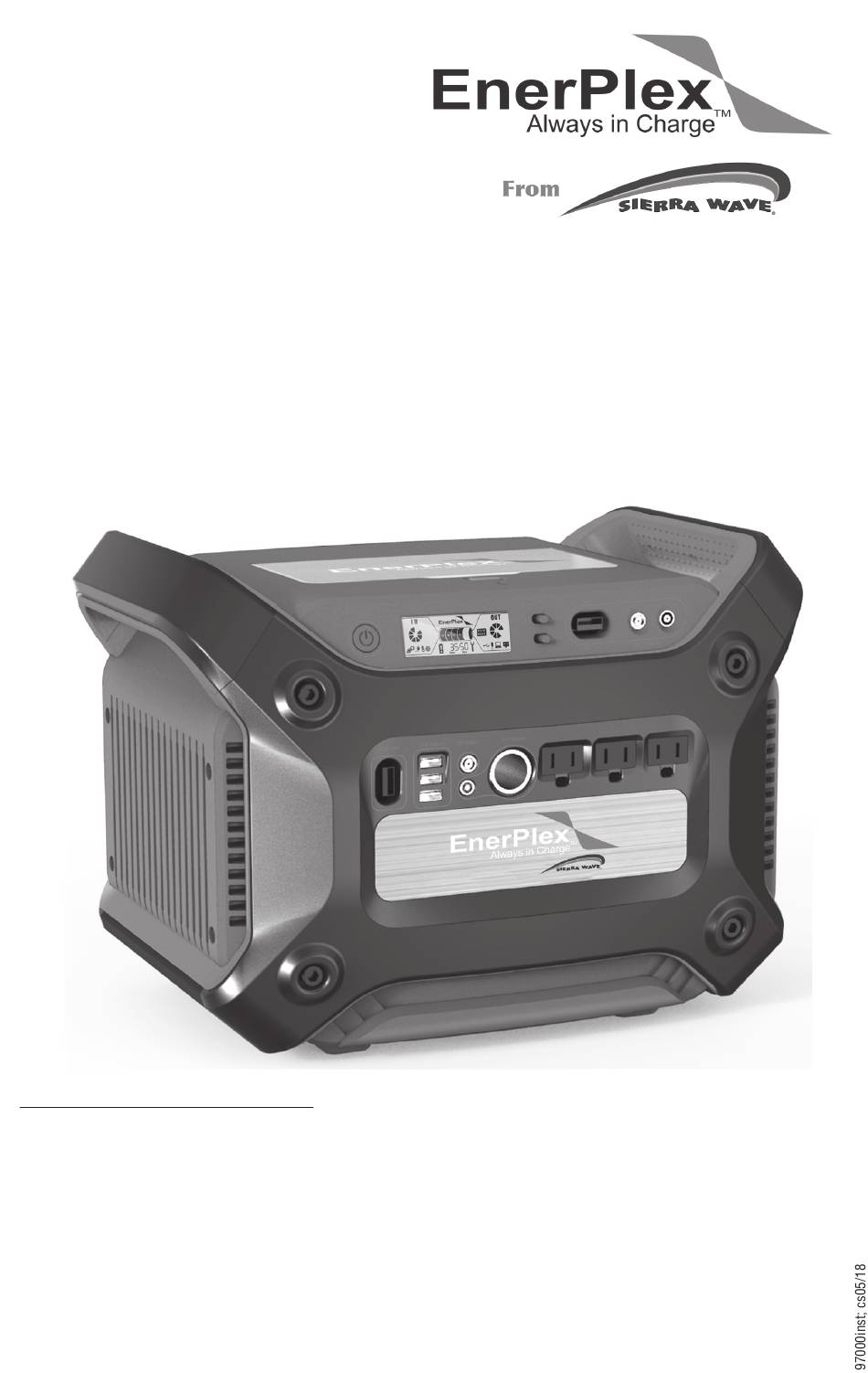

Page 1: Table Of Contents
FCC Requirements Parts Identification Set-Up Instructions Charging & Storage Using Power Shutdown & Storage Frequently Asked Questions Care & Maintenance Troubleshooting Specifications AERVOE INDUSTRIES, INC. Typical Charging Times Gardnerville, NV 89410 • 1-800-227-0196 Typical Operating Times www.aervoe.com • mailbox@aervoe.com Warranty... -
Page 2: Important Warnings & Safeguards
Charge the internal battery before using for the first time. See charging information below. WARNING: Do not disassemble unit. There are no user serviceable parts. Contact Aervoe Industries, Inc. at 800-227-0196 for all repairs. Failure to do so can cause injury and voids the warranty. -
Page 3: Fcc Requirements
Stop use immediately if you notice a leak or damage to the battery or unit. If it malfunctions, contact Customer Service at 800-227-0196. • Battery SDS is available online at www.aervoe.com • Follow your local battery disposal regulations Battery SDS is available online at www.aervoe.com. -
Page 4: Parts Identification
PARTS IDENTIFICATION INPUT & OUTPUT IDENTIFICATION 12V DC Inputs POWER ON/DC ON/AC LCD Display 12V Output USB Outputs 19V Outputs 12V Outputs 110V-AC OUTLETS FRONT INPUT BACK INPUT Power Button 7.4mm DC Inputs LCD Display Anderson DC Input AC/DC ON/OFF Switches 12V DC Inputs Anderson DC Input 7.4mm DC Inputs... - Page 5 ACCESSORIES M9 Tip for Dell M20 Tip for HP M9 Tip M20 Tip for Dell for HP M9 Tip for Dell M9 Tip M11 for Thinkpad M20 Tip for HP M11 Tip for Generatr for Thinkpad M11 for Thinkpad M20 Tip for HP 110V AC Wall Adapter M11 for Thinkpad Use the corresponding tips with the laptop tip cable...
- Page 6 The unit is malfunctioning, disconnect all loads and reset the unit by powering it off. Repair Indicator Requires repair, contact Aervoe Industries, Inc. for assistance. Numeric Display Shows the approximate hours and minutes left at the current discharge rate. Outputs Half Power Output The unit has entered Safe Mode, disconnect all loads and reset by powering it off.
-
Page 7: Set-Up Instructions
SET-UP INSTRUCTIONS Fuse Installation (included) and Power Check Make sure the unit is off and everything is unplugged. Open the fuse compartment on the back of the unit. Fuses are provided. Firmly insert the 15A fuse first into the right slot and then the 35A fuse into the left slot (see diagram). - Page 8 12V DC Vehicle Charging (Only use the 12V to Anderson cable included. Using other adapters can cause damage to the unit.) Charge the EnerPlex from any vehicle with a 12V power receptacle. CAUTION: To prevent a dead vehicle battery, keep your vehicle running while charging. Connect the DC plug into your 12V DC vehicle power receptacle and the red/black Anderson connectors into 1 of the 2 inputs (there is one on the front and one on the back).
-
Page 9: Using Power
• See troubleshooting section for other battery fault information. CAUTION: DO NOT use with any life support system. Aervoe assumes no liability, written or implied, when used with medical equipment. AC Output – includes a pure sine wave inverter. Do not exceed 1000W or 9A total combined devices usage. -
Page 10: Shutdown & Storage
No. There are no user replaceable parts in this unit. Do not open the unit and attempt to replace the battery or electronics under any circumstances. Injury, electric shock, and damage to the unit could occur. Doing so will void the warranty If you have questions, please contact Aervoe Industries, Inc. at 800-227-0196. -
Page 11: Care & Maintenance
CARE AND MAINTENANCE • Charge and use routinely as described • Dust with a clean dry cloth to prevent dust and dirt from building up on the vents and power inputs and outputs. Do not use water, detergents, or other chemicals to clean the unit •... -
Page 12: Specifications
SPECIFICATIONS BATTERY TYPE Samsung lithium (NMC), 1231Wh/14.8V (83.2Ah) regulated BATTERY LIFESPAN 300+ cycles (depending on charge and use) REPLACEABLE FUSE Available at automotive supply stores: Main Fuse, 35A cartridge Display Fuse, 15A cartridge 120V AC ADAPTER Input: 100-240V, 50/60Hz, 1.6A Meets CE, C-UL &... -
Page 13: Typical Charging Times
TYPICAL CHARGING TIMES 120V AC/10A Wall Charger 14-16 hours 12V DC/10A Vehicle Charger 16-18 hours 120-Watt Solar Collector #9590 (7A max) 14-18 hours The EnerPlex is rated in watt-hours (Wh). For example, if you connected a television drawing 100 watts of power you could operate it continually for 10 hours if the battery were completely full (1000Wh EnerPlex / 100W device = 10 hours). -
Page 14: Warranty
There is no warranty for buyer’s remorse. Because Aervoe cannot control Buyer’s handling or use of product, Aervoe makes no warranty expressed or implied when not used or stored in accordance with directions. Aervoe shall not be liable for cost of labor, incidental or consequential damages, and this warranty is limited to replacement or repair of product or credit of purchase. - Page 15 DETACH AND MAIL TO: AERVOE INDUSTRIES, INC. P.O. BOX 485 GARDNERVILLE, NV 89410 Name Address City Email Address How did you hear about our products? Model # and Product purchased Date of purchase Purchased from Please send me additional information on other products...
