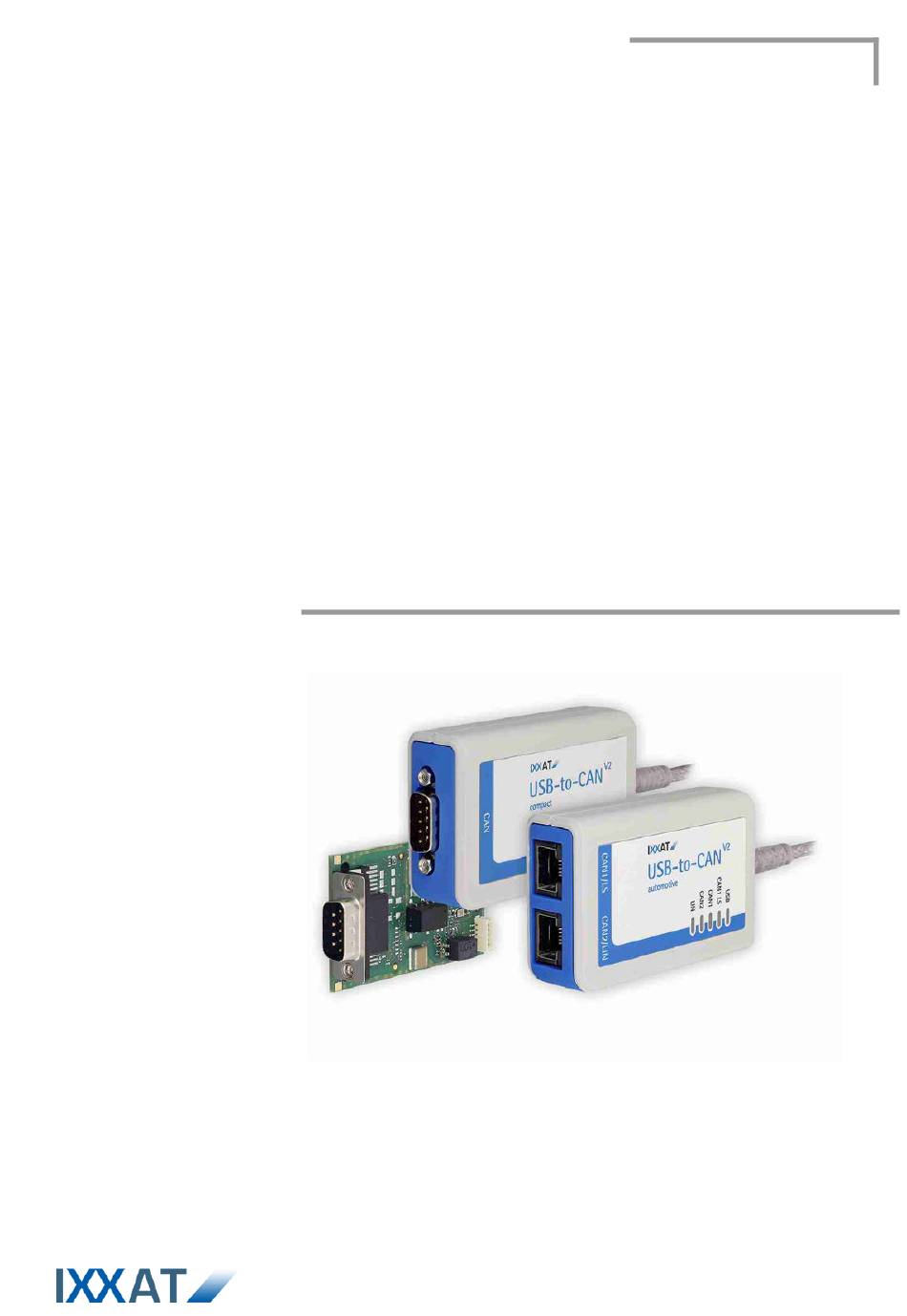

- Page 1 Hardware Manual USB-to-CAN compact embedded automotive professional USB CAN Interface...
- Page 2 Fax: +49 751 56146-29 Internet: www.ixxat.com E-Mail: info@ixxat.com Support In case of unsolvable problems with this product or other IXXAT products please contact IXXAT in written form: Fax: +49 751 56146-29 E-Mail: support@ixxat.de Further international support contacts can be found on our webpage www.ixxat.com...
-
Page 3: Table Of Contents
5.2 Support .................. 13 5.3 Returning hardware .............. 13 5.4 FCC Compliance ..............13 5.5 Disposing of old equipment ..........13 5.6 Information on EMC .............. 14 5.7 EC Declaration of Conformity ..........14 Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0... -
Page 5: Introduction
Introduction 1 Introduction By purchasing the IXXAT USB-to-CAN interface, you decided for a high- quality electronic component developed and manufactured according to the latest technological standards. This manual describes the USB-to-CAN compact, USB-to-CAN embedded, USB-to-CAN professional as well as the USB-to-CAN automotive CAN in- terface. -
Page 6: Installation
For installation of the VCI V3 driver on Windows comuters, please refer to the VCI installation manual. IXXAT also offers the ECI driver for Linux and real-time operating systems for many CAN interfaces. Information on supported operating systems and inter- faces is available on the IXXAT webpage http://www.ixxat.com. -
Page 7: Connectors And Displays
For best noise immunity, the shields of the CAN cables must directly connect- ed to ground. The pin assignment of the connectors CAN interfaces are shown below. 3.2.1 USB-to-CAN compact Pin No. Signal Sub-D9 RJ45 CAN-High CAN-Low 3, 7 Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0... -
Page 8: Professional
Two RJ45 to Sub-D9M adapter cable will be delivered with the USB-to-CAN automotive. The cable can be ordered separately too using order number 1.04.0074.0100. Picture 3-1: adapter cable RJ45 / Sub-D9M 1.04.0074.01000 see chapter 4.2 Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0... -
Page 9: Displays
CAN communication, CAN controller in error of "Error passive" state. CAN communi- state cation is further possible. • The CAN controller is in "Bus Off" state. Bus Off No CAN communication possible Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0... -
Page 10: Can1 Ls Led
• With each LIN message the LED is trig- green/gre LIN communication en flash gered • On transmission or reception of a LIN red/red LIN communication with flash errors message an error was detected Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0... -
Page 11: Notes
CAN bus termination There is no bus termination resistor for the CAN bus in the CAN interface inte- grated. IXXAT offers a bus termination resistor as a feed through connector as accessory (order number 1.04.0075.03000) Picture 4-1: CAN bus termination resistor 1.04.0075.03000... -
Page 12: Appendix
Dimension: 80 x 50 x 22 mm Weight: approx. 100 g Operating temperature range: -20°C - +70°C Storage temperature range: -40°C - +85°C Relative humidity: 10 - 95%, non condensing Protection class: IP40 Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0... -
Page 13: Support
Disposing of old equipment This product is covered by ElektroG (WEEE) and has to be disposed accord- ing to ElektroG (WEEE) separately. Products of IXXAT, which are covered by ElektroG, are exclusively for commercial use and marked with the symbol of the crossed-out garbage can. -
Page 14: Information On Emc
EC Declaration of Conformity EMC compliance testing has been conducted to the Electromagnetic Compati- bility Directive 2004/108/EC. For more information please consult the EMC compliance document on the support pages on IXXAT website. Copyright IXXAT Automation GmbH USB-to-CAN Manual, V1.0...
