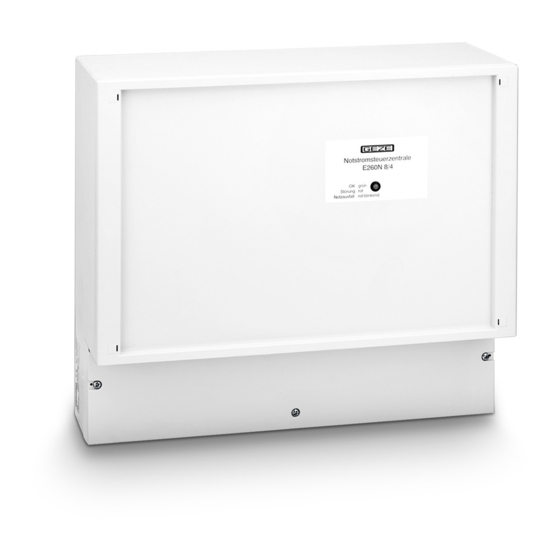

RWA-Emergency Power Control System
Installation and Operating Manual
E260 N2/N4/N8/N12
GB
Id. No. 113959-04
DE
Material-Nr. 104361
FR
N° de suite 113960
IT
N. mat. 113961

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E 260 N4 and is the answer not in the manual?

Questions and answers

Summary of Contents for GEZE E 260 N4

  • Page 1 RWA-Emergency Power Control System E260 N2/N4/N8/N12 Installation and Operating Manual Id. No. 113959-04 Material-Nr. 104361 N. mat. 113961 N° de suite 113960...
  • Page 2 Symbols and conventions Danger and information symbols DANGER Indication of danger which can lead to death or injury. Indication of danger which can lead to material damages. Tips for optimum working. Conventions within the text • Enumeration mark ➮ Introduces an action to be executed Multi-stage activities are numbered: 1.
  • Page 3: Table Of Contents

    Contents Operation ......................4 Safety instructions for the operator and the user ............ 4 Overview of the RWA-Emergency Power Control System ........5 1.2.1 The electrical components of the RWA-Emergency Power Control System ... 6 1.2.2 Components for ventilation operation ..............8 1.2.3 Components used in the case of alarm ..............
  • Page 4: Operation

    Maintenance As needed - but at least once a year - you must have a specialist approved by GEZE inspect the system and perform any necessary maintenance. You will receive a written report regarding the inspection. The two batteries must be replaced after no...
  • Page 5: Overview Of The Rwa-Emergency Power Control System

    Overview of the RWA-Emergency Power Control System Function The RWA-Emergency Power Control System controls the extraction of smoke and heat (RWA) from staircases, factory halls, etc. Windows and smoke extraction vents are controlled for normal ventilation operation. If a fire alarm is triggered, the windows and smoke extraction vents are automatically opened or closed, depending on the configuration of your RWA-Emergency Power Control System.
  • Page 6: The Electrical Components Of The Rwa-Emergency Power Control System

    1.2.1 The electrical components of the RWA-Emergency Power Control System E 260 N2 E 260 N4...
  • Page 7 E 260 N8 E 260 N12 1 Main circuit board 2 Batteries 3 Fuses 4 Terminal compartment 5 Transformer...
  • Page 8: Components For Ventilation Operation

    1.2.2 Components for ventilation operation Drives The drives open and close windows and/or smoke extraction vents. Ventilator switches The user can operate the window drives using the ventilator switches. Timer switch If a timer switch is connected, windows can be opened or closed at preset times. Rain/wind sensor If a rain/wind sensor is connected, all windows will be closed in the event of rain or strong wind.
  • Page 9: Ventilation Operation

    Smoke sensor and heat differential If a smoke sensor detects smoke or a heat differential sensor registers a sharp incre- sensor ase in temperature, the fire alarm is triggered. See Section 1.4, Fire alarm, for details on how to clear the alarm. Alarm signal (optional) The RWA-Emergency Power Control System transmits an external alarm signal if the fire alarm is triggered.
  • Page 10: Fire Alarm

    Rain/wind sensor If a rain/wind sensor is installed, the windows will close automatically in the event of rain or strong wind. As long as the rain/wind sensor is active, the windows cannot be opened with the ventilator switch. In the event of a fire alarm, the windows will also open when the rain/wind sensor is active.
  • Page 11 Stopping the fire alarm You can clear the alarm condition in two ways: • Reset the RWA-Emergency Power Control System. • Reset any RWA switch. When the alarm condition has been cleared, the audible alarm signal stops and the ventilator switches are again useable. GEFAHR If the system is not fully reset (the red fire alarm LED is still lit), the system will not function properly if a new alarm is triggered!
  • Page 12 Reset the RWA-Emergency Power Control System DANGER Risk of death through electrical shock! ➮ Do not touch anything inside the control panel case of the RWA-Emergency Power Control System except the white Reset button (1). ➮ Relock the control panel case immediately after use. 1.
  • Page 13: Power Outage And Fault

    ➮ Check the power supply to which the RWA-Emergency Power Control System is connected and, if necessary, replace the fuse. If the power supply is in order: ➮ Contact a GEZE-approved specialist. Fault In the event of a fault with an LED illuminated yellow, work is required in the control panel case.
  • Page 14: What To Do When

    What to do when …? Problem Cause Action Yellow signal lamp is Fault Contact a GEZE-approved illuminated on the RWA- specialist. Emergency Power Control System. Yellow signal lamp is Mains power Check the power supply to flashing on the RWA-...
  • Page 15: Installation And Maintenance

    When replacing the batteries, use only batteries recommended by GEZE. Disclaimer If any changes are made to the system by an unauthorised person, or if components other than GEZE original parts or GEZE recommended batteries are used, GEZE shall not be liable for any resultant damage.
  • Page 16: Storage

    Storage Storing the RWA-Emergency Power • Store the RWA-Emergency Power Control System in a protected area. Control System • If the unit has already been in use: ➮ Disconnect the RWA-Emergency Power Control System from the mains and remove the battery fuse (see Section 2.5.4, Electrical connection). Storing lead gel batteries The lead gel batteries will discharge automatically when stored.
  • Page 17: Components Of The Rwa-Emergency Power Control System

    Components of the RWA-Emergency Power Control System The RWA-Emergency Power Control System controls the extraction of smoke and heat (RWA) from staircases, factory halls, etc. Windows and smoke extraction vents are controlled for normal ventilation operation. In the event of a fire alarm, the windows are automatically opened or closed.
  • Page 18 Maximum output Maximum number of current to the drives ventilator groups E 260 N2/1 2.0 A * E 260 N4/1 to E 260 N4/2 4.0 A 1–2 E 260 N8/1 to E 260 N8/4 7.5 A 1–4 E 260 N12/1 to E 260 N12/2 12 A 1–2...
  • Page 19: Connection Options And Configurations

    Connection options and configurations Before the installation, plan all the connections and the configuration of the RWA- Emergency Power Control System. The various options are explained in the following sections. Discuss the design with the operator. Afterwards, complete the configuration table found in the Appendix.
  • Page 20: Alarm Group

    Power Control System. RWA switch A maximum of four (E 260 N2/1) or ten (E 260 N4/1 to N12/2) RWA switches of type FT 4/24 V DC can be connected in line to the alarm group. With the exception of the last RWA switch, remove both terminating resistors from each RWA switch.
  • Page 21: Ventilator Groups

    Setting the direction the drives should You can configure the direction that the drives will run in the event of an alarm: run when the alarm is triggered ➮ The drive direction is set with Jumper XB1 at the back of the main circuit board. E 260 N2/N4/N8/N12 Jumper Position...
  • Page 22 E 260 N2 E 260 N4...
  • Page 23 E 260 N8 E 260 N12...
  • Page 24 LED, types E 50/1 or E 50/3 Timer switch As an option, a timer switch - such as the GEZE 2-channel timer switch - can be con- nected to each ventilator switch line. The timer switch must be set to pulse rather than continuous signal.
  • Page 25: External Equipment

    2.4.3 External equipment You can connect external equipment to the RWA-Emergency Power Control System. This equipment can then either send signals to the RWA-Emergency Power Control System or receive signals from it. • Rain/wind sensor (floating (potential-free) make contact) (1) •...
  • Page 26 Connecting alarm contacts for Alarm, There are 3 floating (potential-free) alarm contacts for output signals: Window Open and Fault Alarm, Window Open (optional, cannot be retrofitted) and Fault. You can connect signal lamps, audible alarms or alarm signal lines to the fire station to these contacts.
  • Page 27: Complete The Configuration Table

    2.4.4 Complete the configuration table Once you have discussed the configuration with the operator: ➮ Complete the configuration table found in the Appendix. 2.4.5 Summary of the jumper settings Jumper XB1 on the main circuit board Jumper Position Function "Auf" With alarm from the alarm group: (red) (open)
  • Page 28: Installation

    Mount the RWA-Emergency Power Control System on a vertical wall, in such a manner that the terminal compartment (1) and the cable feed (2) are at the bottom. Drilling dimensions E 260 N2 E 260 N4 E 260 N8/E 260 N12 Dimension A Dimension B...
  • Page 29: Configuration

    2.5.3 Configuration DANGER Risk of death through electrical shock! Damage to sensitive components! ➮ Disconnect the mains supply for the RWA-Emergency Power Control System and take precautions that it is not reconnected while you are working. ➮ Remove the battery fuse. Before carrying out any configuration changes or expansions, you must isolate the RWA-Emergency Power Control System from the mains power and remove the bat- tery fuse.
  • Page 30 Connecting components 1. Break out the openings in the case required for the lines. 2. Insert cable glands (2) (not included in the delivery) to achieve the required protection type (see table below). 3. Feed the cables through the case and the cable glands into the RWA-Emergency Power Control System.
  • Page 31 Things that are often forgotten • The two terminating resistors should only be left in the last RWA switch on the line. • Install a terminating resistor in the last smoke sensor or heat differential sensor on the line. • Install a terminating resistor at the "External alarm"...
  • Page 32: Function Test

    Function test Before handing over the system, you must test all the functions of the RWA-Emer- gency Power Control System. These tests must also be performed during the annual maintenance work. DANGER Risk of death through electrical shock! ➮ Before touching terminals or mountings, switch off the mains circuit and take precautions to prevent others from switching it back on.
  • Page 33: Operating States And Faults

    Operating states and faults The operating state and any faults are shown on the 7-segment display of the RWA- Emergency Power Control System. If several states or faults occur at the same time, the display will cycle through them one per second. Operating state codes The operating state codes provide information regarding the various alarm states of the RWA-Emergency Power Control System and about the rain/wind sensor.
  • Page 34: What To Do When

    What to do when …? Problem Cause Action Yellow signal lamp is illuminated There are many possible causes. Evaluate the operating state and fault codes on the RWA-Emergency Power on the 7-segment display. Control System. Yellow signal lamp on the RWA- Mains connection broken.
  • Page 35: Testing And Maintenance

    Testing and maintenance The RWA-Emergency Power Control System must be checked annually by a GEZE- approved specialist. The operator must be given a written report covering the tests and maintenance done. DANGER Risk of death through electrical shock! ➮ Before beginning maintenance work on the RWA-Emergency Power Control System, switch off the mains supply and take precautions to prevent others from switching it back on.
  • Page 36: Appendix

    • Cables fed from below • Colour: grey Dimensions Width (mm) Height (mm) Depth (mm): E 260 N2/1 E 260 N4/1-2 E 260 N8/1-4 362,4 318,5 130,5 E 260 N12/1-2 362,4 318,5 130,5 Ambient temperature –5 °C to 40 °C, environmental protection type III...
  • Page 37: Fuses

    Fuses Fused with either glass cartridge 5 x 20 mm (AT) fuses or automotive blade-type fu- ses. The following fuses are used in the systems: Designation System N2/1 System N4/x Mains fuse 0.8 A T 2 A T Charger supply 0.8 A T 1.25 A T Motor power supply...
  • Page 38: Configuration Table

    Configuration table   System model E 260N  Alarm group Number of RWA switches  Number of smoke sensors/heat differential sensors  Closes the windows  Opens the windows    Ventilator groups Ventilator group 1 Number of drives Number of ventilator switches ...
  • Page 39: Index

    4 Index Alarm group ......18 Rain/wind sensor .....8 RWA switch ......... 8 Resetting ......11 RWA-Emergency Power Components ..... 6 Control System Configuration ......19 Components ...... 18 Connection options ....19 Reset ........12 Drives .......... 8 Safety instructions ....... 4 Signals Alarm ........
  • Page 40 97944 Boxberg-Schweigern Tel. +49 (0) 7930 9294 0 Baltic States Iberia Singapore Fax +49 (0) 7930 9294 10 GEZE GmbH Baltic States office GEZE Iberia S.R.L. GEZE (Asia Pacific) Pte, Ltd. E-Mail: sk.de@geze.com E-Mail: office-latvia@geze.com E-Mail: info@geze.es E-Mail: gezesea@geze.com.sg www.geze.com...
