2 . Using the Scan Tool

1
1
1
1

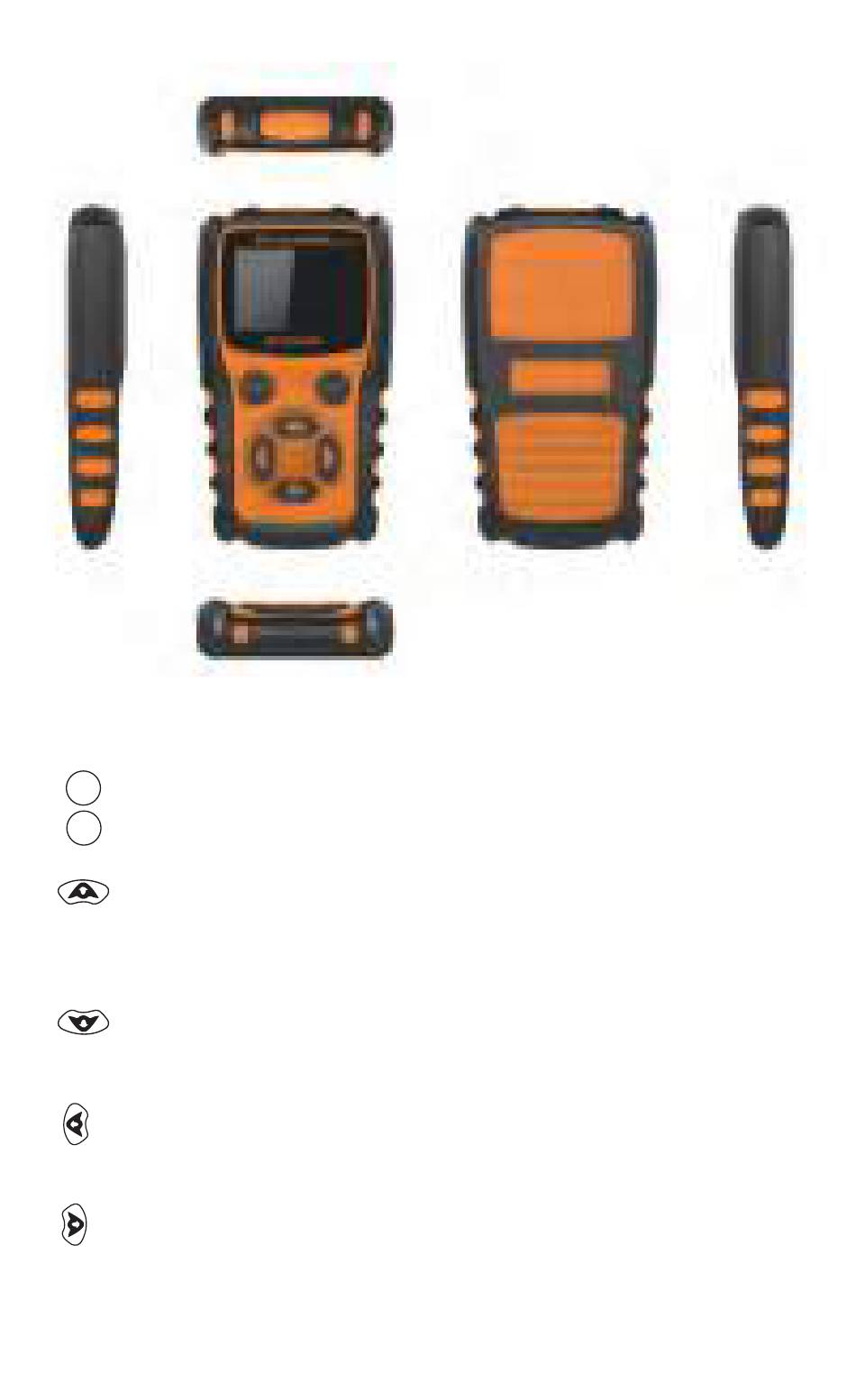

2 .1 Tool Description - DN-3000
1. LCD DISPLAY – Indicates test results.2.8''TFT 262k true color.
2. ENTER BUTTON – Confirms a selection (or action) from a menu.
ENTER
3. EXIT BUTTON – Cancels a selection (or action) from a menu or returns to
EXIT
the menu. It is also used to setup system, exit DTC Lookup screen.
4. UP SCROLL BUTTON – Moves up through menu and submenu items in
menu mode. When more than one screen of data is retrieved, moves up through the
current screen to the previous screens for additional data. UpData the DTC lib need
press this button,When Tools connected with PC by Usb cable.
5. DOWN SCROLL BUTTON – Moves down through menu and submenu items
in menu mode. When more than one screen of data is retrieved, moves down
through the current screen to next screens for additional data.
6. LEFT SCROLL BUTTON – When looking up datastream.
If datastream display more than one screen,or turn page up or down
When more than one page is displayed.
7. RIGHT SCROLL BUTTON – When looking up datastream.
If datastream display more than one screen,or turn page up or down
When more than one page is displayed.
8. OBD II CONNECTOR – Connects the scan tool to the vehicle's Data Link
Connector (DLC).
