(6) Tank (with evaporator) (7) Seal sleeve (8) Filter (side filter models only) (9) Side filter cover (10) Middle cover with power supply switch (DC300/DC750 only) (11) Water inlet and outlet adaptor (12) Nut (13) Handle where applicable (14) Back cover (15) Condenser (16) Fan (17) Base (18) Compressor (19) Junction box (20) Back cover of circuit board.

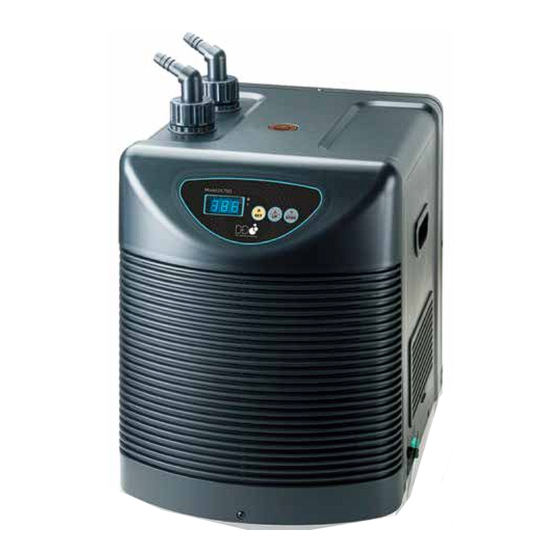

INTRODUCTION Thank you for purchasing a D-D DC series aquarium chiller, which offers an economical and technologically advanced solution to the cooling of your aquarium. Excessive temperatures in your aquarium can now be quickly and easily controlled by selecting the correct model from the D-D DC chiller range, which use a heat exchanger that is manufactured from high-grade pure titanium, making the chillers suitable for applications in fresh or salt water aquariums.
EXAMPLE PERFORMANCE CURVES AMBIENT TEMPERATURE: 30°C. INITIAL WATER TEMPERATURE 28ºC. REFRIGERATED WATER VOLUME: DC300 - 150L, DC750 - 300L, DC2200 - 1000L, DC4000 - 2000L The refrigeration performance test is carried out at an ambient temperature of 30°C without any other additional heat sources.
INSTALLATION When the chiller carton is unpacked, check to see if the chiller is the right model and that no damage to the unit has occurred during transportation. You should also check that all spare parts and accessories are included as listed below.
Page 6
3. SUGGESTIONS FOR INSTALLATION: 1. Electrical work must be done by a qualified electrician. 2. A dedicated power outlet should be used for the unit. 3. Ensure that the power source conforms to the power requirements specified on the product nameplate. 4.
OPERATION Note: Before starting the chiller, you must run the pump to ensure the correct operation of the water circulating/ filtration system. There are three buttons for changing or setting the temperature on the control panel. (4 buttons on the DC4000 model) AQUARIUM TEMPERATURE DISPLAY &...
Page 8
TEMPERATURE CALIBRATION It is possible to calibrate the temperature of your chiller to match another piece of equipment, such as a high precision thermometer/temperature controller/aquarium computer, or to create an offset to match the water temperature in the aquarium if the chiller is remotely positioned. Press the together and hold for 6 seconds.
CLEANING AND MAINTENANCE 1. Cleaning of the circulating system and the filtration system is recommended each month to maintain maximum refrigeration operation and efficiency. Always unplug the cord from the outlet before cleaning. Rinse collected debris from the filter media, inlet & outlet pipe, flow diverter, impeller and chamber cover in clean lukewarm tap water.
GUIDE TO SIMPLE PROBLEM SOLVING Before calling customer service, please check the following chart for possible causes to the problems you are experiencing. SYMPTOM CAUSE SOLUTION The chiller does not run and the display is Power not turned on Turn on the power dead.
Page 11
