ASCOM SRU Installation Guide
HOW TO INSTALL AND CONNECT THE ASCOM SRU

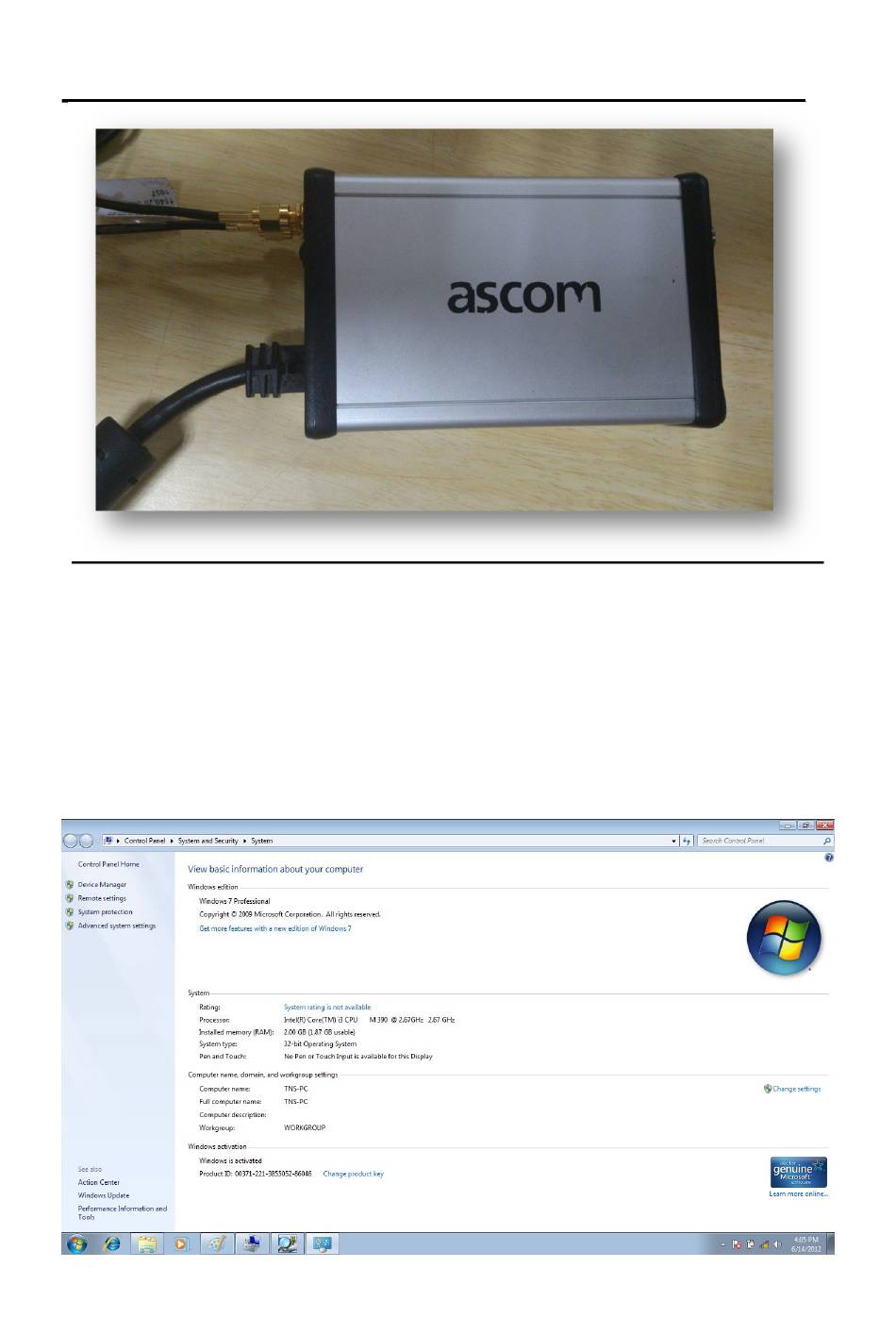

Minimum Configuration required for connecting the ASCOM SRU (F3607)‐
1‐ Operating System should be
a. Win XP (SP3)
b. Win 7 (32 bits) Professional and above preferred.
2‐ Processor should be min Intel i3
3‐ RAM should be min 2GB (For one ASCOM SRU and one TEMS Handset Drive
Test)
Telecom Network Solutions (P) Ltd., Noida‐201301
Confidential: For Internal Circulation Only
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ASCOM F3607
Summary of Contents for ASCOM F3607
- Page 1 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only HOW TO INSTALL AND CONNECT THE ASCOM SRU Minimum Configuration required for connecting the ASCOM SRU (F3607)‐ 1‐ Operating System should be a. Win XP (SP3) b. Win 7 (32 bits) Professional and above preferred. 2‐ Processor should be min Intel i3 3‐ RAM should be min 2GB (For one ASCOM SRU and one TEMS Handset Drive Test) Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 2 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Installation Steps‐ Computer Manage Select Device Manager ASCOM SRU is having heaving two USB 2.0 connectors 1‐ Black For Data 2‐ Red For Power Connection to SRU- a- First Connect SRM RF Antenna (Primary/ Diverse) to the SRU. b‐ Now connect the Cable to the SRU. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 3 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Connection with Laptop- Plug in the Black USB in the Laptop‐ Microsoft Window pop up will open just ignore it. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 4 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Now plug in the Red USB in the Laptop. Now select Open folder to view files. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 5 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Now select Open folder to view files. Now select the Setup Folder option Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 6 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Double click on Setup; TEMS Device Manager Setup is ready to installation, Just click on Install Installation Starts‐ Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 7 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Just select the next option‐ Without changing select next option‐ Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 8 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Without changing select next option‐ Setup is running please be patience‐ Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 9 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Now select the Close option. Now go to the Drivers Folder Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 10 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Open “TEMS CP210x VCP (5.4.0.0)” Folder Now double click on CP210xVCPInstaller Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 11 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Windows Security alert window will open, Just select “Install this driver software anyways” Wait until all the drivers will install properly‐ (This will appear at the right bottom corner or your screen) Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 12 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Now you can check it in the Device Manager that the driver of CP210x is installed properly. Important Note: After installation of CP210x Drivers, F3607gw is deducted in device manager and drivers is not installed if it is not detecting in Device manager than please plug out the Red USB and re plug in it. Now open “Ericsson F3607 gw (6.0.13.2)” Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 13 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Now double click on “setup32” A setup start installation‐ Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 14 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Without changing select next option Without changing select next option Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 15 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Now select Install option Just wait for few min (Depending on System configration) Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 16 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Windows Security alert window will open, just select “Install this driver software anyways”, this will appear seven times always select “Install this driver software anyways”. Now select the Finish option. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 17 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Just wait until all the drivers are properly install, you can check in Device manager also. If three ports are showing in Ports (COM & LPT), then SRU is installed properly. You can also check it in TEMS Investigation. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 18 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Start All Programs ASCOM TEMS ProductsTEMS Investigation. TEMS is opening just wait for few min. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 19 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only EQ1‐ is showing ASCOM SRU now you can collect it (Activate it)also. Telecom Network Solutions (P) Ltd., Noida‐201301 ...
- Page 20 ASCOM SRU Installation Guide Confidential: For Internal Circulation Only Enjoy your Work… ! Have a nice time Telecom Network Solutions (P) Ltd., Noida‐201301 ...
