NRG IceFree3™ Vane
NRG Turbine Control Vane
User Manual
NRG Systems, Inc. • 110 Riggs Road • Hinesburg • VT 05461 USA
TEL 802-482-2255 • FAX 802-482-2272 • EMAIL sales@nrgsystems.com
IceFree3_Turbine_Control_Vane_Manual
|
Rev 3.0
|
30 January 2015
|
support@renewableNRGsystems.com
||
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the IceFree3 and is the answer not in the manual?

Questions and answers

Related Manuals for NRG Systems IceFree3

Summary of Contents for NRG Systems IceFree3

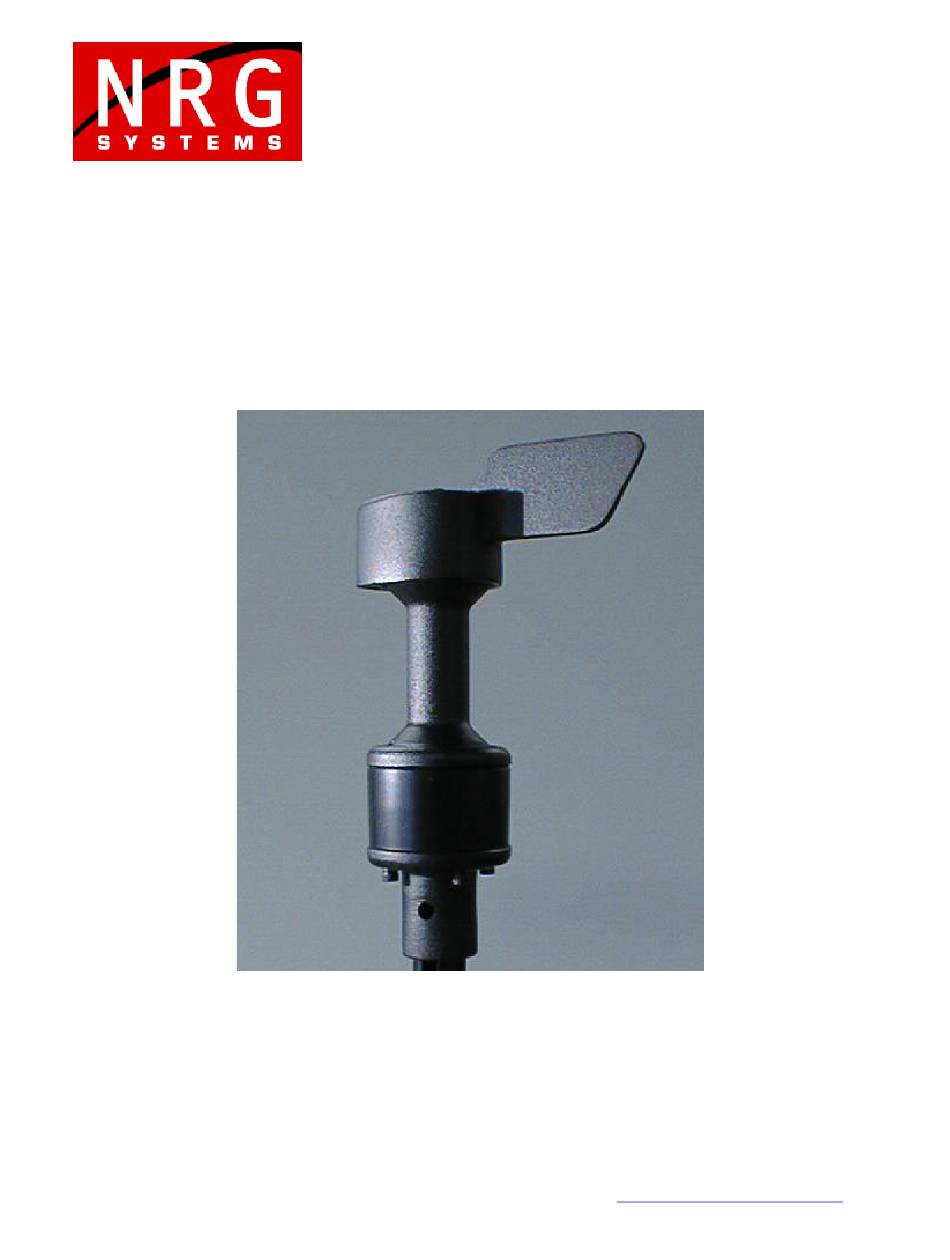

  • Page 1 NRG IceFree3™ Vane NRG Turbine Control Vane User Manual NRG Systems, Inc. • 110 Riggs Road • Hinesburg • VT 05461 USA TEL 802-482-2255 • FAX 802-482-2272 • EMAIL sales@nrgsystems.com IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
  • Page 2 Specifications are subject to change without notice. © NRG Systems, Inc. PO Box 509 Hinesburg VT 05461 Tel: 802-482-2255 Fax: 802-482-2272 e-mail: sales@nrgsystems.com IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...

  • Page 3: Table Of Contents

    Introduction ..........................4 Sensor Identification and Quick ID Table ................5 General Sensor Information ....................7 NRG IceFree3™ Yaw Vane 4ch, NPN ..................8 NRG IceFree3™ Yaw Vane 1ch, PNP ..................14 NRG IceFree3™ Yaw Vane 2ch, PNP ..................19 NRG Turbine Control Yaw Vane ....................

  • Page 4: Customer Support

    Customer Support NRG Systems offers a variety of support options to help you get the most from your NRG product. If you have questions about your NRG product, first look in the printed product documentation, the Knowledge Base, or in the Technical Forum in the Tech Support section of NRG’s web site.

  • Page 5: Introduction

    Rotation of the vane indicates yaw errors and provides output signals relative to the fixed vane base. The IceFree3™ is reliable in heavy and light winds. It is rugged enough to accurately measure winds in excess of 90 meters per second (200 miles per hour), yet its low moment of inertia allows it to respond to winds as low as 2.0 m/s.
  • Page 6 Finished Good (FG) numbers are used to refer to the sensor itself. A Kit number always includes the FG number, but may include item accessories as well. Always use the Kit # when placing an order. Quick ID: NRG IceFree3™ Vanes (Heated) Product...
  • Page 7  Heated yaw error vane NRG IceFree3™ Yaw Vane  Four NPN outputs 4 Ch, NPN, 8.0 m, M8 #3292 #3291  8.0m cable  8mm Mounting Screw NRG IceFree3™ Yaw Vane  Heated yaw error vane  4 Ch, NPN, 10.0 m...

  • Page 8: General Sensor Information

    The IceFree3’s self-regulating feature increases its reliability, insuring that the head does not reach excessive temperatures. The IceFree3 heater is powered by 24 volt power, AC or DC, making it compatible with a wide range of remote site equipment. An optional 120/240V - 24 VAC transformer is also available.
  • Page 9 Sensor Maintenance The bearings used in the IceFree3 sensors will last a minimum of 2 years. Sensor bearing life is variable and depends upon the amount of exposure to salinity, dust, moisture, icing, vibration, and other environmental factors. These factors independently, or in combination with each other, may reduce the bearing life. Routine maintenance should be considered at 2 year intervals.
  • Page 10 FG# 2443, 4102, 2650, 3291, 3448, 2848 NPN Output Circuit Operation The IceFree3™ yaw vane has four output signals, each centered on one of the four cardinal directions. The outputs are open-collector type; they sink current to signal ground when active and are high impedance when inactive.
  • Page 11 Interpreting Output Signals – 4 Channels The diagrams and table below indicate when each of the four outputs is active (1) or inactive (0) for each relative direction the nose is pointing. For example, if the vane nose is pointing 55 degrees relative to the base, the VR output (blue wire) and VR90 output (orange wire) will become active.
  • Page 12 [ Kit# 2451, 4107, 2652, 3450, 2850 ] [ FG# 2443, 4102, 2650, 3448, 2848 ] Sensor and Mounting Outline IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
  • Page 13 [ Kit# 3292, FG#3291 ] M8 Sensor and Mounting Outline IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
  • Page 14 [ Kit# 2451, 4107, 2652, 3292, 3450, 2850 ] [ FG# 2443, 4102, 2650, 3291, 3448, 2848 ] Specifications Sensor type heated yaw error vane Description Applications wind turbine yaw control Sensor range mechanical range 360°  four NPN outputs, open-collector, active outputs sink current ...
  • Page 15 Shaft centerless ground, stainless steel  upper: sealed, stainless steel, ball bearing with application Bearing specific lubrication  lower: modified teflon bearing precision balanced aluminum with black anodized finish and heat- Wing resistant black paint  Signal: 6 conductor 22 AWG, Teflon jacket with braid shield and drain, 3.6 m (12 feet) long Cable ...
  • Page 16 FG# 2807, 3057 PNP Output Circuit Operation The IceFree3™ Yaw Error sensor has one output signal. The output is “PNP”, which means an active output sources current from the sensor supply to the load on the output. Typically, the output is used by connecting the output to a grounded load such as a relay or optical isolator in the turbine controller.
  • Page 17 Interpreting Output Signals – 1 Channel The diagrams and table below indicate when the output is active (1) or inactive (0), for each relative direction the nose is pointing. For example, if the vane nose is pointing 205 degrees relative to the base, the VR output (blue wire) will become active.
  • Page 18 [Kit# 2808, 3059] [FG# 2807, 3057] Sensor and Mounting Outline IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
  • Page 19 [Kit# 2808, 3059] [FG# 2807, 3057] Specifications Sensor type heated yaw error vane Description Applications wind turbine yaw control Sensor range mechanical range 360°  one PNP output, active output sources current from the sensor power supply Signal type  can source up to 25 mA to within 1 V of the supply voltage Output signal ...
  • Page 20  upper: sealed, stainless steel, ball bearing with application Bearing specific lubrication  lower: modified teflon bearing precision balanced aluminum with black anodized finish and heat- Wing resistant black paint  Signal: 3 conductor 22 AWG, Teflon jacket with braid shield and drain, Cable ...
  • Page 21 FG# 3480 PNP Output Circuit Operation The IceFree3™ Yaw Error sensor has one output signal. The output is “PNP”, which means an active output sources current from the sensor supply to the load on the output. Typically, the output is used by connecting the output to a grounded load such as a relay or optical isolator in the turbine controller.
  • Page 22 Interpreting Output Signals – 2 Channels The diagrams and table below indicate when each of the two outputs is active (1) or inactive (0), for each relative direction the nose is pointing. For example, if the vane nose is pointing 35 degrees relative to the base, the V90 output (green wire) will become active.
  • Page 23 [ Kit# 3482, FG#3480 ] Sensor and Mounting Outline IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
  • Page 24 [ Kit# 3482, FG#3480 ] Specifications Sensor type heated yaw control vane Applications wind turbine yaw control Description Sensor range mechanical range 360° Instrument digital inputs of turbine controllers and PLCs compatibility  PNP outputs: active high output sources current to the sensor output load from the sensor power supply;...
  • Page 25  upper: sealed, stainless steel, ball bearing with application specific Bearing lubrication  lower: modified teflon bearing precision balanced aluminum with black anodized finish and heat- Wing resistant black paint  Signal: 4 conductor 22 AWG, Teflon jacket with braid shield and drain, Cable ...

  • Page 26: Nrg Turbine Control Yaw Vane

    NRG Turbine Control Yaw Vane (Unheated) 2 Ch, PNP Kit# 3581 FG# 3579 PNP Output Circuit Operation The NRG Turbine Control Yaw Vane has two output signals. The outputs are “PNP”, which means that an active output sources current from the sensor supply to the load on the output. Typically, these outputs are used by connecting the output to a grounded load such as a relay or optical isolator in the turbine controller.
  • Page 27 Interpreting Output Signals – 2 Channels The diagrams and table below indicate when each of the two outputs is active (1) or inactive (0), for each relative direction the nose is pointing. For example, if the vane nose is pointing 35 degrees relative to the base, the V90 output (green wire) will become active.
  • Page 28 [ Kit# 3581, FG# 3579 ] Sensor and Mounting Outline IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
  • Page 29 [ Kit# 3581, FG#3579 ] Specifications Sensor type yaw error vane Description Applications wind turbine yaw control Sensor range mechanical range 360°  PNP outputs: active high output sources current to the sensor output load from the sensor power supply; inactive low output is pulled down to ground by sensor output load Signal type ...

  • Page 30: Warranty & Repair

    Warranty & Repair Two Year Limited Warranty NRG Systems, Inc. (NRG) warrants its products for a period of two years from the date of original purchase solely for the benefit of the original consumer purchaser. If this NRG product is determined to be defective in materials or workmanship, NRG will, at NRG’s option, repair or replace this product...

  • Page 31: Return Instructions

    Return Instructions (Repairs) If you wish to return an item to NRG Systems for repair or any other reason, please before shipping contact NRG’s Service Department by phone (802) 482-2255 or fax (802) 482- 2272 to obtain a Return Material Authorization (RMA) Number. The RMA Number allows us to track and route your shipment or repair.
  • Page 32 IceFree3_Turbine_Control_Vane_Manual Rev 3.0 30 January 2015 support@renewableNRGsystems.com...
